Ceiling Concealed Duct

LG Ceiling Concealed Duct is a concealed cooling and heating solution that provides optimal temperature control without affecting interior aesthetics.

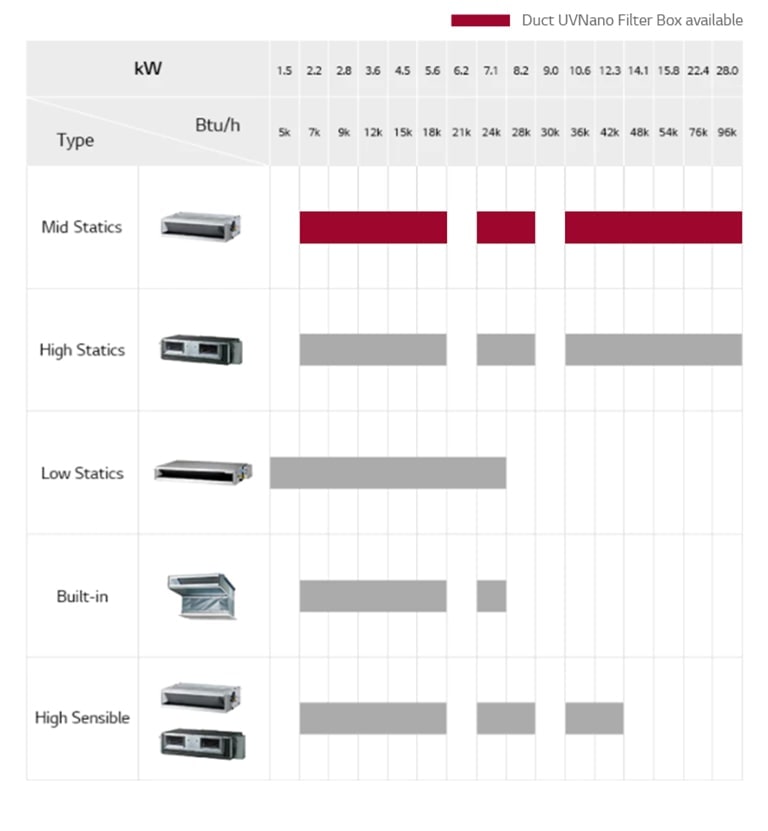

Features Solution Application Lineup

Features

INQUIRE TO BUY

Clean and Fresh air with LG Duct UVnano Filter box

LG Ceiling Concealed Duct with Duct UVnano Filter Box can provide the suitable solution for Clean and Fresh Environment

An LG Ceiling Concealed Duct, centered atop the office wall, perceptibly emits a stream of green airflow, blending seamlessly into the environment.

* LG Duct UVnano Filter Box needs to be purchased additionally as an option. The applicable model should be checked with the local office when purchasing.

The LG Concealed duct, viewed from the side, draws air from the left duct while two right ducts expel air into the meeting room.

Powerful Removal of Dust and Virus

LG UVnano Duct Filter Box is a dust and virus removal solution that reflects increased indoor air quality needs. Simply assemble the filter box with the duct to sterilize a pre-filter with UVnano and remove bacteria and viruses with MERV13 filter

UVnano™

MERV 13 Filter

Certified by

Pre-Filter

It captures parts of fine dust, bacteria, and viruses in the droplet

UVnano™

It sterilizes up to 99.99% of bacteria and viruses in the pre-filter

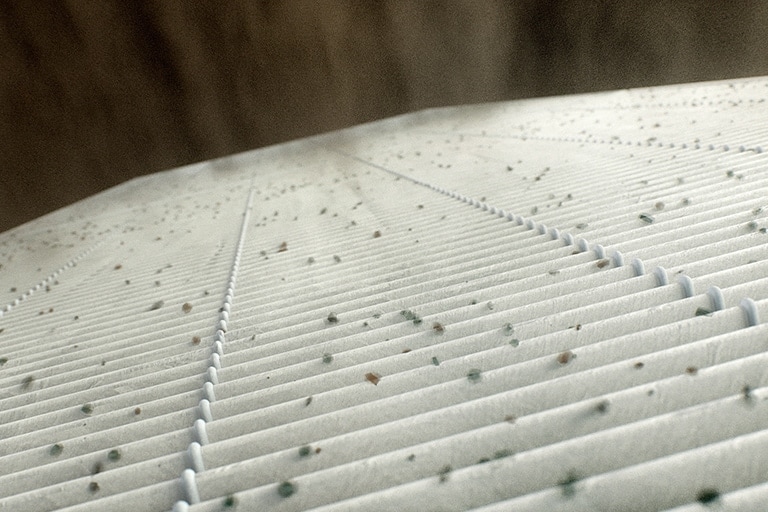

MERV 13 Filter

MERV 13 Filter removes 1-3 μm particles over 85%, 0.3-1 μm over 50%. It has more than 89.93% efficiency when viruses spread in droplet form (*Based on the result of ASHRAE test)

* Based on ASHRAE Standard's experiment data.

Easy Installation of LG Duct UVnano Filter Box

Easy to assemble with Duct and simple to maintain

Parts of the UVnano Filter Box are meticulously assembled and securely fastened with bolts into the LG Ceiling Concealed Duct.

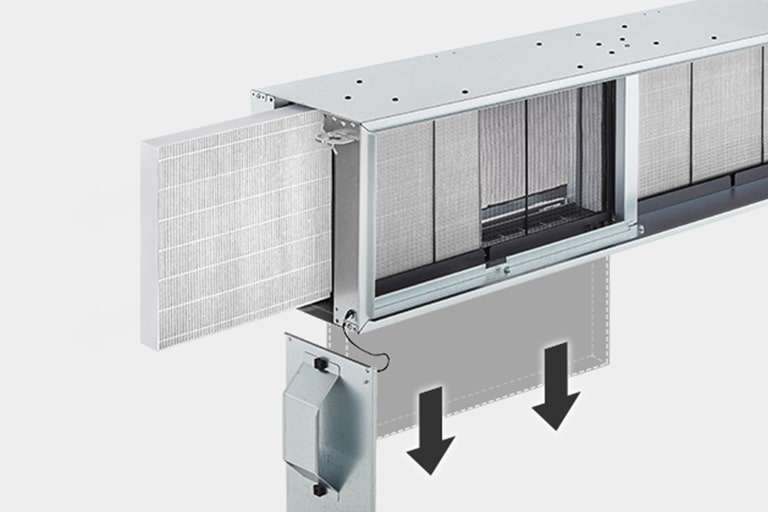

The LG Ceiling Concealed Duct's side and bottom panels are open, with half the filter pulled out, and a black arrow guiding the extraction direction.

Filter Replacement

MERV13 filter is recommended for replacement after 960 hours of use. The filter can be easily disassembled through the side or bottom

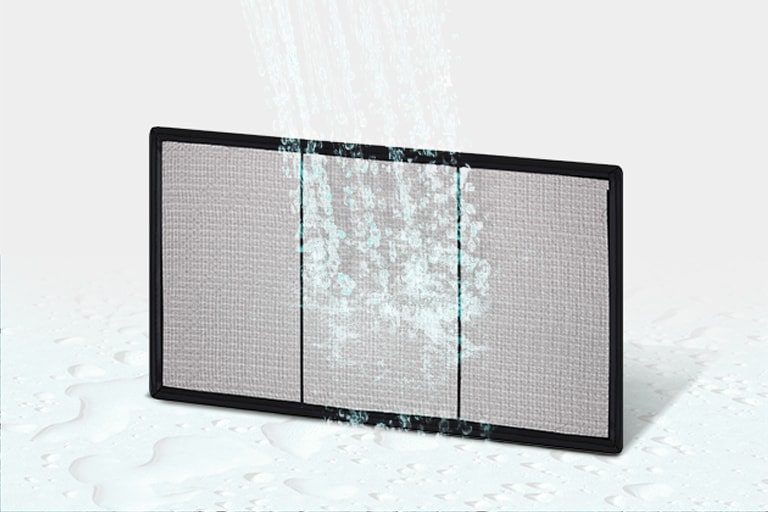

The black exterior framework and mesh central pre-filter are thoroughly cleaned, with water cascading from above.

Washable Filter

Pre-Filter can be reused after washing with water without replacement

* The replacement cycle of filter may vary depending on the environment.
** The hours indicate the time the filter has been used until the rated air flow rate drops to about 30%.

The LG Ceiling Concealed Duct is emitting a visible blue airflow, permeating multiple square-outlined rooms.

Operation for Multiple Rooms

Using a spiral duct (embedded or flexible type) and stream chamber, it is possible to operate cooling and heating for several rooms simultaneously.

The LG Ceiling Concealed Duct, viewed from the side, draws air from the left duct while two right ducts expel air into the meeting room.

E.S.P. Control

E.S.P. (External Static Pressure) control function can make air volume controlled easily with remote controller. The BLDC motor can control fan speed and air volume regardless of the external static pressure. No additional accessories are necessary to control air flow.

Installed on the conference room ceiling, the LG Ceiling Concealed Duct is linked to a remote controller on the left wall by a red dotted line.

Two Thermistors Control

The indoor temperature can be checked using the thermistors in the remote controller, as well as from the indoor unit to sensor temperature difference in one place. Two thermistors can optimize indoor air temperature for a more comfortable environment.
