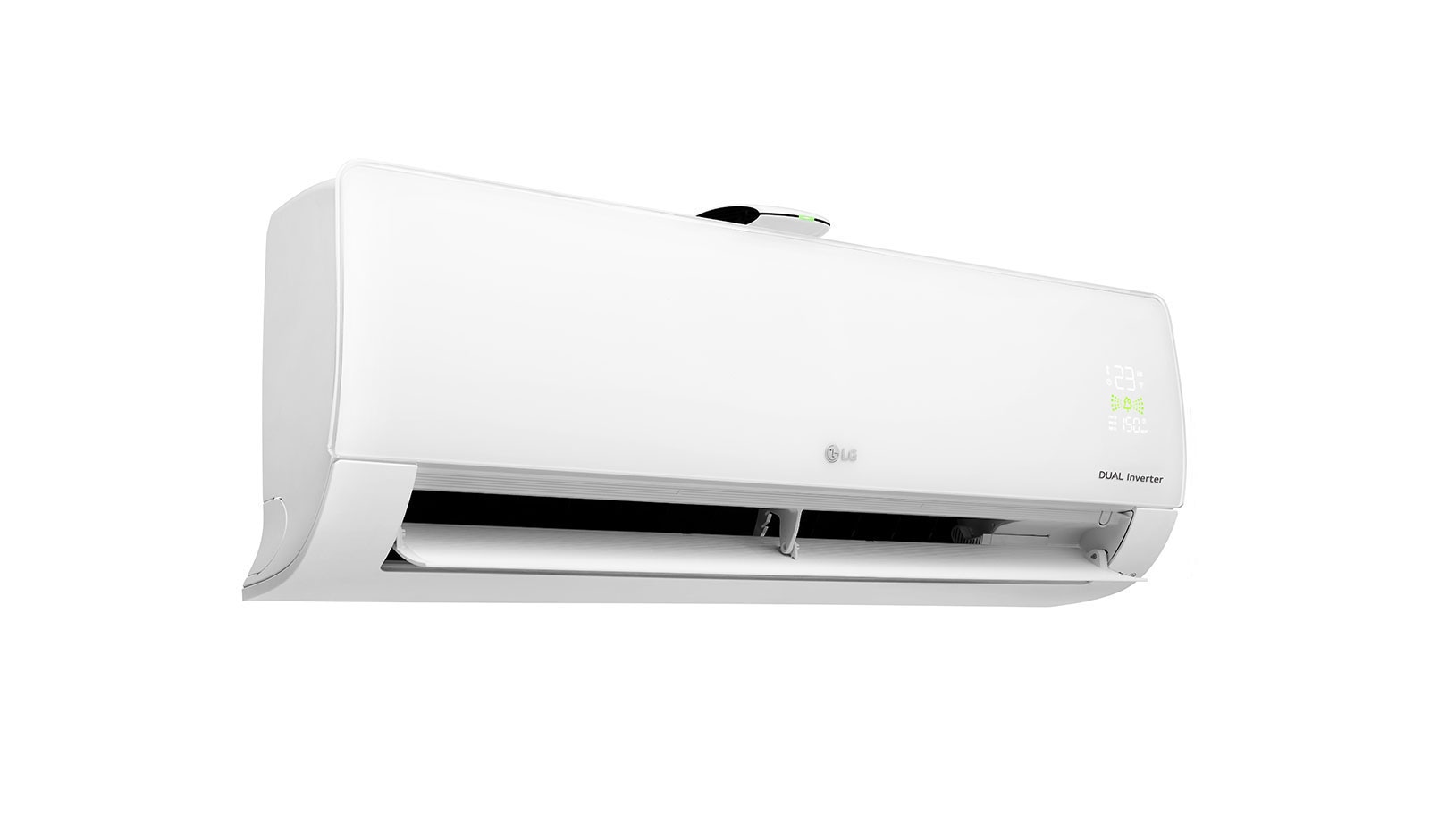

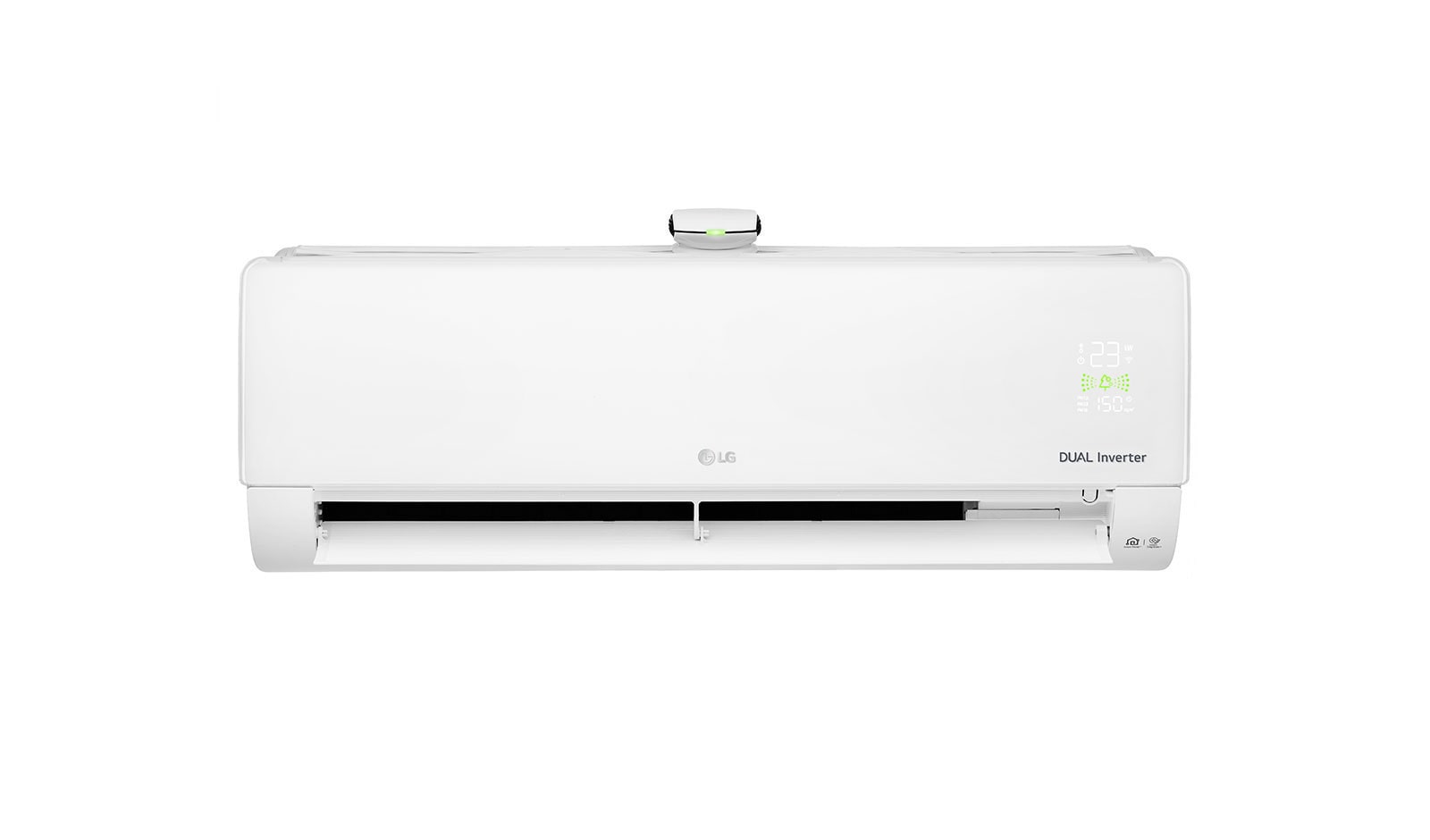

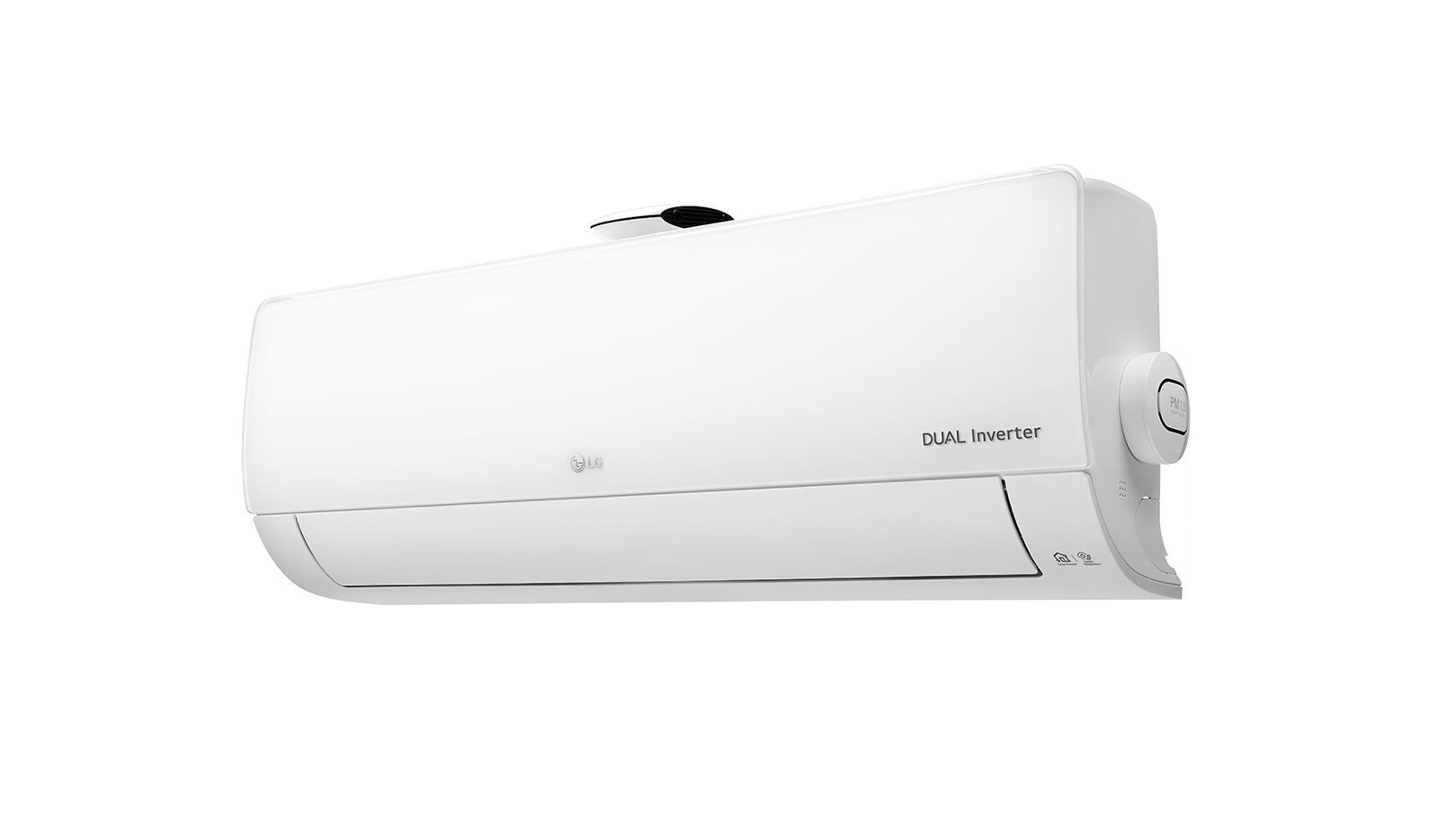

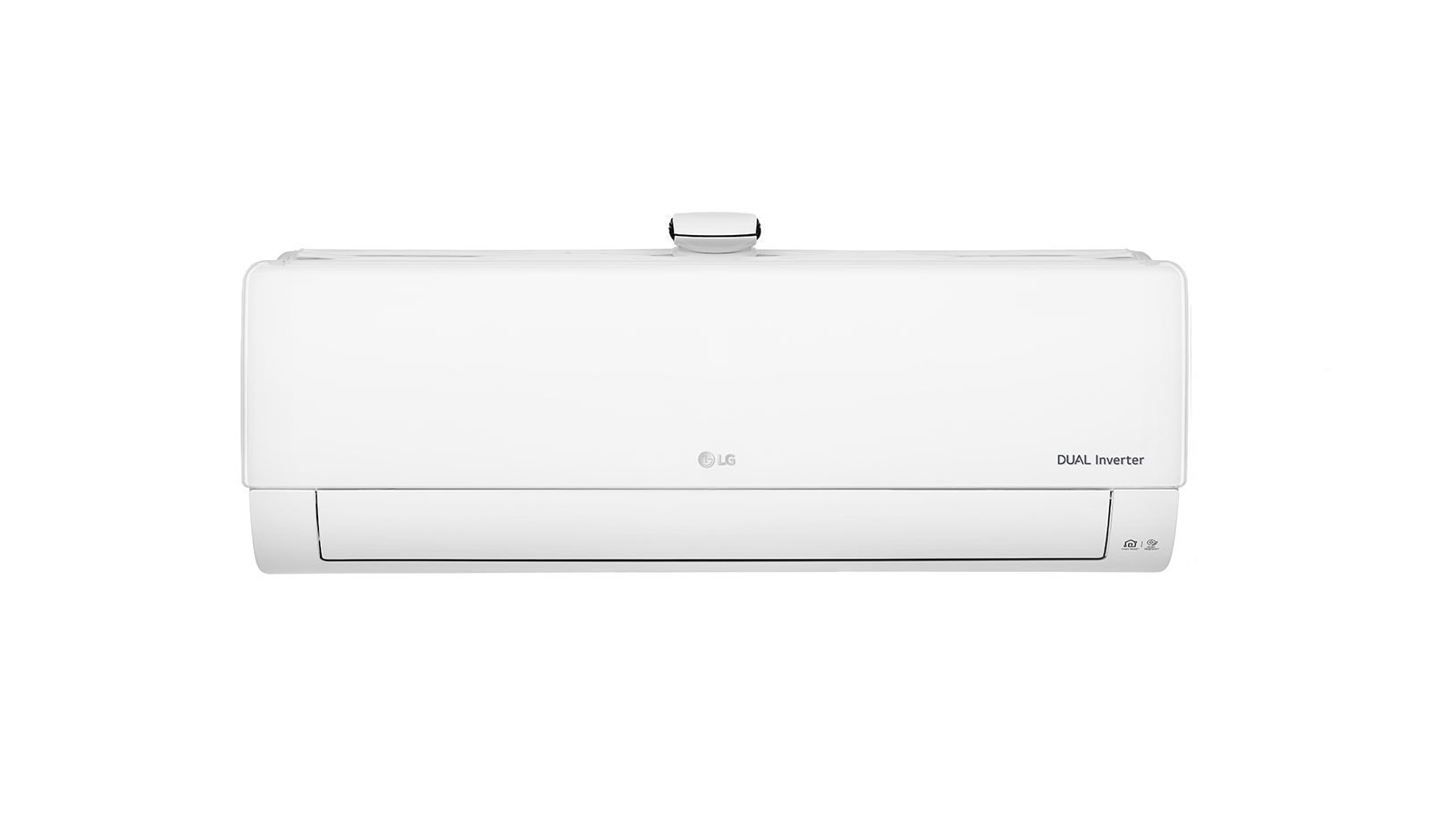

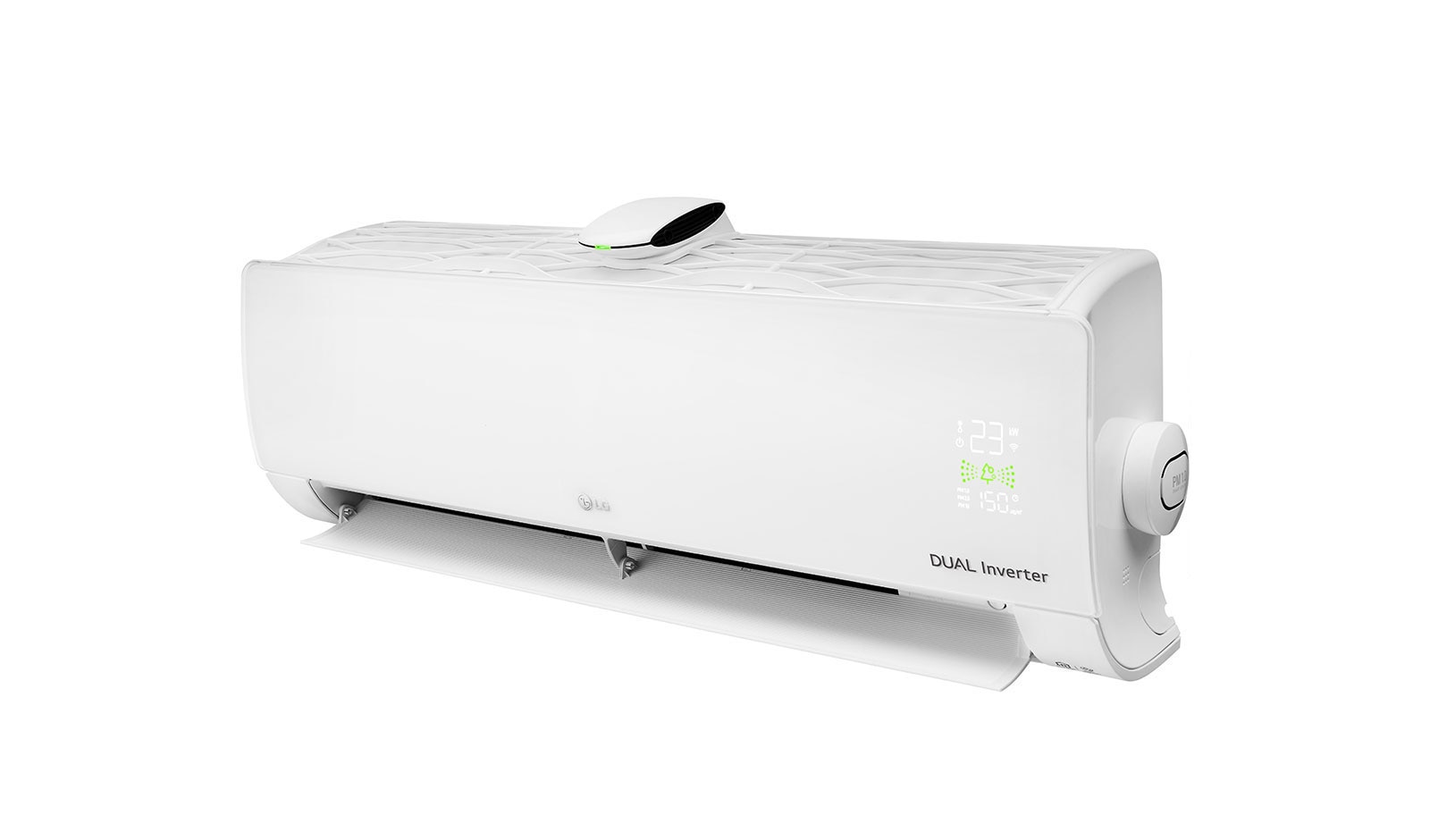

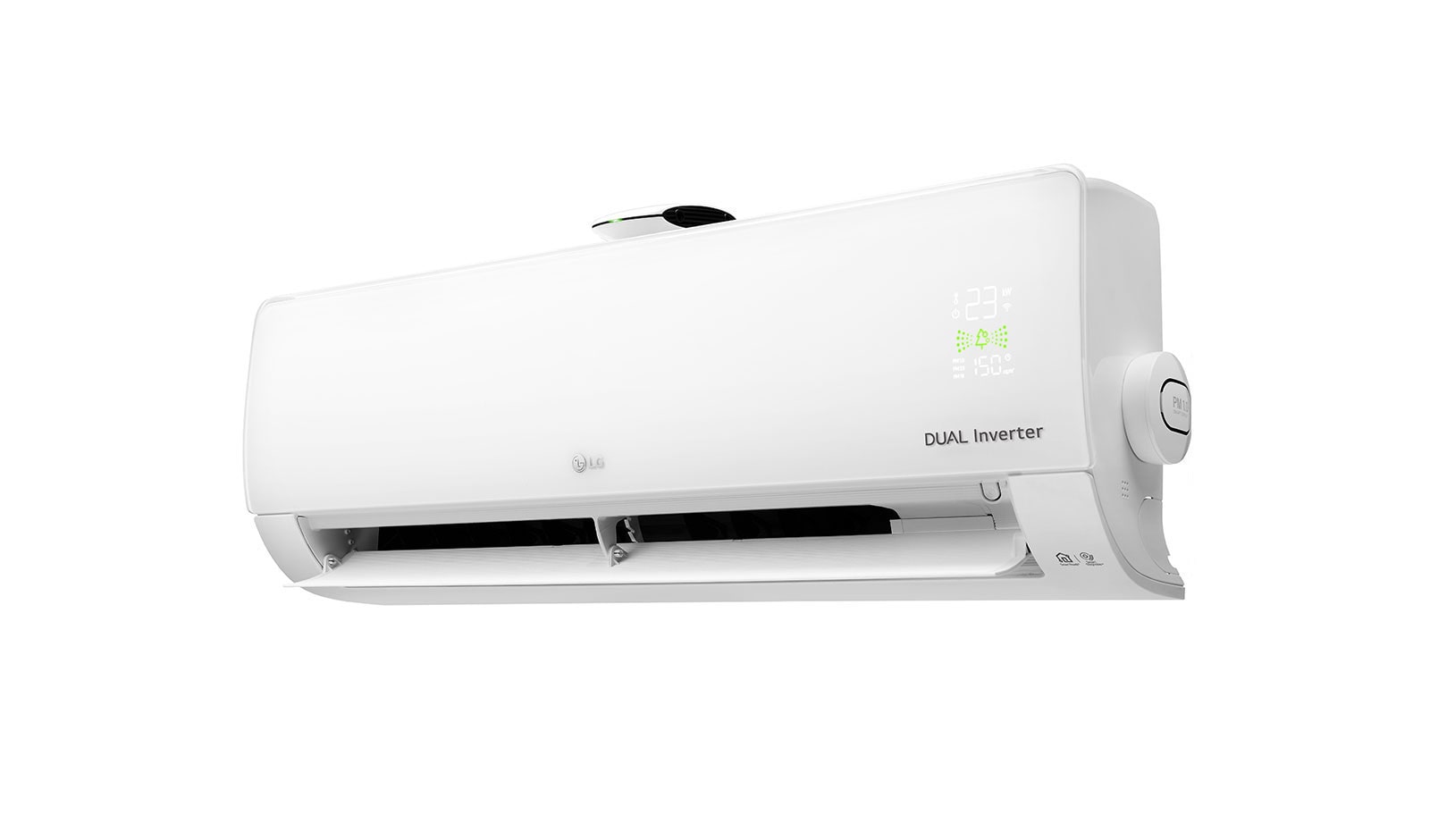

1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe

Specs

Reviews

Support

1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe

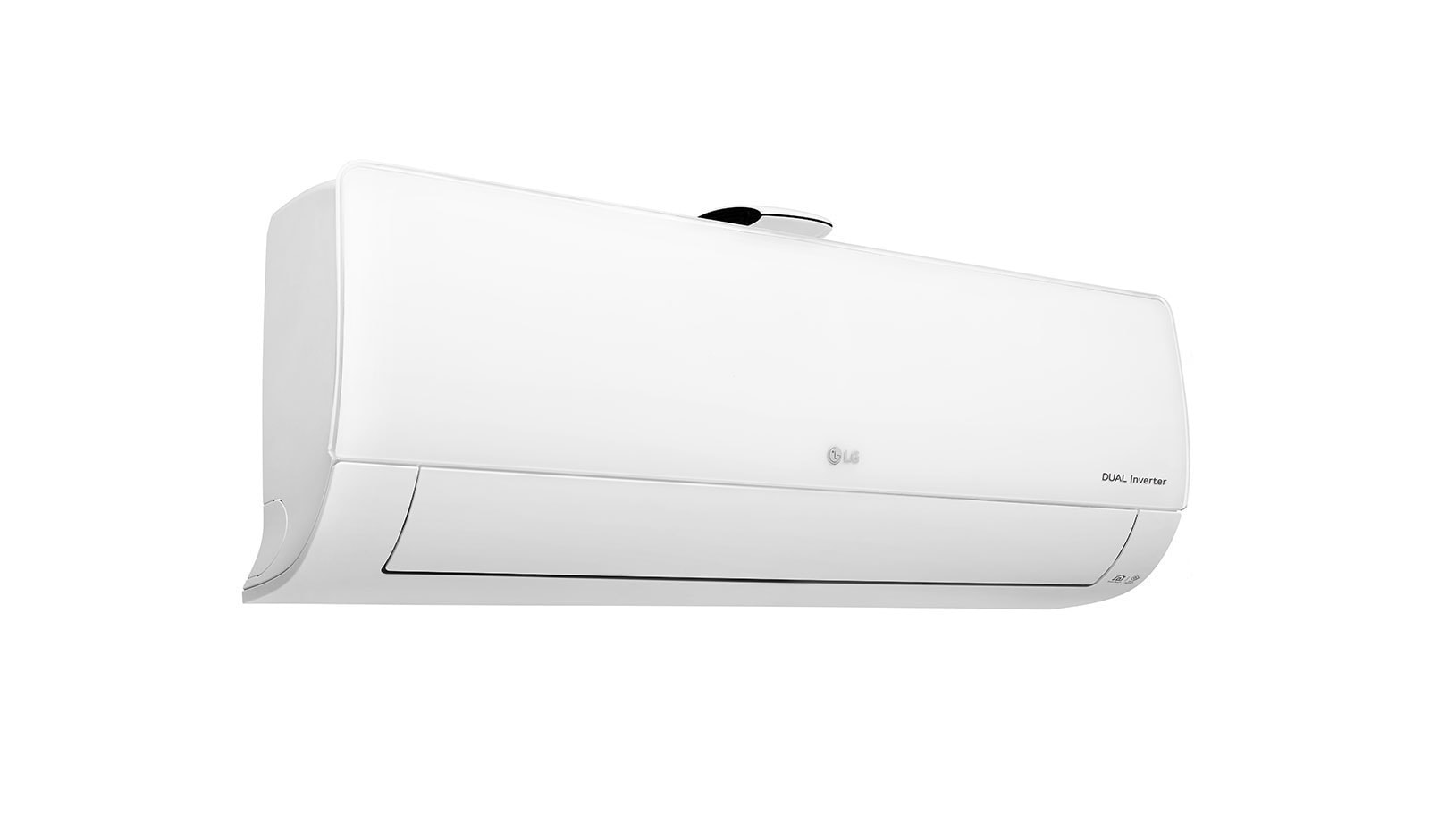

HSN09APD

1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe

()
  • LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
  • LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
  • LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
  • LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
  • LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
  • LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
  • LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
  • LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
  • LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD
LG 1.0 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe, HSN09APD

Key Features

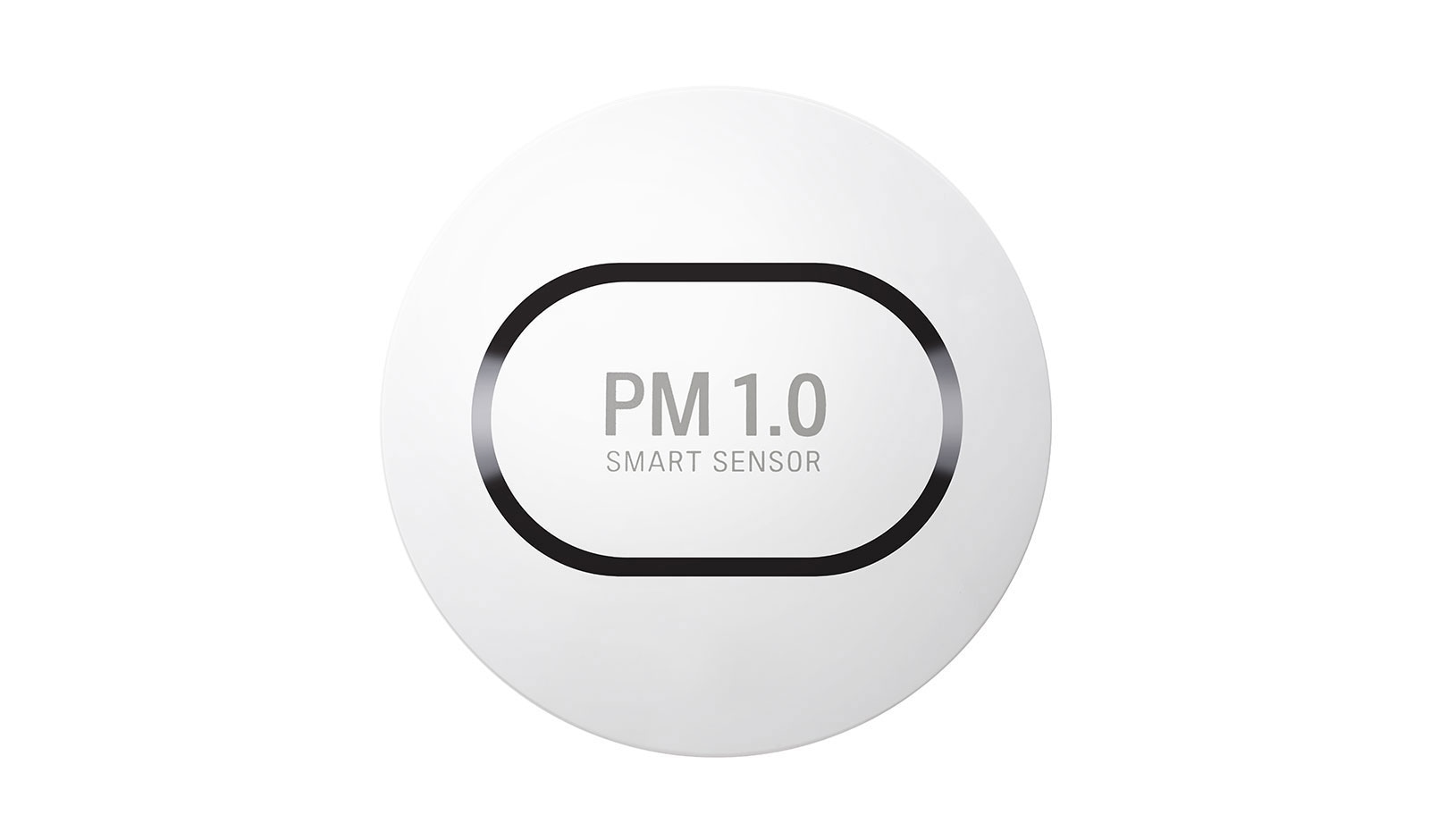

  • Air Purifying: As Clean as It is Cool
  • Dual Inverter
  • Energy Saving
  • Fast Cooling
  • Low noise
  • Simple and Slim Design with Hidden Display
More

Summary

Print

DIMENSIONS

All Spec

CAPACITY

  • Cooling (Min ~ Rated ~ Max)

    0.94 ~ 2.60 ~ 2.89 kW
    3,194 ~ 8,871 ~ 9,858 Btu/h
    3,370 ~ 9,359 ~ 10,400 kJ/h

POWER INPUT

  • Cooling (Min ~ Rated ~ Max)

    215 ~ 640 ~ 750 W

RUNNING CURRENT

  • Cooling (Min ~ Rated ~ Max)

    1.30 ~ 3.70 ~ 4.50 A

EER

  • EER

    4.06 W/W
    13.86 (Btu/h)/W
    14.62 (kJ/h)/W

POWER SUPPLY

  • Power Supply

    1, 230, 60 (Ø, V, Hz)

  • Available Voltage Range

    187 ~ 276 V

  • Power Factor - Cooling

    81%

  • Moisture Removal

    1.25 l/h

INDOOR UNIT

  • Air Flow Rate - Cooling, Max/H/M/L

    10.5 / 9 / 6.6 / 4.2 m³/min

  • Sound Pressure Level - Cooling, Max/H/M/L/SL

    - / 39 / 33 / 27 / 21 dB(A)

  • Dimensions (W × H × D) - Net

    857 × 348 × 190 mm

  • Dimensions (W × H × D) - Shipping

    915 × 401 × 251 mm

  • Weight - Net

    9.6kg

  • Weight - Shipping

    10.9kg

  • Exterior Color Code

    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR UNIT

  • Air Flow Rate - Max

    28.0 m³/min

  • Sound Pressure Level - Cooling, Rated

    50 dB(A)

  • Dimensions (W × H × D) - Net

    720 x 500 x 230 mm

  • Dimensions (W × H × D) - Shipping

    839 x 532 x 324 mm

  • Weight - Net

    22.7kg

  • Weight - Shipping

    24.4kg

  • Max. Fuse Size

    20A

  • Exterior Color Code

    Munsell 9.54Y 8.34/1.31 (RAL 9001)

  • Operation Range - Cooling

    18 ~ 48 °C DB

CIRCUIT BREAKER

  • Circuit Breaker

    15A

  • Power Supply Cable

    3 x 1 No. x mm²

  • Power Supply to Unit

    Indoor

  • Power and Communication Cable

    4 x 1 No. x mm²

PIPING

  • Size - Liquid

    ø 6.35 mm

  • Size - Gas

    ø 9.52 mm

  • Connections Method - Indoor/Outdoor

    Flared/Flared

  • Drain Hose Size - O.D, I.D

    21.5, 16.0 mm

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min/Standard/Max

    3/7.5/20 m

  • Piping Length - No Change

    12.5 m

  • Max. Elevation Difference

    15m

  • Piping Connection Heat Insulation

    Both liquid and gas pipes

REFRIGERANT

  • Type

    R32

  • Pre Charge

    450g

  • Additional Charge

    15g/m

  • Control

    Capillary

  • Global Warning Potential

    675

  • t-CO₂ eq

    0.304

COMPRESSOR

  • Type

    Twin Rotary

  • Model

    DST066MAA

  • Motor Type

    BLDC

  • Oil Charge

    220cc

  • Manufacturer / Country of Origin

    LG Electronics / China

FAN(INDOOR)

  • Type

    Cross Flow Fan

  • Motor Output

    30W

FAN(OUTDOOR)

  • Type

    Propeller Fan

  • Motor Type

    AC

  • Motor Output

    25W

  • Motor Insulation

    Class E

  • Motor Enclosure / Ingress Protection

    TEAO/IP24

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin

    Cu/Al

  • Evaporator - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 2 x 15 x 21 x 616.8) x 1

  • Evaporator - Corrosion Protection

    PCM

  • Evaporator - Fin Type

    Slit

  • Condenser - Material, Tube / Fin

    Cu/Al

  • Condenser - (ø x Row x Column x FPI x L) x Qty.

    (ø5 x 2 x 22 x 21 x 686) x 1

  • Condenser - Corrosion Protection

    Gold

  • Condenser - Fin Type

    Louver
