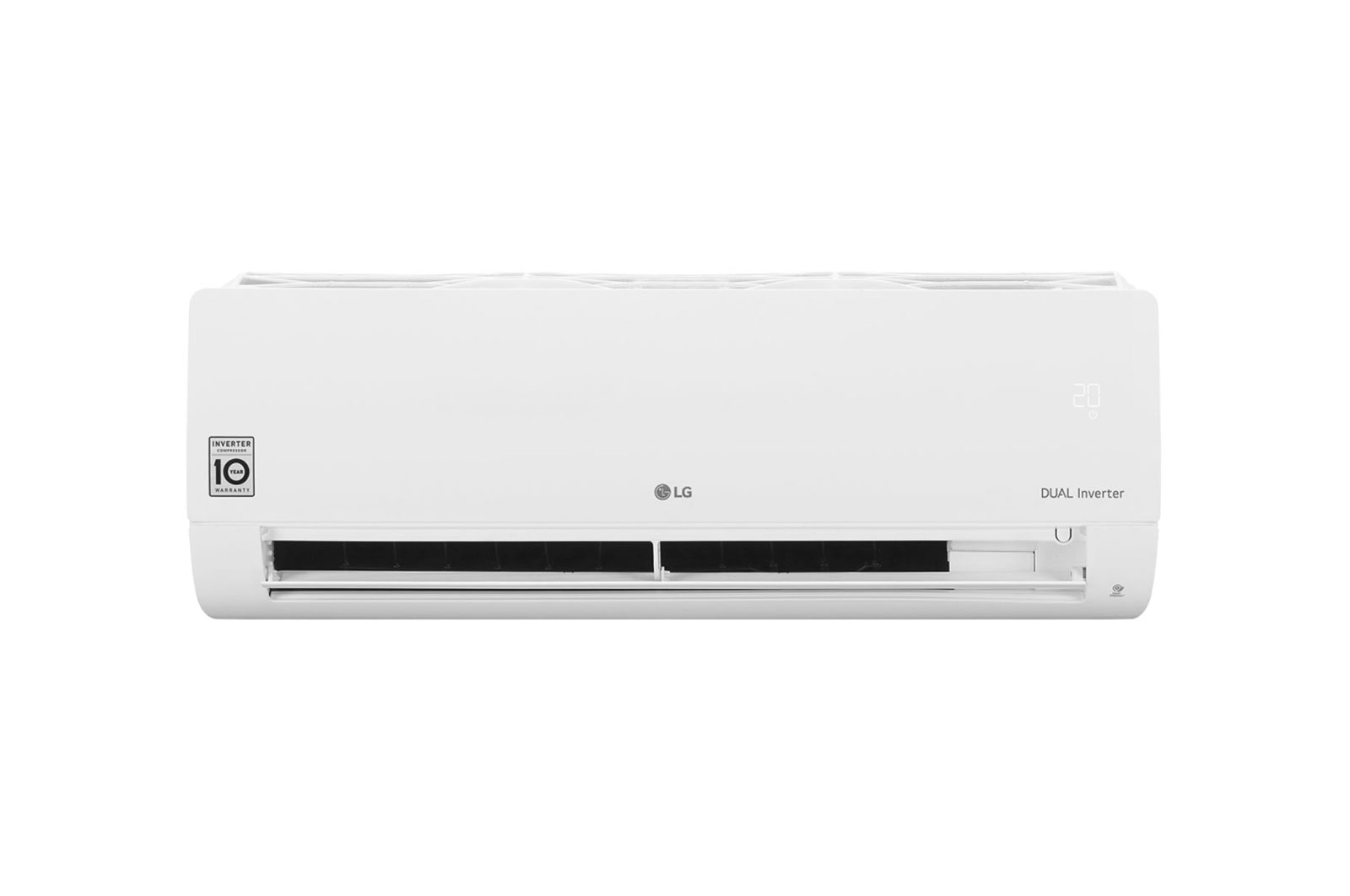

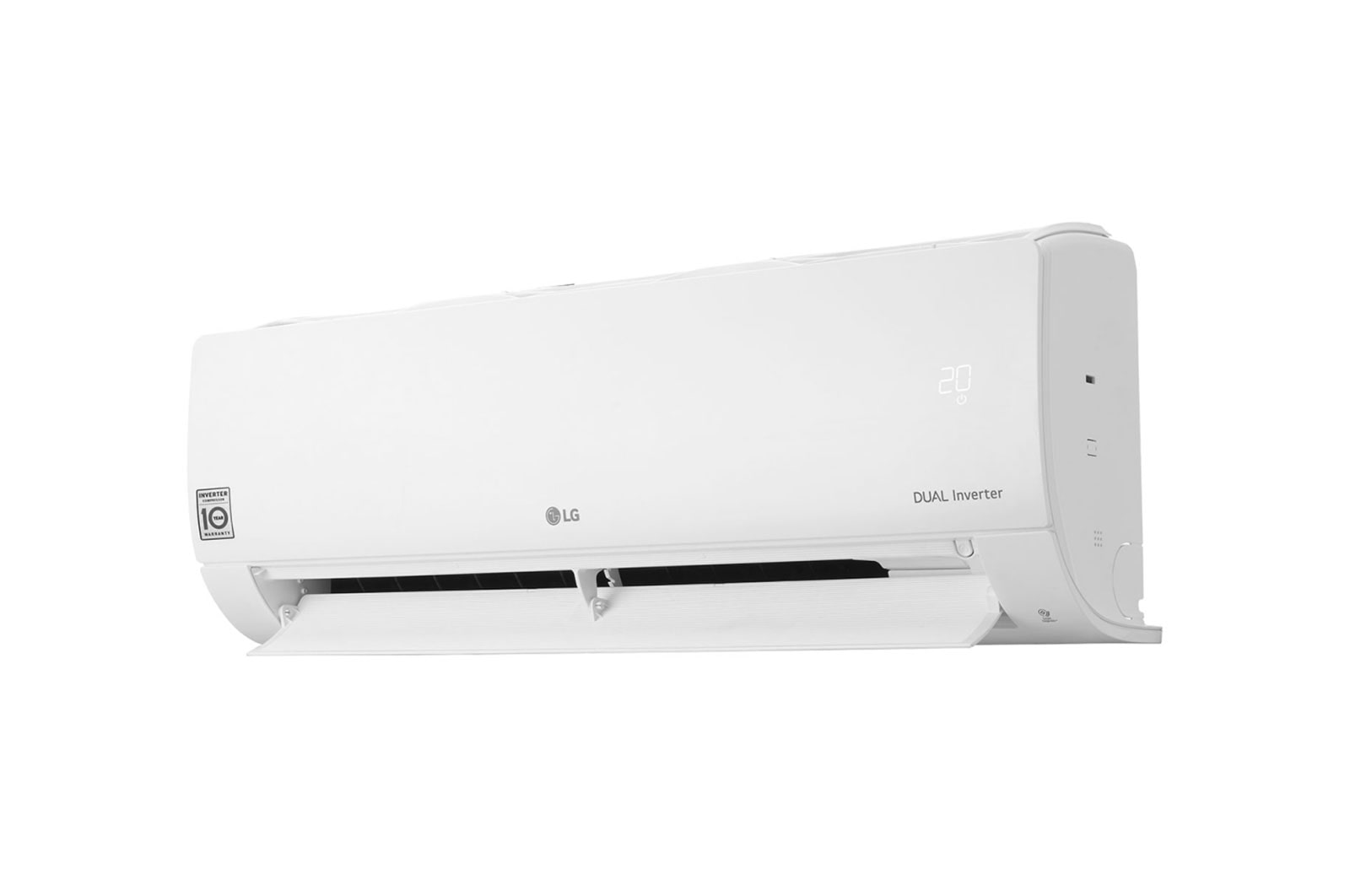

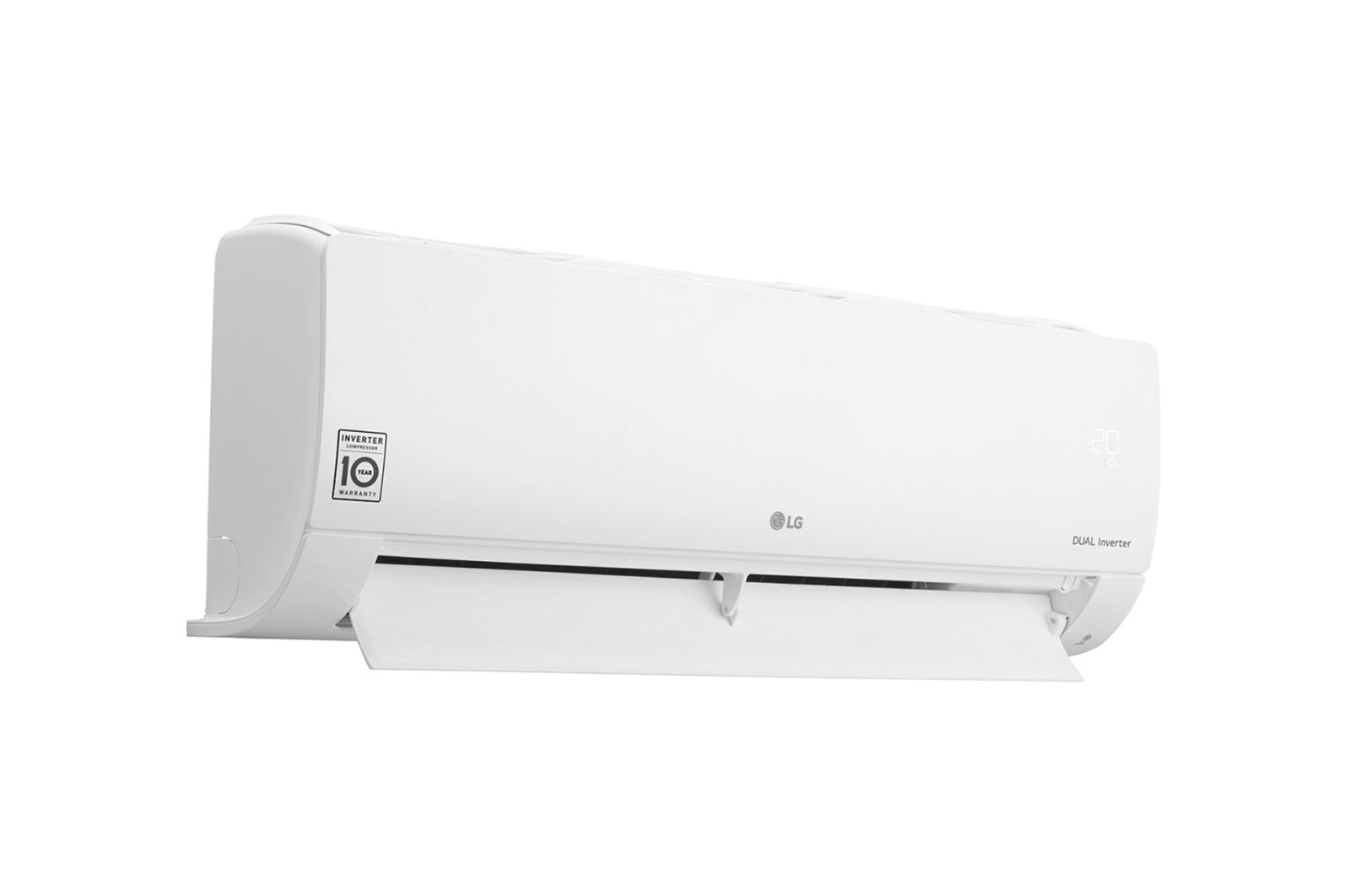

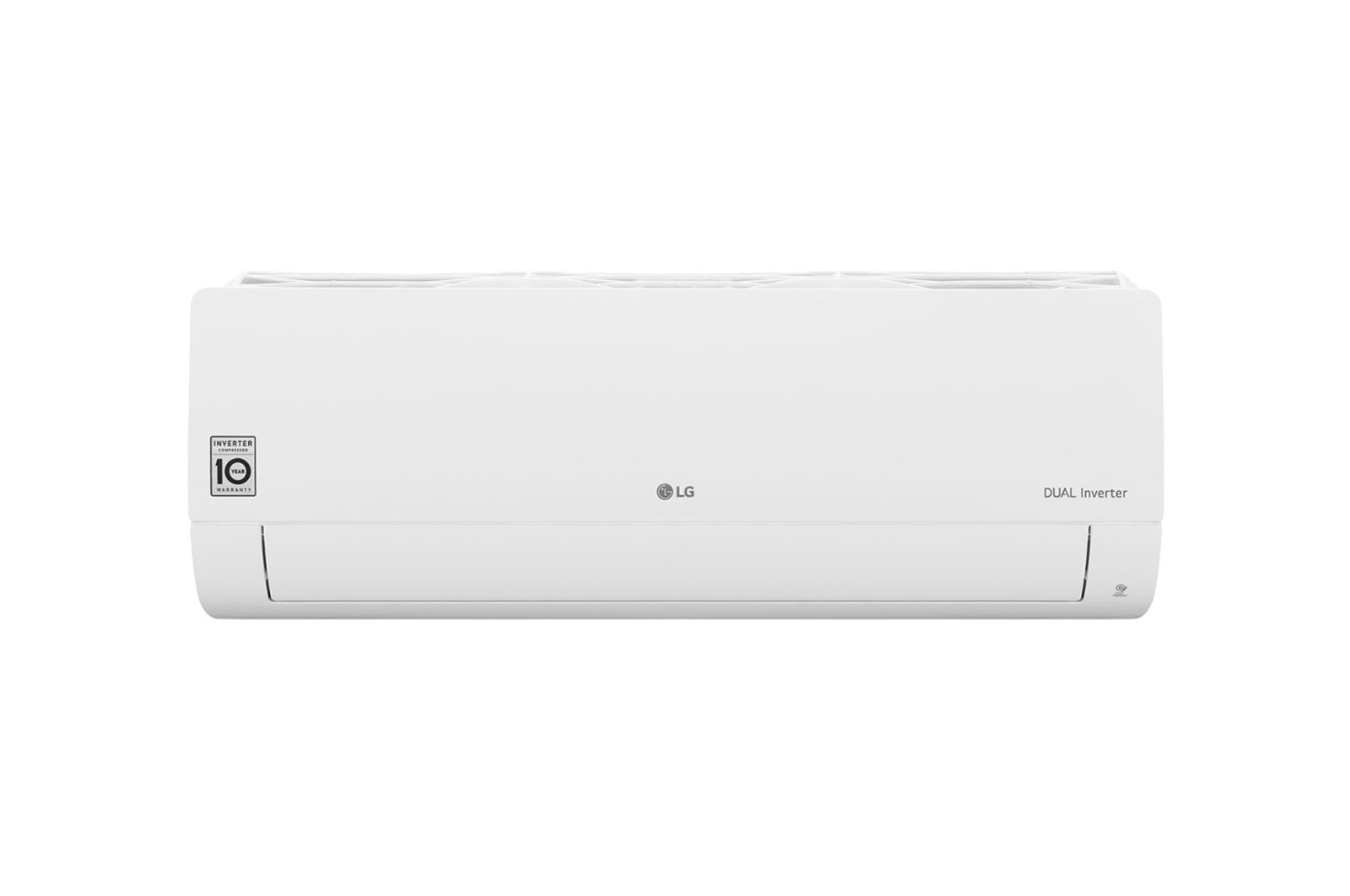

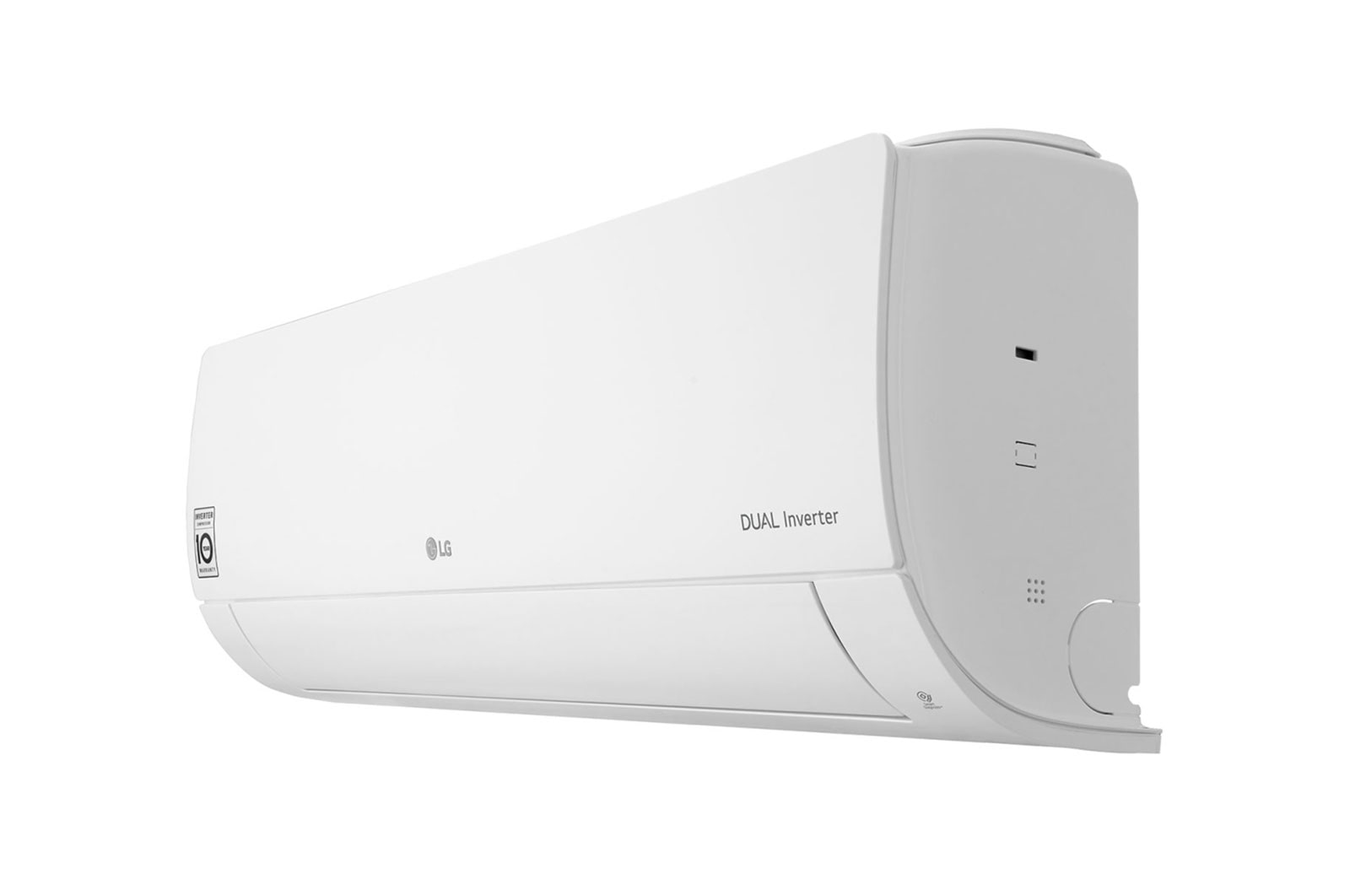

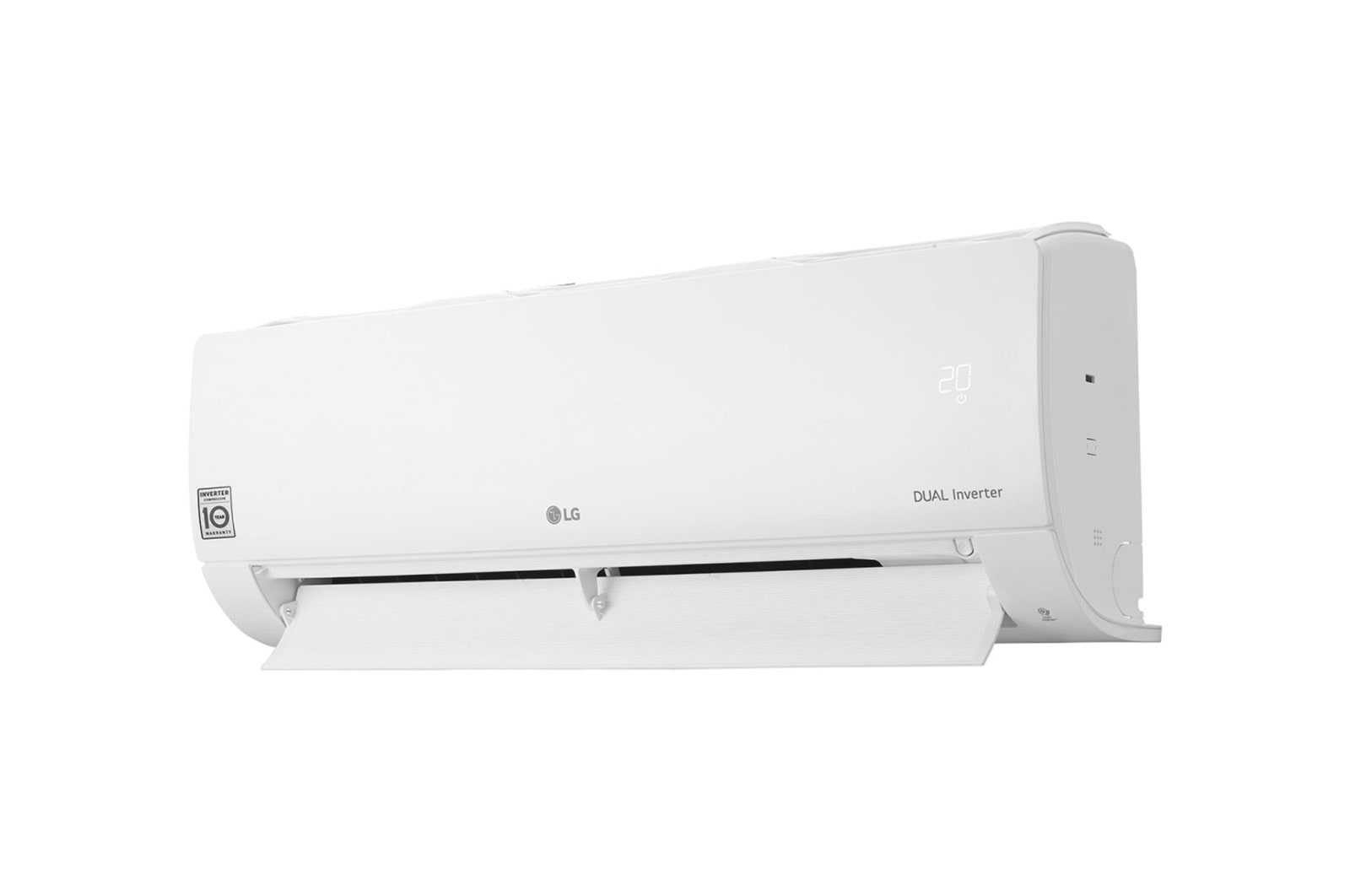

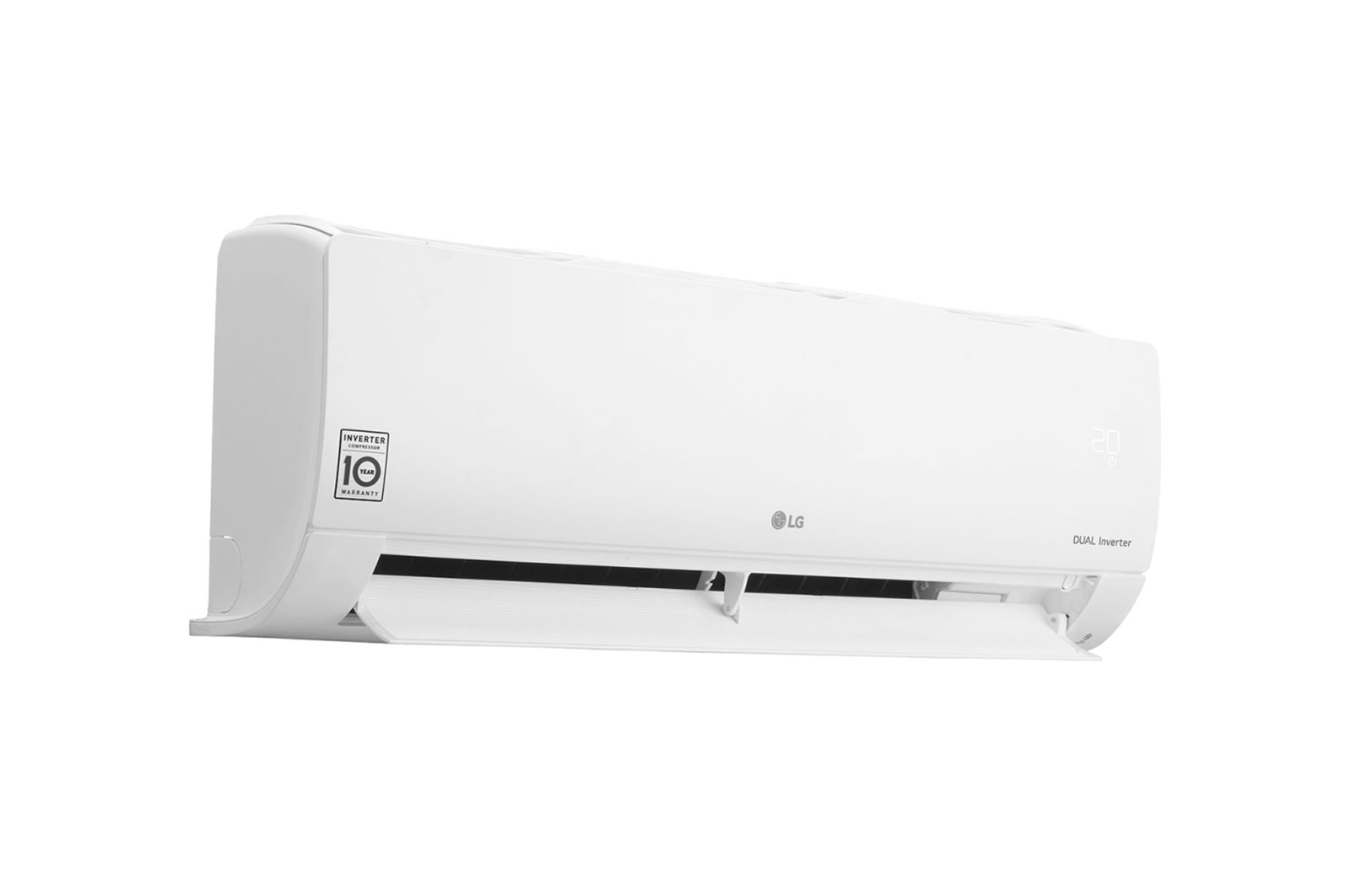

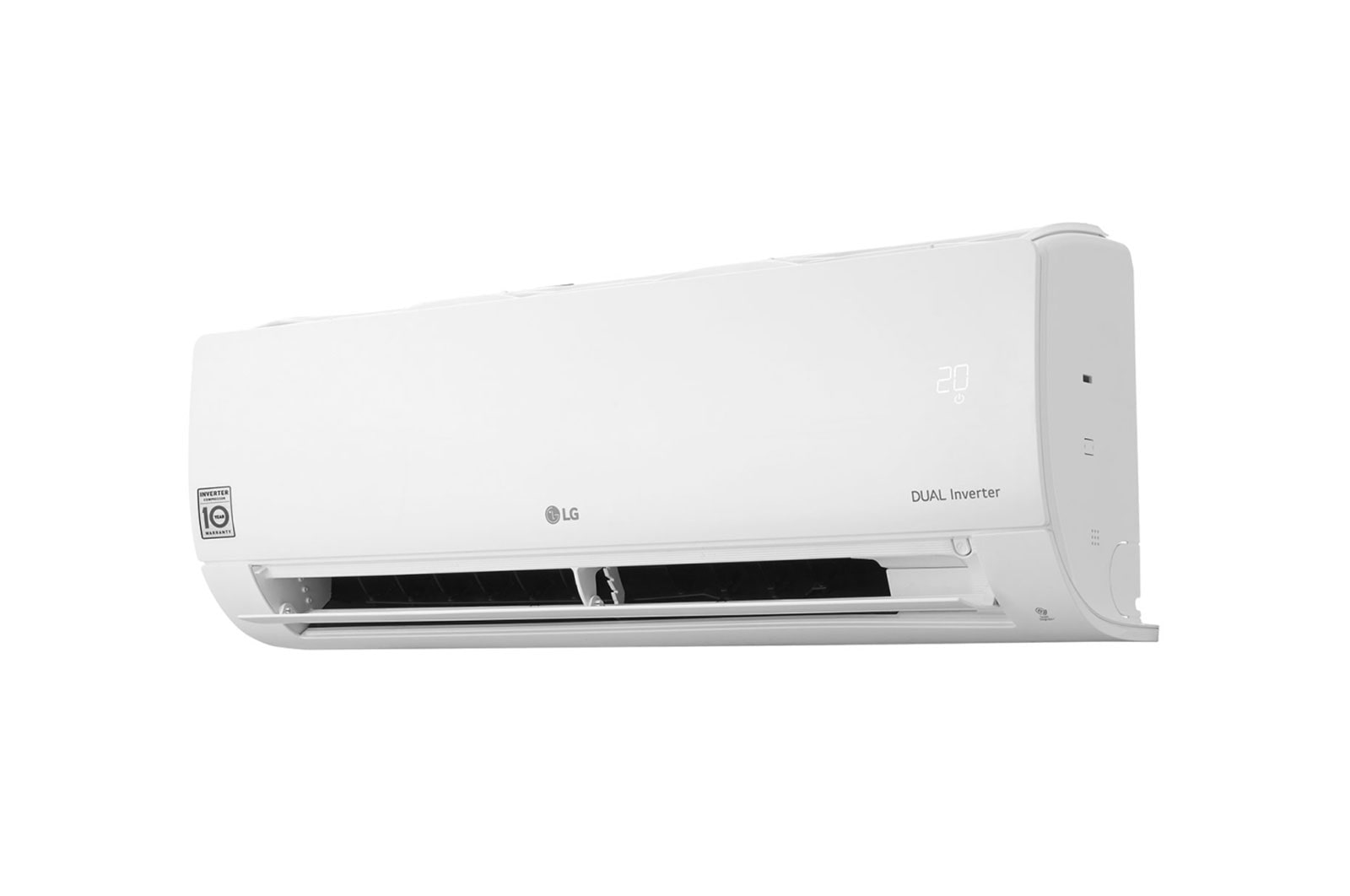

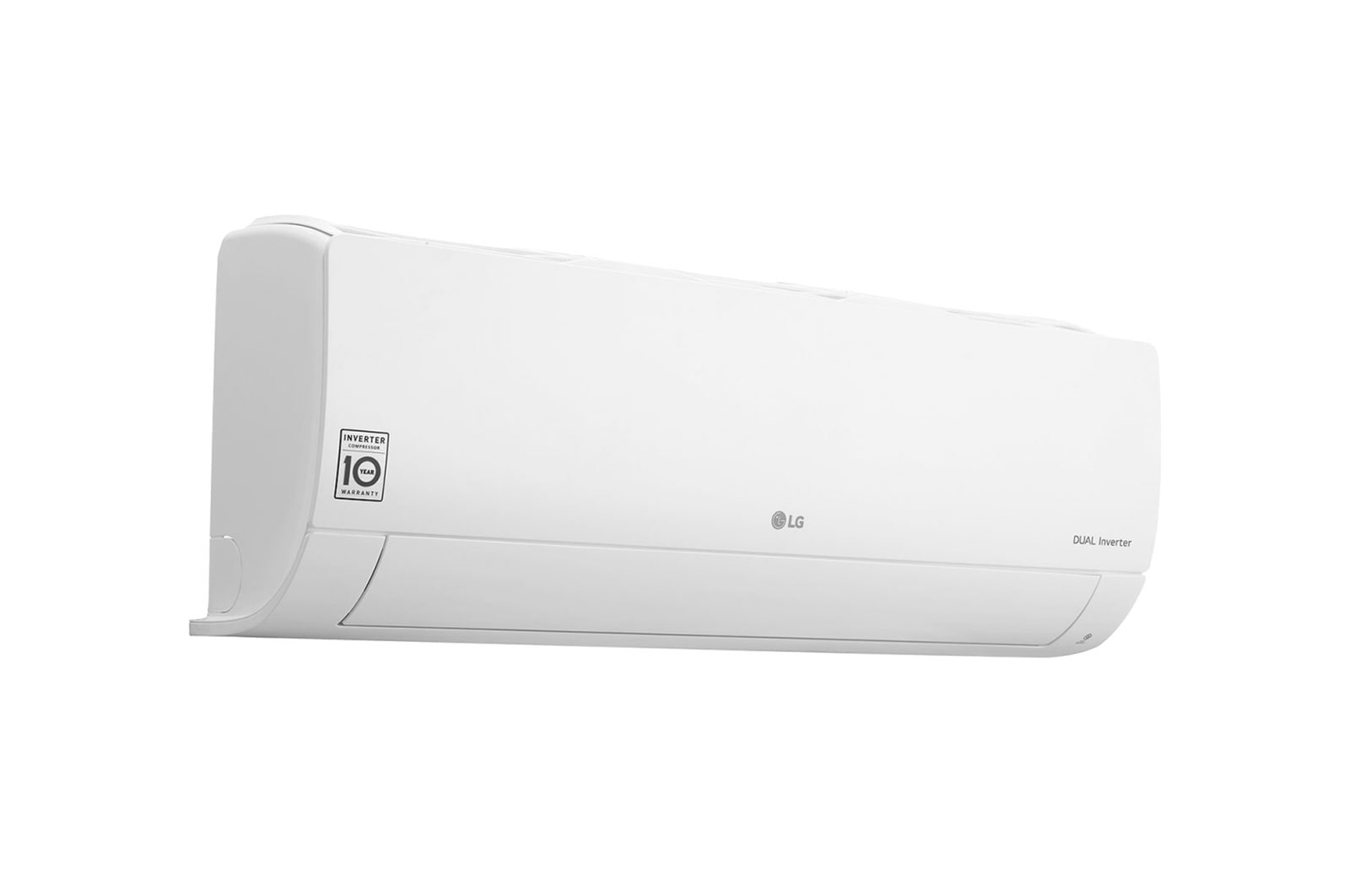

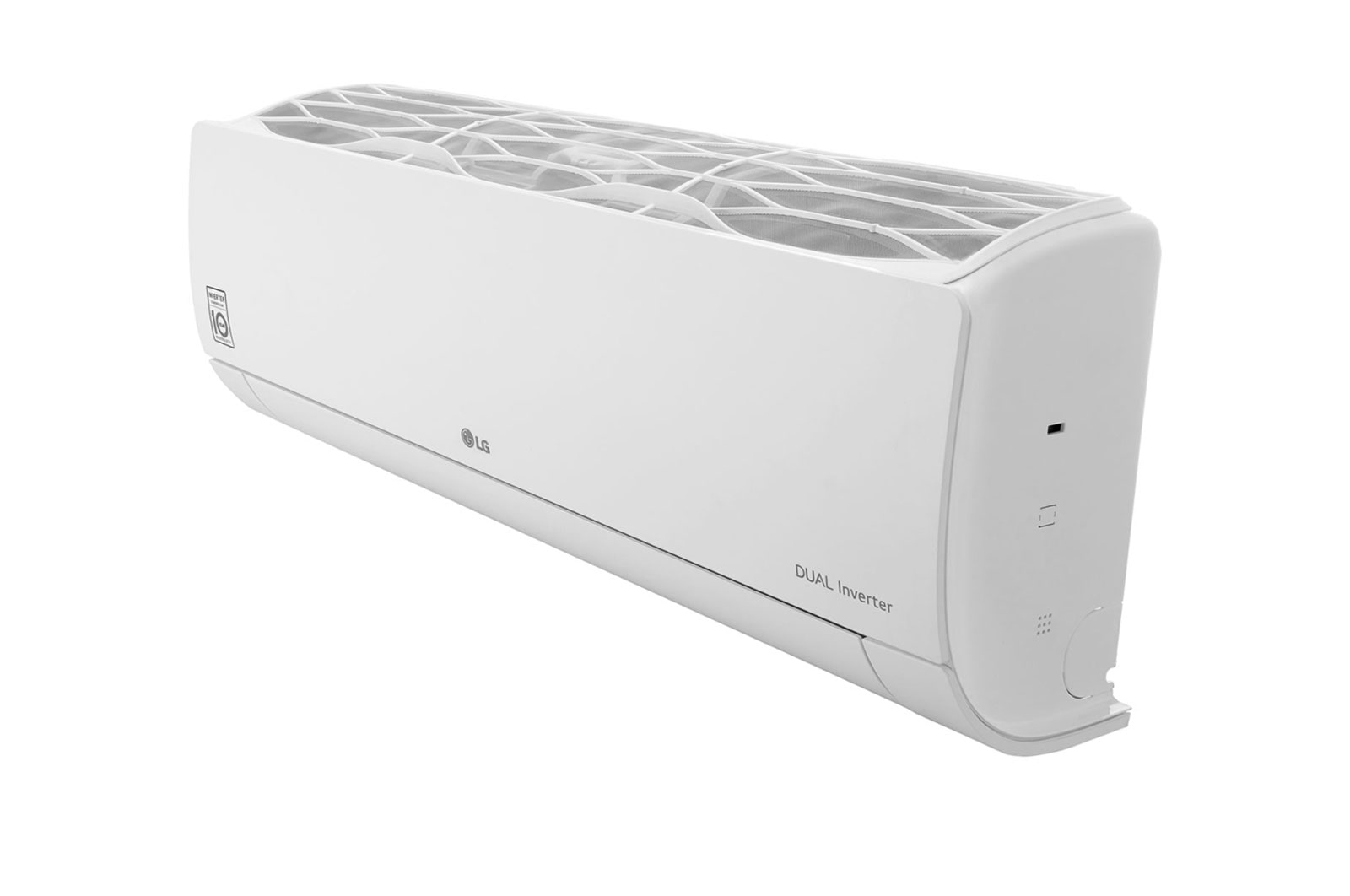

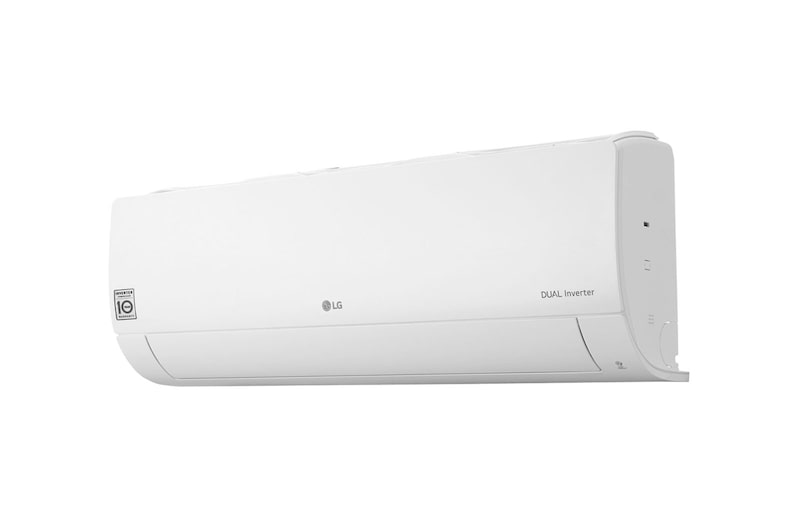

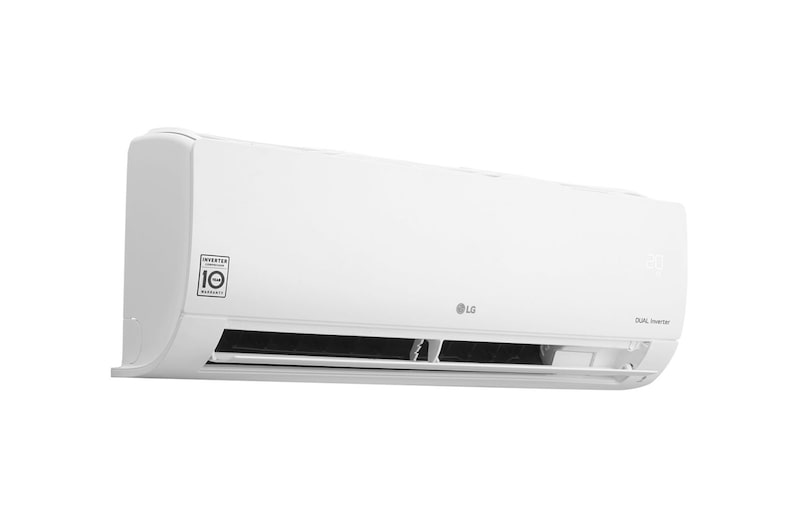

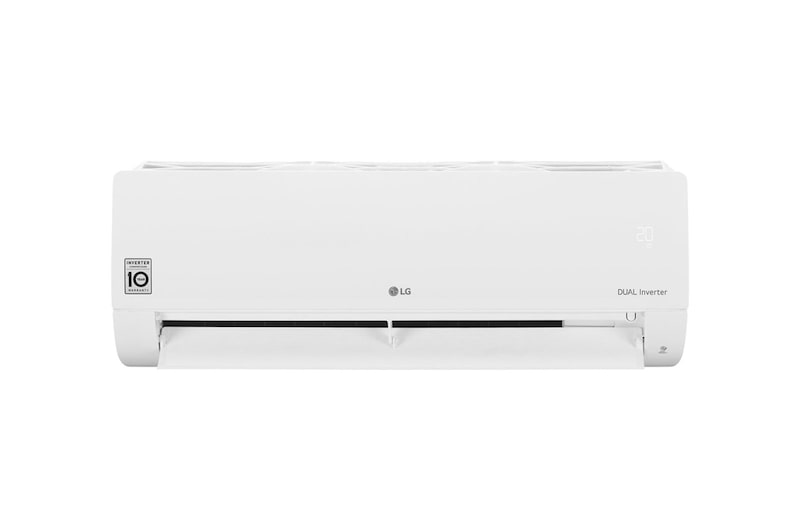

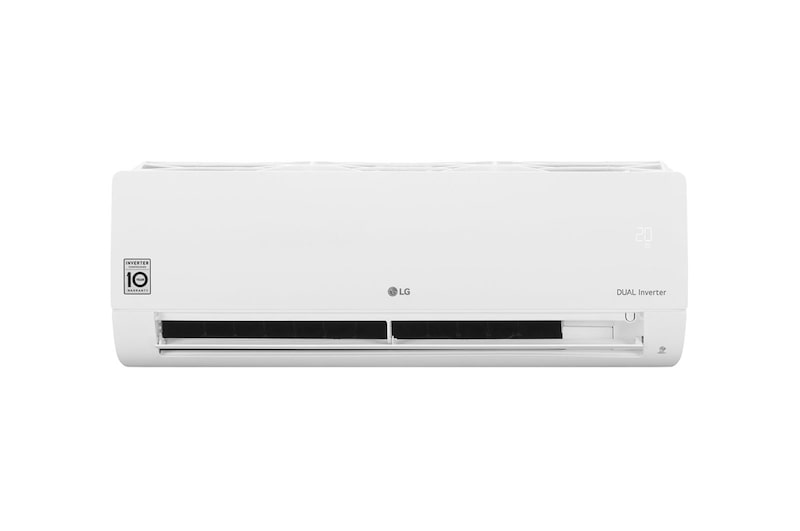

Split Type Dual Inverter Standard Aircon

Split Type Dual Inverter Standard Aircon

Summary

DIMENSIONS

Capacity
1HP

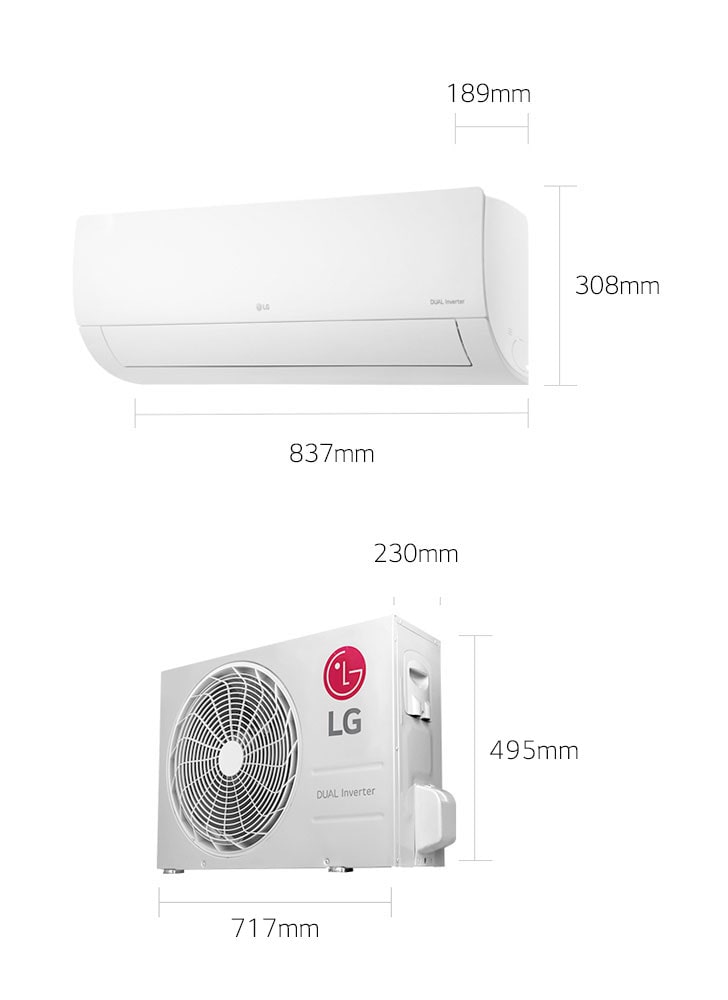

Dimensions Net W x H x D (mm) Indoor / Outdoor
837 x 308 x 189 / 717 x 495 x 230
Main Technology
Dual Inverter
Additional Benefit
Active Energy Control

All Spec

CAPACITY

  • Cooling (Min ~ Rated ~ Max)

    2.70 kW
    9,200 Btu/h
    9,706 kJ/h

  • Capacity

    1.0HP

POWER INPUT

  • Cooling (Min ~ Rated ~ Max)

    770 W

RUNNING CURRENT

  • Cooling (Min ~ Rated ~ Max)

    4.40 A

EER

  • EER

    3.50 W/W
    11.95 (Btu/h)/W
    12.61 (kJ/h)/W

POWER SUPPLY

  • Power Supply

    1, 230, 60 (Ø, V, Hz)

  • Available Voltage Range

    187 ~ 276 V

  • Power Factor - Cooling

    93%

  • Moisture Removal

    1.25 l/h
    2.64 pts/h

  • Circuit Breaker

    15 A

  • Power Supply Cable

    3 × 1 No. × mm²

  • Power Supply to Unit

    Indoor

  • Power and Communication Cable

    4 × 1 No. × mm²

INDOOR UNIT

  • Air Flow Rate - Cooling, Max/H/M/L

    10.5/9/6.6/4.2 m³/min
    371/318/233/148 CFM

  • Fan Motor Speed - Cooling, Max/H/HM/M/ML/L/SL

    1350/1150/1020/900/770/650/480 rpm

  • Sound Pressure Level - Cooling, Max/H/M/L/SL

    -/39/33/27/21 dB(A)

  • Dimensions (W × H × D) - Net

    837 x 308 x 189 mm

  • Dimensions (W × H × D) - Shipping

    897 x 390 x 254 mm

  • Weight - Net

    8.7kg

  • Weight - Shipping

    10.5kg

  • Disconnect Switch

    15 A

  • Exterior Color Code

    Munsell 7.5BG 10/2 (RAL 9016)

  • Operation Range - Cooling

    16 ~ 32 °C DB
    61 ~ 90 °F DB
    10 ~ 23 °C WB
    50 ~ 73.4 °F WB

OUTDOOR UNIT

  • Air Flow Rate - Max

    28.0 m³/min
    989 CFM

  • Sound Pressure Level - Cooling, Rated

    50 dB(A)

  • Dimensions (W × H × D) - Net

    717 x 495 x 230 mm

  • Dimensions (W × H × D) - Shipping

    839 x 532 x 324 mm

  • Weight - Net

    21.7kg

  • Weight - Shipping

    23.5kg

  • Max. Fuse Size

    15 A

  • Exterior Color Code

    Munsell 9.54Y 8.34/1.31 (RAL 9001)

  • Operation Range - Cooling

    18 ~ 48 °C DB

PIPING

  • Size - Liquid

    ø 6.35 mm

  • Size - Gas

    ø 9.52 mm

  • Connections Method - Indoor/Outdoor

    Flared/Flared

  • Drain Hose Size - O.D, I.D

    21.5, 16.0 mm

  • Max Piping Length Capacity

    98.7%

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min/Standard/Max

    3/7.5/20 m

  • Piping Length - No Charge

    12.5 m

  • Max. Elevation Difference

    15 m

  • Piping Connection Heat Insulation

    Both liquid and gas pipes

REFRIGERANT

  • Type

    R32

  • Pre Charge

    500g

  • Additional Charge

    15g/m

  • Control

    Capillary

  • Global Warning Potential

    675

  • t-CO₂ eq

    0.338

TOOL CODE(CHASSIS)

  • Indoor / Outdoor

    SJ / UA3

COMPRESSOR

  • Type

    Twin Rotary

  • Model

    DST066MAA

  • Motor Type

    BLDC

  • Oil Type / Maker

    PVE (FW68D) / IDEMITSU

  • Oil Charge

    220cc

  • Manufacturer / Country of Origin

    LG Electronics / China

FAN(INDOOR)

  • Type

    Cross Flow Fan

  • Motor Output

    30W

FAN(OUTDOOR)

  • Type

    Propeller Fan

  • Motor Type

    AC

  • Motor Output

    25W

  • Motor Insulation

    Class B

  • Motor Enclosure / Ingress Protection

    TEAO/IP44

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin

    Cu/Al

  • Evaporator - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 2 x 15 x 21 x 616.8) x 1

  • Evaporator - Corrosion Protection

    PCM

  • Evaporator - Fin Type

    Slit

  • Condenser - Material, Tube / Fin

    Cu/Al

  • Condenser - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 1 x 22 x 21 x 667.5) x 1

  • Condenser - Corrosion Protection

    Gold

  • Condenser - Fin Type

    Louver
