The air conditioner consumption energy can be used within the pre-populated target setting amount.
Decide usage periods and energy consumption limits within the easy-to-use ThinQ™ app. If the daily usage limit is exceeded, the remaining days are automatically recalculated to keep you within your specified limit.
When the target setting amount is reached and used, a notification occurs within the ThinQ application.
The "EO" mark is checked on the air conditioning panel on which the kW Manager function is operating.
*This feature may vary depending on the product and country.
*During the set period, the accumulated electricity is monitored and electricity consumption limiting operations are performed for the remaining period.
*If the daily electricity usage exceeds your set period's target, the remaining electricity usage is recalculated automatically to maintain the target amount.
*This function is only available through the LG ThinQ™ smart application.
*If the total used electricity within the set period exceeds your target amount, kW Manager function is de-selected and the machine will return to a general operation mode. You will be notified of this by the LG ThinQ™ application.
blank
*TÜV Rheinland Korea, confirm that the evaporator freeze cleaning mode of LG air conditioners has bacteria reduction performance based on the test results at the proposed test condition. Report No. KR23LGPO, KR2357TB, KR2384CM, KR230RH9, KR237IO2, KR235J9N, KR23OGEG.
This test result obtained a test report on and Pseudomonas aeruginosa 99.0% reduction rate from an internationally recognized laboratory, which may vary depending on the actual environment.
*Test institution : TÜV Rheinland.
*Test period : 2023. 04~05.
*Test Model : SQ07EDETHN(SE), SQ06BDAWAJ(SA), SQ07SDJBAN(SJ), SQ09MDKWAN(SK).
*Test bacteria : Up to 99.0% reduction rate of “Pseudomonas aeruginosa” confirmed.
*This function can be operated through ThinQ only.
*Depending on the environment, Freeze Cleaning mode operation time can be up to 65 minutes.

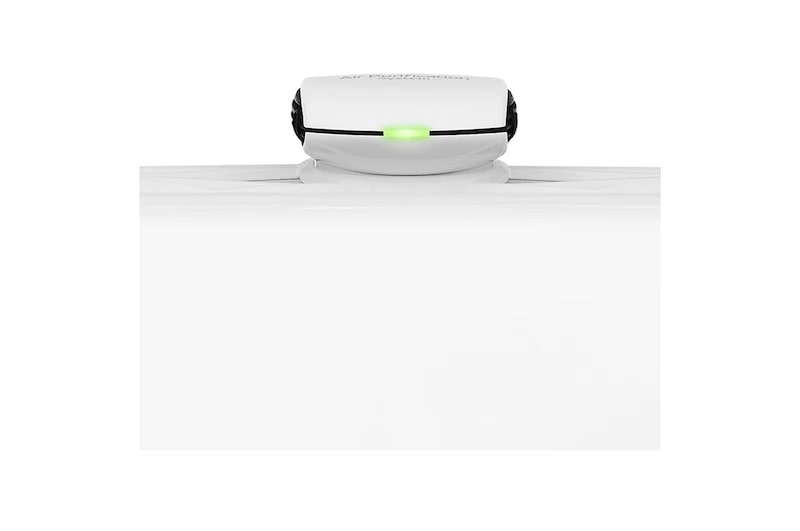

Detects indoor dust concentration.
Displays indoor air quality.

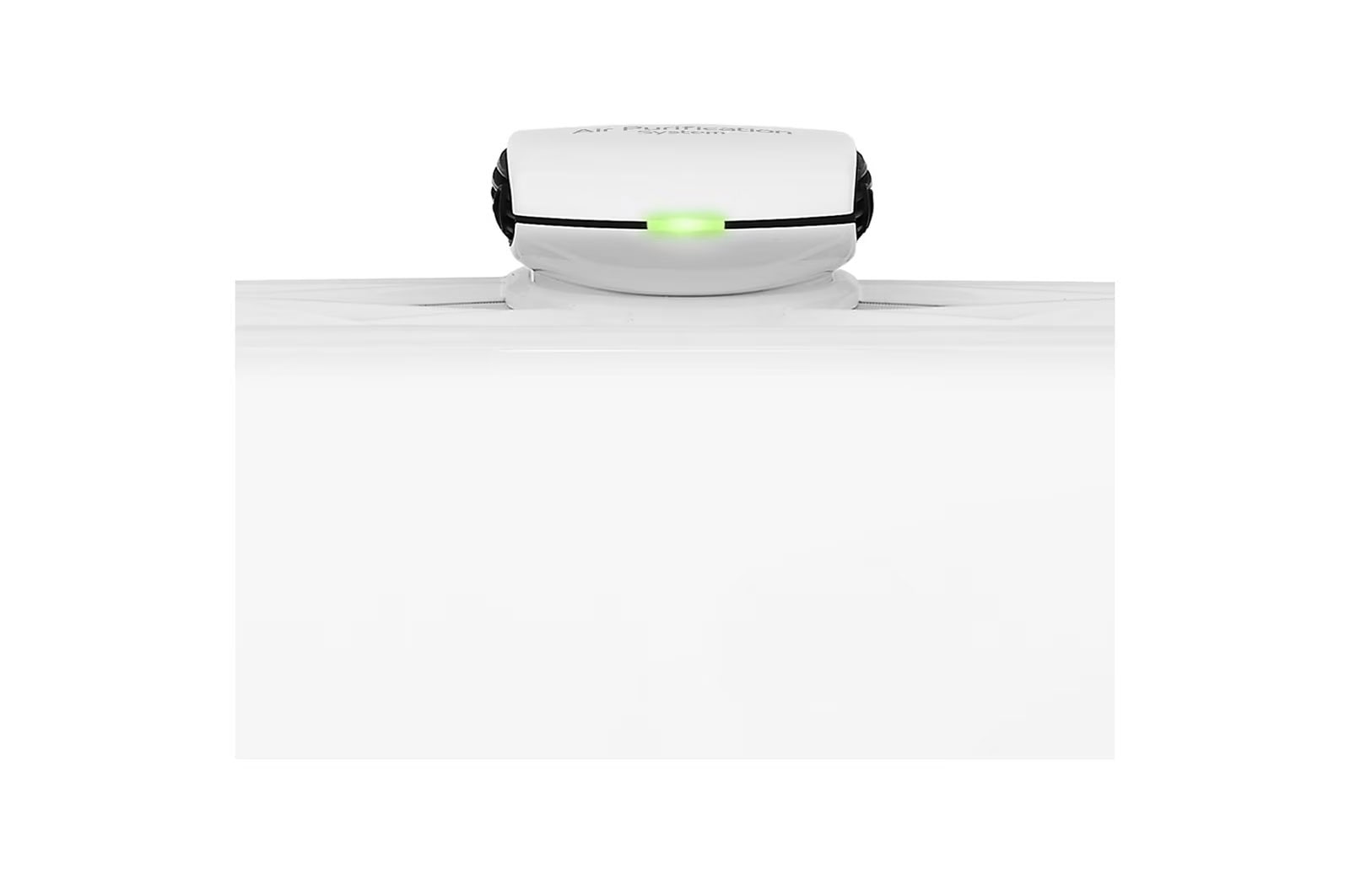

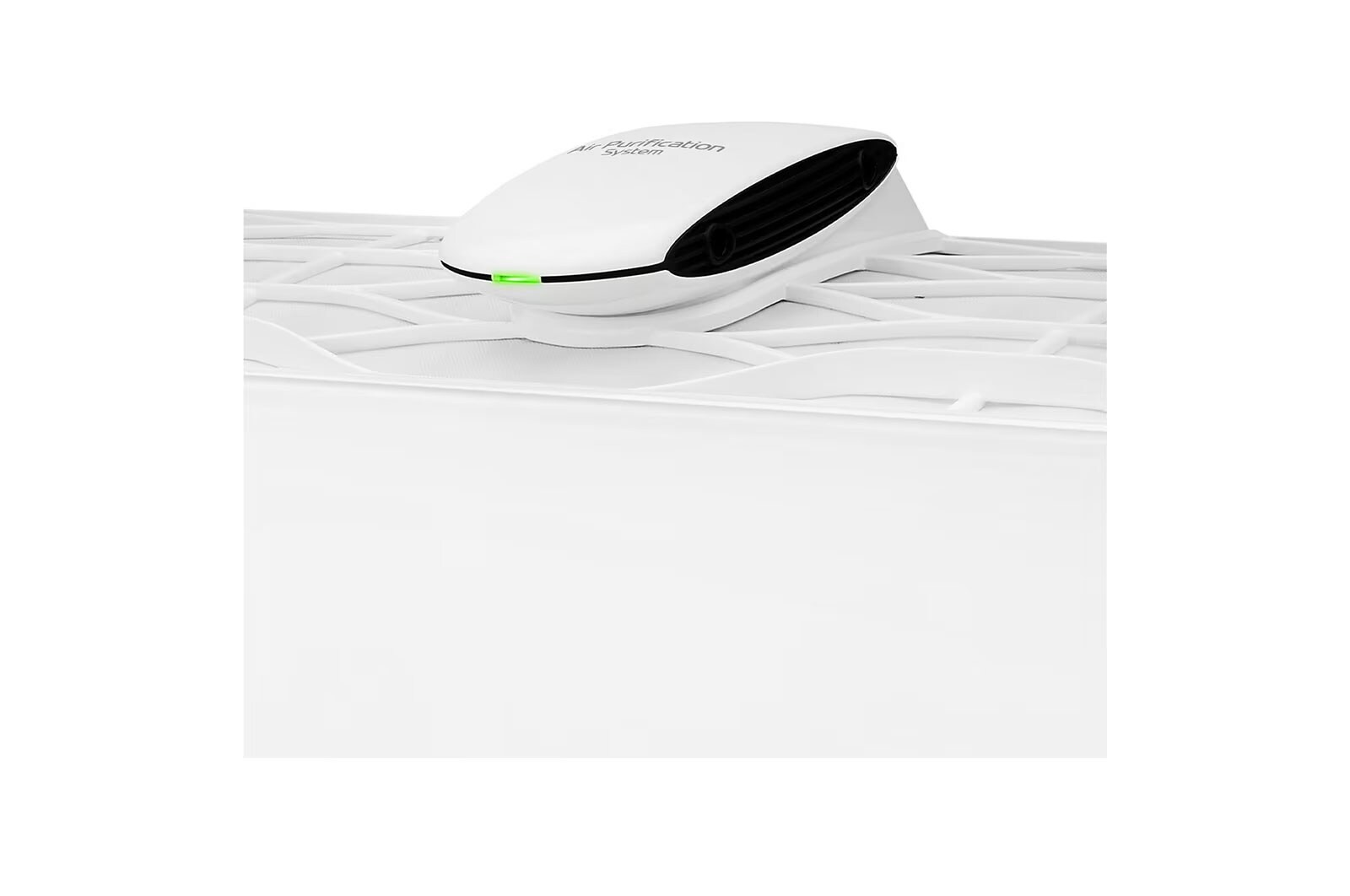

Emits negative ions to attach to particles.
Removes ultrafine dust particles.
*TUV has verified that PM0.1(0.1㎛) particle removal efficiency is 99.9%.
**TUV has verified that coverage varies by product capacity. (SJ:27.4㎡, SK:29.3㎡).
*KCL has verified that PM0.1(0.1㎛) particle removal efficiency is 99.9%.
*The TÜV Rheinland test conducted in compliance with ISO 20743:2007 verified that
the UVnano LED removes 99.99 percent of Staphylococcus aureus, Staphylococcus epidermidis, and Klebsiella pneumoniae from the air conditioner blower fan after being exposed to UV LED lights, located underneath the fan, for 4 hours. The models tested include the S3NM12JL1GA (SJ), S3NM09AA1MA (SA) and S3NM24K21GA (SK). Test results do not mean that the air conditioner releases air that is 99.99% bacteria-free. The efficacy in bacteria removal may differ in actual conditions.
*KTR test conducted in compliance with ISO 20743:2007 verified that
the UVnano LED removes 99.99 percent of Staphylococcus aureus, Staphylococcus epidermidis, and Klebsiella pneumoniae from the air conditioner blower fan after being exposed to UV LED lights, located underneath the fan, for 4 hours. The models tested include the S3NM12JL1GA (SJ), S3NM09AA1MA (SA) and S3NM24K21GA (SK). Test results do not mean that the air conditioner releases air that is 99.99% bacteria-free. The efficacy in bacteria removal may differ in actual conditions.
LG inverter air conditioners(US-Q242K*) cools up to 40% more faster than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃).
LG inverter air conditioners(US-Q242K*) saves up to 70% more energy than LG non-inverter air conditioners(TS-H2465DAO). *Initial Temperature(Outdoor 35℃, Indoor 33℃), Setting Temperature(26℃), Testing Time (8 Hours).
*One (1) year warranty on parts and labor.
*Ten (10) years warranty for inverter compressor part only, applicable from Y2015 models. Labor is chargeable to customer after one (1) year from purchase.
With a 10-year warranty on the compressor, it will keep performing at its best for longer.
*BAF has certified that the filter is coated to remove harmful substances - such as house dust mite, fungi, and mold floating in the air - that can cause allergies.
*Google and Google Home are trademarks of Google LLC.
*Amazon, Alexa, Echo and all related logos and motion marks are trademarks of Amazon.com, Inc or its affiliates.
*LG SmartThinQ is now renamed as LG ThinQ.
*Smart features and voice assistant product may vary by country and model. Check with your local retailer or LG for service availability.
*Voice-enabled smart speaker device is not included.
Enjoy cool air sooner with air conditioning that takes less time and effort to install.
Experience the most comfortable sleeping environment with automatically adjusting functions*. *When the comfort sleep function is activated.
No need to turn on the light to change mode of your air conditioner by applying GYRO sensor in the remote.
Enjoy a durable air conditioner with an ability to withstand voltage fluctuation*. *LG Internally tested "rated voltage ± 30%" fluctuation and it may vary depending by environment.
What is kW Manager?
kW Manager is a smart function that assists customers in using the air conditioner according to a set electricity target. It offers a daily adaptive energy-saving mode, automatically adjusting to prevent electricity targets from being exceeded during operation. Operating on a schedule, spanning up to one month, the LED display shows "EO" when the function is active.
*This feature may vary depending on the product and country.
Can I use kW Manager without a Wi-Fi connection?
kW Manager is a smart function that can only be used while connected to Wi-Fi and registered with the LG ThinQ™ application.
*Only applicable to products with the kW Manager function.
When can kW Manager be used?
kW Manager can be used with all cooling modes, including Sleep and Jet modes. Basic controls, such as selecting temperatures and air flow changes, are possible while kW Manager is in use. It can also be used alongside other energy-saving modes, such as Active Energy Control mode. The system will choose operation settings that have the lowest electricity consumption value between the two different modes.
*kW Manager is disabled when using Heating mode.
What happens if the electricity consumption target is reached within the kW manager usage period?
If the electricity usage limit is reached within the set period of time, you will receive a notification from the LG ThinQ™ application about the electricity consumption amount and usage time. You can select kW Manager mode again and choose a new time period and electricity usage target.
Product Type
Wall Mounted
HVAC Type
C/O
Cooling Power Consumption Rated/Min(W)
860 / 305
ThinQ(Wi-Fi)
Yes
UV Nano
Yes
Ionizer
Yes(Diffusion Charger)
Bar Code
8851434636141
4way
Up-Down/Left-Right
Airflow direction control (Left & Right)
Yes
Airflow direction control (Up & Down)
Yes(6 Steps)
Fan Speed
5 Steps + Natural
Air Purifying Display
Yes
Ionizer
Yes(Diffusion Charger)

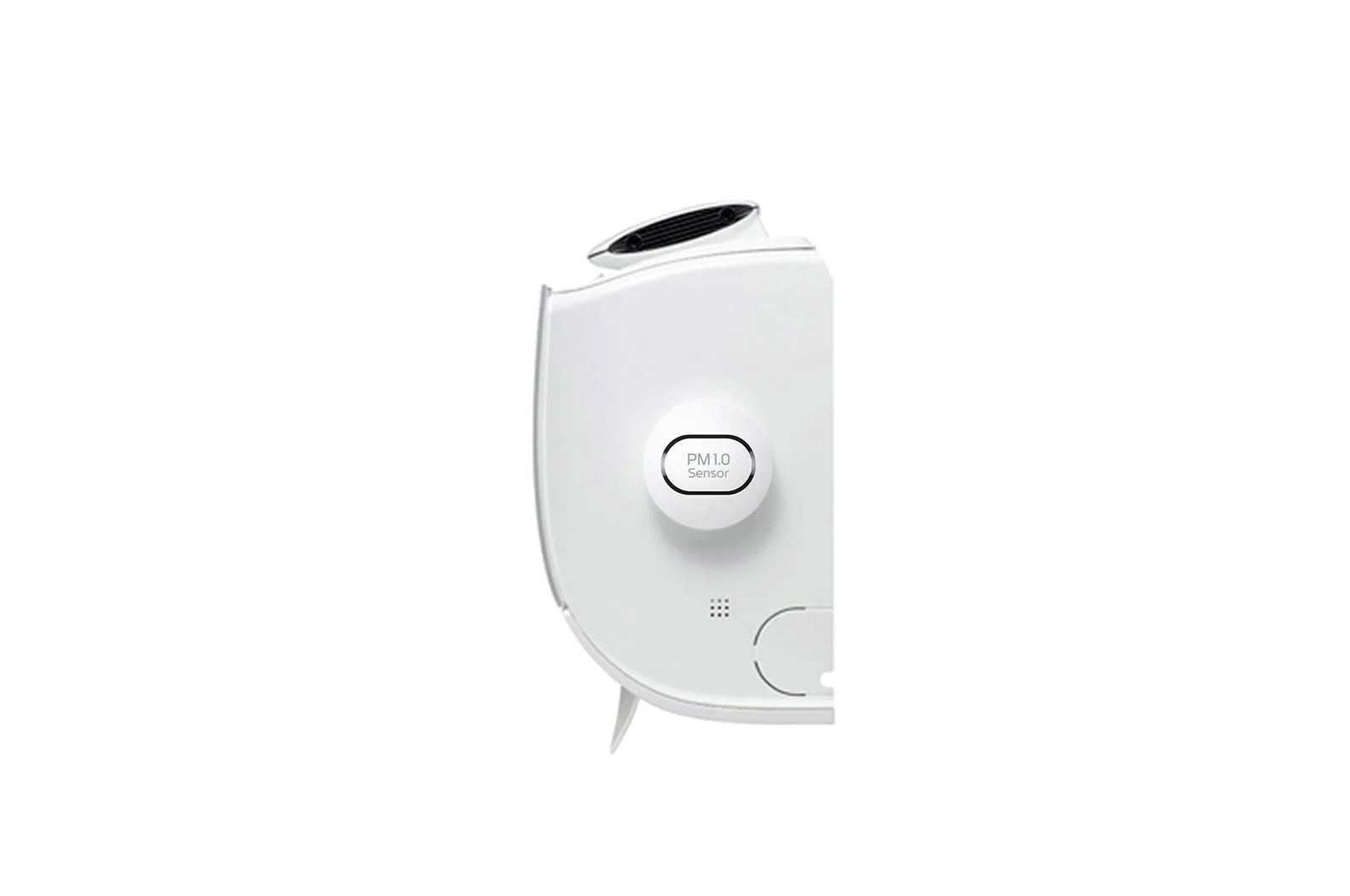

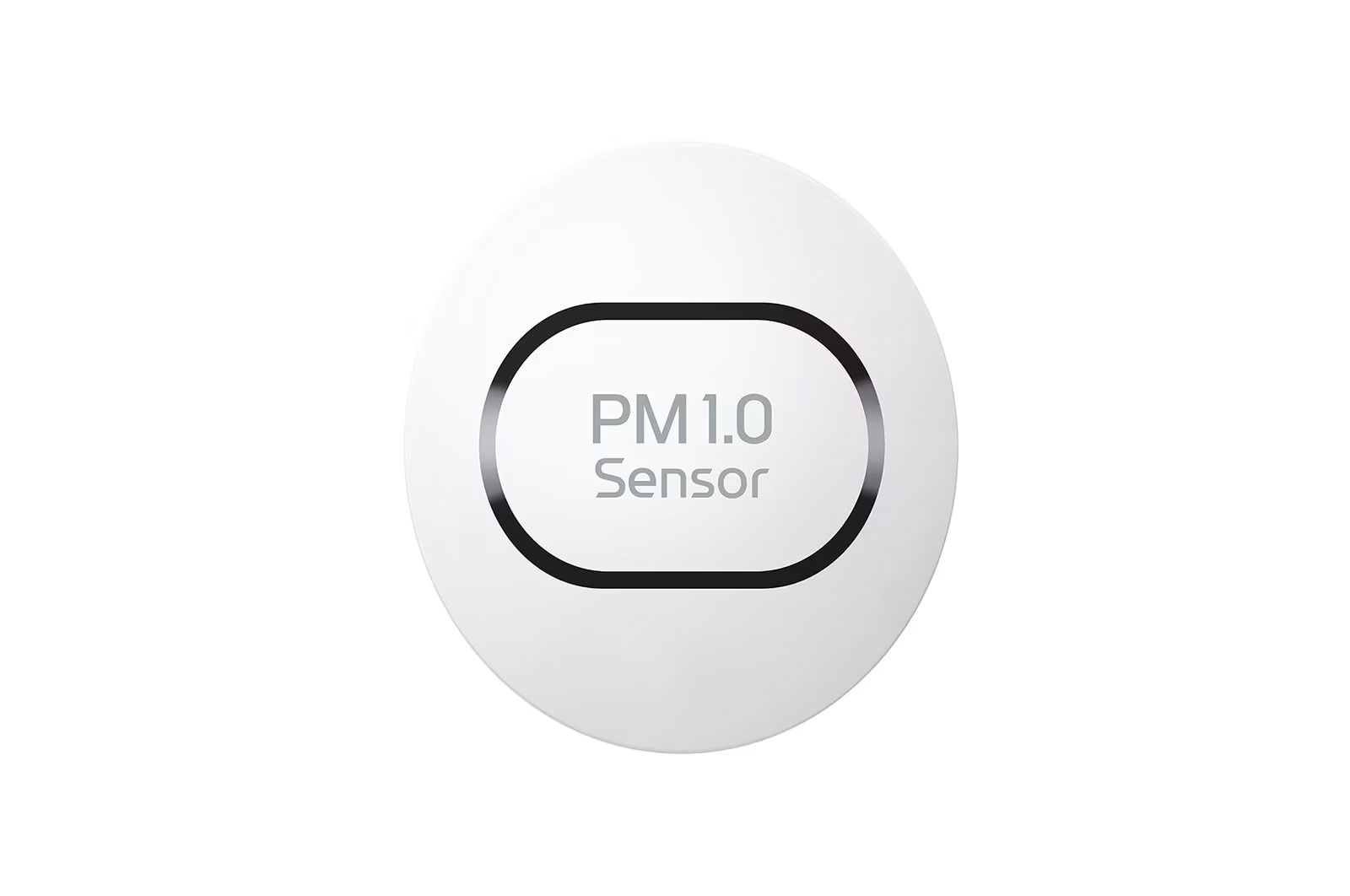

PM 1.0 Sensor
Yes
Launching Month (YYYY-MM)
2023-12
Manufacturer (Importer)
LG Electronics
Product Model Name

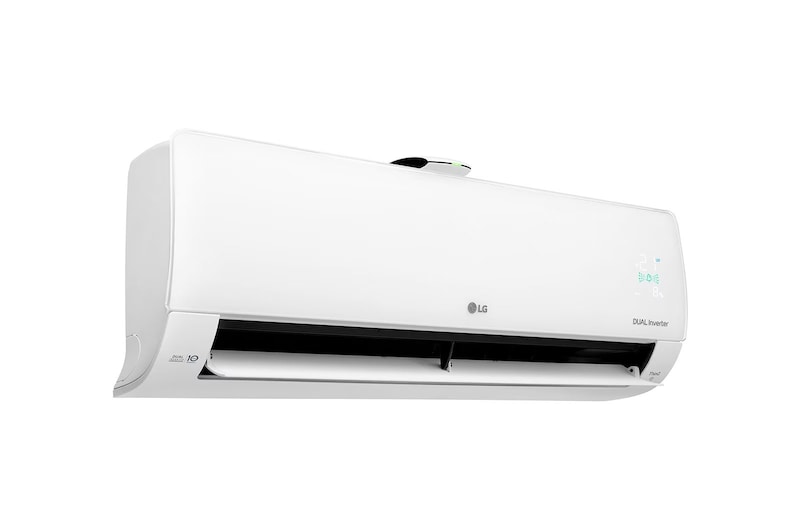

HS-12APX2
Product Type & Model Name
Inverter & HS-12APX2
Auto Restart
Yes
Fan Mode
Yes
Forced Switch Operation
Yes
On/Off Reservation(24Hr)
Yes
Remote Controller
Yes
Reservation
Yes
Smart Diagnosis
Yes
ThinQ(Wi-Fi)
Yes
Active Energy Control
Yes
kW Manager
Yes
Color(Body)
White
Color(Discharge)
Black
Display
AirPurify LED
Fine Dust Filter
N/A
Pre Filter
Yes
Ultra Fine Dust Filter
Yes
Auto Cleaning
Yes
UV Nano
Yes
Heat Exchanger Cleaning
Yes
Outdoor Unit Model Name
HSU12APX2
Cooling Power Consumption Rated/Min(W)
860 / 305
HVAC Type
C/O
Indoor Unit Dimension_WxHxD(mm)
857x348x190
Indoor Unit Weight(kg)
9.6
Outdoor Unit Dimension_WxHxD(mm)
717x495x230
Outdoor Unit Weight(kg)
23.9
Outdoor Unit Weight(lb.)
52.7
Product Type
Wall Mounted
Product Type II
Inverter
Rated Input Voltage(V, Hz)
230, 60
Refrigerant Type
R32
Cooling Capacity Max(BTU/h)
12199
Cooling Capacity Rated(HP)
1.5
Cooling Capacity Rated/Min(BTU/h)
11260 / 4850
Dehumidification
Yes
