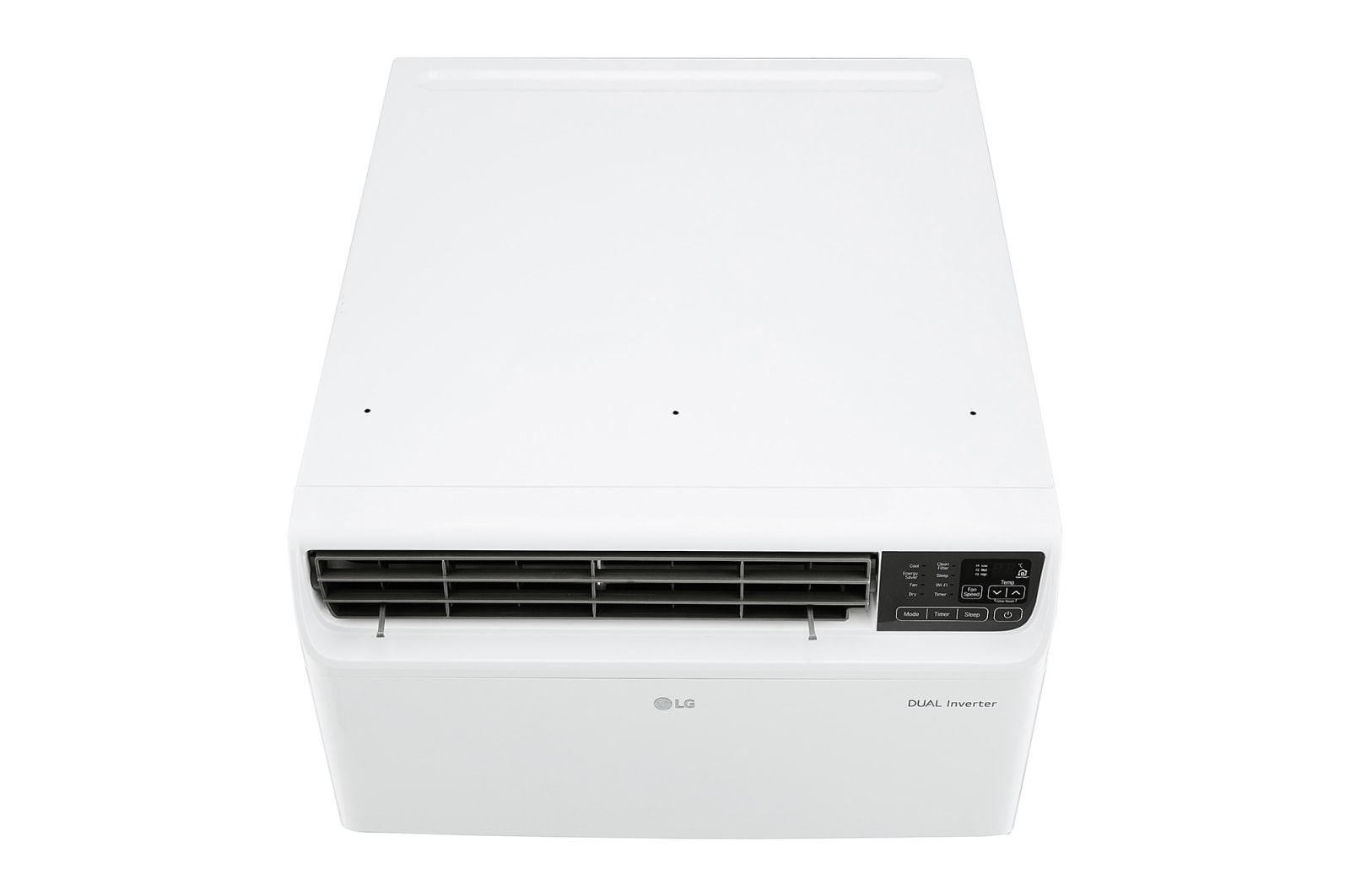

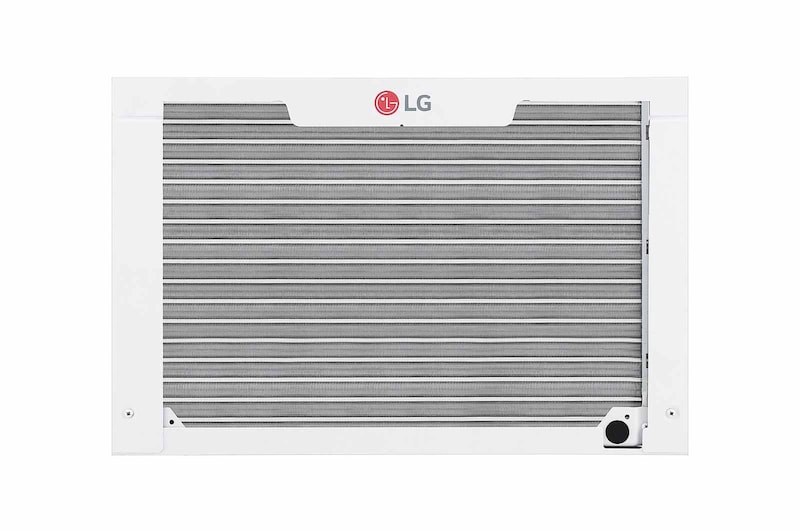

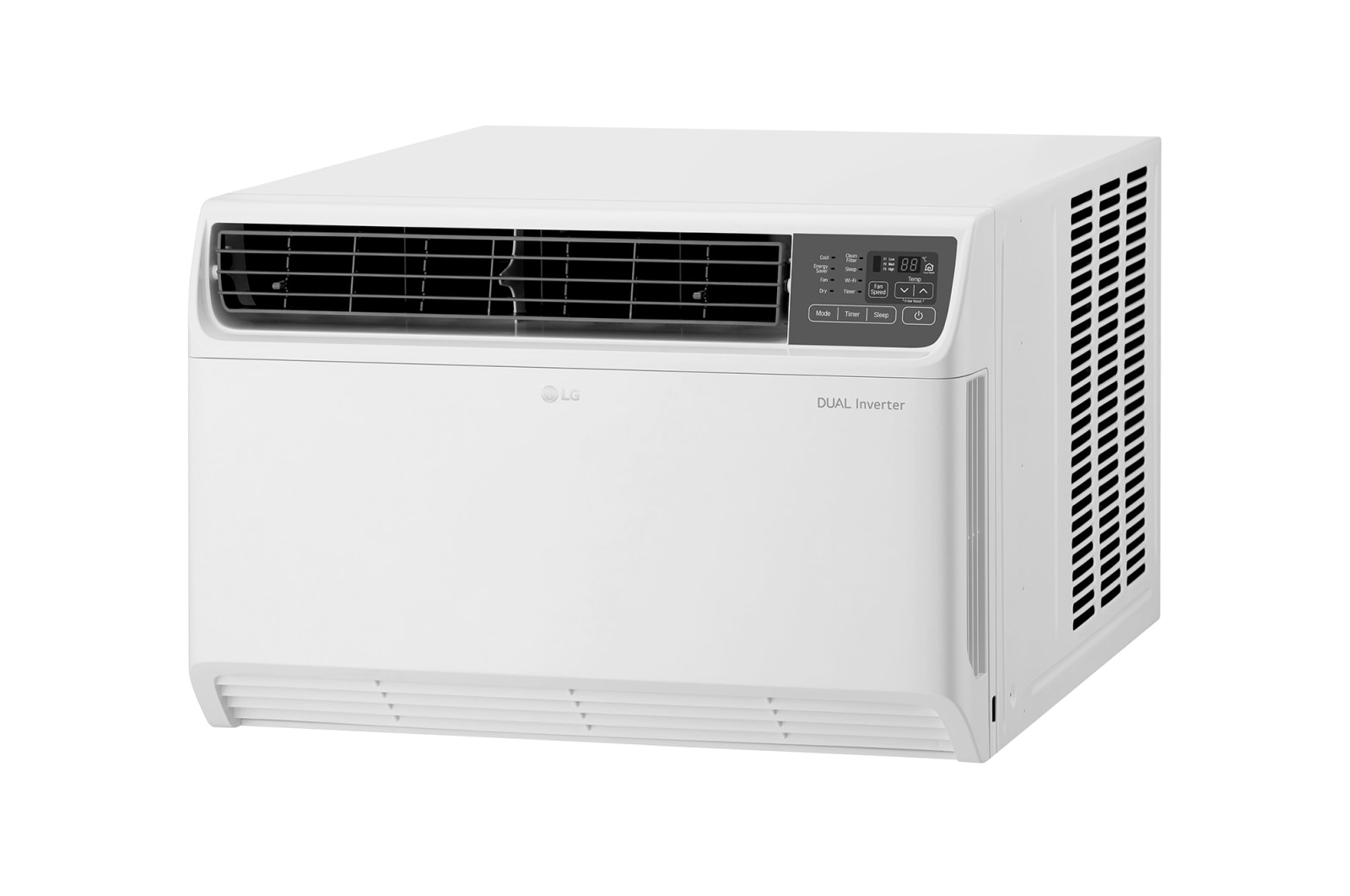

1.5 HP, Dual Inverter Compressor, 70% Energy Saving, Anti-bacterial Filter, Sleep Mode, Window Inverter, Fast Cooling, 10-Year Compressor Warranty
1.5 HP, Dual Inverter Compressor, 70% Energy Saving, Anti-bacterial Filter, Sleep Mode, Window Inverter, Fast Cooling, 10-Year Compressor Warranty
Summary
DIMENSIONS
All Spec
PERFORMANCE
-
Cooling - Capacity
12,000 (kJ/h)
-
Cooling - Capa. Range (Btu/h)
6,500 ~ 13,000 (kJ/h)
-
Cooling - Power (W)
1000 (500~1,200)
-
Cooling - Current (A)
4.7 (2.3~5.5)
-
Cooling - EER
12.0 (11.2~13.2) (kJ/hW)
-
Cooling - Refrigerant (g)
450 (R32)
ELECTRICAL RATINGS
-
Voltage / 60 Hz
230V/60Hz
FEATURE
-
WiFi Connection
Yes
-
Temperature display
℃
-
Temp Control
Thermistor
-
Air Diflection
4-Way (Manual)
-

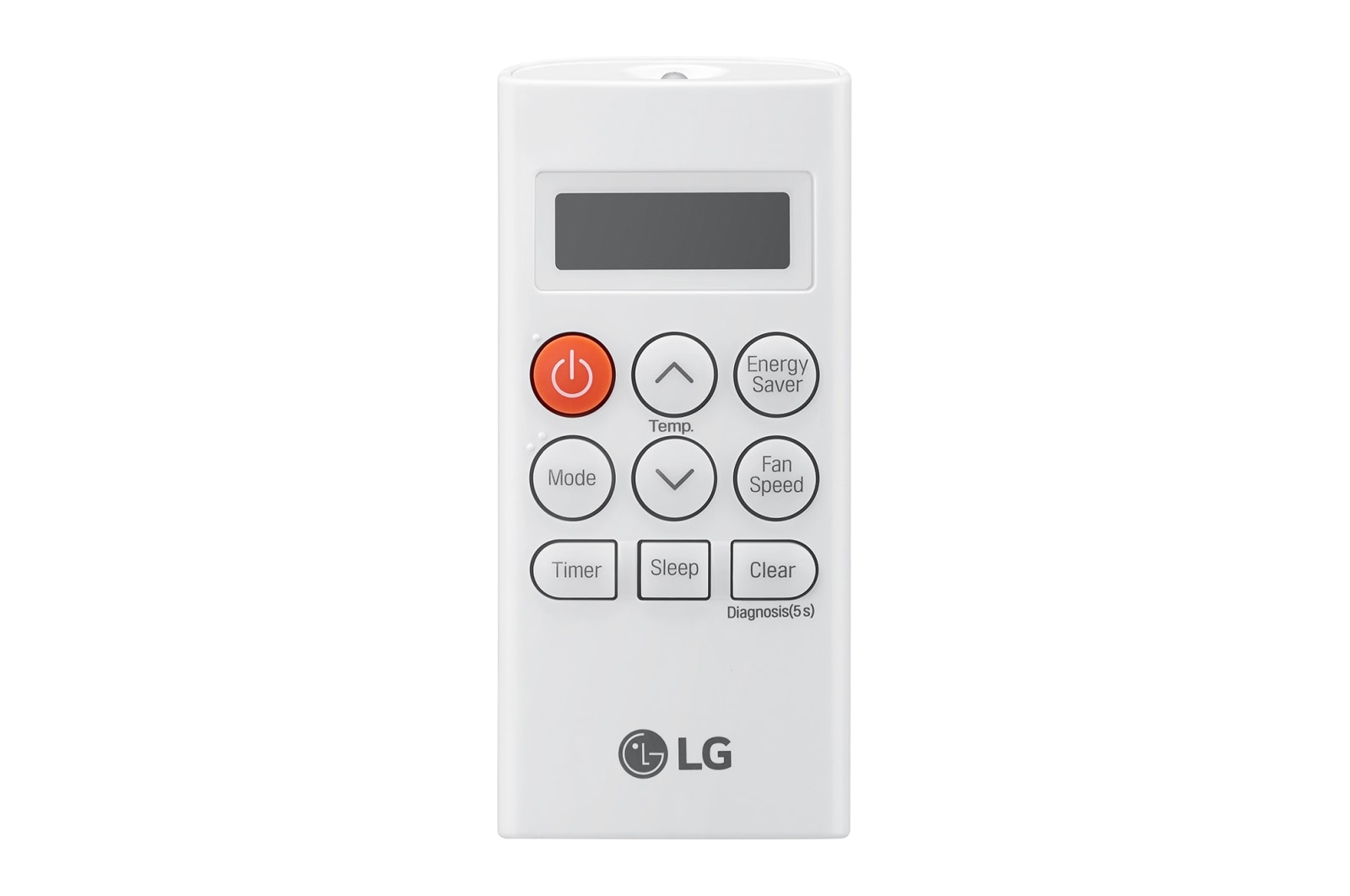

Remote controller
Good LCD
-
Auto Restart
Yes
-
Filter Alarm Function
Yes
-
Timer
24Hr,On/Off
-
Sleep
7hr,On/Off
-
Energy saver Fuction
Yes
-
Outdoor Vent / Exhaust
Yes
-
Mode
Hig /Mid/Low/Sleep
-
Fan Speed - Cooling
4
-
Fan Speed - Fan Only
4
-
Fan Type (ID/OD)
Turbo/Axial
-
Chassis Type
Slide In-Out
WL+ Chassis -
Type Air Discharge
TOP Discharge
OTHERS
-
Noise - Indoor dB(A) (High/Mid/Low/Sleep)
55/52/49/44
-
Noise - Outdoor dB(A) (High/Mid/Low/Sleep)
63/60/57/53
-
Carton (mm) - Height
525
-
Carton (mm) - Width
693
-
Carton (mm) - Depth
710
-

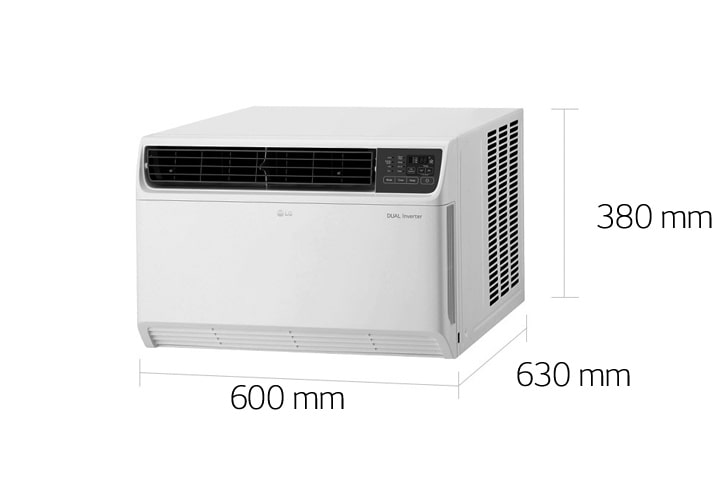

Demension (Include Front Grille, mm) - Height
380
-
Demension (Include Front Grille, mm) - Width
600
-
Demension (Include Front Grille, mm) - Depth
731
-
Demension (Front Grille) - Depth
101
-
Demension (Except Front Grille, mm) - Height
380
-
Demension (Except Front Grille, mm) - Width
600
-
Demension (Except Front Grille, mm) - Depth
630
-
Net Weight (kg)
40.0
-
Gross Weight (kg)
43.8
-
Stuffing quantity (20ft/40ft/40ft High)
96/192/240
-
Compressor
DAT134MCB
CYCLE PART
-
Compressor
DAT134MCB
-
Evaporator
Φ7 490 x 2R x 12C 20FPI
-
Condenser
Φ5 500 x 3R x 18C 20FPI
-
Capillary Tube (ID/OD/Length/EA)
1.0/2.6/1,100/2
