1.5 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe

Specs

Reviews

Support

1.5 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe

HSN12APD

1.5 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe

()

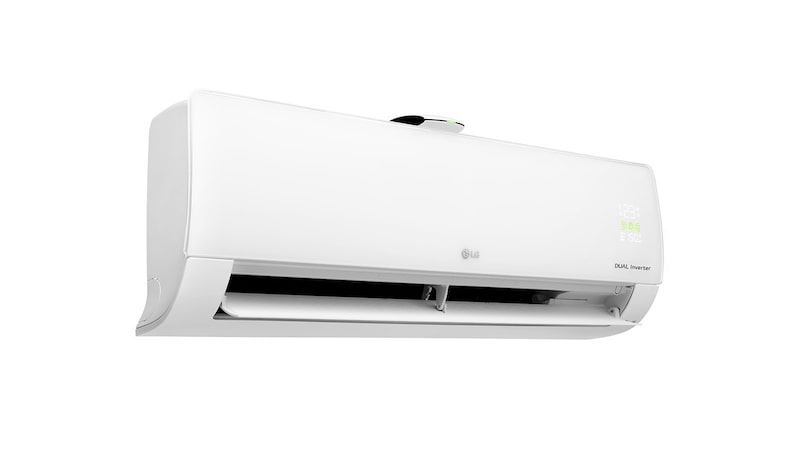

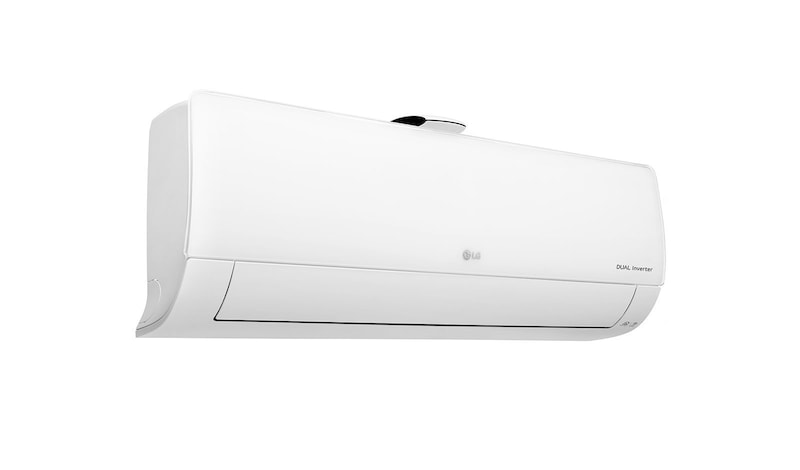

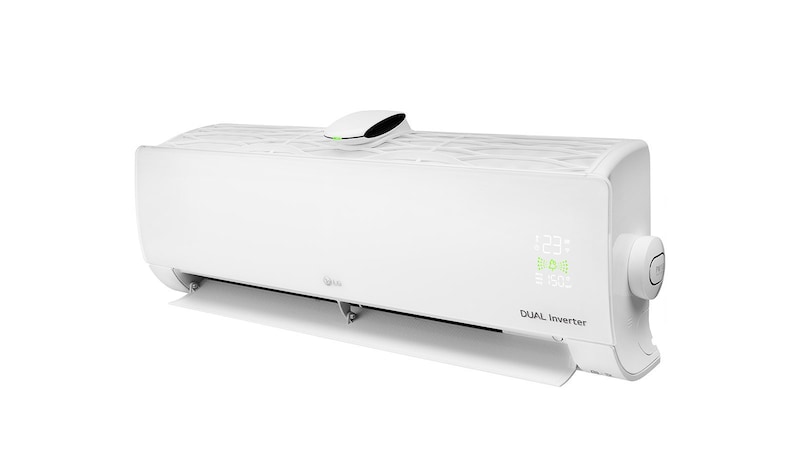

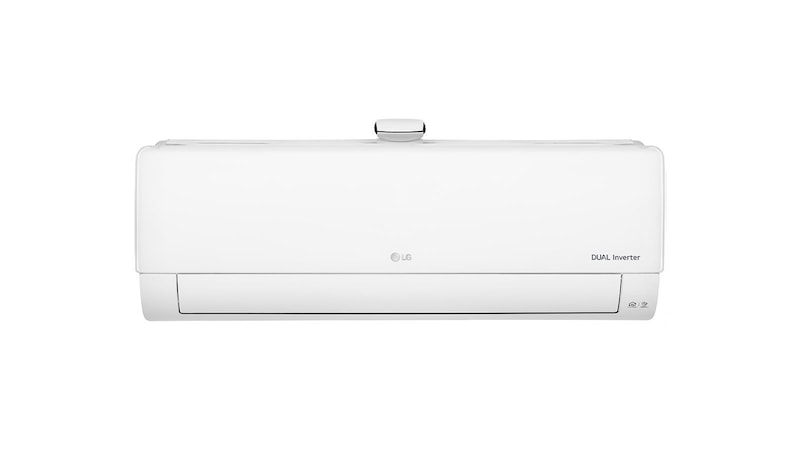

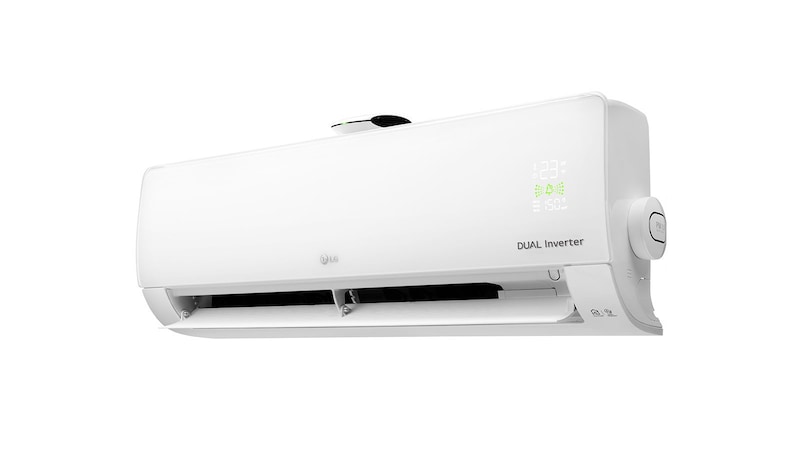

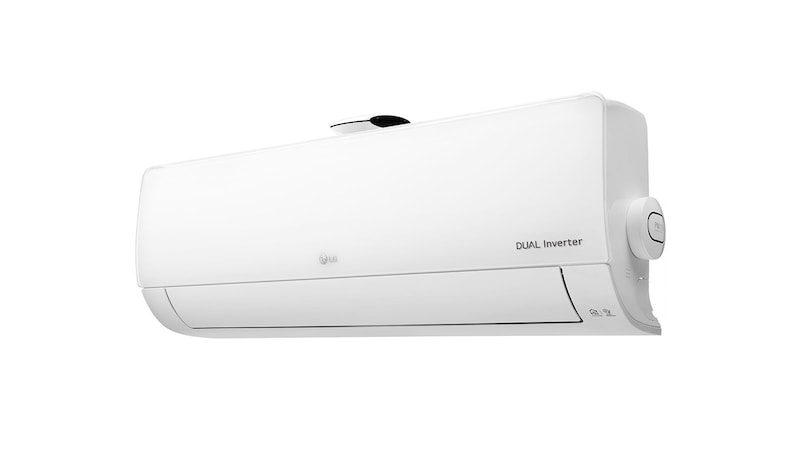

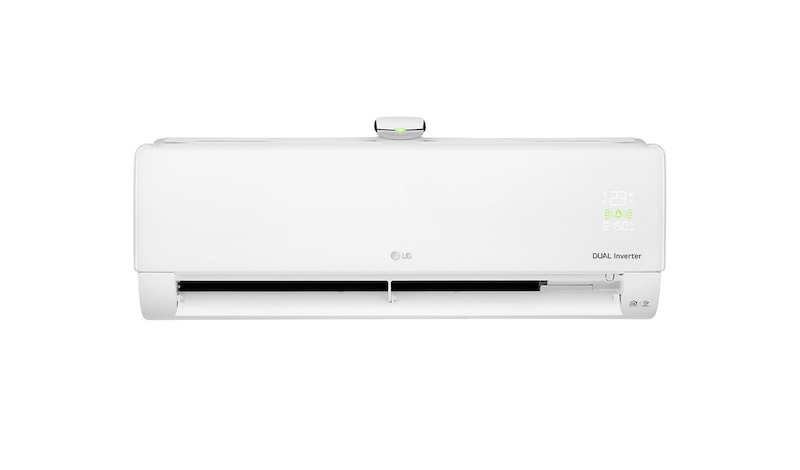

Front view of 1.5 HP, Dual Inverter Compressor, 70% Energy Saving, Fast Cooling, 4 Way Swing, Auto Clean, Air Purifier Deluxe HSN12APD

Summary

Print

DIMENSIONS

All Spec

CAPACITY

  • Cooling (Min ~ Rated ~ Max)

    1.40 ~ 3.30 ~ 3.58 kW
    4,787 ~ 11,260 ~ 12,199 Btu/h
    5,050 ~ 11,879 ~ 12,870 Btu/h

POWER INPUT

  • Cooling (Min ~ Rated ~ Max)

    305 ~ 860 ~ 1,050 W

RUNNING CURRENT

  • Cooling (Min ~ Rated ~ Max)

    1.60 ~ 4.20 ~ 5.00 A

EER

  • EER

    3.84 W/W
    13.09 (Btu/h)/W1
    13.81 (kJ/h)/W

POWER SUPPLY

  • Power Supply

    1, 230, 60 (Ø, V, Hz)

  • Available Voltage Range

    187 ~ 276 V

  • Power Factor - Cooling

    97%

  • Moisture Removal

    1.25 l/h

INDOOR UNIT

  • Air Flow Rate - Cooling, Max/H/M/L

    11 / 10 / 6.6 / 4.2 m³/min

  • Sound Pressure Level - Cooling, Max/H/M/L/SL

    - / 41 / 35 / 27 / 21 dB(A)

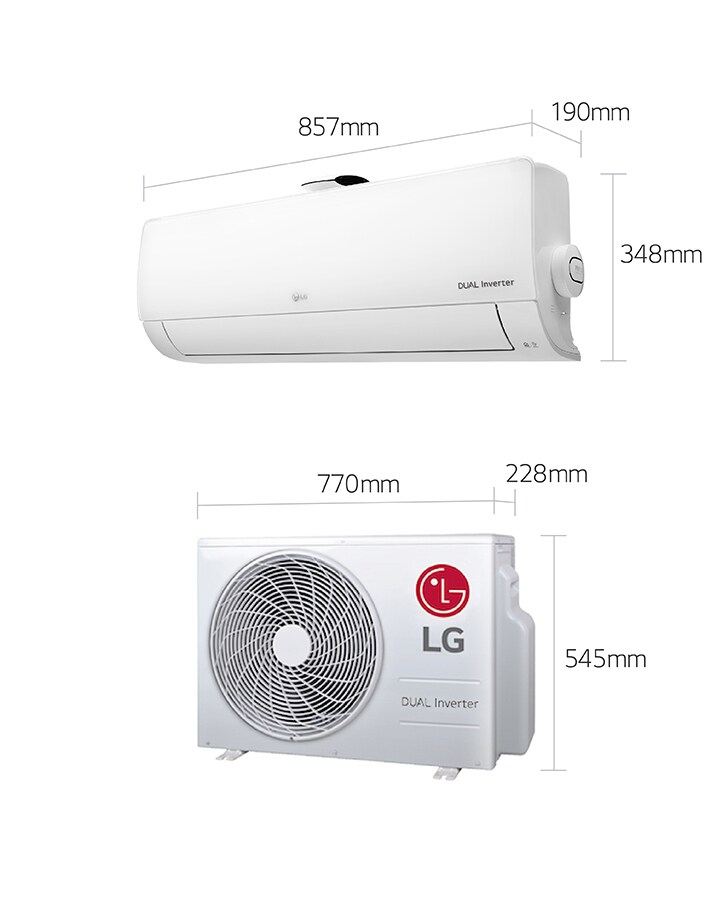

  • Dimensions (W × H × D) - Net

    857 × 348 × 190 mm

  • Dimensions (W × H × D) - Shipping

    915 × 401 × 251 mm

  • Weight - Net

    9.6kg

  • Weight - Shipping

    10.9kg

  • Exterior Color Code

    Munsell 7.5BG 10/2 (RAL 9016)

OUTDOOR UNIT

  • Air Flow Rate - Max

    28.0 m³/min

  • Fan Motor Speed - Cooling, Min ~ Max

    230 ~ 900 rpm

  • Sound Pressure Level - Cooling, Rated

    53 dB(A)

  • Dimensions (W × H × D) - Net

    720 × 500 × 230 mm

  • Dimensions (W × H × D) - Shipping

    839 × 532 × 324 mm

  • Weight - Net

    23.9kg

  • Weight - Shipping

    25.9kg

  • Max. Fuse Size

    20A

  • Exterior Color Code

    Munsell 9.54Y 8.34/1.31 (RAL 9001)

  • Operation Range - Cooling

    18 ~ 48 °C DB

CIRCUIT BREAKER

  • Circuit Breaker

    15A

  • Power Supply Cable

    3 x 1 No. x mm²

  • Power Supply to Unit

    Indoor

  • Power and Communication Cable

    4 x 1 No. x mm²

PIPING

  • Size - Liquid

    ø 6.35 mm

  • Size - Gas

    ø 9.52 mm

  • Connections Method - Indoor/Outdoor

    Flared/Flared

  • Drain Hose Size - O.D, I.D

    21.5, 16.0 mm

BETWEEN INDOOR & OUTDOOR

  • Piping Length - Min/Standard/Max

    3/7.5/20 m

  • Piping Length - No Change

    12.5 m

  • Max. Elevation Difference

    15m

  • Piping Connection Heat Insulation

    Both liquid and gas pipes

REFRIGERANT

  • Type

    R32

  • Pre Charge

    680g

  • Additional Charge

    10g/m

  • Control

    Capillary

  • Global Warning Potential

    675

  • t-CO₂ eq

    0.459

COMPRESSOR

  • Type

    Twin Rotary

  • Model

    DST102MAA

  • Motor Type

    BLDC

  • Oil Type / Maker

    PVE (FW68D) / IDEMITSU

  • Oil Charge

    280cc

  • Manufacturer / Country of Origin

    LG Electronics / China

FAN(INDOOR)

  • Type

    Cross Flow Fan

  • Motor Output

    30W

FAN(OUTDOOR)

  • Type

    Propeller Fan

  • Motor Type

    BLDC

  • Motor Output

    43W

  • Motor Insulation

    Class E

  • Motor Enclosure / Ingress Protection

    TEAO/IPX4

HEAT EXCHANGER

  • Evaporator - Material, Tube / Fin

    Cu/Al

  • Evaporator - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 2 x 15 x 21 x 616.8) x 1

  • Evaporator - Corrosion Protection

    PCM

  • Evaporator - Fin Type

    Slit

  • Condenser - Material, Tube / Fin

    Cu/Al

  • Condenser - (ø x Row x Column x FPI x L) x Qty.

    (ø7 x 2 x 22 x 18 x 667) x 1

  • Condenser - Corrosion Protection

    Gold

  • Condenser - Fin Type

    Louver
