24TL520A-PT

Specs

Reviews

Support

24TL520A-PT

24TL520A-PT

24TL520A-PT
()

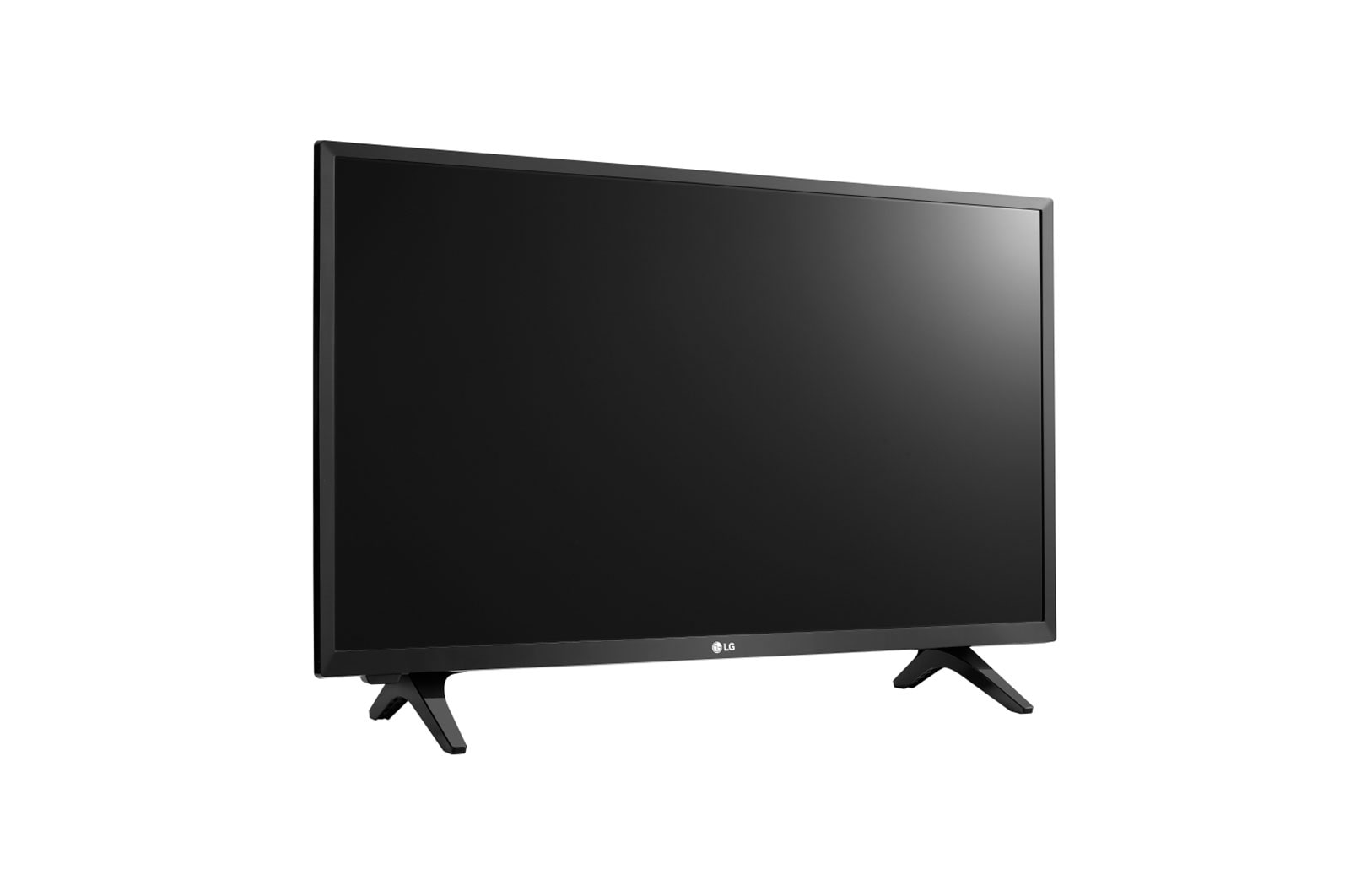

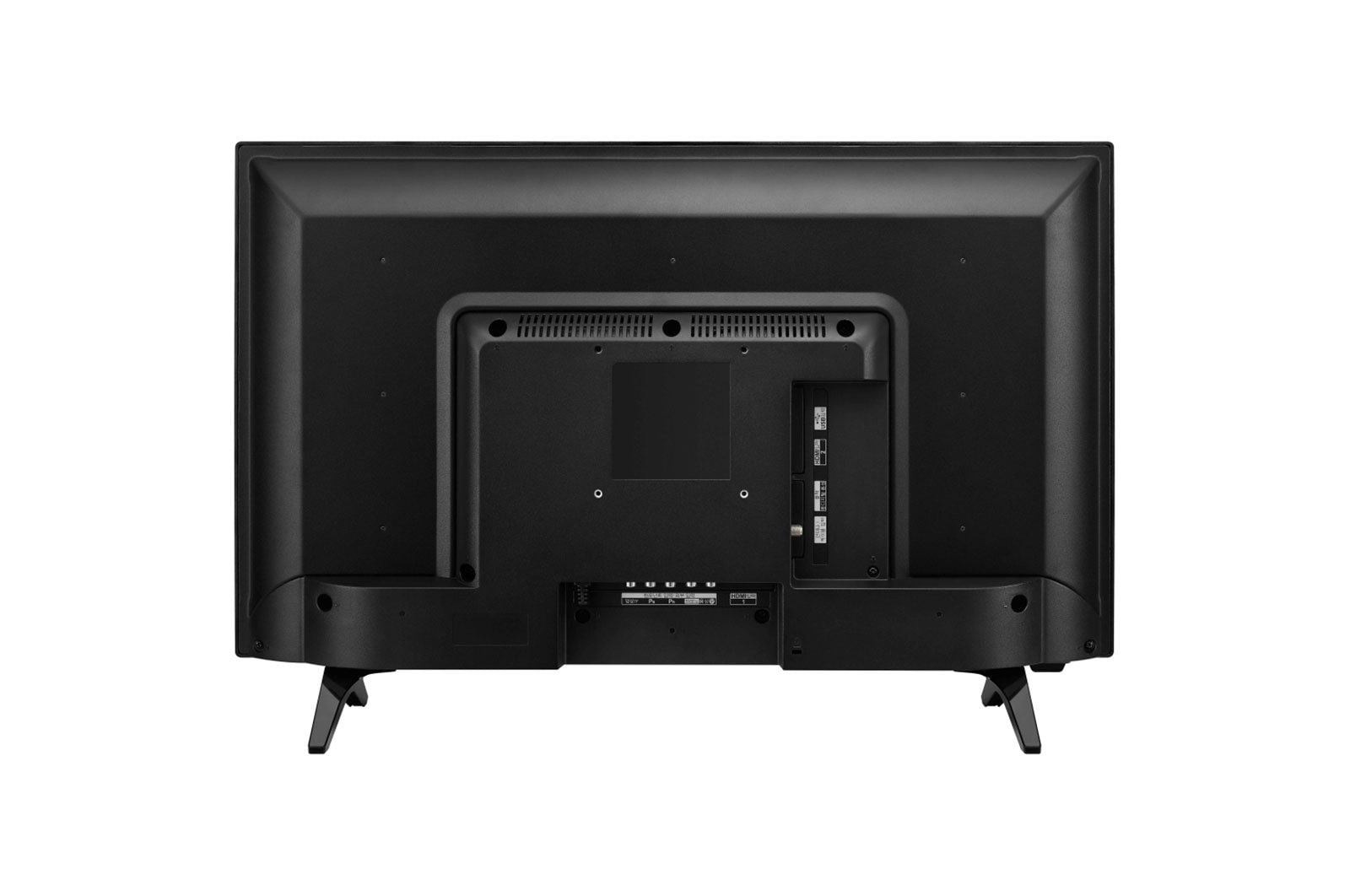

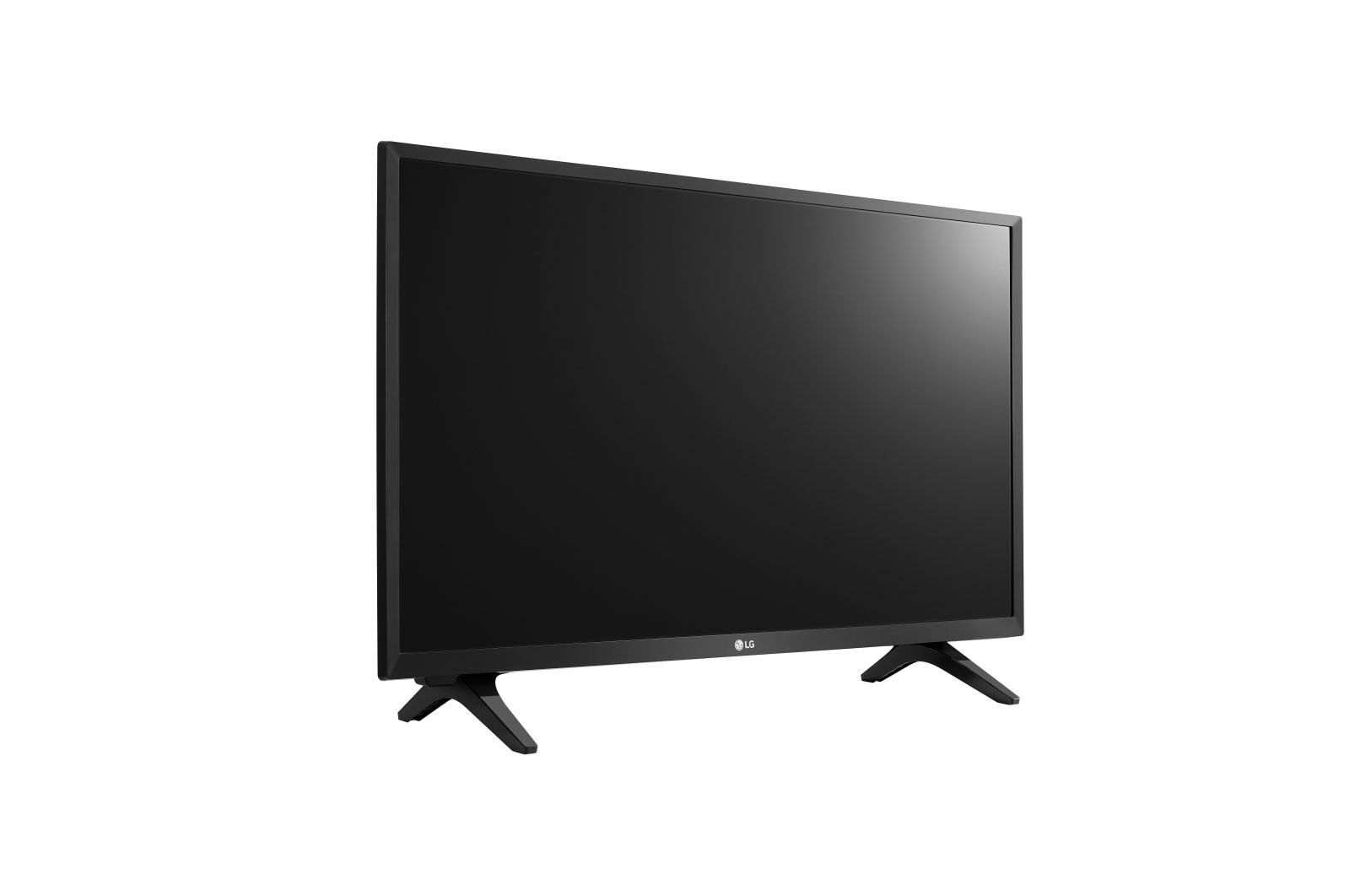

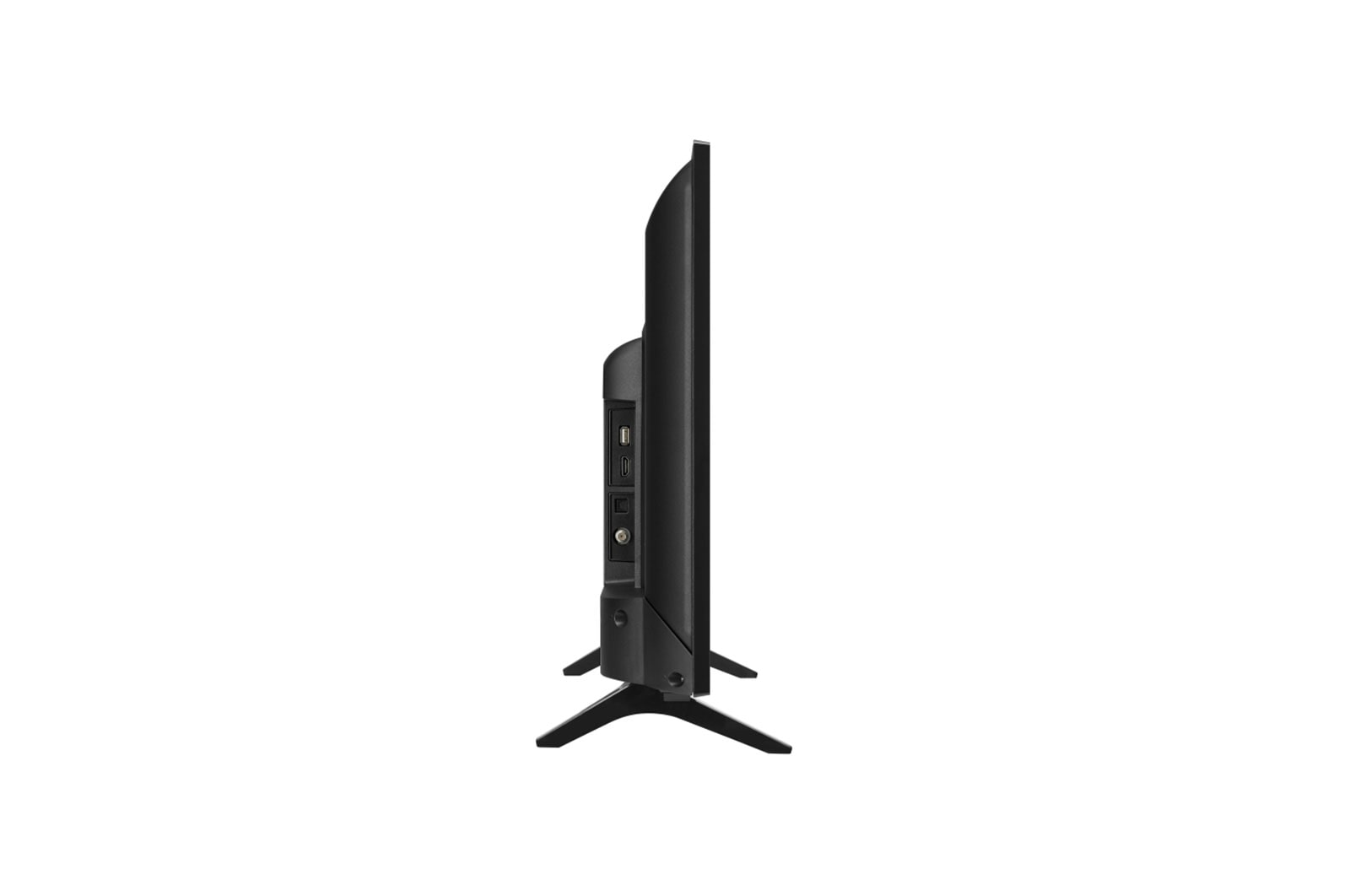

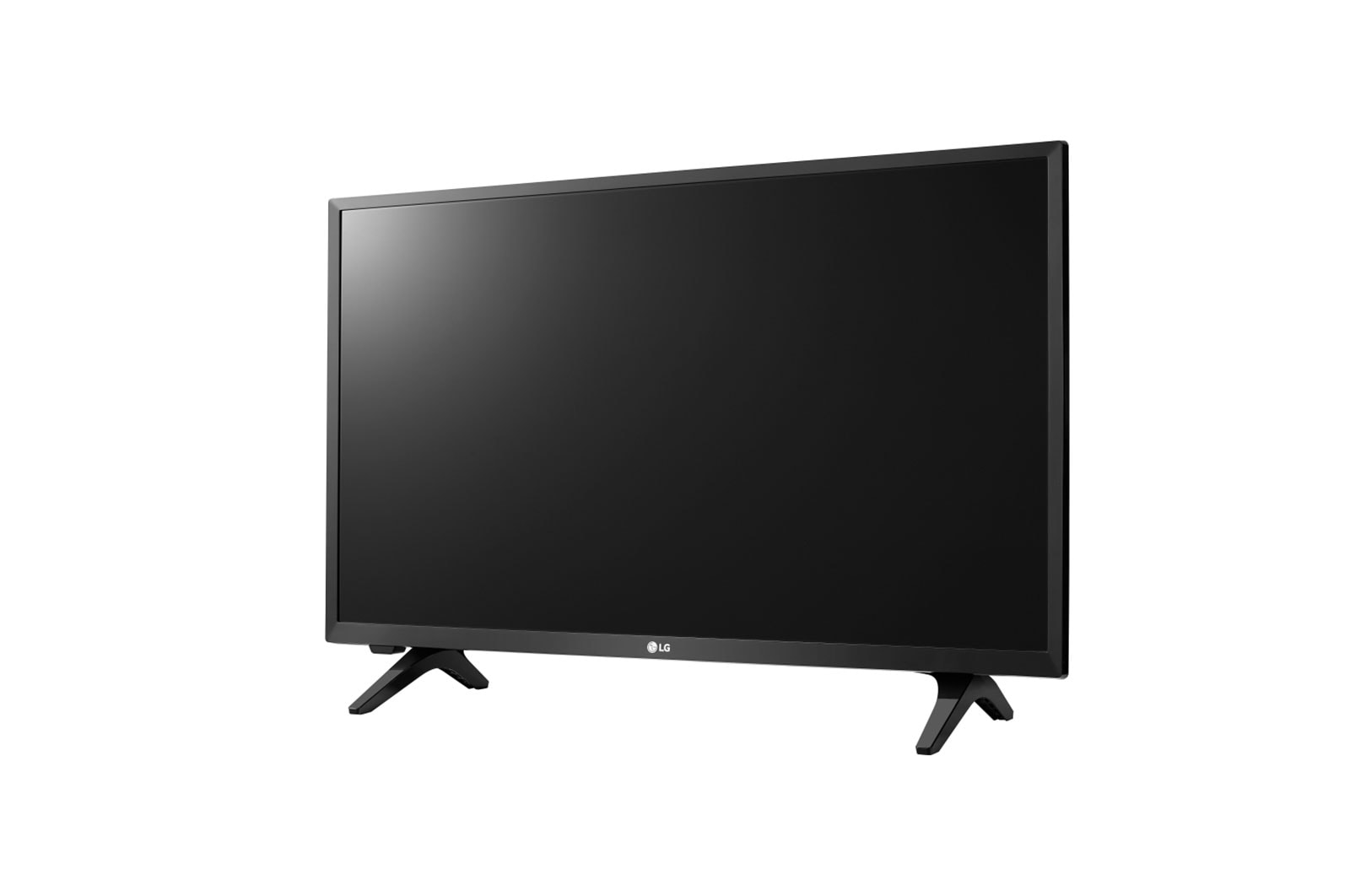

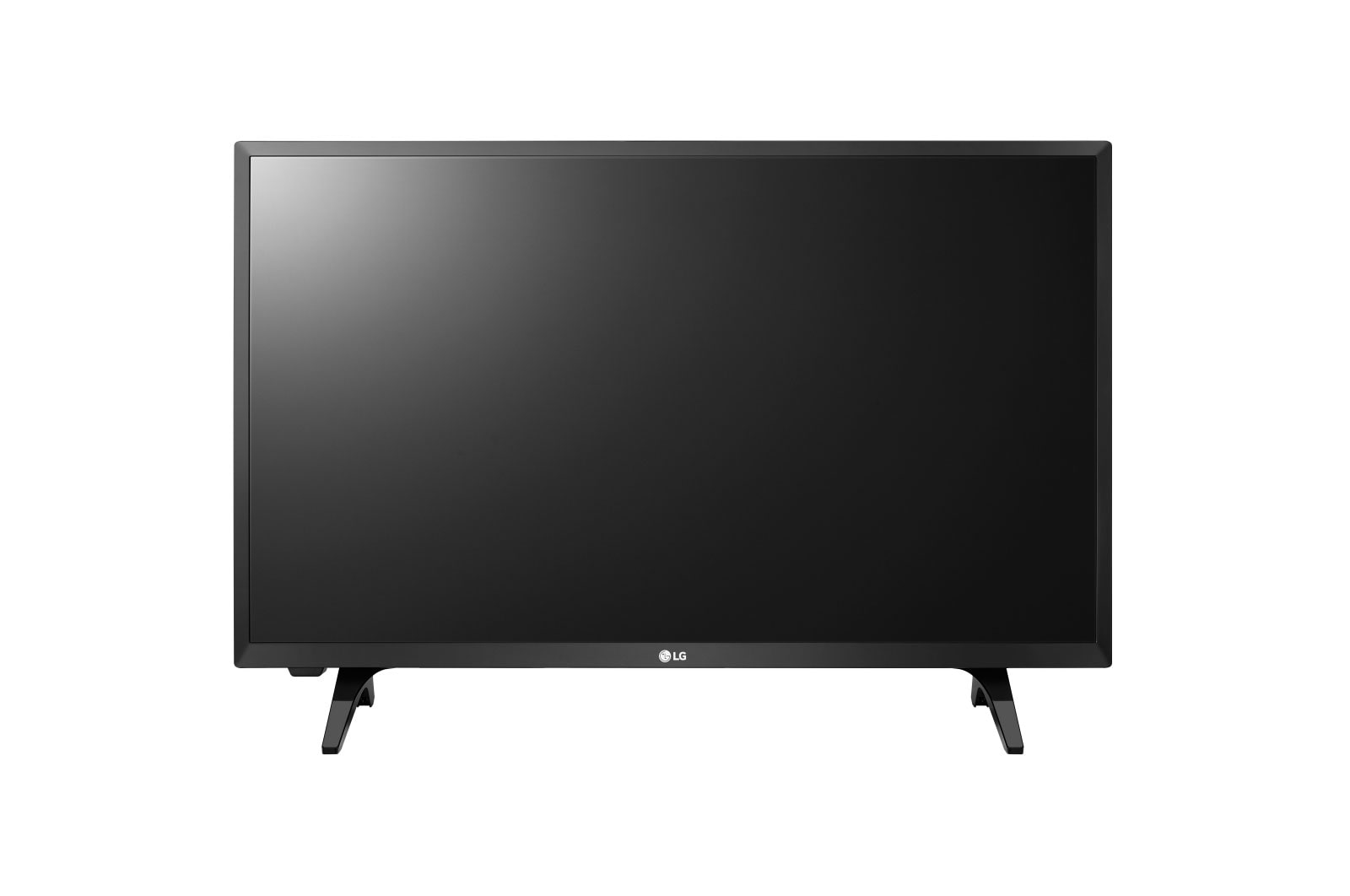

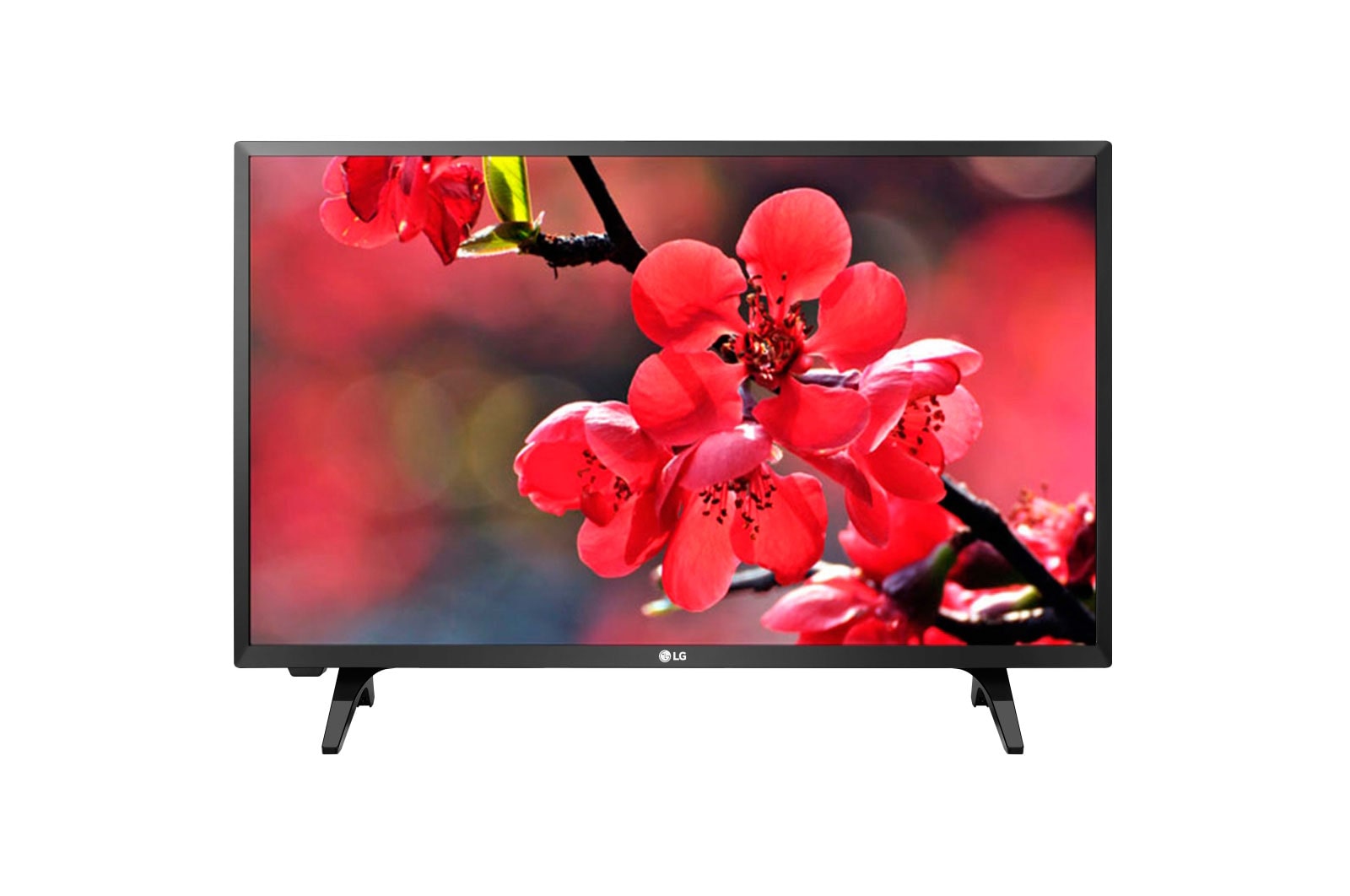

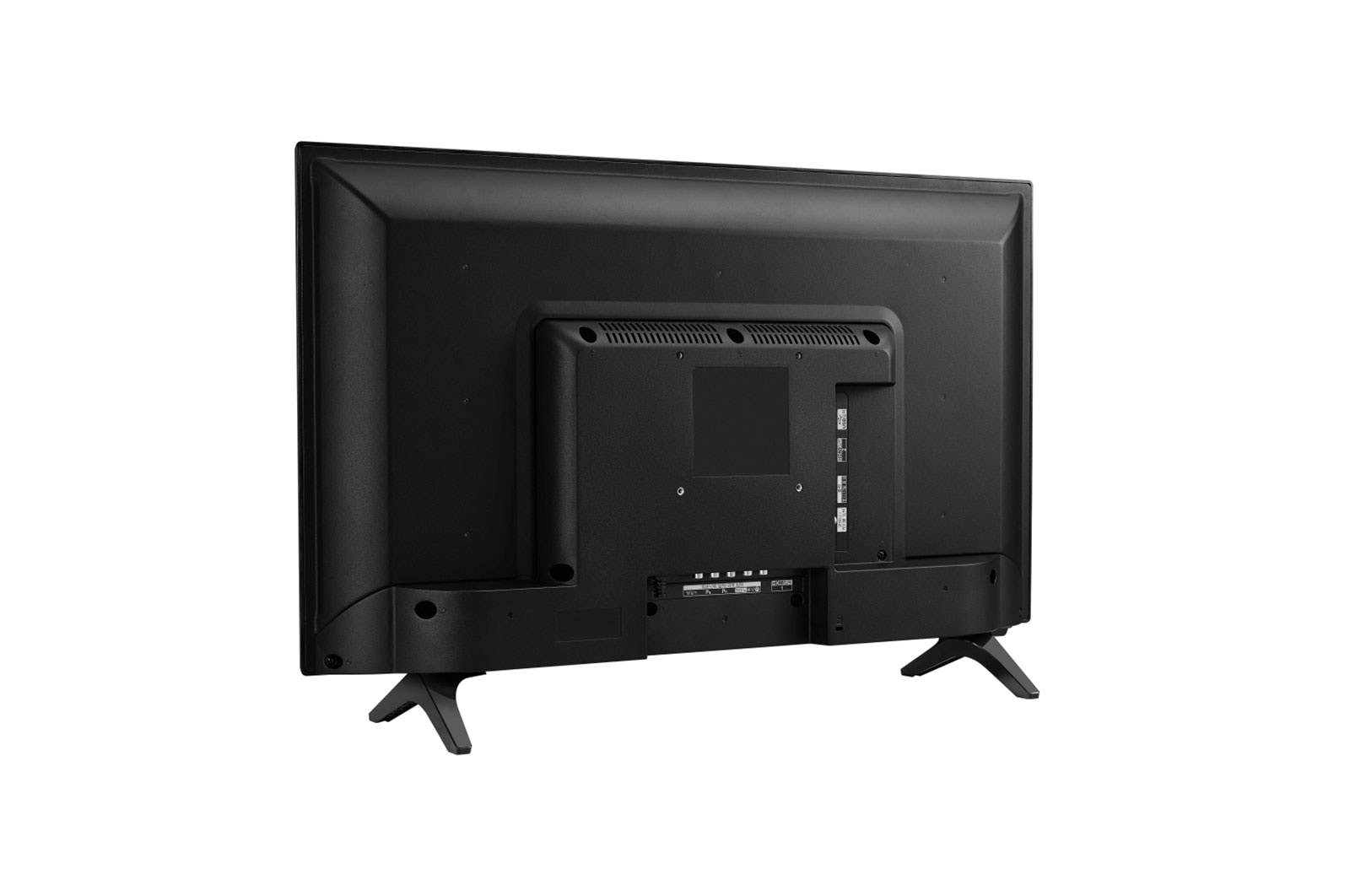

  • Front view of 24TL520A-PT 24TL520A-PT

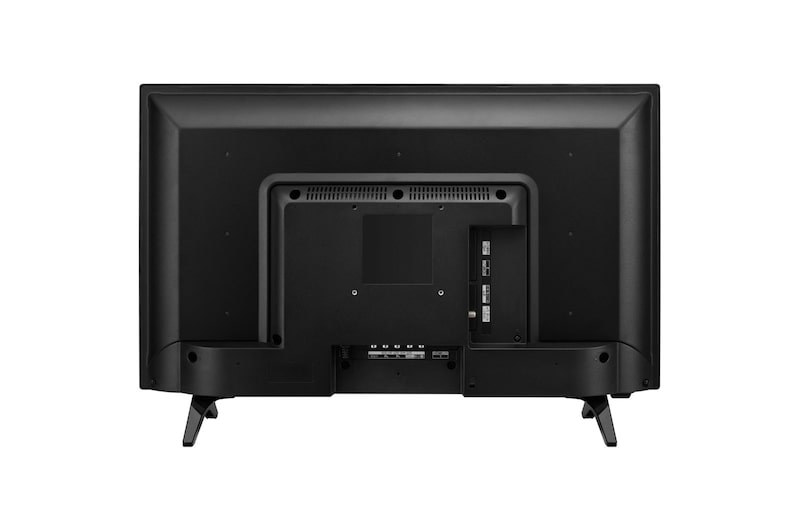

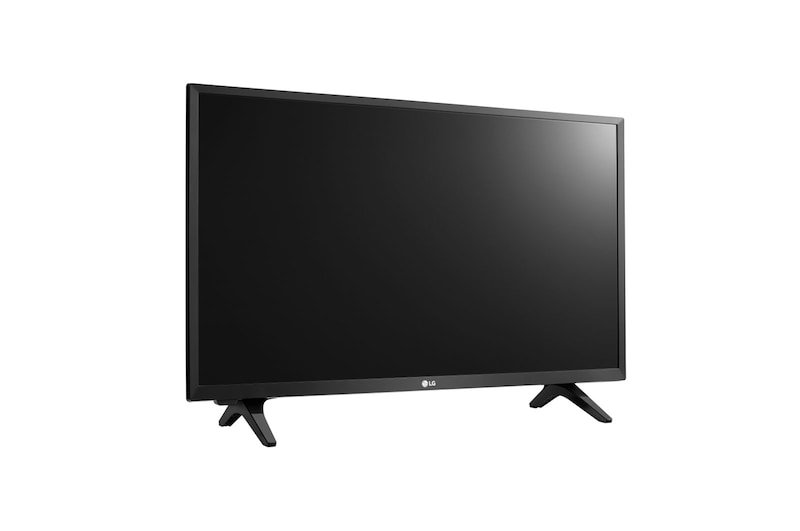

  • LG 24TL520A-PT, 24TL520A-PT
  • LG 24TL520A-PT, 24TL520A-PT
  • LG 24TL520A-PT, 24TL520A-PT
  • LG 24TL520A-PT, 24TL520A-PT
  • LG 24TL520A-PT, 24TL520A-PT
  • LG 24TL520A-PT, 24TL520A-PT
  • LG 24TL520A-PT, 24TL520A-PT
Front view of 24TL520A-PT 24TL520A-PT
LG 24TL520A-PT, 24TL520A-PT
LG 24TL520A-PT, 24TL520A-PT
LG 24TL520A-PT, 24TL520A-PT
LG 24TL520A-PT, 24TL520A-PT
LG 24TL520A-PT, 24TL520A-PT
LG 24TL520A-PT, 24TL520A-PT
LG 24TL520A-PT, 24TL520A-PT

Key Features

  • HDMI
  • USB Auto Run
  • Wide Viewing Angle
Print

All Spec

FEATURE

  • Size (Inch / cm) (Multi)

    23.6"/60 cm

  • Panel Type (Multi)

    Wide Viewing Angle

  • Color Gamut (CIE1931) (Multi)

    72%

  • Color Bit (Multi)

    8bit (6bit+FRC)

  • Color Depth (Number of Colors) (Multi)

    16.7M

  • Pixel Pitch(mm) (Multi)

    0.38175 x 0.38175

  • Aspect Ratio (Multi)

    16:9

  • Resolution (Multi)

    1366 x 768

  • Brightness (Typ.) (Multi)

    250 (Typ.), 160 (Min.)

  • Contrast Ratio (Original) (Multi)

    1000:1 (typ.)

  • Contrast Ratio (DFC) (Multi)

    5M:1

  • Response Time_Typ. (GTG) (Multi)

    14ms

  • Viewing Angle(CR≥10) (Multi)

    178/178 (CR≥10)

  • Surface Treatment(Glare/non Glare) (Multi)

    Hard coating (3H), Anti-glare

JACK INPUT/OUTPUT

  • Composite (Signal Input)

    Yes

  • HDMI (Ver.) (Signal Input)

    Yes (HDMI1.3)

  • USB (Ver.) (Signal Input)

    Yes (USB2.0)

  • [ Jack Location ] (Signal Input)

    Rear/Side

  • RCA (Audio Input)

    Yes

  • [ Jack Location ] (Audio Intput)

    Rear

  • Others (Audio Output)

    Phone Jack

  • [ Jack Location ] (Audio Output)

    Rear

  • Analog (Tuner Input)

    PAL Multi

  • [ Jack Location ] (Tuner Input)

    Rear

SPEAKER

  • Type

    Internal

  • Audio output

    5W x 2

POWER

  • Type (w/Watt) (Input/Output)

    Adapter (32W)

  • Input (Input/Output)

    100~240V

  • Normal On(Typ.) (Consumption)

    30W

  • DC Off(Max) (Consumption)

    0.5W

FREQUENCY

  • H-Frequency (D-sub)

    30kHz~69kHz

  • V-Frequency (D-sub)

    56Hz~61Hz

  • H-Frequency (HDMI)

    30kHz~69kHz

  • V-Frequency (HDMI)

    56Hz~61Hz

RESOLUTION

  • D-sub (PC)

    1366 x 768

  • HDMI (Video)

    480p, 576p, 720p, 1080i, 1080p

  • Composit (Video)

    480i/576i

CONTROL KEY

  • Key Number (Power Key Included)

    1 Key

  • Key Type

    JOYSTICK KEY

  • LED Color(On mode)

    Off

  • LED Color(Standby)

    Red

  • [ Key Location ]

    BOTTOM

OSD

  • Number of Language (Language)

    18 Language (English/French/Spanish/Portuguese/Russian/Thai Malay/Indonesian/Hebrew/Farsi/Arabic/Kurd Vietnam, Hindi, Marathi, Telugu, Bengali, Tamil)

SPECIAL FEATURE

  • HDCP (General Function)

    Yes

  • Intelligent Auto (General Function)

    Yes

  • Remote Control (General Function)

    Yes

  • Plug & Play (General Function)

    DDC2B

  • Teletext (Accessibility)

    Yes

  • Flicker Safe (Special Function)

    Yes

  • Eye Comfort Mode (Special Function)

    Yes

  • USB Media Player (Special Function)

    Yes, Divx
    (Video, Music, Picture)

  • USB Auto Play (Special Function)

    Yes

  • Smart Energy Saving (Special Function)

    Yes

  • Motion Eye Care (Special Function)

    Yes

  • Built-in Game (Special Function)

    Yes
    (Egg Catcher, Space Wars, Cookie Cookie, Jungle Hunter, Bubble Pot)

  • Picture Mode (Picture)

    Vivid, Standard, Cinema, Soccer, Game

  • ARC-PC (Picture)

    16:9, 4:3

  • ARC-Video (Picture)

    16:9 - ATV, AV, RGB, HDMI
    Just Scan – HDMI
    Original - ATV, AV, HDMI
    4:3 - ATV, AV, RGB, HDMI
    14:9 - ATV, AV, HDMI
    Zoom - ATV, AV, HDMI
    Cinema Zoom - ATV, AV, HDMI

  • AVL (Auto Volume) (Sound)

    Yes

  • Auto / Manual Clock (Time / Clock)

    O (Manual Only)

  • On/ Off Time (Time / Clock)

    Yes

  • Sleep Timer (Time / Clock)

    Yes

  • Auto Off / Auto Sleep (Time / Clock)

    Yes

  • Hotel Mode (Hotel mode)

    Yes

COLOR

  • Front

    Iron gray (Texture)

  • Stand

    Black

  • Base

    Black

STAND

  • Base Detchable

    Detachable

SIZE/WEIGHT

  • Set (with Stand - Dimension(W*D*H)(mm))

    563.1 x 150.1 x 367

  • Set (without Stand - Dimension(W*D*H)(mm))

    563.1 x 58 x 340.9

  • Box (Dimension(W*D*H)(mm))

    628 x 106 x 401

  • Wall Mount (Dimension(W*D*H)(mm))

    75 x 75

  • Set (with Stand - Weight(Kg))

    3.3

  • Set (without Stand - Weight(Kg))

    3.25

  • Box (Weight(Kg))

    4.5

  • Individual(20ft/40ft/40ft HC) (Stuffing)

    810/1674/1953

  • Pallet(20ft/40ft/40ft HC) (Stuffing)

    640/1472/1748

WRAP

  • Packing Material

    EPS

  • Stacking Type

    Face Down

  • Stand Packing Type

    Base Detach

  • Box Printing Type

    Flexo 1 color

  • Handle

    No (Hand hole)

ACCESSORY

  • Power Cord

    Yes

  • Remote Controller

    Yes
