All Spec
PRODUCT INFORMATION
-
Product Type
-

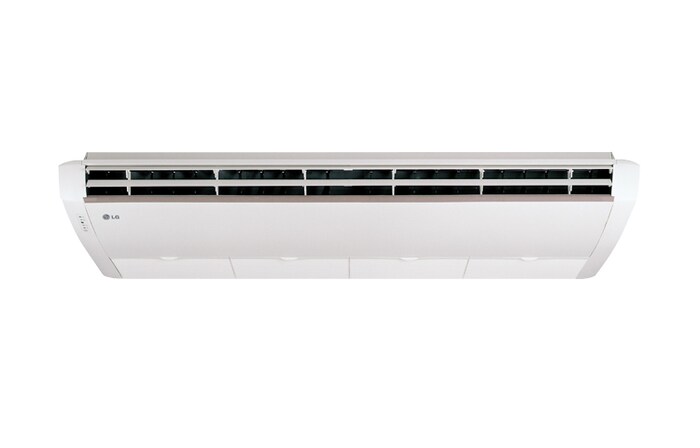

Air Suspended Ceiling
-
Cooling / heating
-
Only cooling
-
Alanfrr Technology
-
Yes
-
Fast cooling
-
Yes
-
Super energy saving
-
Yes
-
Coolers protection of the environment
-
Yes
-
Purification of the Clean Air
-
Yes
-
Control the rate of air flow
-
Yes
-
Noise internal unit level (H / M / L)
-
47/45/43 dB (A)
-
Operating range
-
Up to 54 ° C
GENERAL SPECIFICATIONS
-
Power supply (ø / V / Hz)
-
1/230/60
-
Cooling capacity
-
7.0 Kw (24,000 Btu / h)
-
Energy used
-
2.1 kW
-
Energy Efficiency %
-
11.6 Btu / hr / W
-
COP
-
3.4 W / W
INTERNAL UNITY
-
AC current
-
0.7 A.
-
Air flow rate (H / M / L)
-
21.4 / 19.8 / 18.2 CMM
-
Dehumidify rate
-
2.7 ℓ / h
-
Body dimensions (width × height × depth)
-
1,350 × 650 × 220 mm
-
Net weight
-
34.1 kg
ODU
-
AC current
-
9.0 A.
-
Compressor Type
-
Rotary double
-
Sound level (H)
-
50 dB (A)
-
(Width × height × depth)
-
870 × 655 × 320 mm
-
Net weight
-
34 kg
-
Delivery pipes (liquid)
-
Ø 9.52 mm
-
Delivery pipes (gas)
-
Ø 15.88 mm
-
Exchange (external / internal)
-
Ø 32 mm / 25 mm
-
.toul Pipes maximum (the main pipeline)
-
50 m
-
Vertical height maximum. (internal external)
-
30 m
THE POSSIBILITY OF INSTALLATION
-
Shops
-
Yes
-
Restaurants
-
Yes
-
Offices
-
Yes
