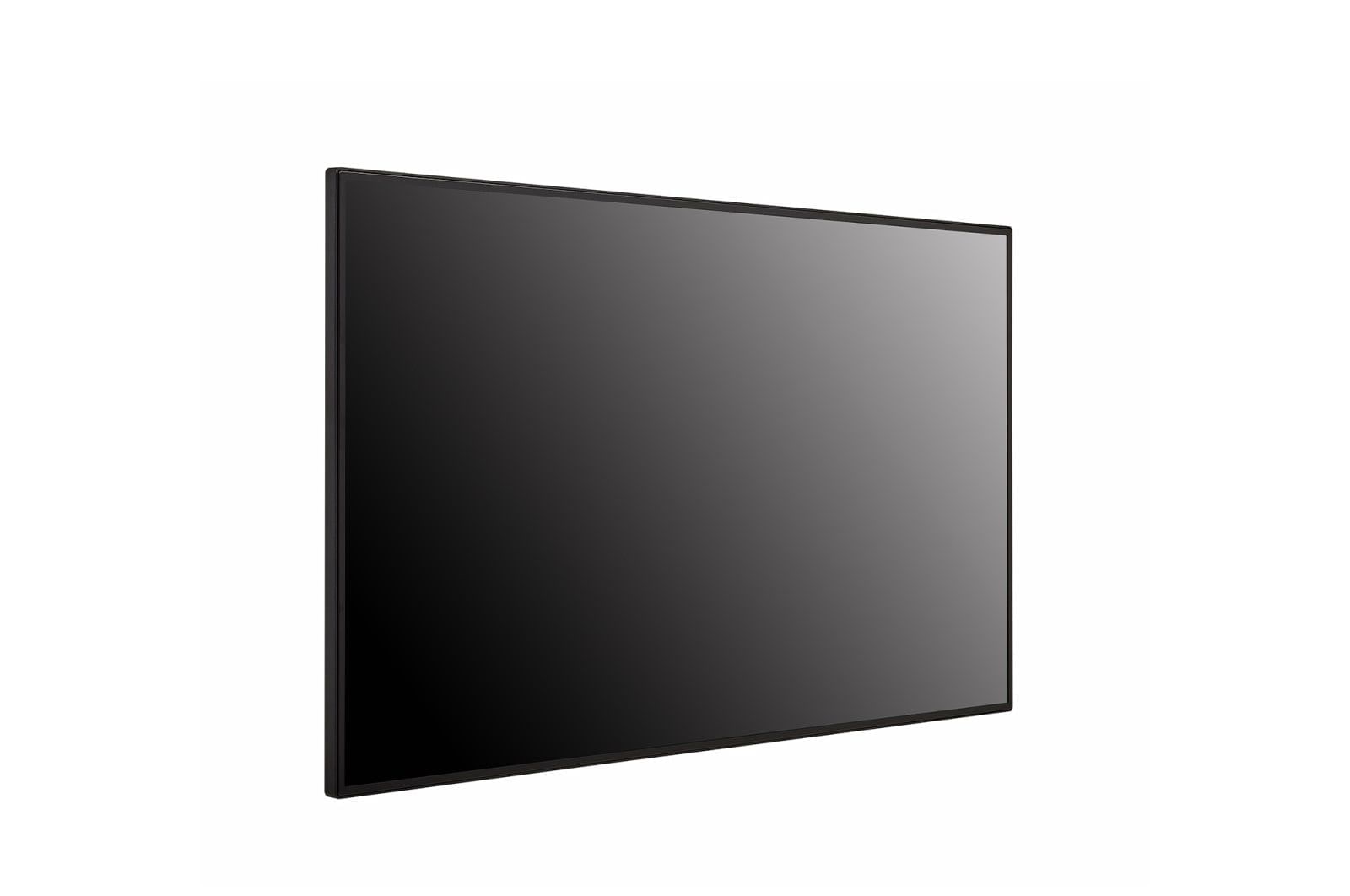

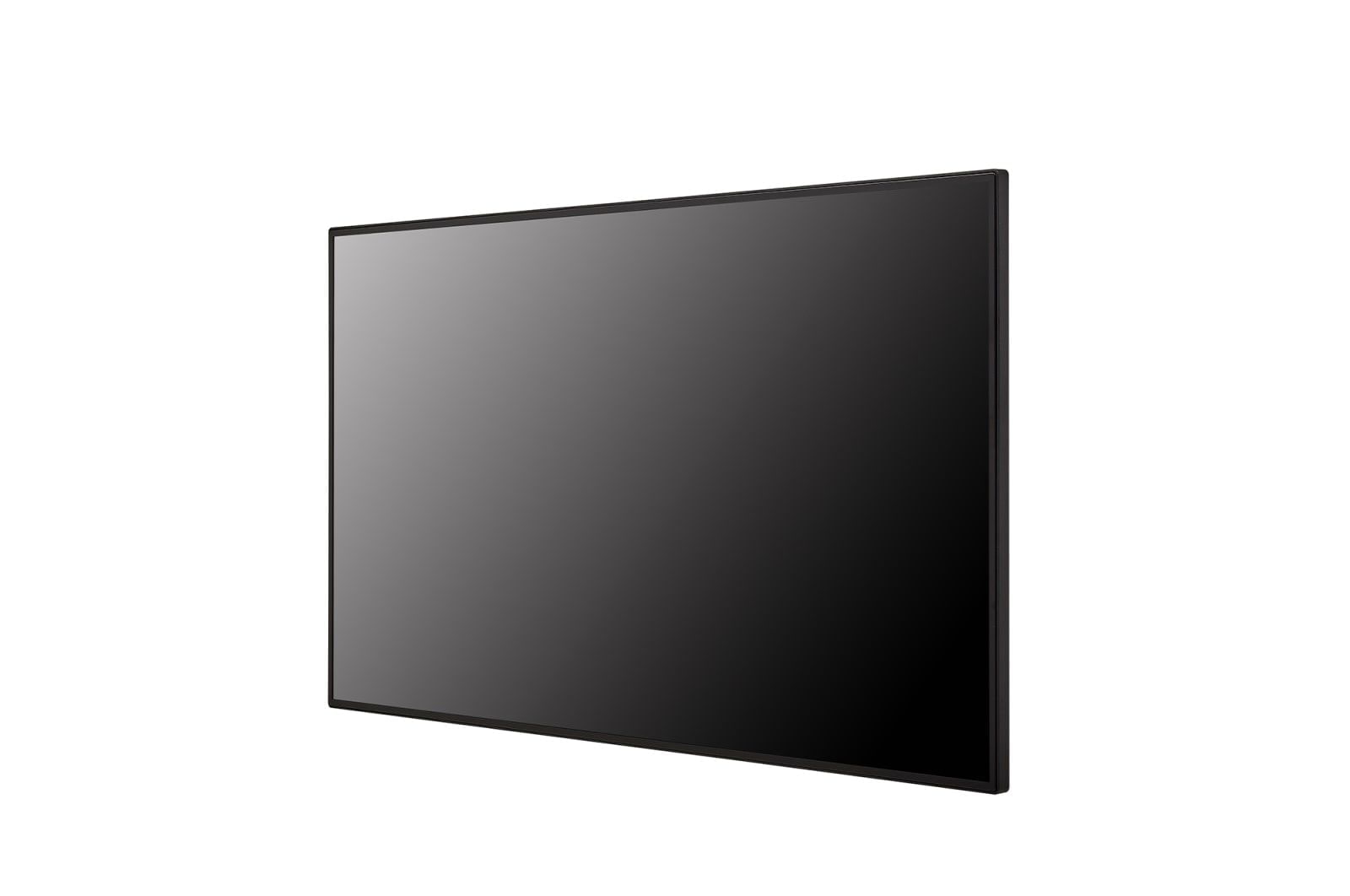

LG Narrow Bezel UDH Signage Display, 43inch

43UM5N-H

LG Narrow Bezel UDH Signage Display, 43inch

(2)

UHD Signage Display withLG webOS Platform and Advanced Security

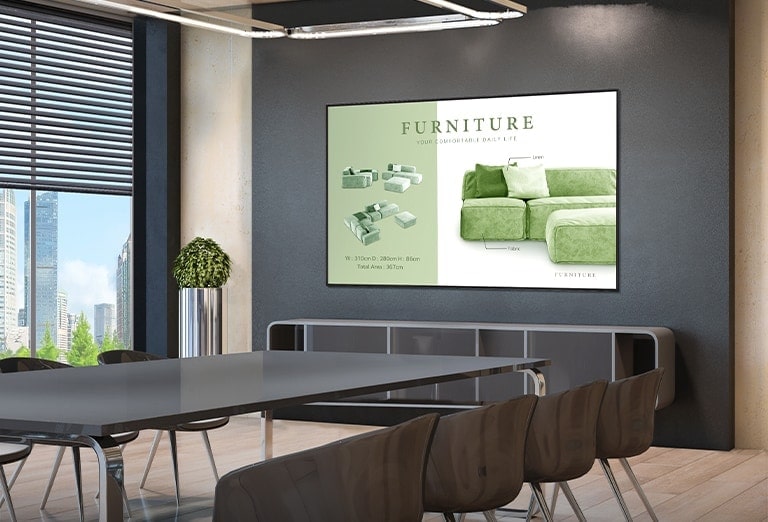

A screen showing the meeting’s contents is installed on the meeting room’s wall.

* 65 inch

* All images in this page are for illustrative purposes only.



The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

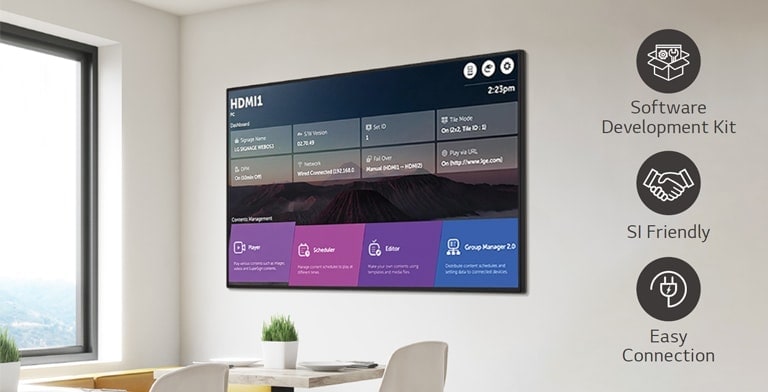

A number of tasks can be done at the same time with the intuitive GUI.

Convenient webOS Platform

The UM5N-H is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UM5N-H is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction.



The UM5N-H has Conformal Coating on the power board to protect display even in a salty or humid environment.

Design for Space Utilization

Designed with thin bezels and simple cable management, the UM5N-H saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

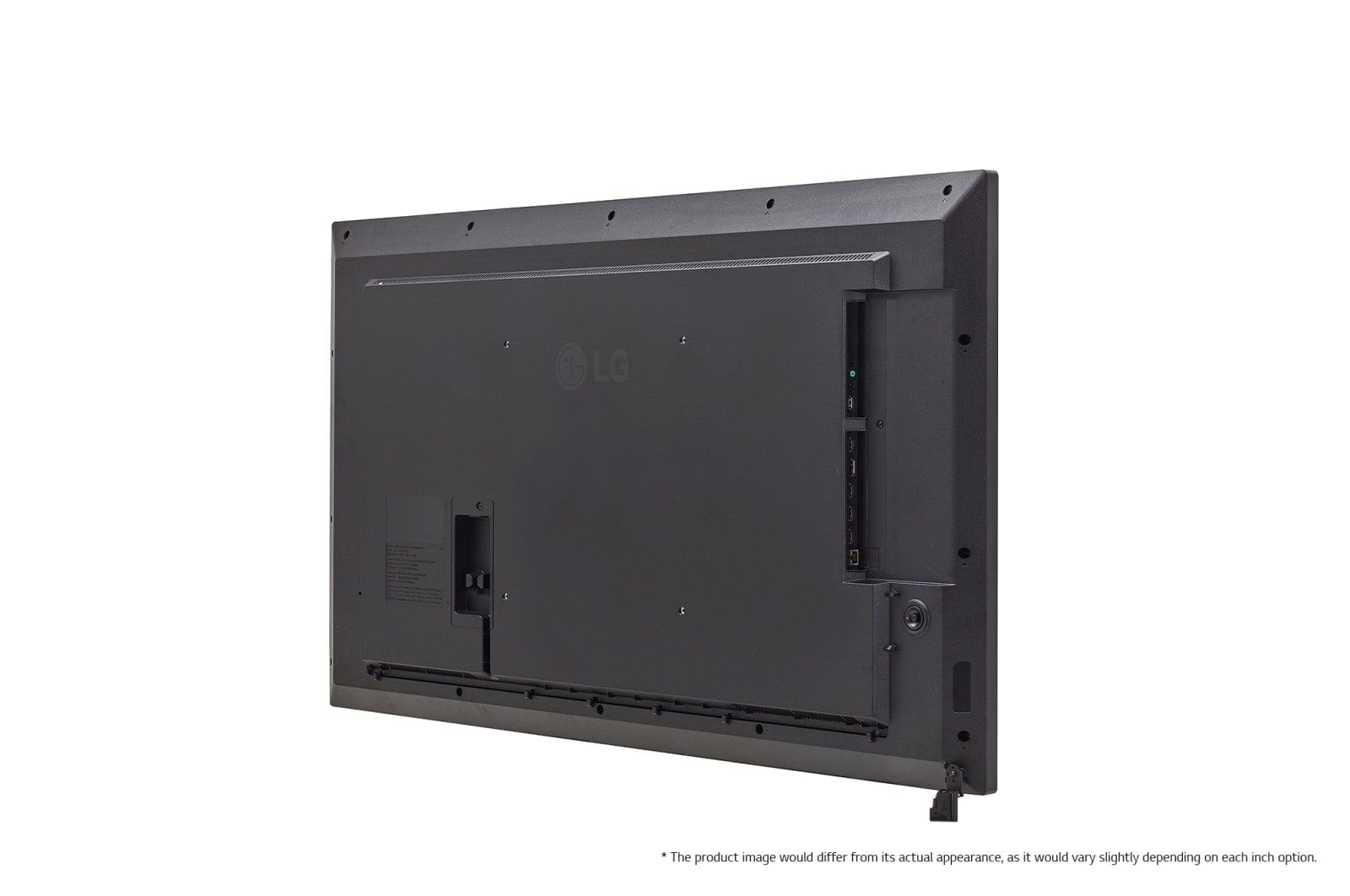

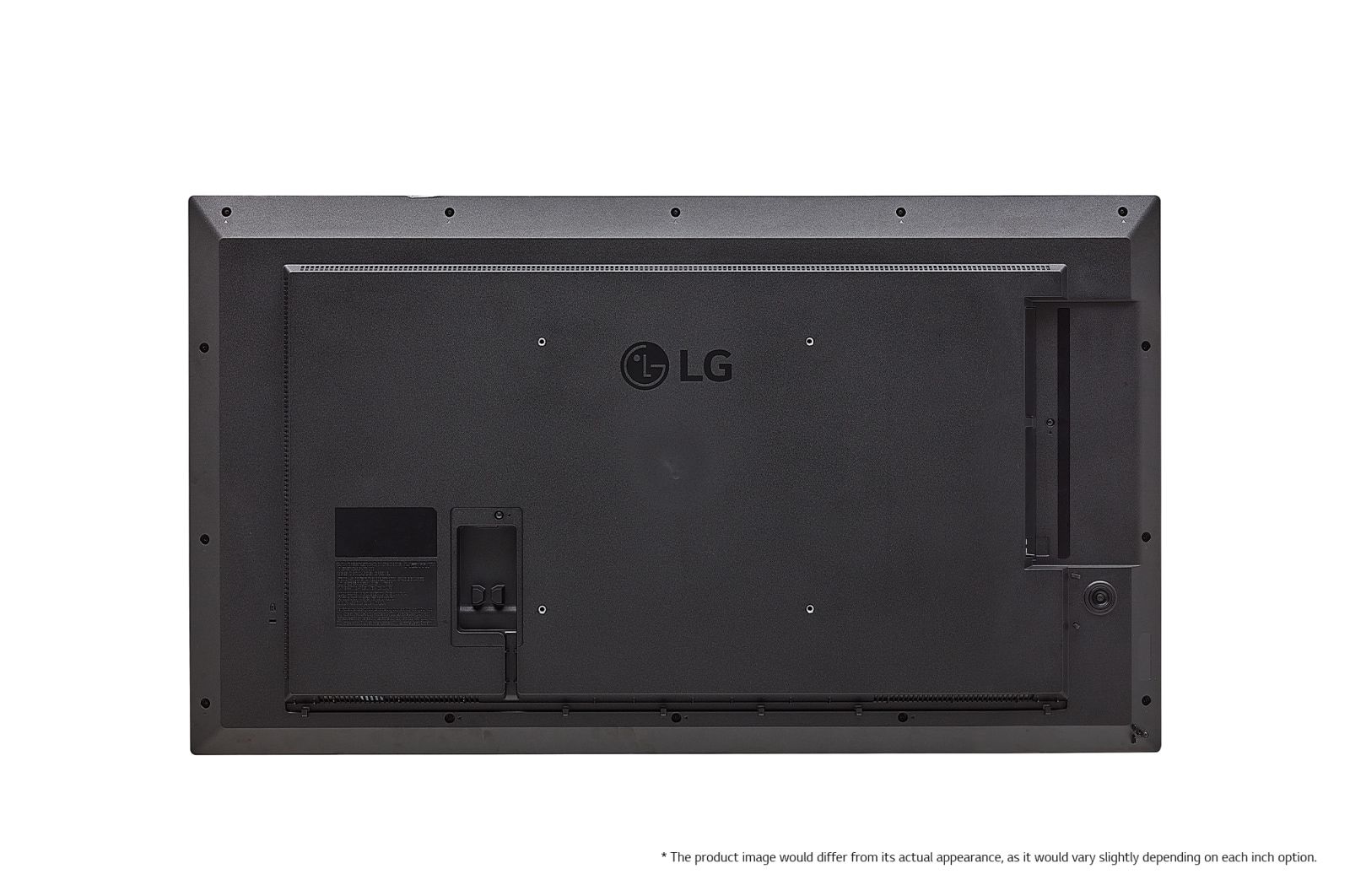

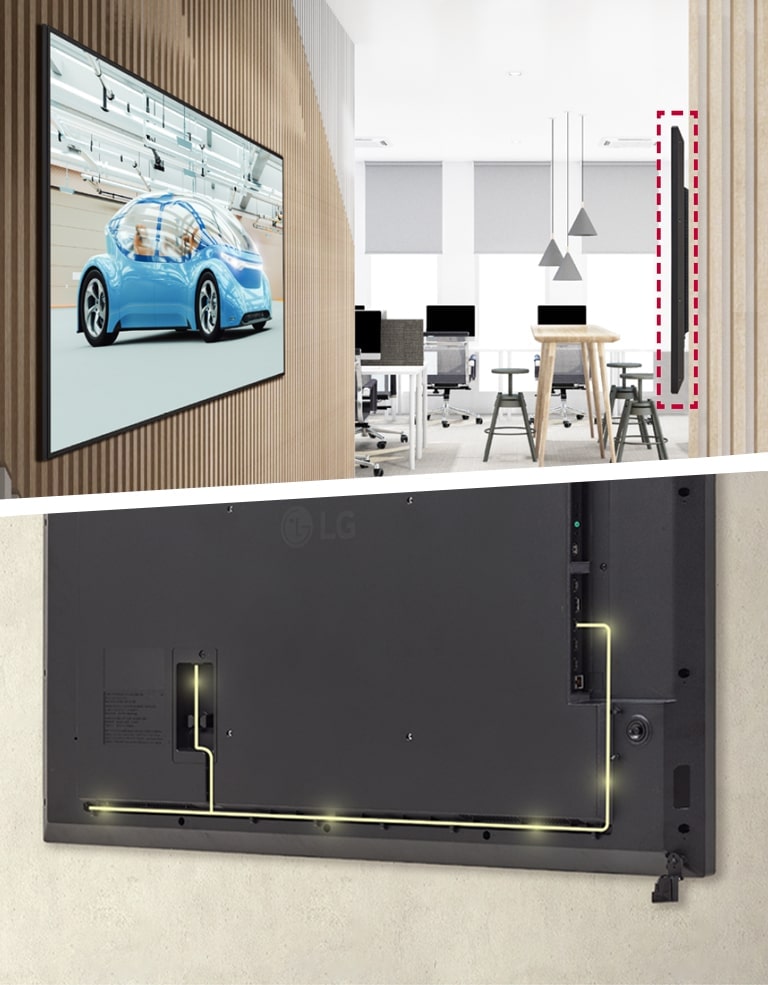

The UM5N-H with slim bezels is mounted close to the wall, showcasing a rear design that is optimized for space-saving with a simple cable management system.

* All images are for illustrative purposes only.
* The product image will differ slightly from the actual appearance of the product due to the variance caused by each inch option.



The UM5N-H provides security features to protect important data from external access or attacks.

Enhanced Security Features

The UM5N-H provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

LG strives for a sustainable future by obtaining various certifications such as FCC EMC Class B.

Sustainability

With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.



Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

Print

All Spec

PANEL

  • Screen Size (Inch)

    43"

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    1,000,000:1

  • Color Gamut

    BT709 95%

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth (Number of Colors)

    8bits + FRC, 1.07Billion colors

  • Response Time

    Tr : 8ms / Tf :10ms

  • Surface Treatment (Haze)

    25%

  • Life time

    50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portait / Landscape

    Yes / Yes

CONNECTIVITY

  • HDMI In

    Yes(3), 3840x2160@60Hz, HDCP 2.2/1.4

  • DP In

    Yes(1), 3840x2160@60Hz, HDCP2.2/1.3

  • RS232C In

    Yes(1), 4pin PhYesne-jack

  • RJ45(LAN) In

    Yes (1)

  • IR In

    Yes (1)

  • USB In

    USB2.0 Type A(1)

  • HDMI Out

    Yes(1), 3840x2160@30Hz, Input : HDMI1/2/3/DP

  • Audio Out

    Yes (1)

  • RS232C Out

    Yes (1), 4pin Phone-jack

  • Daisy Chain

    Yes(Input HDMI, DP / Output HDMI)

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/B: 12.1mm R/L: 11.1mm

  • Weight (Head)

    9.0Kg

  • Packed Weight

    11.3kg

  • Monitor Dimensions (W x H x D)

    968 x 559 x 57.7mm (Without IR)

  • Carton Dimensions (W x H x D)

    1055 x 660 x 142mm

  • VESA Standard Mount Interface

    200 x 200

FEATURE - HARDWARE

  • Internal Memory (eMMC)

    16GB

  • Wi-Fi/BT (Built-in)

    Yes

  • Temperature Sensor

    Yes

  • Auto Brightness Sensor

    Yes(IR)

  • Acceleration(Gyro) Sensor

    Yes

  • Local Key Operation

    Yes

SOUND

  • Speaker (Built-in)

    Yes

FEATURE - SOFTWARE

  • OS Ver. (webOS)

    webOS6.0

  • Local Contents Scheduling

    Yes

  • Group Manager

    Yes

  • USB Plug & Play

    Yes

  • Fail over

    Yes

  • Booting Logo Image

    Yes

  • No Signal Image

    Yes

  • RS232C Sync

    Yes

  • Local Network Sync

    Yes

  • PIP

    Yes

  • PBP

    Yes (4)

  • Screen Share

    Yes

  • Video Tag

    Yes (4)

  • Play via URL

    Yes

  • Screen Rotation

    Yes

  • External Input Rotation

    Yes

  • Gapless Playback

    Yes

  • Tile Mode Setting

    Yes (Max. 15x15)

  • Setting Data Cloning

    Yes

  • SNMP

    Yes

  • ISM Method

    Yes

  • Auto Set ID

    Yes

  • Status Mailing

    Yes

  • Control Manager

    Yes

  • Cisco Certification

    Yes

  • Crestron Connected

    Yes

  • Smart Energy Saving

    Yes

  • PM mode

    Yes

  • Wake on LAN

    Yes

  • Beacon

    Yes

  • Network Ready

    Yes

  • HDMI-CEC

    Yes

  • SI Server Setting

    Yes

  • webRTC

    Yes

  • Pro:Idiom

    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    100W

  • Max.

    140W

  • BTU (British Thermal Unit)

    341 BTU/Hr(Typ.), 478 BTU/Hr(Max)

  • Smart Energy Saving (70%)

    70W

  • DPM

    0.5W

  • Power off

    0.5W

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "B" / CE / KC

  • ERP / Energy Star

    Yes(NewErP)/Yes

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Cloud

    Yes

  • Mobile CMS

    Yes

  • Connected Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender

  • Optional

    Slim Wall Mount (WB21LMA/B), Wall Mount (OLW480A/B) Wall Mount Adapter (AM-B330S)

SPECIAL FEATURE

  • Tilt (Face down)

    Yes(Max 30º degree, 40ºC temperature)

  • IP Rating

    IP5x

  • Conformal Coating (Power Board)

    Yes

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
