Window Facing Display
Outstanding Visibility
Beyond Window
Outstanding Visibility
*All images in this page are for illustrative purposes only.

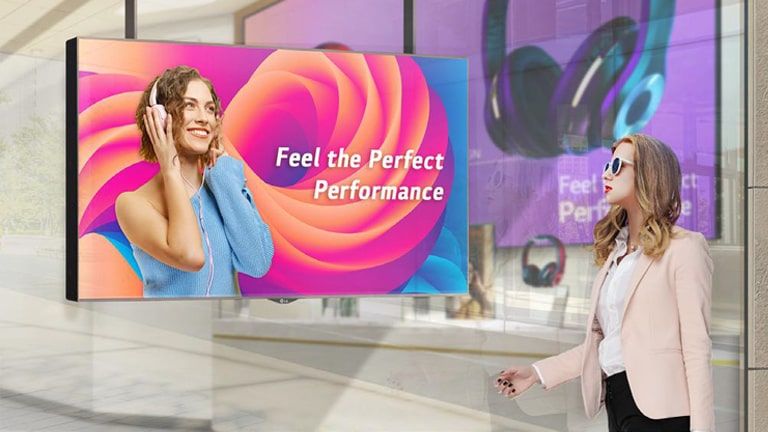

High Visibility
Under The Sunlight
High Visibility
*Max. 4,000 nits, Typ. 3,200 nits (Based on LG internal test conducted in February, 2021).
**Quarter Wave Plate.
High Performance with webOS
High Performance with webOS
*System-on-Chip.
Slim Bezel Design
Slim Bezel Design
*Bezel Width (T,B / R,L) : 12.0 / 9.9 mm (55XS4J), 9.0 / 6.5 mm (49XS4J).
Wide Operating
Temperature Range
Wide Operating
*Based on LG internal test conducted in February, 2021.
Smart Brightness Control
Smart Brightness Control
*This feature is based on LG internal test conducted in February, 2021.
High Energy Efficiency
Smart Brightness Control
*Typical power consumption of XS4J is 345W(49XS4J), 375W(55XS4J) at ‘On Mode’ based on LG internal test conducted in February, 2021. The figure may differ depending on the actual environment.
Easy Content Distribution
& SW Update
Easy Content Distribution
Web Monitoring
(Control Manager)
Web Monitoring
Gallery
All Spec
LANGUAGE
-
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
POWER
-
Power Supply
AC 100-240V~, 50/60Hz
-
Power Type
Built-in Power
SOUND
-
Speaker (Built-in)
NO
ACCESSORY
-
Basic
Remote Controller(including battery 2ea), Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver(w/Ambient Light Sensor), RS-232C Gender
-
Optional
WM-L640V(Landscape wall mount), WM-P640V(Portrait wall mount)
OPS COMPATIBILITY
-
OPS Power Built-in
NO
-
OPS Type compatible
NO
CERTIFICATION
-
EMC
FCC Class "A" / CE / KC / VCCI
-
ePEAT(US only)
NO
-
ERP / Energy Star
YES / NO
-
Safety
CB / NRTL
ENVIRONMENT CONDITIONS
-
Operation Humidity
10 % to 80 %
-
Operation Temperature
0 °C to 40 °C (w/o Direct Sunlight, Direct Sunlight in Cooling System) 0 °C to 30 °C (Direct Sunlight)
MECHANICAL SPECIFICATION
-
Weight (Head)
20.8Kg
-
Bezel Color
Black
-
Bezel Width
T/R/L/B : 9/6.5/6.5/9mm
-
Carton Dimensions (W x H x D)
1181 x 725 x 212mm
-
Handle
YES
-
Monitor Dimensions (W x H x D)
1092.7 x 626.4 x 83.5mm
-
Monitor Dimension with Stand (W x H x D)
N/A
-
Packed Weight
25.3Kg
-

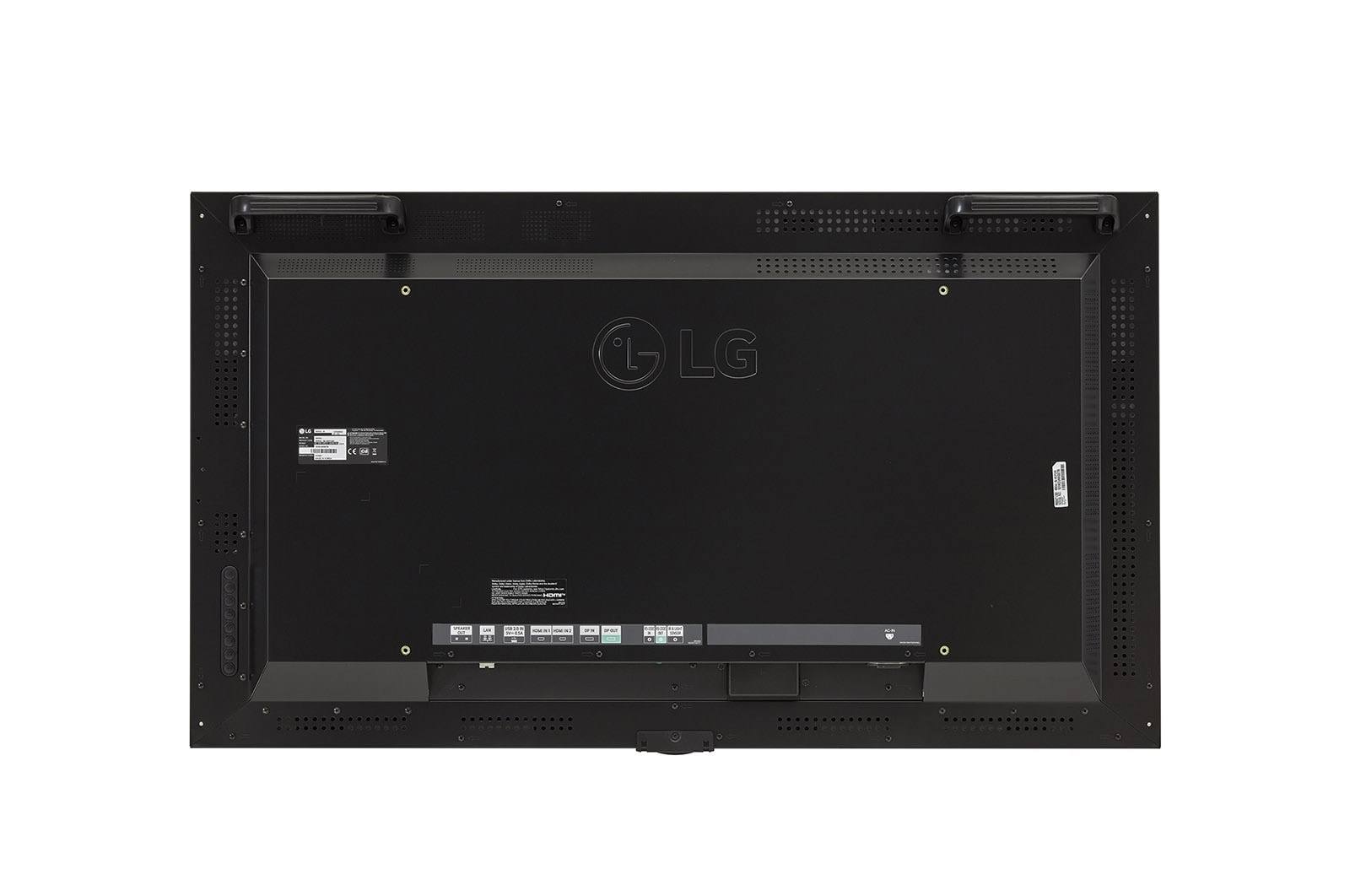

VESA Standard Mount Interface
600 x 400 mm
-
Weight (Head+Stand)
N/A
POWER CONSUMPTION
-
BTU (British Thermal Unit)
1177 BTU/Hr(Typ.), 1279 BTU/Hr(Max.)
-
DPM
0.5W
-
Max.
375W
-
Power off
0.5W
-
Typ.
345W (Full White) 141W (IEC 62087)
DEDICATED FEATURE - TOUCH
-
Accuracy (Typ.)
N/A
-
Available Object Size for Touch
N/A
-
Interface
N/A
-
Multi Touch Point
N/A
-
Operating System Support
N/A
-
Protection Glass Thickness
N/A
-
Protection Glass Transmission
N/A
-
Response Time ('Paint' app on Windows 10 PC)
N/A
PANEL
-
Aspect Ratio
16:9
-
Back Light Type
Direct
-
Brightness
4,000nit (Typ.), 3,200nit (Min.)
-
Color Depth (Number of Colors)
1.07 Billion colors
-
Color Gamut
NTSC 67%
-
Contrast Ratio
1,300:1
-
Dynamic CR
500,000:1
-
Life time
50,000Hrs (Typ.)
-
Native Resolution
1920 x 1080 (FHD)
-
Operation Hours (Hours/Day)
24/7
-
Panel Technology
IPS / M+
-
Portait / Landscape
YES / YES
-
QWP (Quarter Wave Plate)
YES
-
Refresh Rate
60Hz
-
Response Time
8ms (G to G)
-
Screen Size (Inch)
49
-
Surface Treatment (Haze)
Haze 3%
-
Transparency
N/A
-
Viewing Angle (H x V)
178º x 178º
PROTECTION GLASS
-
Anti-Reflective
N/A
-
Degree of Protection
N/A
-
Infrared - Resistance (IR)
N/A
-
Shatter-Proof
N/A
-
Tempered / Chemical strengthening
N/A
-
Thickness
N/A
SPECIAL FEATURE
-
Conformal Coating (Power Board)
YES
-
Direct Sunlight
N/A
-
IP Rating
N/A
-
Overlay Touch Compatibility
N/A
-
Power Protection
N/A
-
Smart Calibration
N/A
-
Tilt (Face down)
N/A
-
Tilt (Face up)
N/A

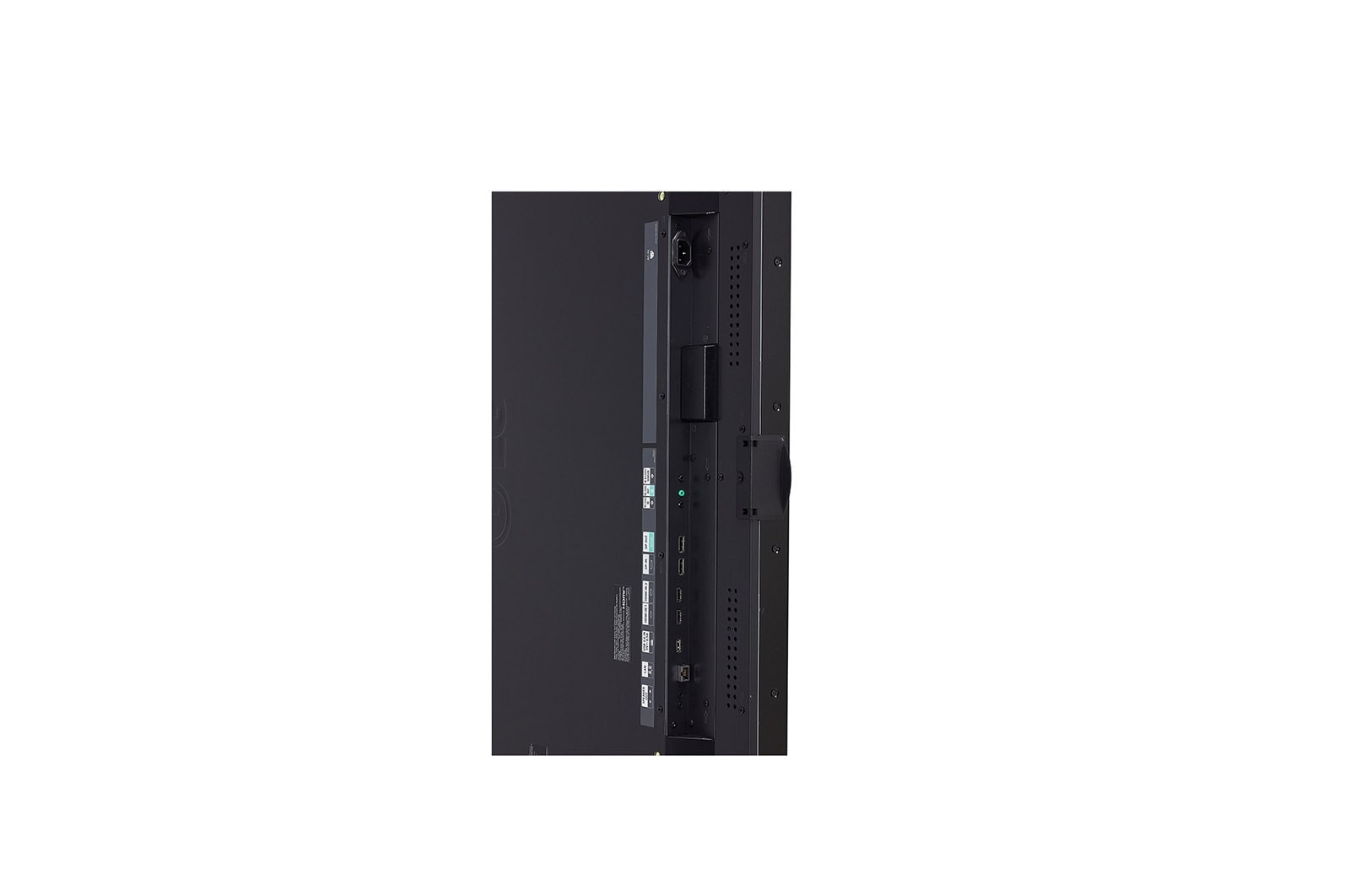

CONNECTIVITY
-
Audio In
NO
-
Audio Out
NO
-
Daisy Chain
NO
-
DP In
YES (HDCP 1.3)
-
DP Out
YES
-
DVI-D In
NO
-
External Speaker Out
YES
-
HDMI In
YES (2ea)
-
HDMI In (HDCP Ver.)
1.4
-
HDMI Out
NO
-
IR In
YES
-
IR Out
NO
-
RGB In
NO
-
RJ45(LAN) In
YES (1ea)
-
RJ45(LAN) Out
NO
-
RS232C In
YES
-
RS232C Out
YES
-
Touch USB
NO
-
USB In
USB2.0 Type A (1ea)
SOFTWARE COMPATIBILITY
-
Connected Care
YES
-
Mobile CMS
NO
-
Promota
NO
-
SuperSign Cloud
NO
-
SuperSign CMS
YES
-
SuperSign Control+
YES
-
SuperSign WB
NO
FEATURE - HARDWARE
-
Acceleration(Gyro) Sensor
YES
-
Auto Brightness Sensor
YES
-
BLU Sensor
NO
-
Current Sensor
NO
-
FAN (Built-in)
YES
-
Humidity Sensor
NO
-
Internal Memory (eMMC)
16GB
-
Local Key Operation
YES
-
Pixel Sensor
NO
-
Power Indicator
NO
-
Proximity Sensor
NO
-
Temperature Sensor
YES
-
Wi-Fi/BT (Built-in)
YES
FEATURE - SOFTWARE
-
Auto Set ID
YES
-
Backlight Sync
YES
-
Beacon
YES
-
Booting Logo Image
YES
-
Brightness Compensation
NO
-
Cisco Certification
NO
-
Control Manager
YES
-
Crestron Connected
NO
-
External Input Rotation
YES
-
Fail over
YES
-
Gapless Playback
YES
-
Group Manager
YES
-
HDMI-CEC
YES
-
ISM Method
YES
-
Local Contents Scheduling
YES
-
Local Network Sync
YES
-
Network Ready
YES
-
No Signal Image
YES
-
OS Ver. (webOS)
webOS 4.1
-
PBP
YES (2PBP)
-
PIP
YES
-
Play via URL
YES
-
PM mode
YES
-
Pro:Idiom
YES
-
RS232C Sync
YES
-
Scan Inversion
NO
-
Screen Rotation
YES
-
Screen Share
NO
-
Setting Data Cloning
YES
-
SI Server Setting
YES
-
SNMP
YES
-
Status Mailing
YES
-
Tile Mode Setting
YES
-
USB Plug & Play
YES
-
Video Tag
YES (4 Video Tag)
-
Wake on LAN
YES
-
webRTC
YES
-
W/B Setting by Grey scale
NO
-
