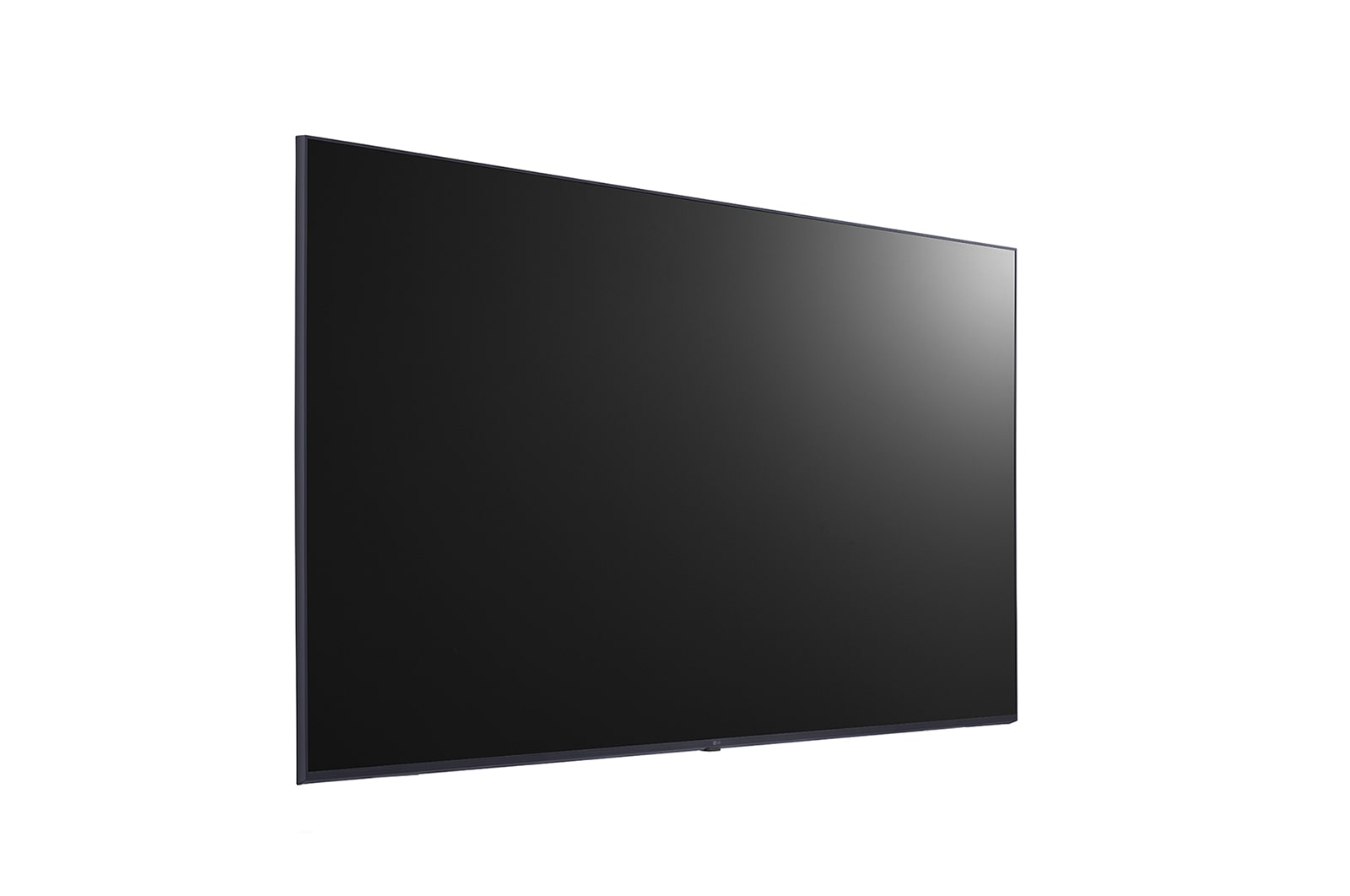

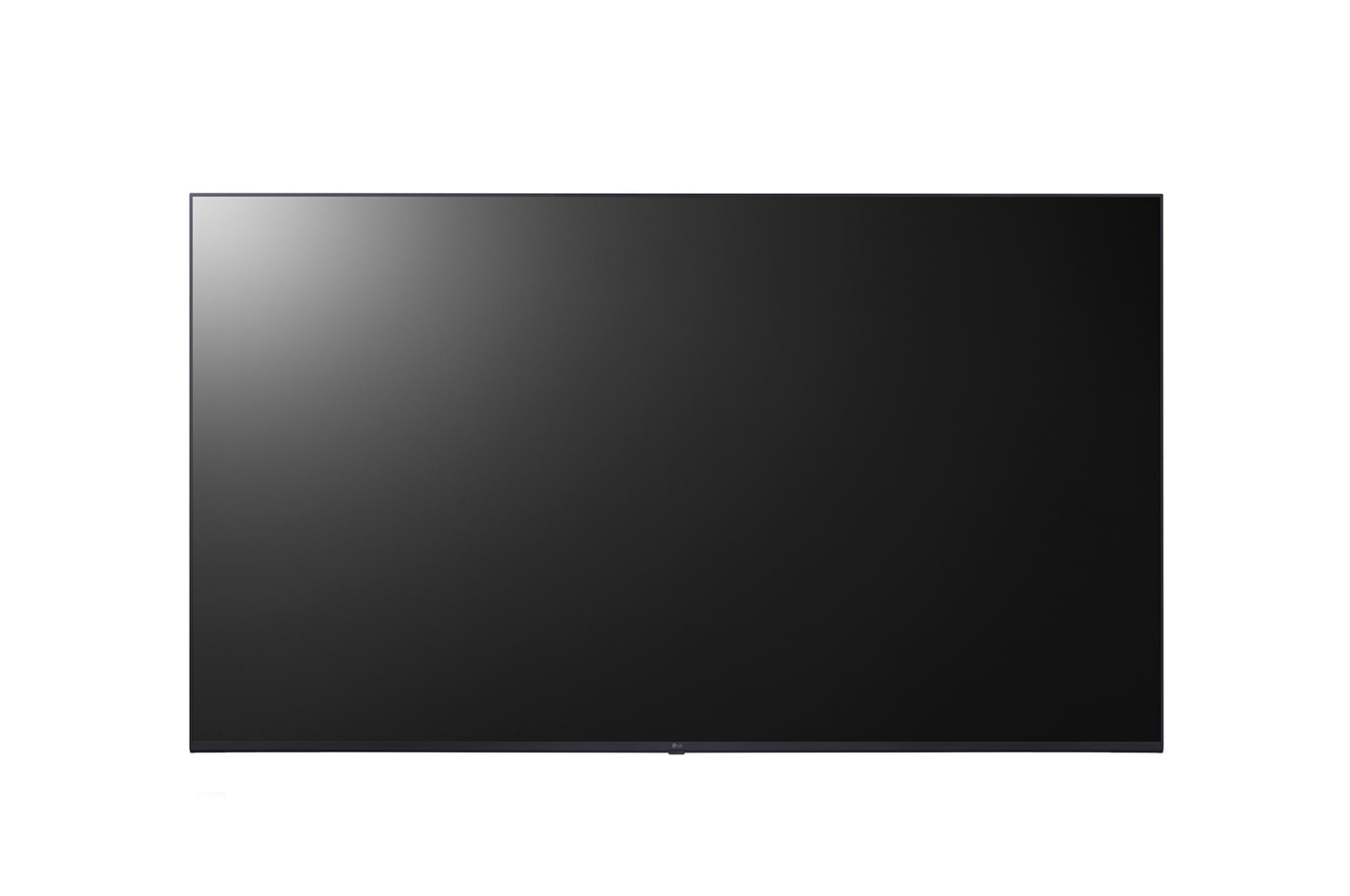

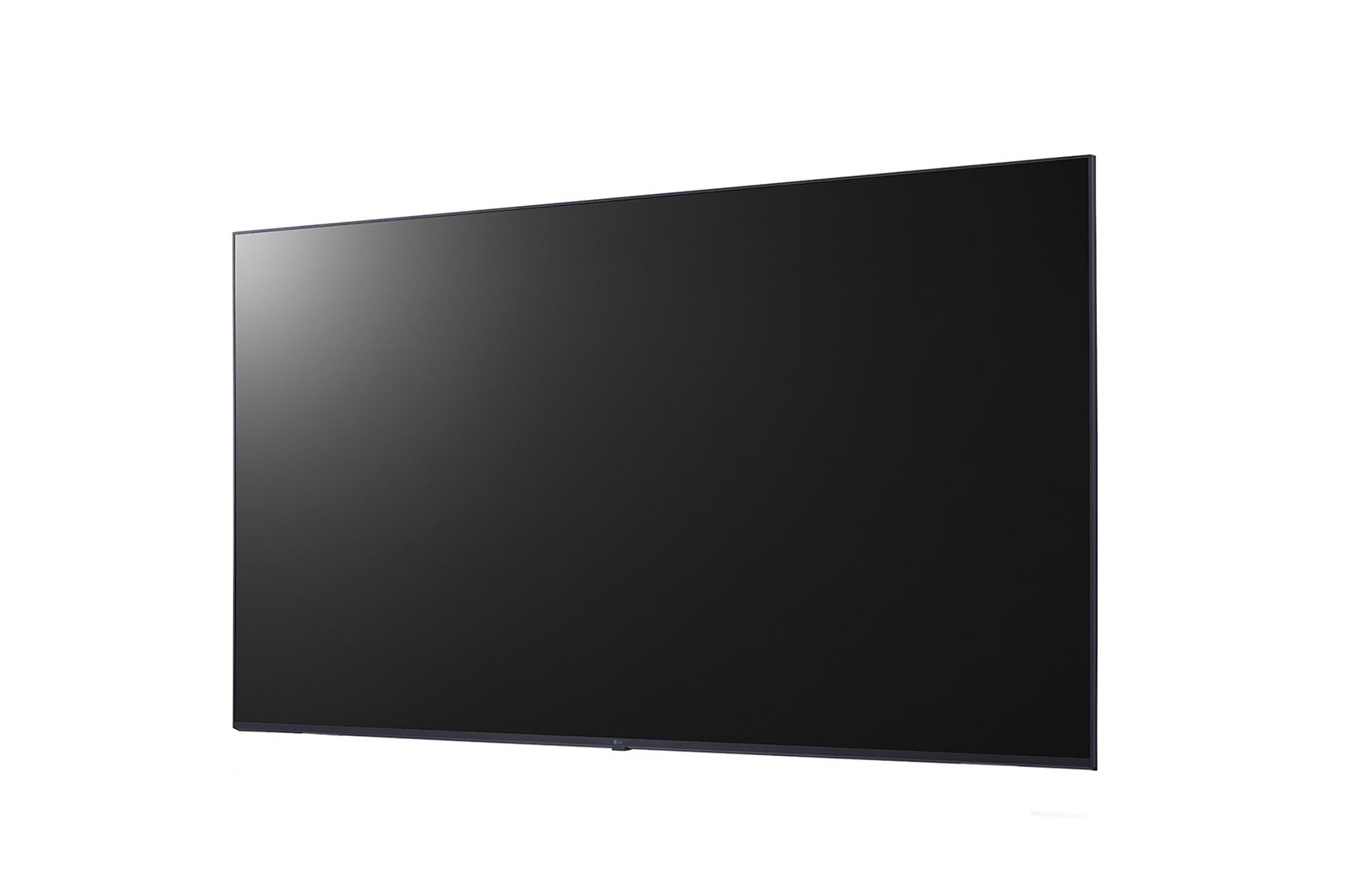

LG webOS UHD Signage
There are five people conducting a meeting in a room with UL3J series installed on the wall. There is another UL3J series installed across the meeting room on the wall past the window on the left.
* All images in this web page are for illustrative purposes only.
* Compared to LG's UL3G series
*SoC : System On Chip
**GUI : Graphical User Interface
*e.g. showing specific promotional information according to weather change to store visitors
**External sensors need to be purchased separately and tested for compatibility with webOS platform.
LG's Simple Advertisement Helper, Promota
The store owner is simply using a mobile phone to create menu contents on the menu board.
* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)
LG’s Wireless Screen Sharing Solution, LG One:Quick Share
"This consist of images displaying the 3-step instructions on installing LG One:Quick Share USB Dongle and sharing the personal screen. The first image pairs the USB Dongle and the LG signage. The second image describes a person holding the USB dongle, attempting to connect it to the PC. The last image consists of people having a meeting by connecting an USB dongle device to a laptop, then sharing the screen through the UL3J on the wall."
*Users need to set up Soft AP enabled at Network Menu of the Signage.
**Users can enable Office Meeting Mode at EZ Setting Menu of the Signage.
***LG One:Quick Share needs to be purchased separately.
*Initial setting from display is required for Crestron Connected® compatibility.
**Network based control
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately.
So please contact the LG sales representative in your region for more details.

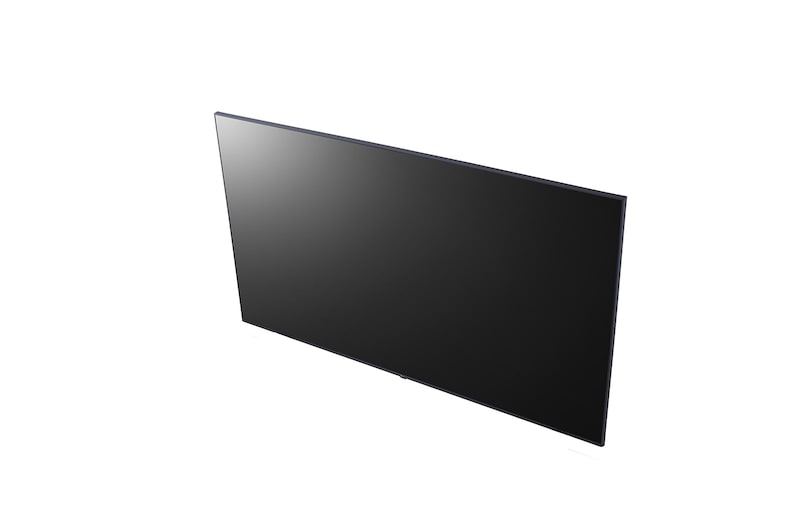

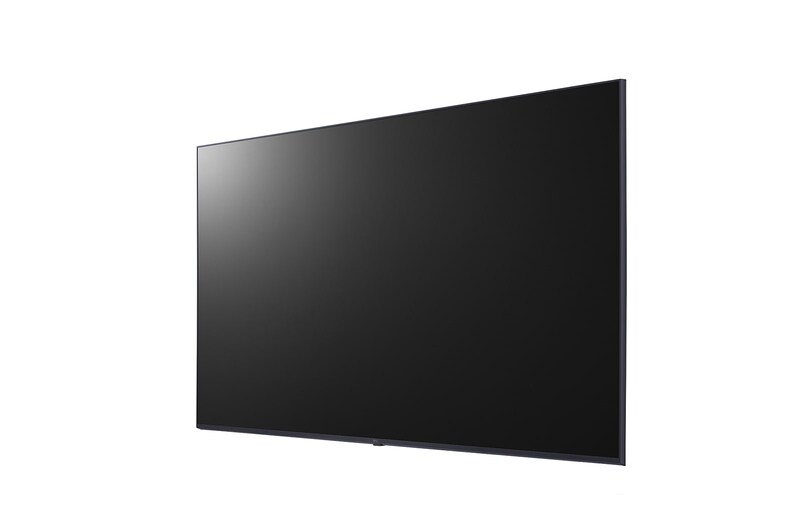

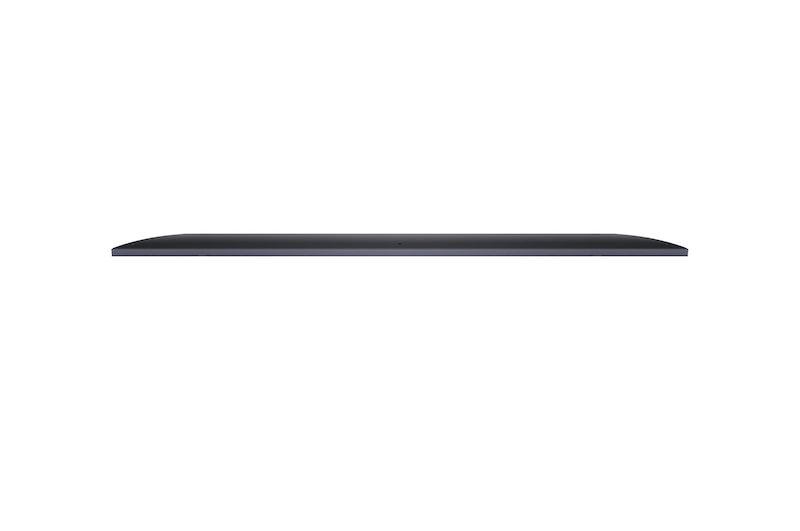

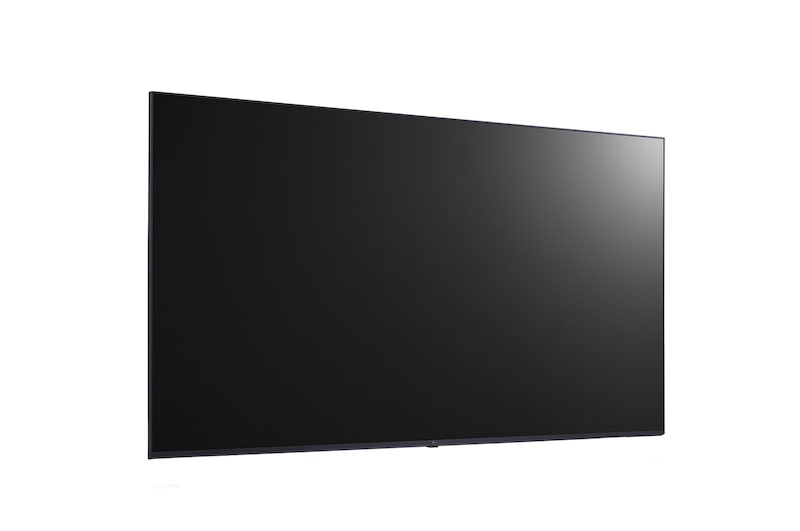

Gallery
All Spec
POWER
-
Power Supply
AC 100-240V~, 50/60Hz
-
Power Type
Built-in Power
SOUND
-
Speaker (Built-in)
YES (10W x 2)
ACCESSORY
-
Basic
Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder
-
Optional
NO
LANGUAGE
-
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic, polski
CERTIFICATION
-
EMC
FCC Class "A" / CE
-
ePEAT(US only)
NO
-
ERP / Energy Star
YES(NewErP) / YES
-
Safety
CB / NRTL
ENVIRONMENT CONDITIONS
-
Operation Humidity
10 % to 80 %
-
Operation Temperature
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C)
OPS COMPATIBILITY
-
OPS Power Built-in
NO
-
OPS Type compatible
NO
POWER CONSUMPTION
-
BTU (British Thermal Unit)
444 BTU/Hr(Typ.), 638 BTU/Hr(Max.)
-
DPM
0.5W
-
Max.
187W
-
Power off
0.5W
-
Smart Energy Saving (70%)
91W
-
Typ.
130W
MECHANICAL SPECIFICATION
-
Weight (Head)
21.5Kg
-

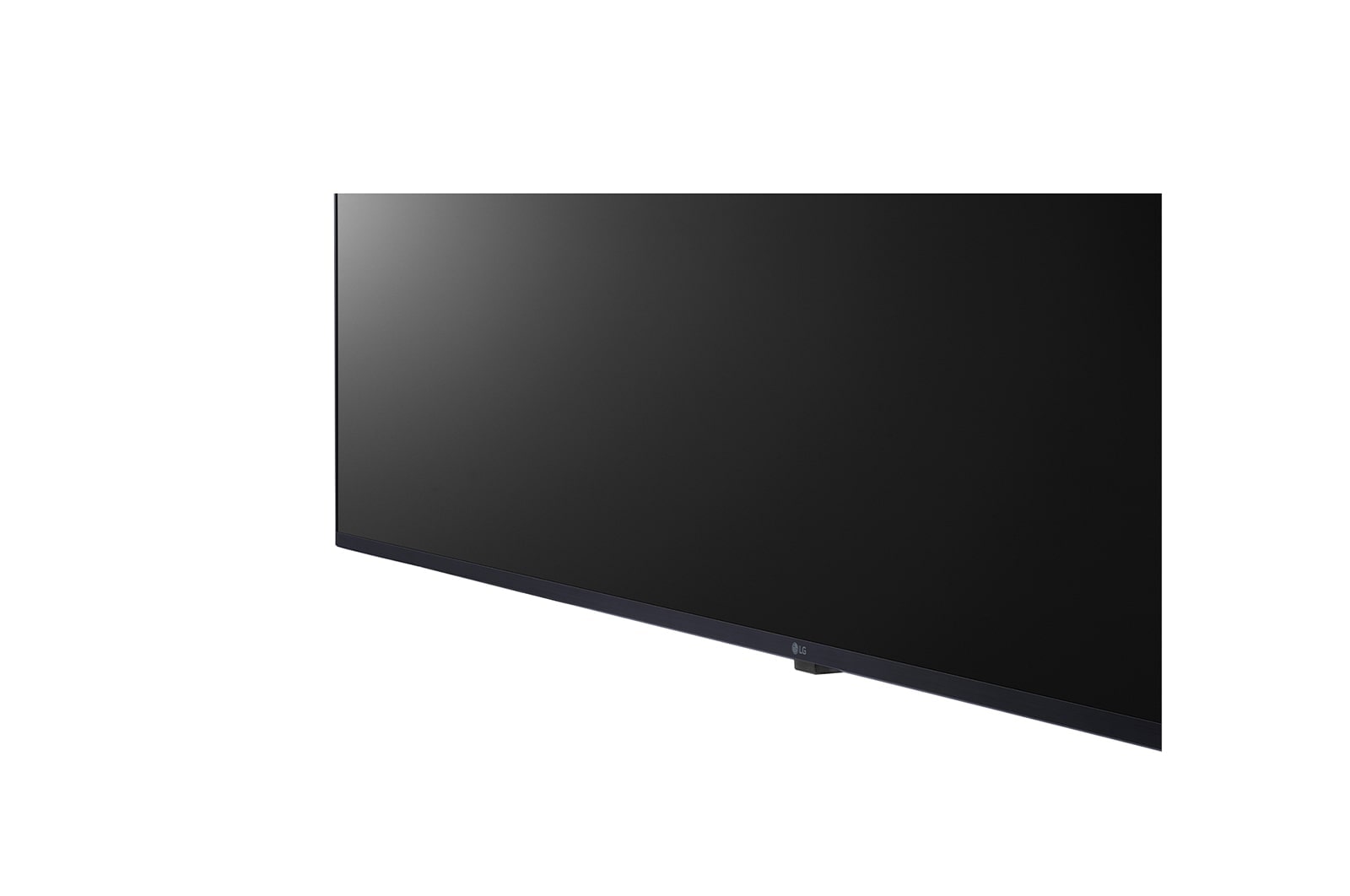

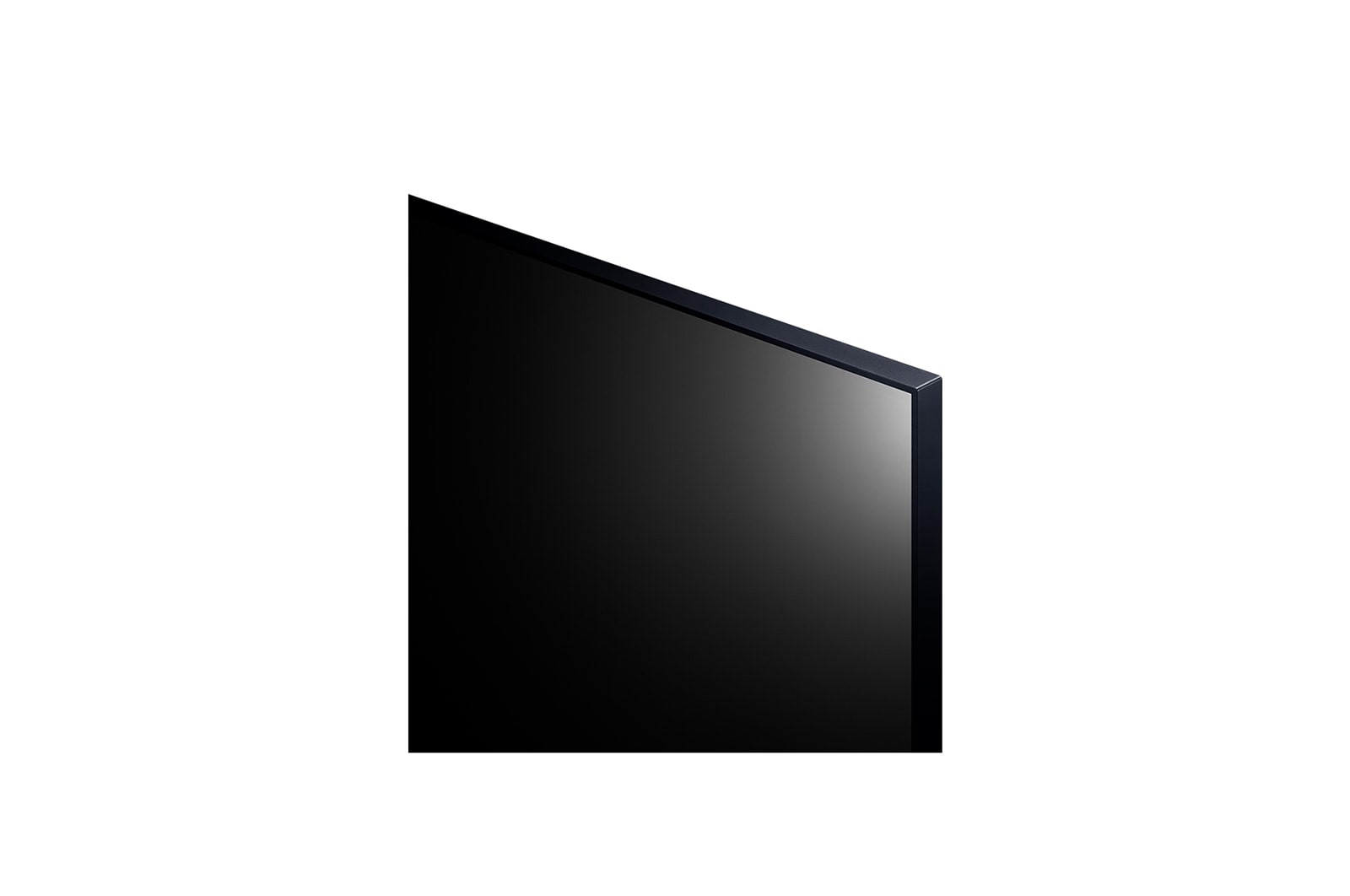

Bezel Width
Off : 6.8/6.8/6.8/18.4mm On : 12.8/12.8/12.8/19.9mm
-
Carton Dimensions (W x H x D)
1600 x 970 x 172mm
-
Handle
NO
-

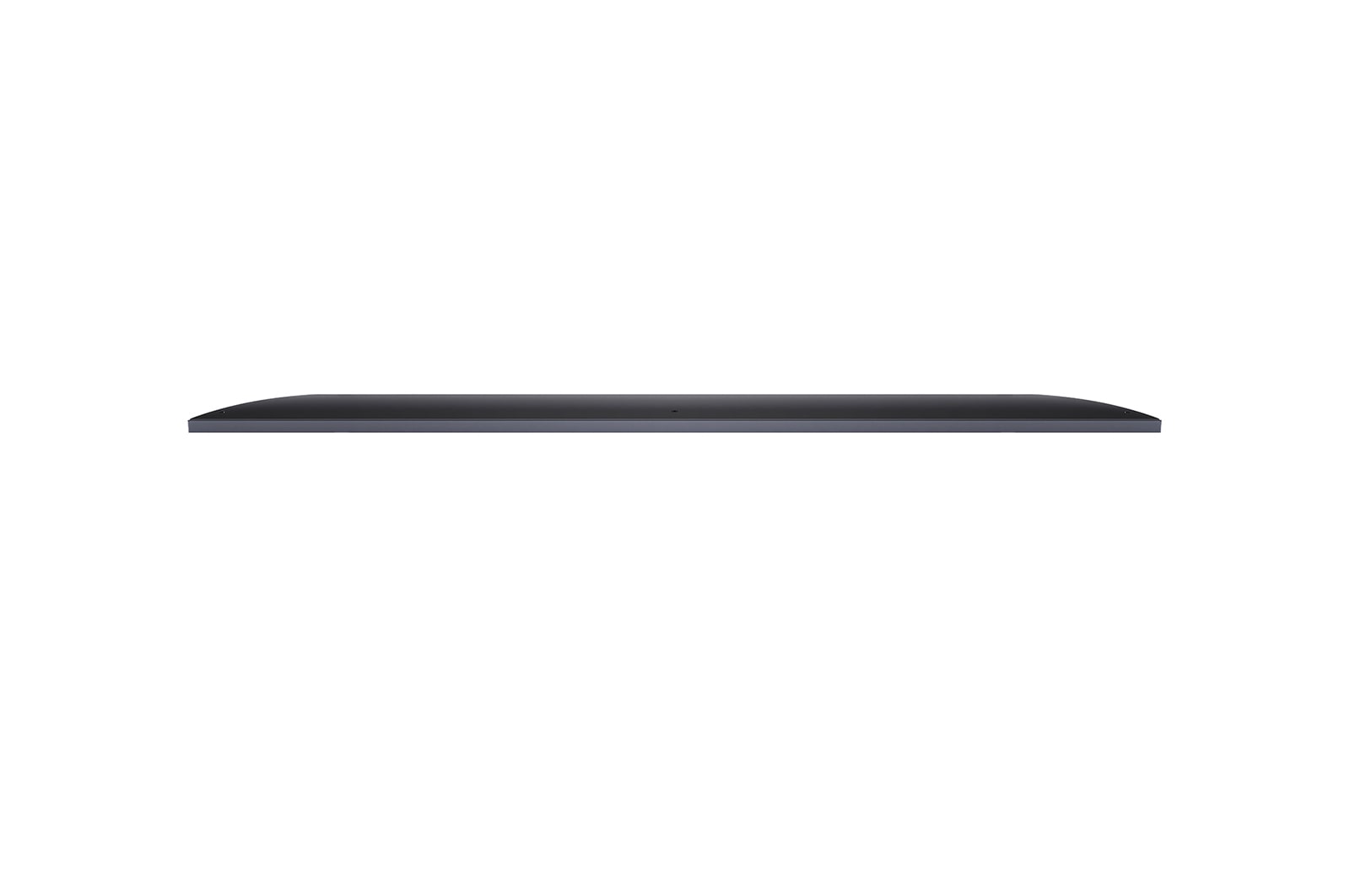

Monitor Dimensions (W x H x D)
1454 x 838 x 57.7mm
-
Monitor Dimension with Stand (W x H x D)
N/A
-
Packed Weight
27.5Kg
-
VESA Standard Mount Interface
300 x 300 mm
-
Weight (Head+Stand)
N/A
-
Bezel Color
Ashed Blue
PANEL
-
Aspect Ratio
16:9
-
Back Light Type
Direct
-
Brightness
400nit (Typ.)
-
Color Depth (Number of Colors)
1.07 Billion colors
-
Color Gamut
DCI 80%
-
Contrast Ratio
1,200:1
-
Dynamic CR
1,000,000:1
-
Life time
30,000Hrs (Min.)
-
Native Resolution
3840 x 2160 (UHD)
-
Operation Hours (Hours/Day)
16/7
-
Panel Technology
IPS
-
Portait / Landscape
YES / YES
-
QWP (Quarter Wave Plate)
N/A
-
Refresh Rate
60Hz
-
Response Time
8ms (G to G)
-
Screen Size (Inch)
65
-
Surface Treatment (Haze)
Haze 1%
-
Transparency
N/A
-
Viewing Angle (H x V)
178º x 178º
SPECIAL FEATURE
-
Conformal Coating (Power Board)
YES
-
Direct Sunlight
N/A
-
IP Rating
N/A
-
Overlay Touch Compatibility
N/A
-
Power Protection
N/A
-
Smart Calibration
N/A
-
Tilt (Face down)
N/A
-
Tilt (Face up)
N/A
CONNECTIVITY
-
Audio In
NO
-
Audio Out
YES
-
Daisy Chain
NO
-
DP In
NO
-
DP Out
NO
-
DVI-D In
NO
-
External Speaker Out
NO
-
HDMI In
YES (3ea)
-
HDMI In (HDCP Ver.)
2.2/1.4
-
HDMI Out
NO
-
IR In
NO
-
IR Out
NO
-
RGB In
NO
-
RJ45(LAN) In
YES (1ea)
-
RJ45(LAN) Out
NO
-
RS232C In
YES
-
RS232C Out
YES
-
Touch USB
NO
-
USB In
USB2.0 Type A (2ea)
SOFTWARE COMPATIBILITY
-
Connected Care
YES
-
Mobile CMS
NO
-
Promota
YES (Not available for EU/CIS)
-
SuperSign Cloud
NO
-
SuperSign CMS
YES
-
SuperSign Control+
YES
-
SuperSign WB
YES
FEATURE - HARDWARE
-
Acceleration(Gyro) Sensor
NO
-
Auto Brightness Sensor
YES
-
BLU Sensor
NO
-
Current Sensor
NO
-
FAN (Built-in)
NO
-
Humidity Sensor
NO
-
Internal Memory (eMMC)
8GB
-
Local Key Operation
YES
-
Pixel Sensor
NO
-
Power Indicator
NO
-
Proximity Sensor
NO
-
Temperature Sensor
YES
-
Wi-Fi/BT (Built-in)
YES
FEATURE - SOFTWARE
-
Auto Set ID
YES
-
Backlight Sync
NO
-
Beacon
YES
-
Booting Logo Image
YES
-
Brightness Compensation
NO
-
Cisco Certification
YES
-
Control Manager
YES
-
Crestron Connected
YES
-
External Input Rotation
YES
-
Fail over
YES
-
Gapless Playback
YES
-
Group Manager
YES
-
HDMI-CEC
YES
-
ISM Method
YES
-
Local Contents Scheduling
YES
-
Local Network Sync
YES
-
Network Ready
YES
-
No Signal Image
YES
-
OS Ver. (webOS)
webOS 6.0
-
PBP
NO
-
PIP
NO
-
Play via URL
YES
-
PM mode
YES
-
Pro:Idiom
YES
-
RS232C Sync
YES
-
Scan Inversion
NO
-
Screen Rotation
YES
-
Screen Share
YES
-
Setting Data Cloning
YES
-
SI Server Setting
YES
-
Smart Energy Saving
YES
-
SNMP
YES
-
Status Mailing
YES
-
Tile Mode Setting
YES
-
USB Plug & Play
YES
-
Video Tag
YES (4 Video Tag)
-
Wake on LAN
YES
-
webRTC
YES
-
W/B Setting by Grey scale
NO
-
