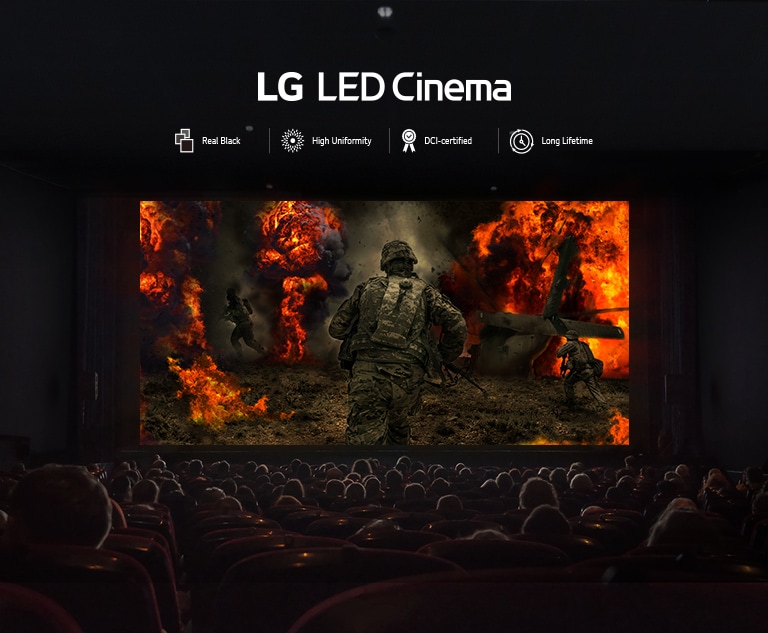

LED Cinema

()

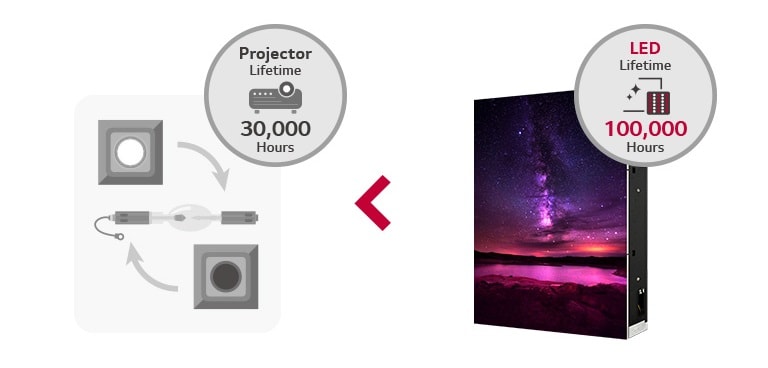

Longer Lifetime

The LG LED Cinema boasts 100,000 hours of long lifetime and saves time and cost for maintenance. It doesn’t require placement of parts like lamps as conventional projectors used to.

Real Black, Infinite Darkness

The infinite contrast created by the individual LEDs that make up LG LED Cinema creates deep darkness of the content. By bringing fine details perfectly to the screen, it provides viewers an amazing sense of immersion that has never experienced before.

Folding headline text can be up to 200 characters.

Body text can be up to 1000 characters.

Lifelike Colors

Most cinema screens feature a DCI-P3 Color Gamut spec, but the actual colors that the audience feels may be different. LG LED Cinema accurately reproduces the colors intended by the content creator and delivers the DCI-P3 Color more vividly.

Folding headline text can be up to 200 characters.

Body text can be up to 1000 characters.

High Uniformity

Unlike standard projectors using a single light source, LG LED Cinema has LEDs emitting individually and offers an excellent brilliance uniformity. As there is no dimming and image distortion like fading, LG LED Cinema delivers a clearer & uniform image representation on the entire screen.

Folding headline text can be up to 200 characters.

Body text can be up to 1000 characters.

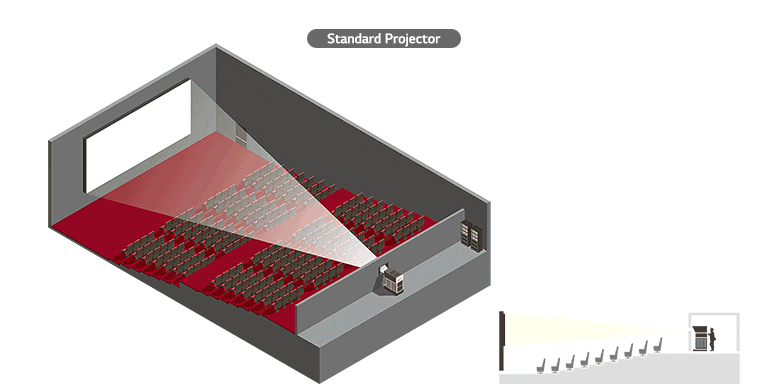

The Optimal Space Utilization

As LG LED Cinema does not need a projection room which is necessary in standard projector-style theaters, it guarantees maximizing profits by securing additional seats. A space behind the stuffy theater can be reinvented to more customer satisfying interiors.

Folding headline text can be up to 200 characters.

Body text can be up to 1000 characters.

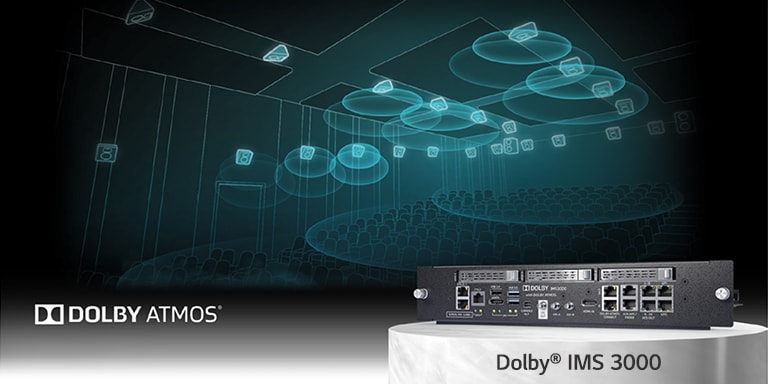

Compatibility with Dolby

LG LED Cinema has secured compatibility with Dolby Media Server and Dolby Atmos of Dolby, the global leader in the entertainment industry, to offer the most immersive experiences in sound, as well as picture quality.

Folding headline text can be up to 200 characters.

Body text can be up to 1000 characters.

All Spec

OPTICAL PARAMETERS

Pitch

3.3 mm
LED Type

SMD
Pixels per LED Module

8,640
Aspect Ratio (per Cabinet)

64 : 90
Resolution (per Cabinet)

192 × 270
Pixels (per Cabinet)

51,840
Pixel Density (per SQM)

90,000
Frame (Video) Rate

24 Hz, 25 Hz, 30 Hz, 48 Hz, 50 Hz, 60 Hz
Brightness (After Calibration)

48 nit (DCI-compliant)
Contrast Ratio

4000 : 1 (Minimum)
Color Space (Gamut)

DCI - P3 (DCI-compliant)
Viewing Angle (Horizontal, Vertical)

120º, 120º
Color Depth

12 Bit (DCI-compliant)
Chromaticity Uniformity

In case of White : Within ±0.015 x, ±0.015 y
Color Temperature (White)

(x. y) = (0.314, 0.351) / DCI-P3 Theater
Color Temperature (R, G, B)

DCI-P3 theater R: (x. y) = (0.68, 0.32)
G: (x. y) = (0.265, 0.690)
B: (x. y) = (0.15, 0.06)
Lifetime

100,000 Hours (LED to Half Brightness)
Operation Hours

16 Hours per Day / 7 Days per Week
