All Spec

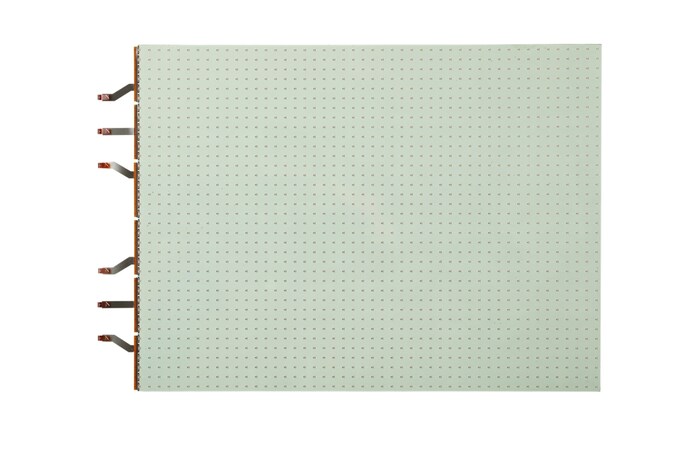

LED FILM(LAT140GT81)
-
Pixel Pitch(mm)
-
13.7±0.2mm
-
LED Type
-
R, G, B 3in1 Color Package (SMD2020)
-
Resolution
-
48 x 36
-
Pixels per Panel
-
1,728
-
Pixel Density (point/㎡)
-
5,102
-
Brightness (cd/㎡)
-
Typ.2,100nit
-
Contrast Ratio
-
≥ 100,000:1
-
Luminance Uniformity
-
≥ 70%
-
Viewing Angle (H x V)
-
120 x 120
-
Life Time (Duration of Half Brightness in Hours)
-
50,000 Hrs
-
Daily Usage
-
24h / 7days
-
Warranty
-
2 years
-
Transparency
-
Typ 53%
-
Operating Temperature
-
0℃ ~ 45℃ (Indoor Glass Installation Only)
-
Film Trimming
-
Yes (Parallel to the Bezel Side Only)
-
Color Processing
-
(9bit) 500/500/500 Level (R, G, B)
-
Colors
-
125,000,000 Colors
-
Color Chromaticity
-
Cx: 0.25±0.03, Cy : 0.34±0.03
-
Dimension (W x H x D)
-
655 x 492 x 2.9mm
(with front & back protection film)
-
Weight
-
1kg
-
Power Consumption
-
37W(Transparent panel 1EA + Common Bezel kit 2EA)
-
Accessory
-
ESG, Regulation book, Warranty Card
1ST BEZEL(ACC-14LATB1)
-
Dimension (W x H x D)
-
69.4 x 492 x 25mm (Cover)
-
Weight
-
0.4Kg
COMMON BEZEL(ACC-14LATB2)
-
Dimension (W x H x D)
-
51.4 x 492 x 25mm (Cover)
-
Weight
-
0.3Kg
UNIT CONTROLLER(LCLG140U)
-
Resolution
-
960x540 (1/4 FHD)
-
Interface
-
Input : LVDS
Output : RJ45 x4EA
-
Maximum Transmission Length
-
100m (Cable : CAT5E, CAT6)
-
Dimension (W x H x D)
-
293 x 188.7 x 37mm
-
Weight
-
1.5Kg
-
Temperature Sensor
-
Yes
-
Power Consumption
-
20 W
SYSTEM CONTROLLER(LCLG002)
-
Video (Max. Input Resolution)
-
DP : 1920x1080@60Hz
HDMI : 1920x1080@60Hz
DVI-D : 1920x1080@60Hz
-
Interface (Input)
-
HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jacke Type), USB 3.0,
-
Interface (Output)
-
DP, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS
-
Dimension (W x H x D mm)
-
293 x193.3 x 40.1mm
-
Weight (Head, Kg)
-
1.6kg
-
Temperature Sensor
-
O
-
Light Sensor
-
O
-
Source Selection
-
HDMI, DVI-D, DP
-
Power Consumption
-
17W
-
CMS S/W
-
Yes (2.9)
-
Signage365care
-
Yes (2.7)
-
Accessory
-
Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card
POWER(ACC-LATP1)
-
Dimension (W x H x D)
-
183 x 86 x 28mm
-
Weight
-
769g
-
Input
-
100~240V, 50~60Hz
-
Output
-
19.5V/10.8A (210W)
-
Color
-
White
-
DC output cable
-
14AWG, 1.5m
-
Type
-
L Type
