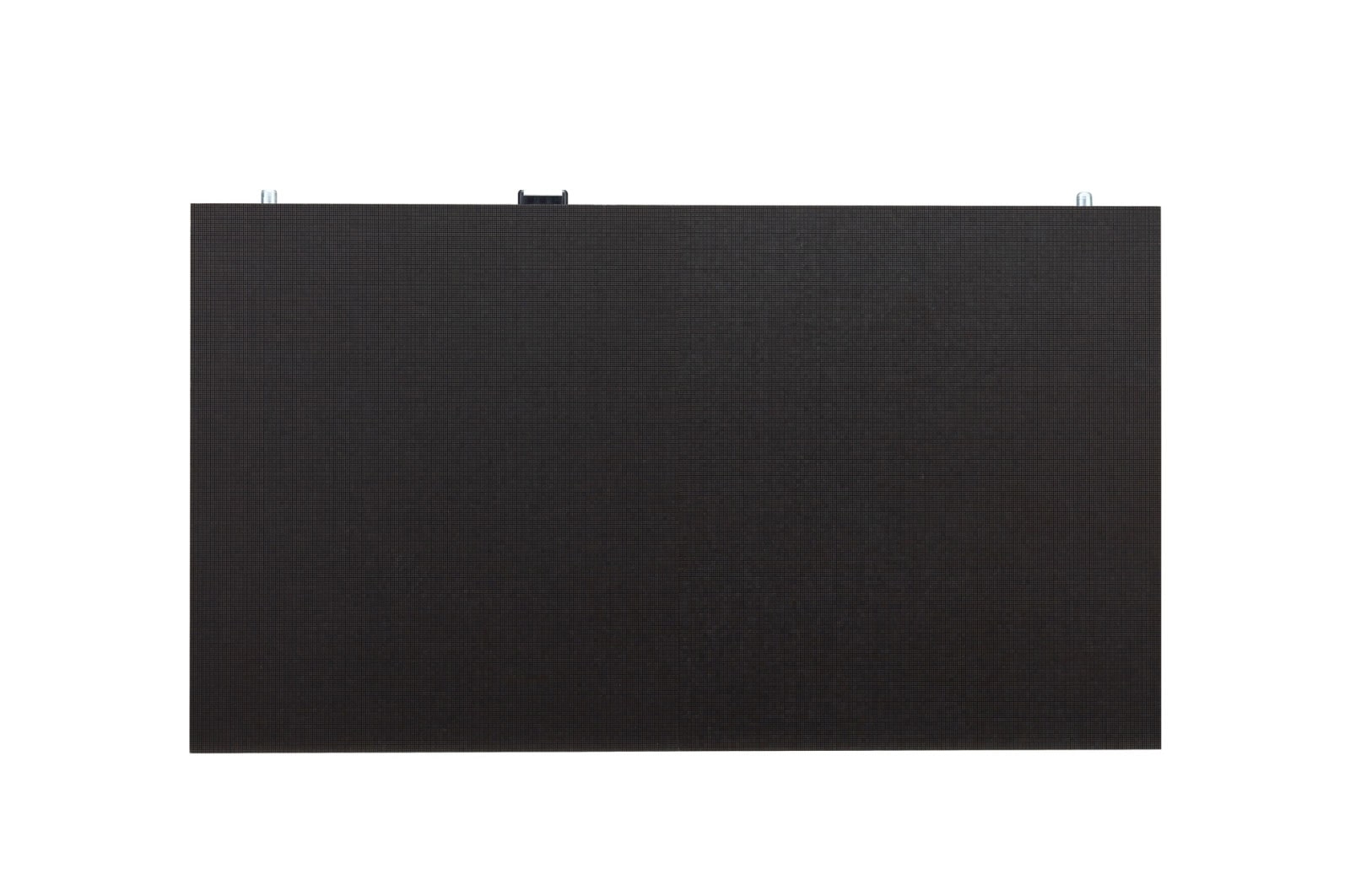

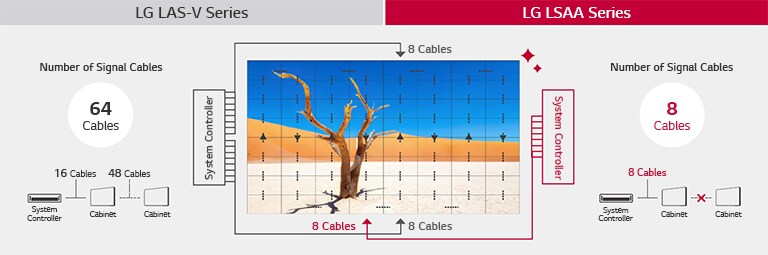

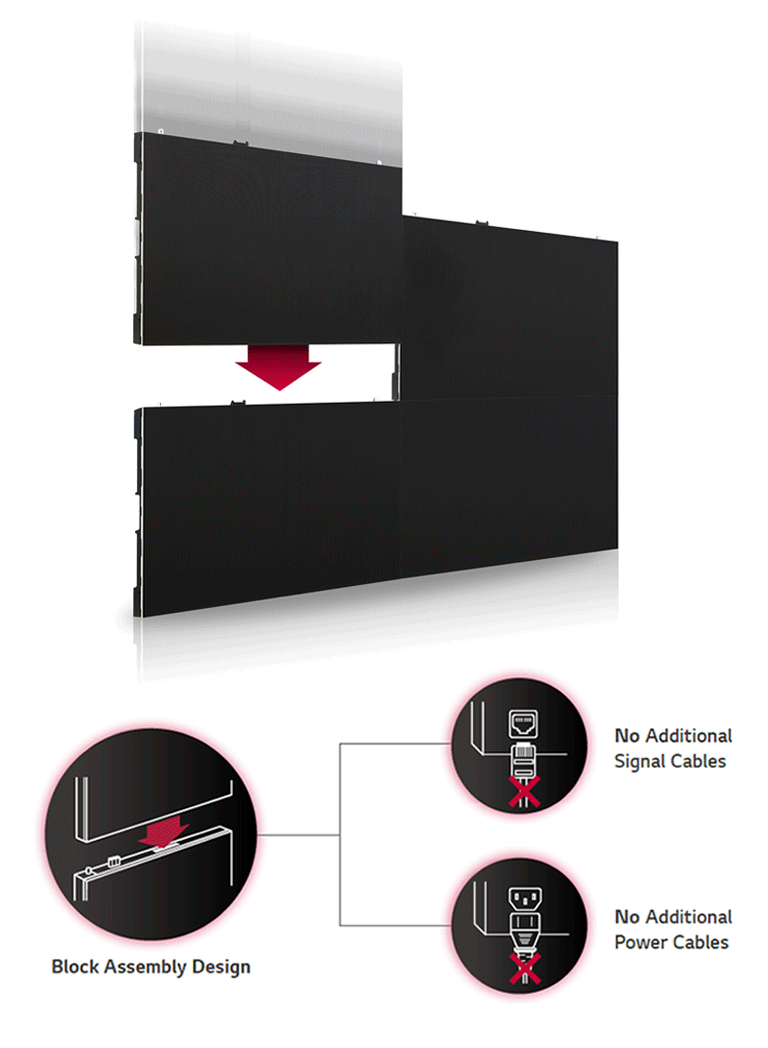

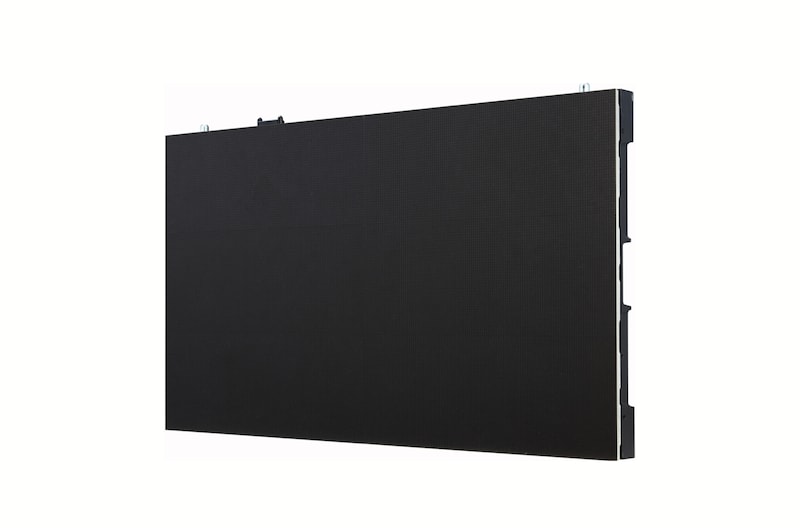

LSAA Optimum Cable-less LED Series
![](/content/dam/channel/wcms/sa_en/images/business/led-signage/lsaa012-mx_ami_emgf_sa_en_b/LSAA012-MX_AMI_EMGF_SA_EN_B-450x450.jpg)
All Spec
PHYSICAL PARAMETERS
-
Pixel Pitch(mm)
1.25
-
Module Resolution (WxH)
240x90
-
Weight per Module (kg)
0.20
-
Cabinet Resolution (WxH)
480x270
-
Cabinet Surface Area (㎡)
0.259
-
Weight per Cabinet (kg/Cabinet)
6.9
-
Weight per Square Meter (kg/m²)
34.1
-
Physical Pixel Density (pixels/m²)
640,000
-
Flatness of Cabinet (mm)
±0.5
OPTICAL SPECIFICATIONS
-
Brightness (After Calibration)
600nit (Typ.) 1,200nit (Peak)
-
Visual Viewing Angle (Horizontal)
160
-
Visual Viewing Angle (Vertical)
160
-
Brightness Uniformity
97%
-
Color Uniformity
±0.015Cx,Cy
-
Contrast Ratio
Peak. 9,000:1
Typ. 5,000:1
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/Cabinet, Max.)
107
-
Power Consumption (W/Cabinet, Avg.)
64
-
Power Consumption (W/㎡, Max.)
527
-
Power Consumption (BTU/Cabinet, Max.)
364
-
Power Consumption (BTU/Cabinet, Avg.)
218
-
Power Consumption (BTU/㎡, Max.)
1,798
CONTROLLER
-

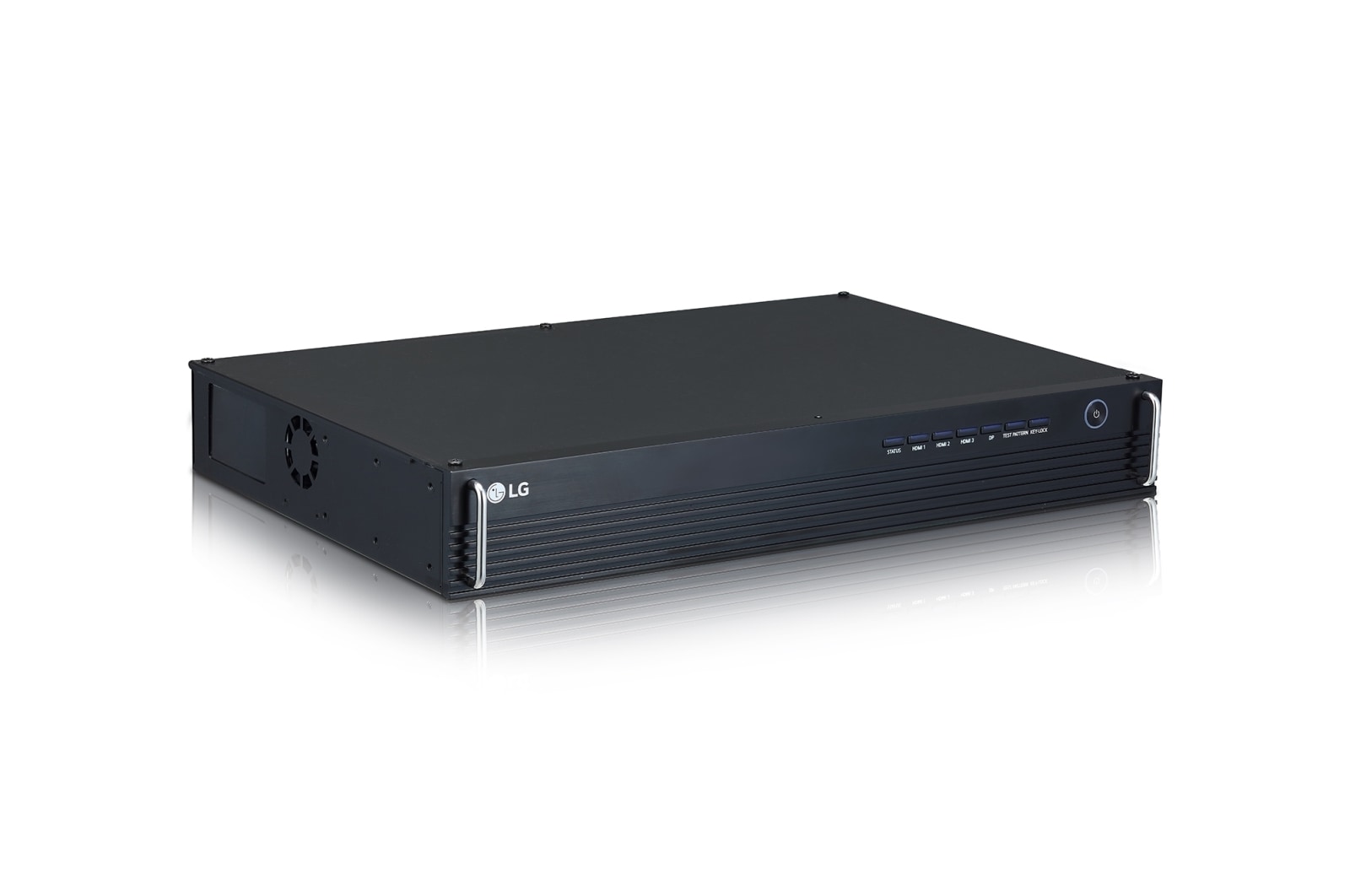

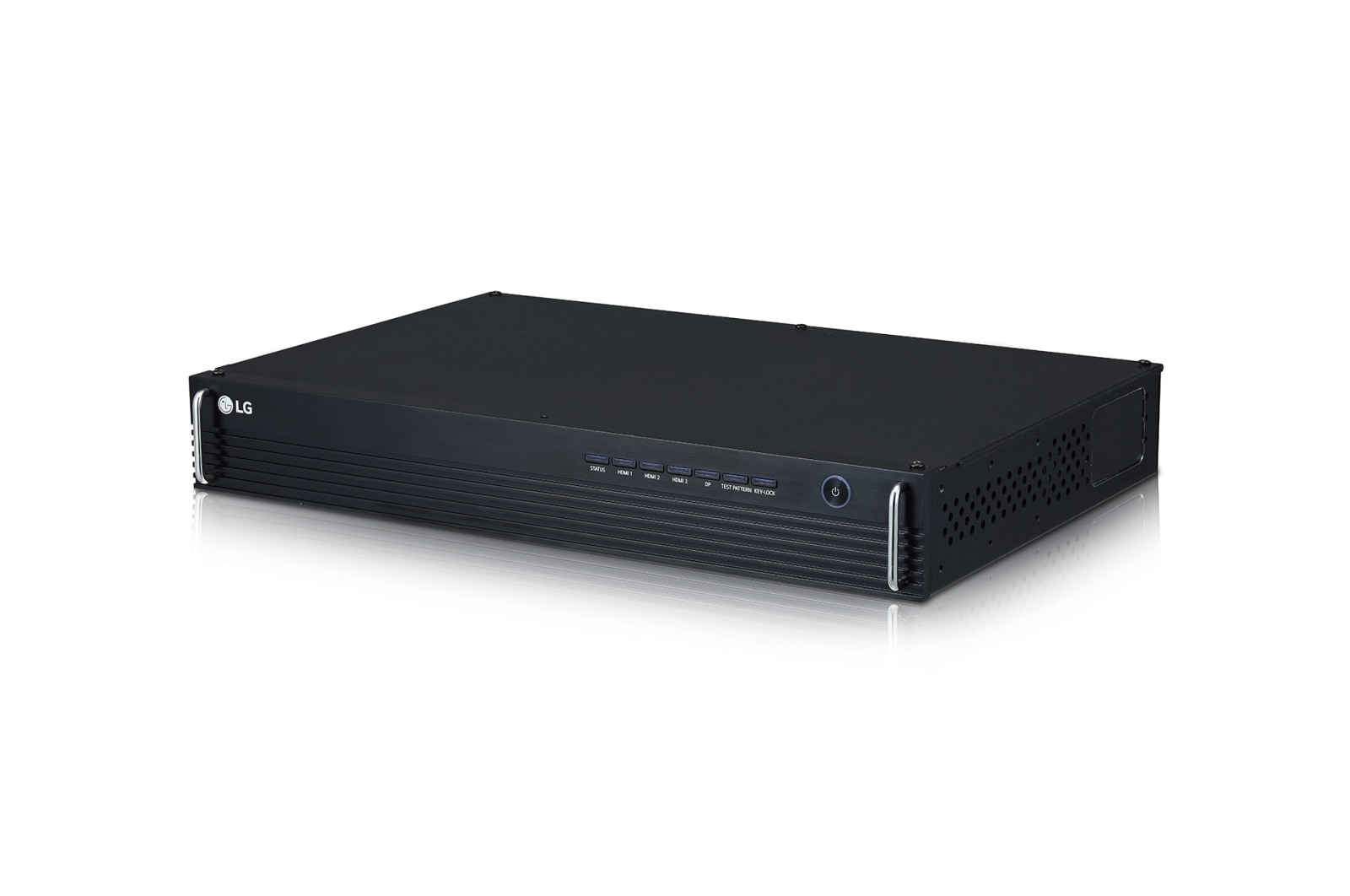

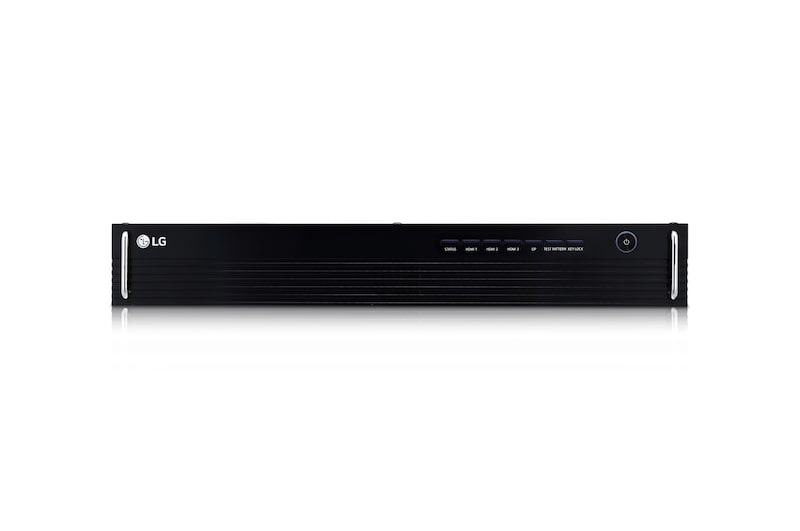

Controller
CSAA-012X
OPTIONAL ACCESSARY
-
Optional Accessary
Wall Mount Kit (WM-L1080)
Frame Kit (KT-BZ1080)
-
