8MP Clinical Review Monitor

8MP Clinical Review Monitor

27HJ712C-W
()

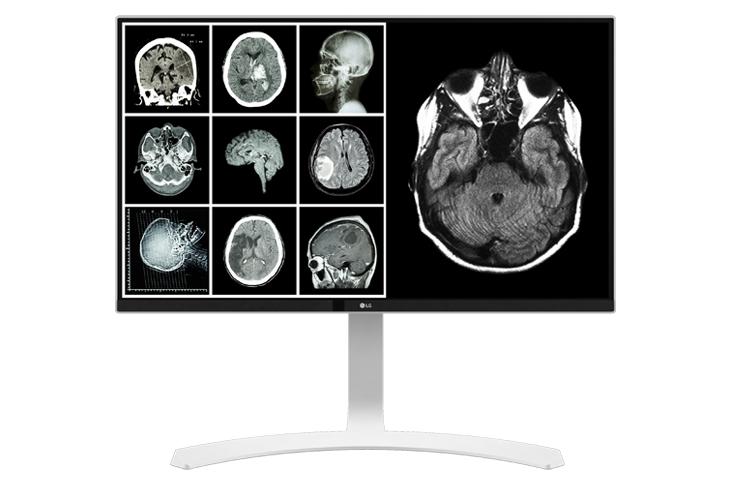

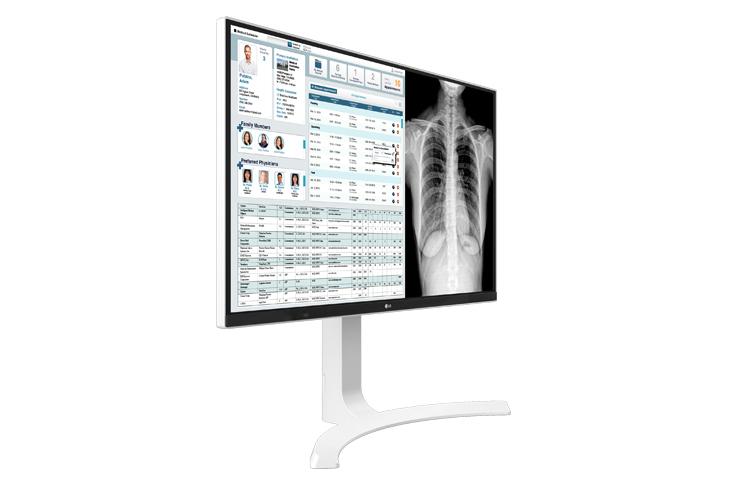

  • Front view of 8MP Clinical Review Monitor 27HJ712C-W

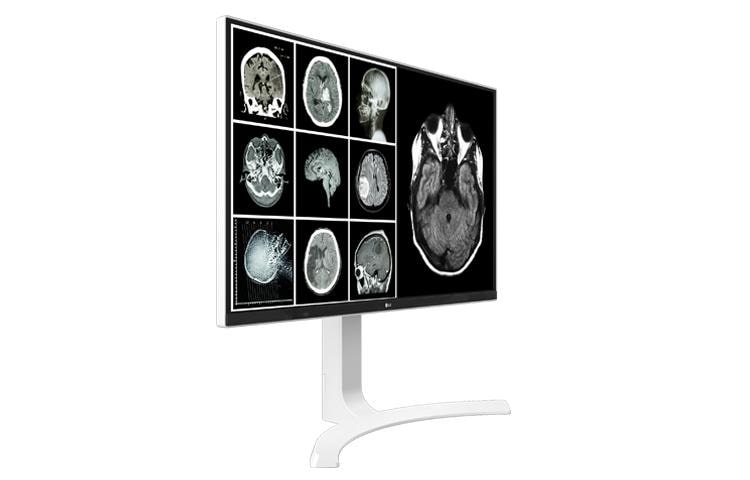

  • LG 8MP Clinical Review Monitor, 27HJ712C-W

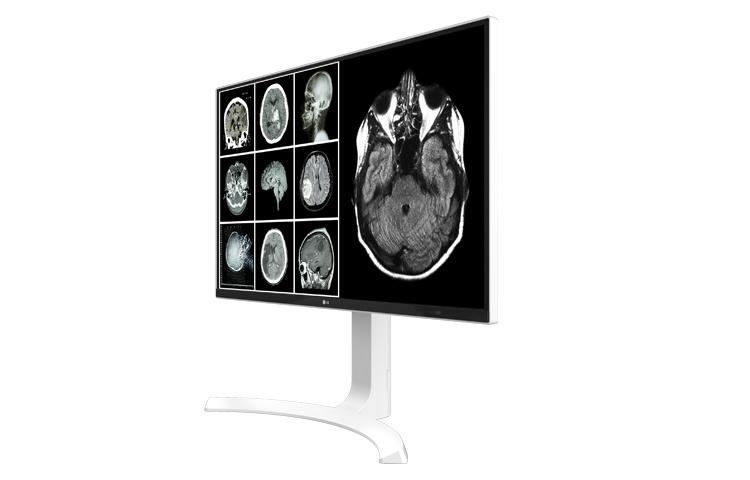

  • LG 8MP Clinical Review Monitor, 27HJ712C-W

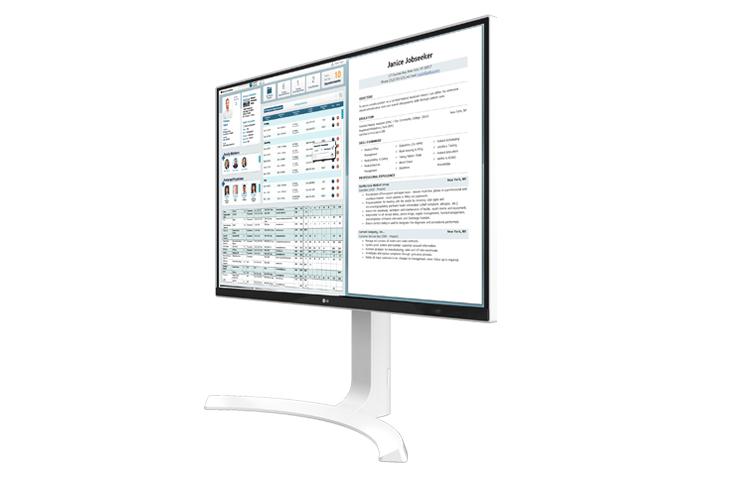

  • LG 8MP Clinical Review Monitor, 27HJ712C-W

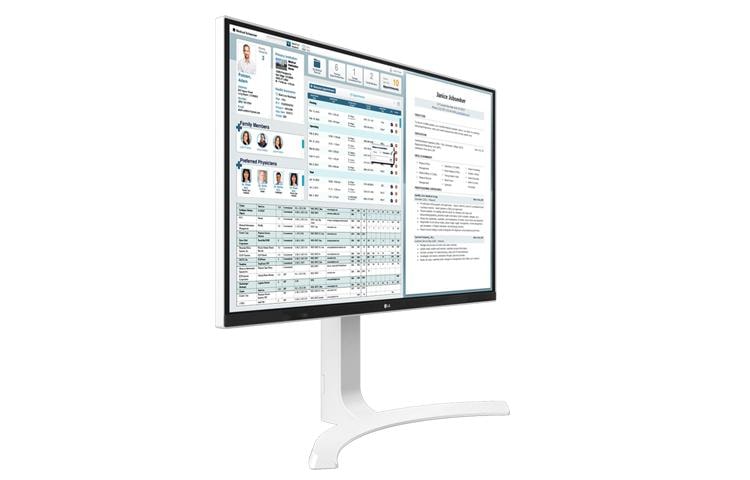

  • LG 8MP Clinical Review Monitor, 27HJ712C-W

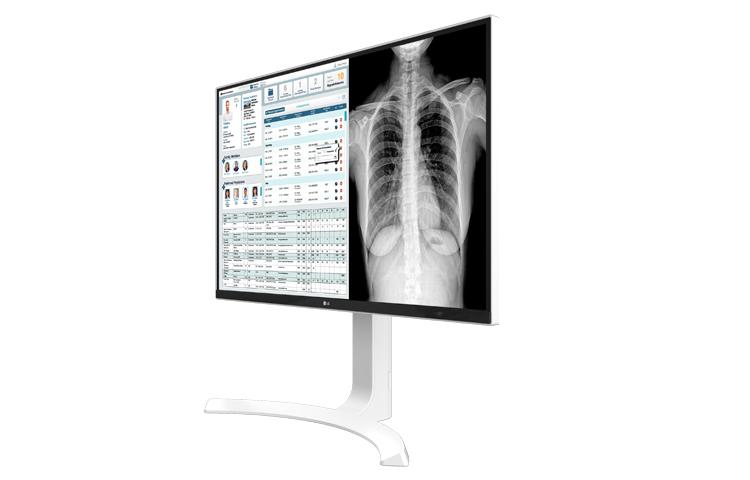

  • LG 8MP Clinical Review Monitor, 27HJ712C-W

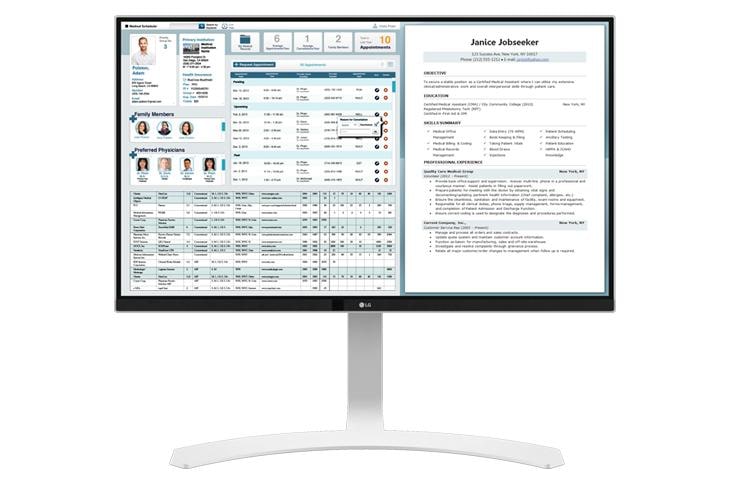

  • LG 8MP Clinical Review Monitor, 27HJ712C-W

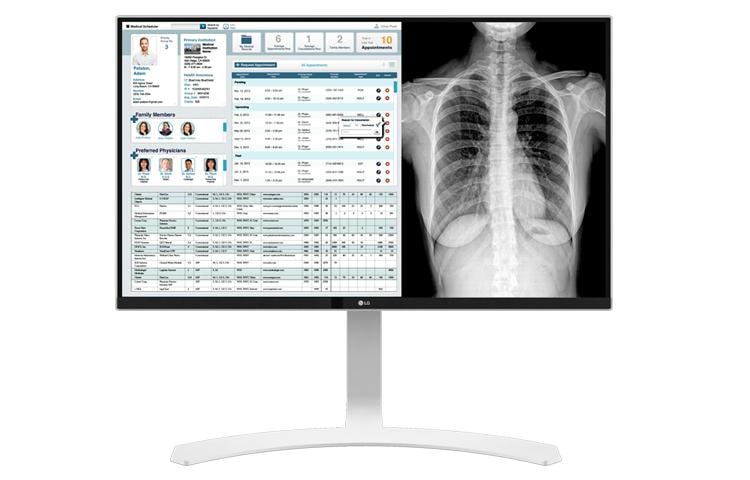

  • LG 8MP Clinical Review Monitor, 27HJ712C-W
  • LG 8MP Clinical Review Monitor, 27HJ712C-W
Front view of 8MP Clinical Review Monitor 27HJ712C-W
LG 8MP Clinical Review Monitor, 27HJ712C-W
LG 8MP Clinical Review Monitor, 27HJ712C-W
LG 8MP Clinical Review Monitor, 27HJ712C-W
LG 8MP Clinical Review Monitor, 27HJ712C-W
LG 8MP Clinical Review Monitor, 27HJ712C-W
LG 8MP Clinical Review Monitor, 27HJ712C-W
LG 8MP Clinical Review Monitor, 27HJ712C-W
LG 8MP Clinical Review Monitor, 27HJ712C-W

Key Features

  • 8MP (3840x2160) IPS Display
  • 350 nits with sRGB over 99%
  • DICOM Part 14
  • Dynamic Sync Mode & Quick Response Time
  • Brightness Stabilization
  • Flicker Safe | Reader Mode
More
8MP IPS Display

8MP IPS Display

With its 27-inch IPS 8MP display, the monitor improves work efficiency not only by enabling detailed observation but also by displaying multiple imaging applications. IPS technology offers outstanding picture quality along with a 178 degree wide viewing angle, so images can be viewed by multiple medical professionals from different angles with crisp clarity and minimal color shift.

*8MP(Mega Pixel): 4k
3840x2160

DICOM Part 14 Compatible 2

Accurate Color Representation

The 8MP IPS display not only enables detailed observation of previously hard-to-see regions but also displays multiple imaging applications. The monitor provides brightness and sRGB over 99 to ensure accurate color reproduction. Moreover, by adding a deep red color spectrum, the monitor assures color expression of red spectrum.

DICOM Part 14 Compatible 2

DICOM Part 14 Compatible

In the medical field, monitors must display images accurately and consistently, especially for the gray scale tones that may vary even between two monitors of the same model. To ensure the most accurate and consistent shading possible for medical images, LG measures and sets every grayscale tone on the production line to produce a monitor compliant with DICOM Part 14.

*DICOM (Digital Imaging and Communications in Medicine):
Standard applied to the grayscale tone characteristics of monitors used in the medical field.

Quick Response Time1

Quick Response Time

Whenever scanning is performed after checking up, a lot of heavy information is created and it can be difficult to clearly get all of this information at once. Since the LG clinical review monitor supports a low input lag and quick response time, it allows the monitor to receive a signal quickly and display a clear image with no distortion, for precise decoding information to achieve an efficient review.

*Dynamic Sync Mode is only available to 60Hz input source.

Reader Mode

Reader Mode

Reader Mode provides optimal conditions for clinical use. LGā€™s Reader Mode technology reduces blue light, protecting doctorsā€™ eyes from fatigue.
Print

All Spec

SW APPLICATION

  • Dual Controller

    YES

  • LG Calibration Studio (True Color Pro)

    YES

  • Qubyx

    NO

POWER

  • AC Input

    100~240V (50/60Hz)

  • DC Output

    19V, 3.42A

  • Power Consumption (DC Off)

    Less than 0.3W

  • Power Consumption (Max.)

    65W

  • Type

    External Power(Adapter)

DIMENSIONS & WEIGHTS

  • Weight in Shipping [kg]

    10.1

  • Weight without Stand [kg]

    4.7

  • Weight with Stand [kg]

    6.2

MECHANICAL

  • Borderless Design

    3-Side Virtually Borderless Design

  • Display Position Adjustments

    Tilt/Height/Pivot

  • Machanical Power Switch

    NO

  • OneClick Stand

    YES

  • Wall Mountable [mm]

    100 x 100

DISPLAY

  • Aspect Ratio

    16:9

  • Brightness (Typ.) [cd/mĀ²]

    350

  • Color Bit

    10bit

  • Color Gamut (Typ.)

    sRGB 99% (CIE1931)

  • Contrast Ratio (Typ.)

    1000:1

  • Pixel Pitch [mm]

    0.1554 x 0.1554

  • Resolution

    3840 x 2160

  • Response Time

    5ms (GtG at Faster)

  • Size [Inch]

    27

  • Surface Treatment

    Anti-Glare

  • Viewing Angle (CRā‰„10)

    178Āŗ(R/L), 178Āŗ(U/D)

ACCESSORY

  • Adapter

    YES

  • D-Sub

    NO

  • HDMI (Color/Length)

    YES

  • Power Cord

    YES

  • USB3.0 Upstream Cable

    YES

  • Calibration Report (Paper)

    YES

  • Display Port

    YES

  • DVI-D (Color/Length)

    NO

STANDARD

  • CE

    YES

  • EN (EN 60601-1 / EN 60601-1-2)

    YES

  • EN (EN 60950-1 / EN 55032, 55024)

    YES

  • FDA

    Class I

  • GMP

    YES

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    YES

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    YES

  • IP(Front/Except for front)

    NO

  • ISO13485

    YES

  • KC (for Rep. of Korea)

    YES

  • KGMP

    YES

  • MFDS

    YES

  • REACH

    YES

  • RoHS

    YES

  • UL (cUL)

    YES

  • Vandal-proof

    NO

  • WEEE

    YES

CONNECTIVITY

  • 12G-SDI

    NO

  • 3G-SDI

    NO

  • Component (Resolution)

    NO

  • Composite (Resolution)

    NO

  • Daisy Chain

    NO

  • DisplayPort

    YES(1ea)

  • DVI-D

    NO

  • D-Sub

    NO

  • HDMI

    YES(2ea)

  • Headphone out

    3-pole (Sound Only)

  • RS-232

    NO

  • S-Video

    NO

  • Thunderbolt

    NO

  • USB Downstream Port

    YES(2ea/ver3.0)

  • USB Upstream Port

    YES(1ea/ver3.0)

FEATURES

  • Auto Luminance Sensor

    NO

  • Black Stabilizer

    NO

  • Brightness stabilization

    YES

  • Color Temperature

    6500K/8500K/9300K/Manual(5000K~10000K)

  • DICOM Compliant

    YES

  • Failover Input Switch

    NO

  • Flicker Safe

    YES

  • Focus View

    NO

  • Front Sensor

    NO

  • HDR 10

    NO

  • HDR Effect

    NO

  • Hot Key

    NO

  • HW Calibration

    HW Calibration Ready

  • Lighting

    NO

  • Light Box Mode

    NO

  • Pathology Mode

    NO

  • PBP

    2PBP

  • PIP

    NO

  • Presence Sensor

    NO

  • Reader Mode

    YES

  • Rotation & Mirror Mode

    NO

  • Smart Energy Saving

    YES

  • Super Resolution+

    YES
