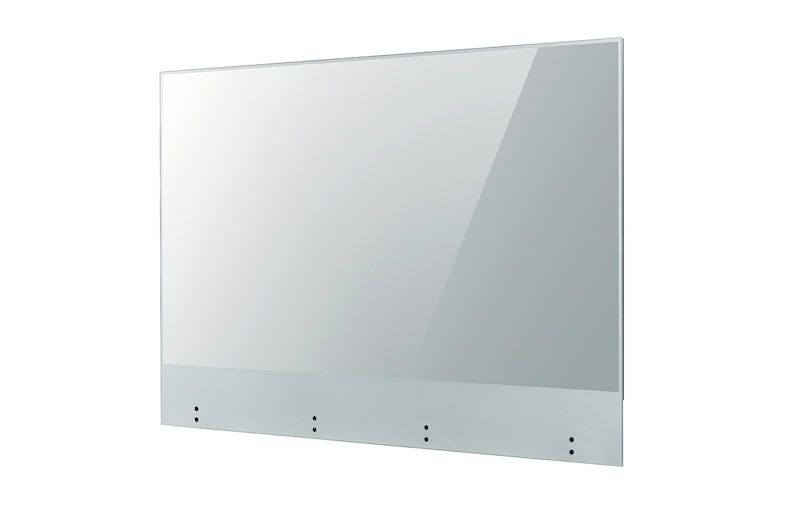

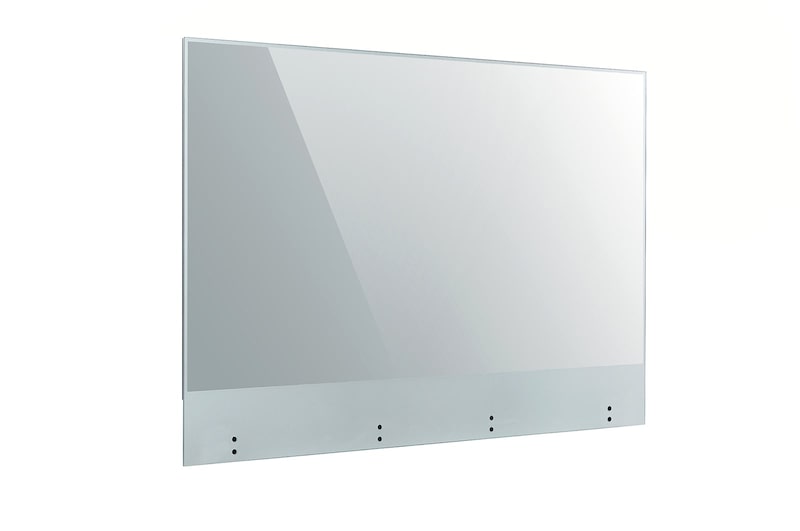

Transparent OLED Touch Signage

55EW5TK-A

()

Key Features

Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
Transparency(Typ.) : 33% (Set)
Bezel : 7.9 mm (T/B/L), 144.5 mm (B)
Interface : HDMI / DP / USB 2.0 / Touch USB / RS232C / RJ45 / IR / Audio
P-Cap Touch, Tempered Front Glass (3T)

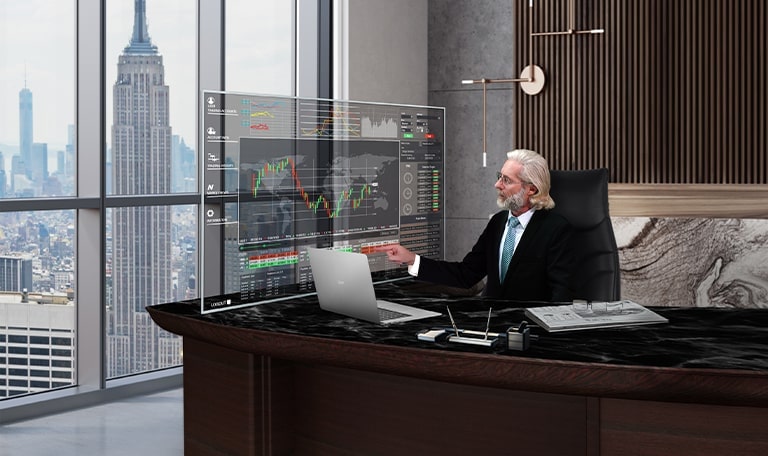

A man is doing his job by looking at the data displayed on the Transparent OLED screen.

*All images in this web page are for illustrative purposes only.

A New Level of
See-through View

LG Transparent OLED Signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.
Boasting vivid and clear colors with high transparency, this display provides visual enhancements to objects placed behind it, giving viewers an impressive "wow" factor.
Not only that, it can respond according to viewers’ touch, which has great potential for various applications where customer interactions are required.

LG Transparent OLED Signage vividly shows the fireworks, making the screen look more colorful in harmony with the actual night view behind it.

Accurate and Vivid Colors

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

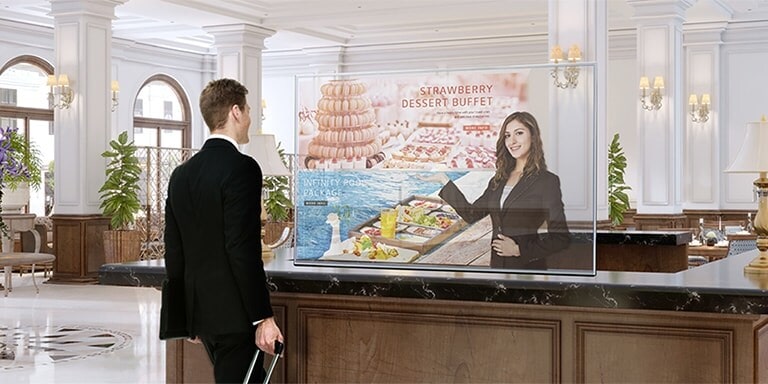

A man is getting information through the Transparent OLED screen showing photos of the dessert menu.

Intuitive P-Cap Touch

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips with no lag.

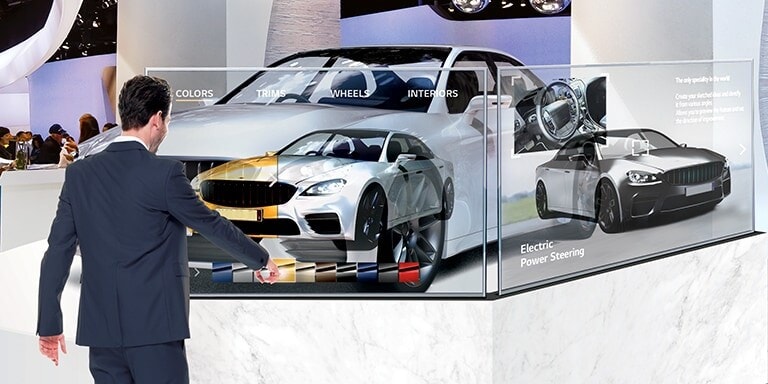

In a car exhibition hall, a man is changing the car’s color on the screen by touching the Transparent OLED Signage screen installed in front of the car.

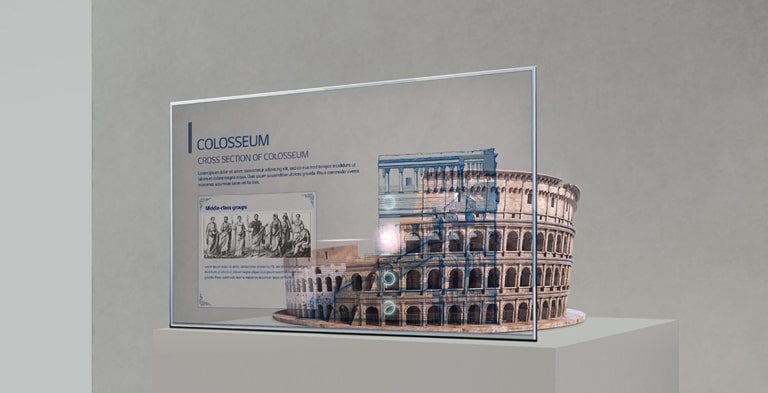

Information about the Colosseum is shown on the Transparent OLED screen set up in front of the Colosseum model.

High Transparency

LG’s OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency of 33% even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them.

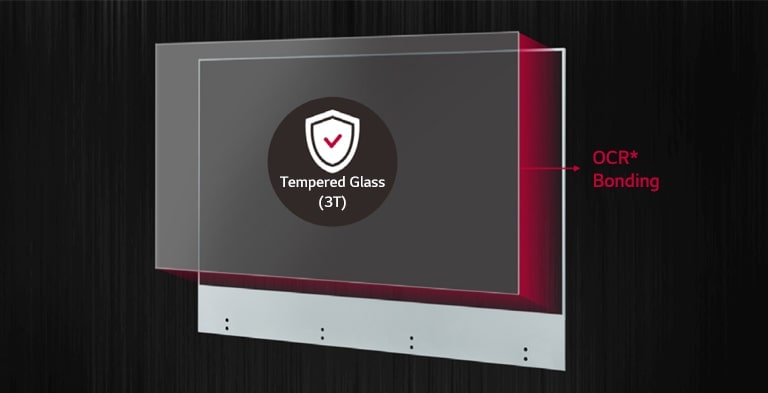

Attach thin and transparent tempered glass to the screen to maximize product protection and user safety.

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers’ injuries.

* * Optically Clear Resin

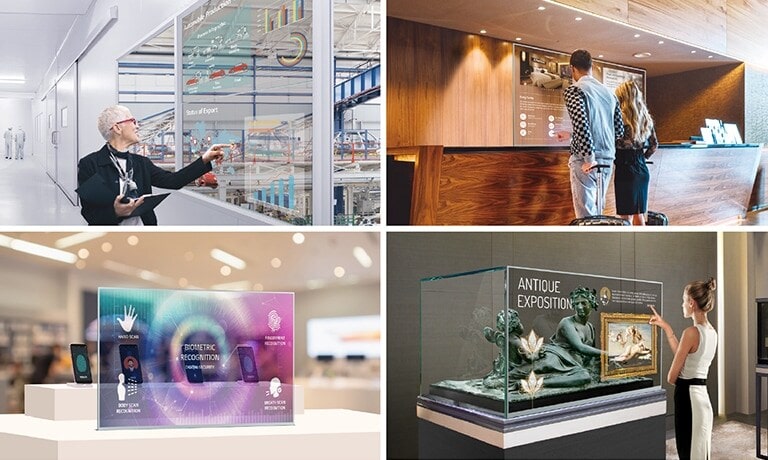

Expandable Design

LG Transparent OLED Touch Signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. With a variety of forms of installation*, it can complement any venue in which it is installed.

A woman is checking content with a Transparent OLED Signage installed next to the window.

*Installation accessories are not supplied by LG.

All Spec

POWER

Power Supply

AC 100-240V~, 50/60Hz
Power Type

Built-in Power

SOUND

Speaker (Built-in)

NO

ACCESSORY

Basic

Remote Controller(include battery 2ea), Power Cord, QSG, IR receiver, Regulation Book, Phone to RS232C Gender, MCX/Harness Cables(3000mmx4ea/3000mmx2ea for connection between panel and Signage Box), HDMI Cable(3M), Micro to A type USB cable(3M, for connection between Touch and Signage box), A to B type USB cable(Touch out), Screw(M4xL22,12ea / M4 Nut,12ea / M3xL5.5,8ea / M3xL3.5,20ea), Shield Cover Assy', Rubber Damper 4ea, Touch Cable Holder 2ea, MCX Cable Holder 4ea
Optional

NO

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic

OPS COMPATIBILITY

OPS Power Built-in

N/A
OPS Type compatible

N/A

CERTIFICATION

EMC

FCC Class "A" / CE / KC
ePEAT(US only)

NO
ERP / Energy Star

YES / NO
Safety

CB / NRTL

ENVIRONMENT CONDITIONS

Operation Humidity

10 % to 80 %
Operation Temperature

0 °C to 40 °C

POWER CONSUMPTION

BTU (British Thermal Unit)

955 BTU/Hr(Typ.), 1023 BTU/Hr(Max.)
DPM

0.5W
Max.

300W
Power off

0.5W
Smart Energy Saving (70%)

N/A
Typ.

84W (IEC 62087)

DEDICATED FEATURE - TOUCH

Accuracy (Typ.)

3.5mm
Available Object Size for Touch

Ø12 mm ↑
Interface

USB2.0
Multi Touch Point

Max. 10 Points
Operating System Support

Windows 8.1, Windows 10
Protection Glass Thickness

3mm (Anti-Reflective / Anti-Finger print)
Protection Glass Transmission

84% (Typ.)
Response Time ('Paint' app on Windows 10 PC)

120ms ↓

MECHANICAL SPECIFICATION

Weight (Head)

12.9Kg (Head) 3.4Kg (Signage Box)
Bezel Color

Matt Silver
Bezel Width

T/R/L/B : 7.9/7.9/7.9/144.5mm
Carton Dimensions (W x H x D)

1345 x 945 x 207mm
Handle

NO
Monitor Dimensions (W x H x D)

1225.5 x 832.9 x 7.4mm (Head) 782.8 x 238.4 x 34.7mm (Signage Box)
Monitor Dimension with Stand (W x H x D)

N/A
Packed Weight

24.5Kg
VESA Standard Mount Interface

N/A
Weight (Head+Stand)

N/A
