23.8” UltraGear™ Full HD IPS 1ms (GtG) Gaming Monitor
Speed
IPS 1ms (GtG)
144Hz Refresh Rate
Color
HDR10
sRGB 99% (Typ.)
Tech
AMD FreeSync™ Premium
Height, Tilt, Pivot Adjustable Stand
Designed for Incredible Speed
With IPS 1ms comparable to TN Speed, providing the minimized afterimage and a fast response time, lets you to enjoy a whole new gaming performance.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Comparison of speed with IPS 5ms (Left image) and IPS 1ms (GtG).
Fluid Gaming Motion
A ultra-fast speed of 144Hz allows gamers to see the next frame quickly and makes image to appear smoothly. The gamers can response rapidly to opponents and aim at target easily.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Comparison of 60Hz Refresh Rate (left image) and 144Hz Refresh Rate
*The images simulated to enhance feature understanding. It may differ from actual use.
Clearer, Smoother and Faster
With FreeSync™ Premium technology, gamers can experience seamless, fluid movement in hi-resolution and fast-paced games. It virtually reduces screen tearing and stuttering.
*The images simulated to enhance feature understanding. It may differ from actual use.
*Comparison of Mode 'OFF' (left image) and AMD FreeSync™ Premium.
Be Sleek, Chic and Immersive

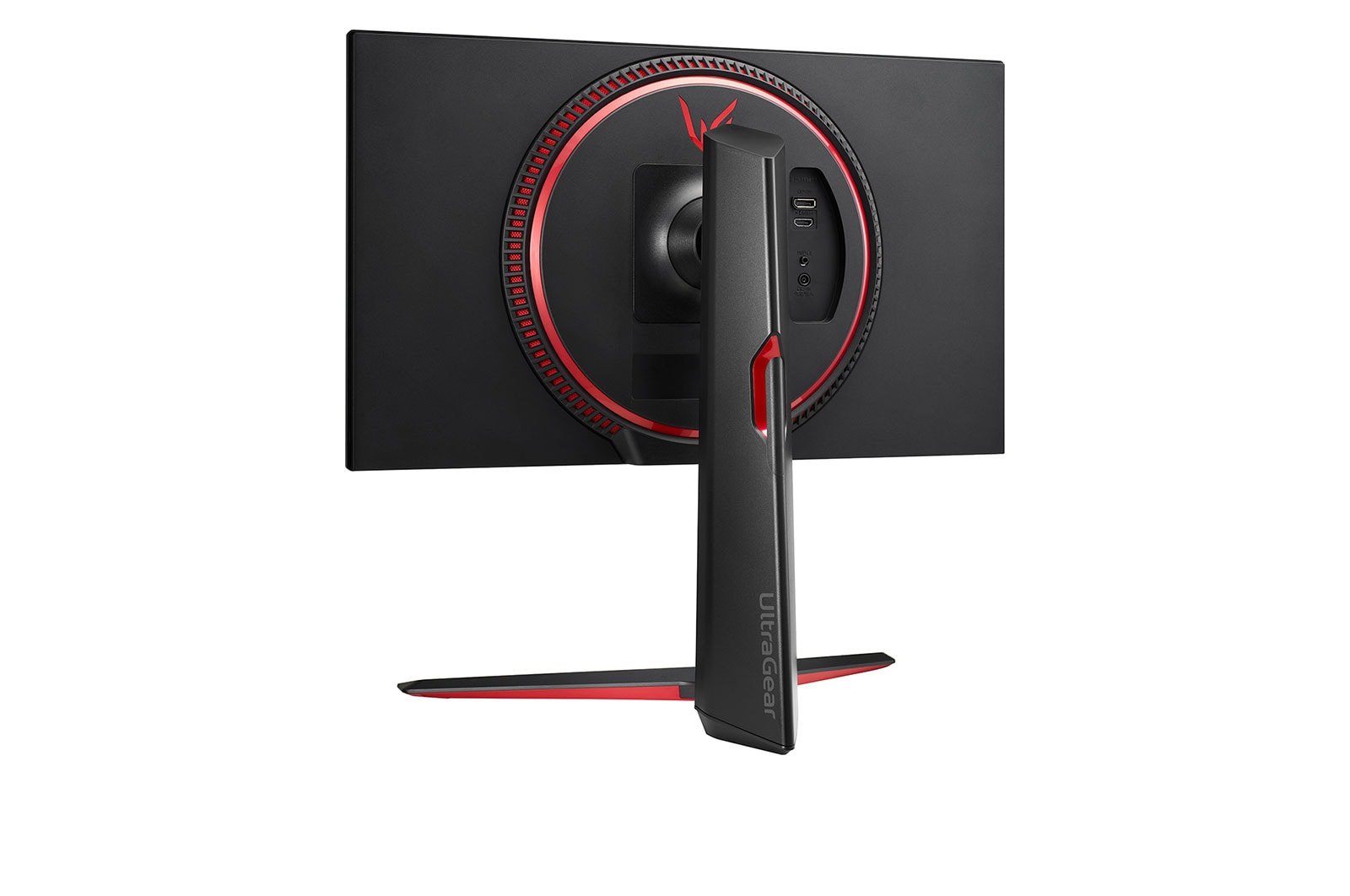

Enhance your gaming experience with eye-catching design, and virtually borderless design. The base can be adjusted to change the height, tilt and pivot of the monitor to help you play game more comfortable.
Monitor in Stylish, and Virtually Borderless Design with Height, Tilt, and Pivot Adjustable Stand .
*The images simulated to enhance feature understanding. It may differ from actual use.
*Above images positioned on the left side illustrate the conventional mode that the feature is not supported in.
Gallery
Key Spec
-
Size [Inch]
23.8
-
Resolution
1920x1080
-
Panel Type
IPS
-
Aspect Ratio
16:9
-
Color Gamut (Typ.)
sRGB 99% (CIE1931)
-
Brightness (Typ.) [cd/m²]
300 cd/m²
-
Refresh Rate (Max.) [Hz]
144
-
Response Time
1ms (GtG at Faster)
-
Display Position Adjustments
Tilt, Pivot, Height
All Spec
INFO
-
Product name
UltraGear
-
Year
Y22
MECHANICAL
-
Display Position Adjustments
Tilt, Pivot, Height
-
Borderless Design
3-Side Virtually Borderless Design
-
OneClick Stand
Yes
-
Wall Mountable [mm]
100x100 mm
POWER
-
AC Input
100~240V (50/60Hz)
-
DC Output
32W (19V / 1.7A)
-
Power Consumption (DC Off)
Less than 0.3W
-
Power Consumption (Max.)
30.2W
-
Power Consumption (Sleep Mode)
Less than 0.5W
-
Power Consumption (Typ.)
28W
-
Type
External Power (Adapter)
SW APPLICATION
-
OnScreen Control (LG Screen Manager)
Yes
DISPLAY
-
Aspect Ratio
16:9
-
Brightness (Min.) [cd/m²]
240 cd/m²
-
Brightness (Typ.) [cd/m²]
300 cd/m²
-
Color Bit
8bit
-
Color Depth (Number of Colors)
16.7M
-
Color Gamut (Min.)
sRGB 97% (CIE1931)
-
Color Gamut (Typ.)
sRGB 99% (CIE1931)
-
Contrast Ratio (Min.)
700:1
-
Contrast Ratio (Typ.)
1000:1
-
Panel Type
IPS
-
Pixel Pitch [mm]
0.2745x0.2745 mm
-
Refresh Rate (Max.) [Hz]
144
-
Resolution
1920x1080
-
Response Time
1ms (GtG at Faster)
-
Size [cm]
60.4cm
-
Size [Inch]
23.8
-
Surface Treatment
Anti-Glare
-
Viewing Angle (CR≥10)
178º(R/L), 178º(U/D)
DIMENSIONS & WEIGHTS
-
Dimension in Shiping (W x H x D) [mm]
753 x 426 x 173 mm
-
Dimension without Stand (W x H x D) [mm]
540.8 x 323.8 x 42.8 mm
-
Dimension with Stand (W x H x D) [mm]
540.8 x 551.1 x 291.2 mm(Up) 540.8 x 441.1 x 291.2 mm(Down)
-
Weight in Shipping [kg]
8.2
-
Weight without Stand [kg]
3.4
-
Weight with Stand [kg]
5.6
FEATURES
-
Black Stabilizer
Black Stabilizer
-
Color Calibrated in Factory
Yes
-
Crosshair
Yes
-
Dynamic Action Sync
Yes
-
Flicker Safe
Yes
-
FPS Counter
Yes
-
HDR 10
Yes
-
HDR Effect
Yes
-
Motion Blur Reduction Tech.
Yes
-
Reader Mode
Yes
-
Smart Energy Saving
Yes
-
User Defined Key
Yes
-
AMD FreeSync™
FreeSync Premium
-
Auto Input Switch
Yes
STANDARD
-
CE
Yes
-
UL (cUL)
Yes
ACCESSORY
-
Adapter
Yes
-
Calibration Report (Paper)
Yes
-
HDMI (Color/Length)
Black / 1.5m
-
Power Cord
Depend on Country
CONNECTIVITY
-
DisplayPort
Yes(1ea)
-
DP Version
1.4
-
HDMI
Yes(1ea)
-
Headphone out
3-pole (Sound Only)
