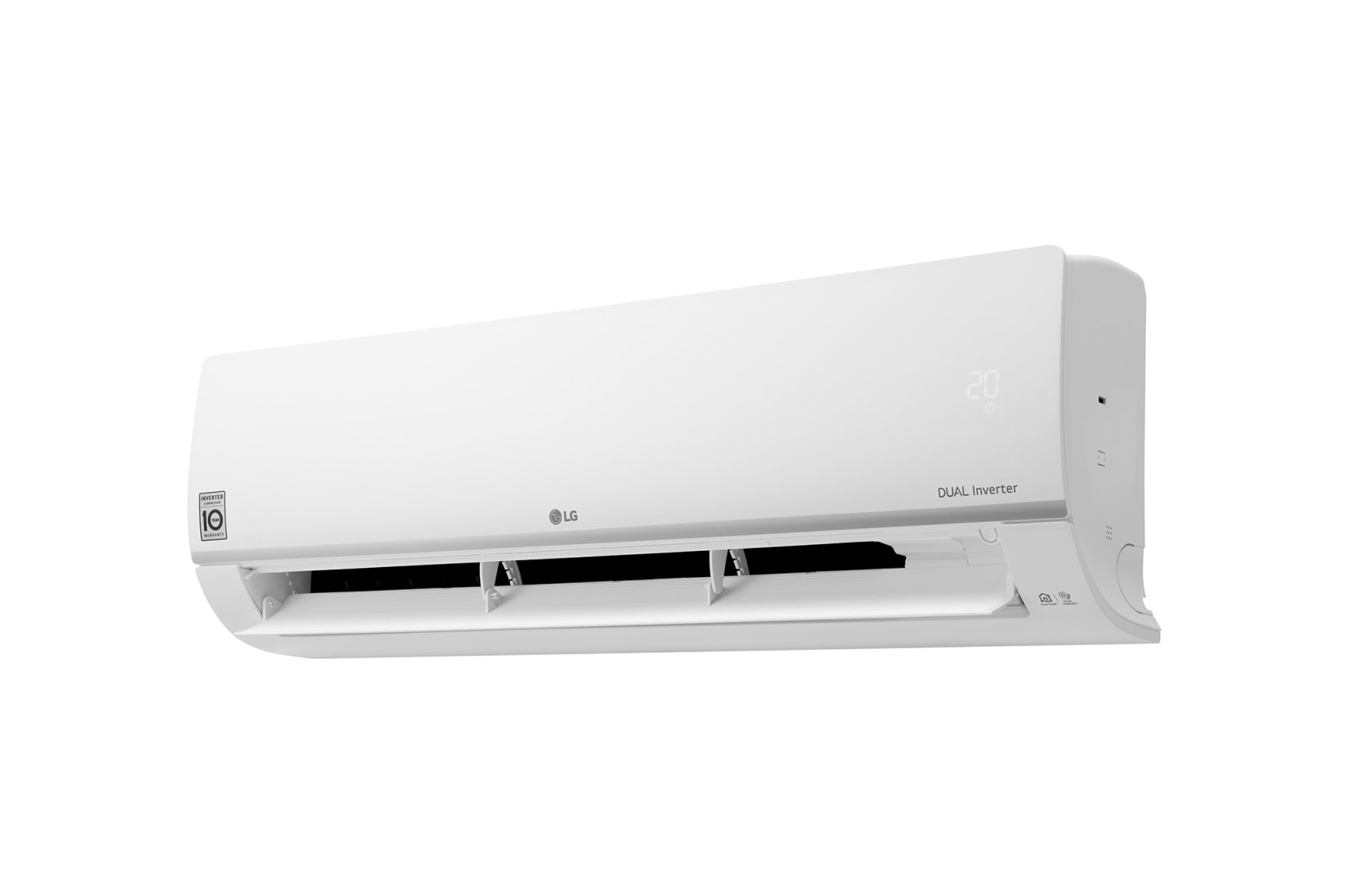

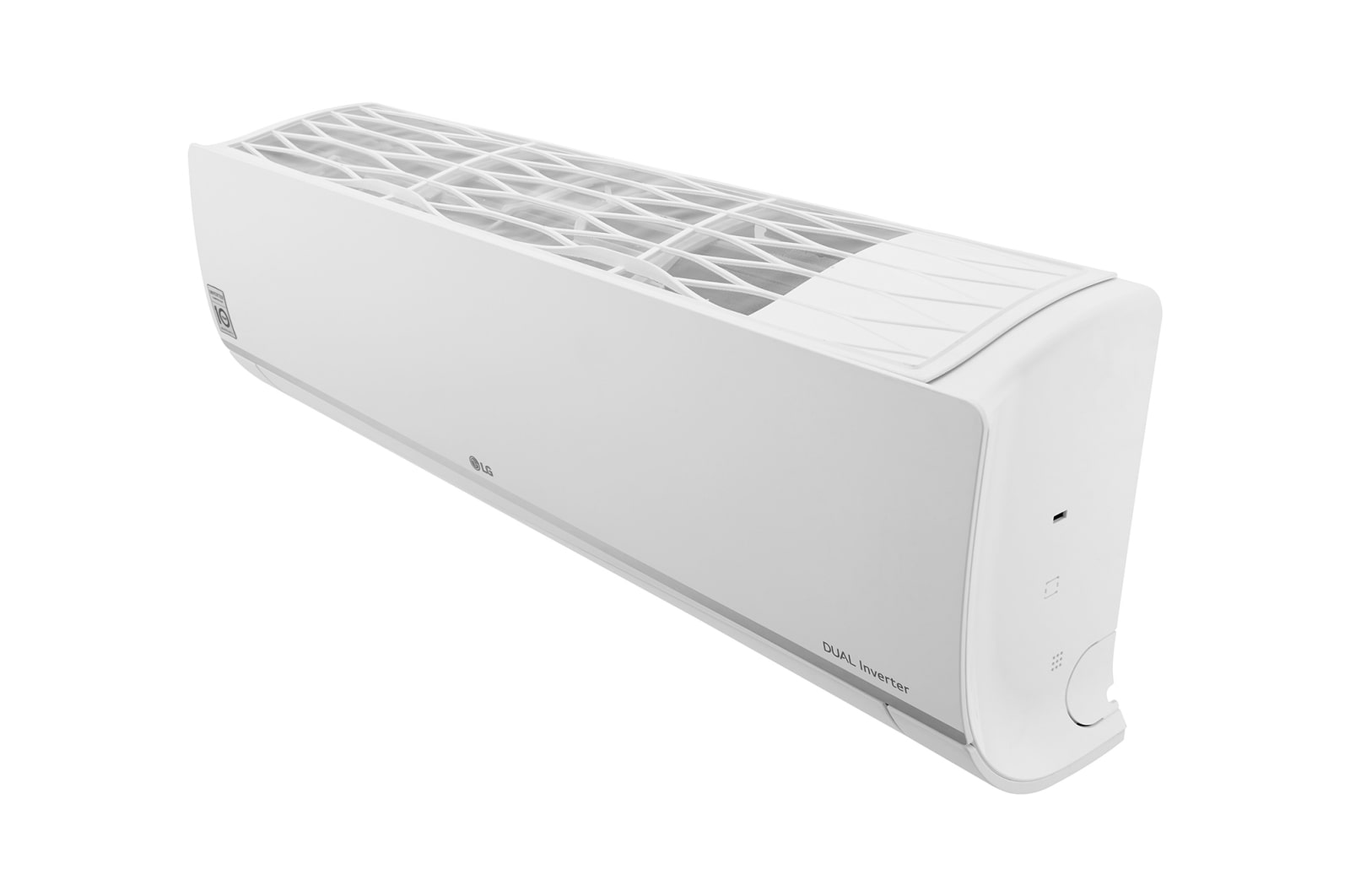

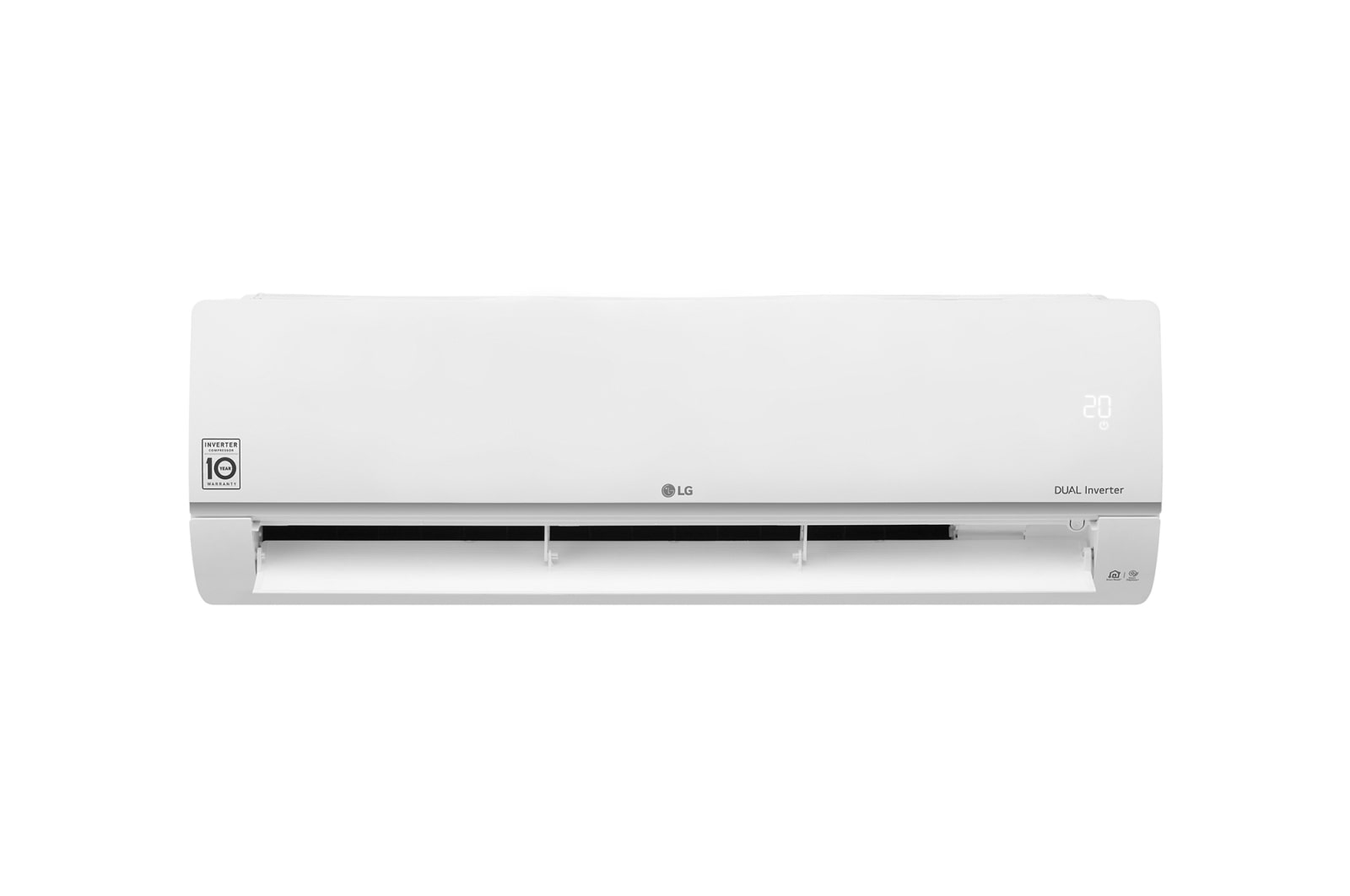

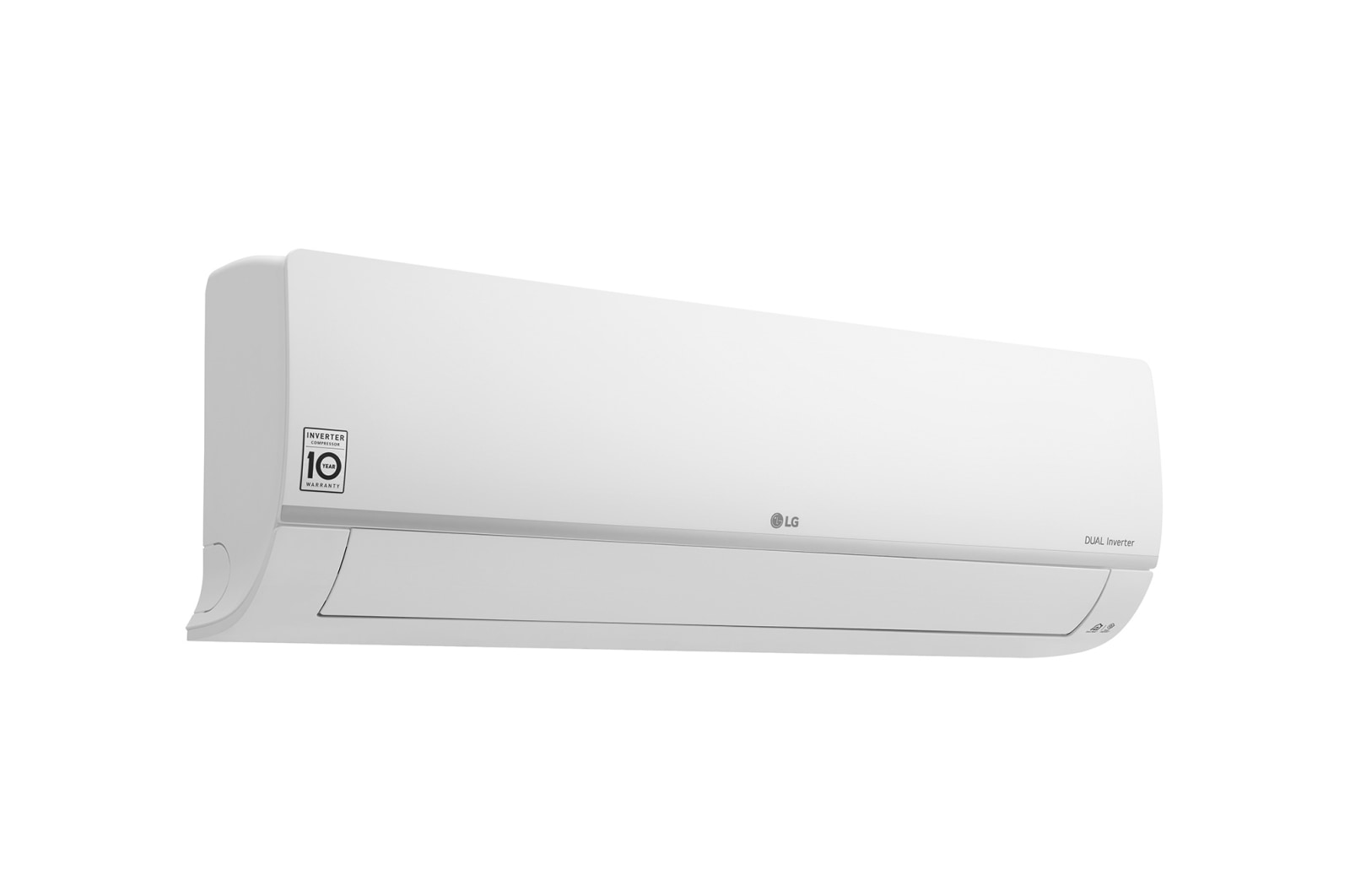

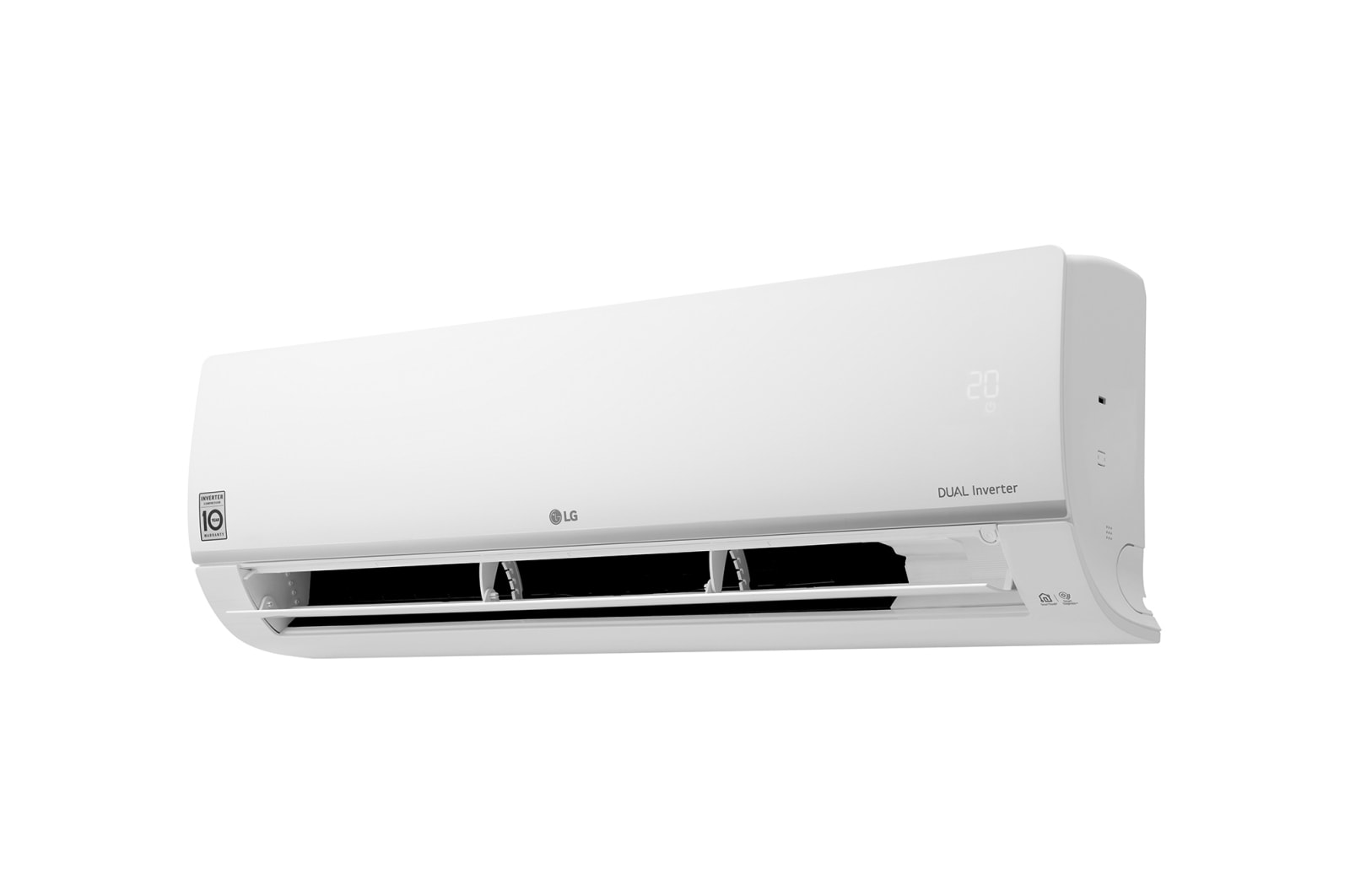

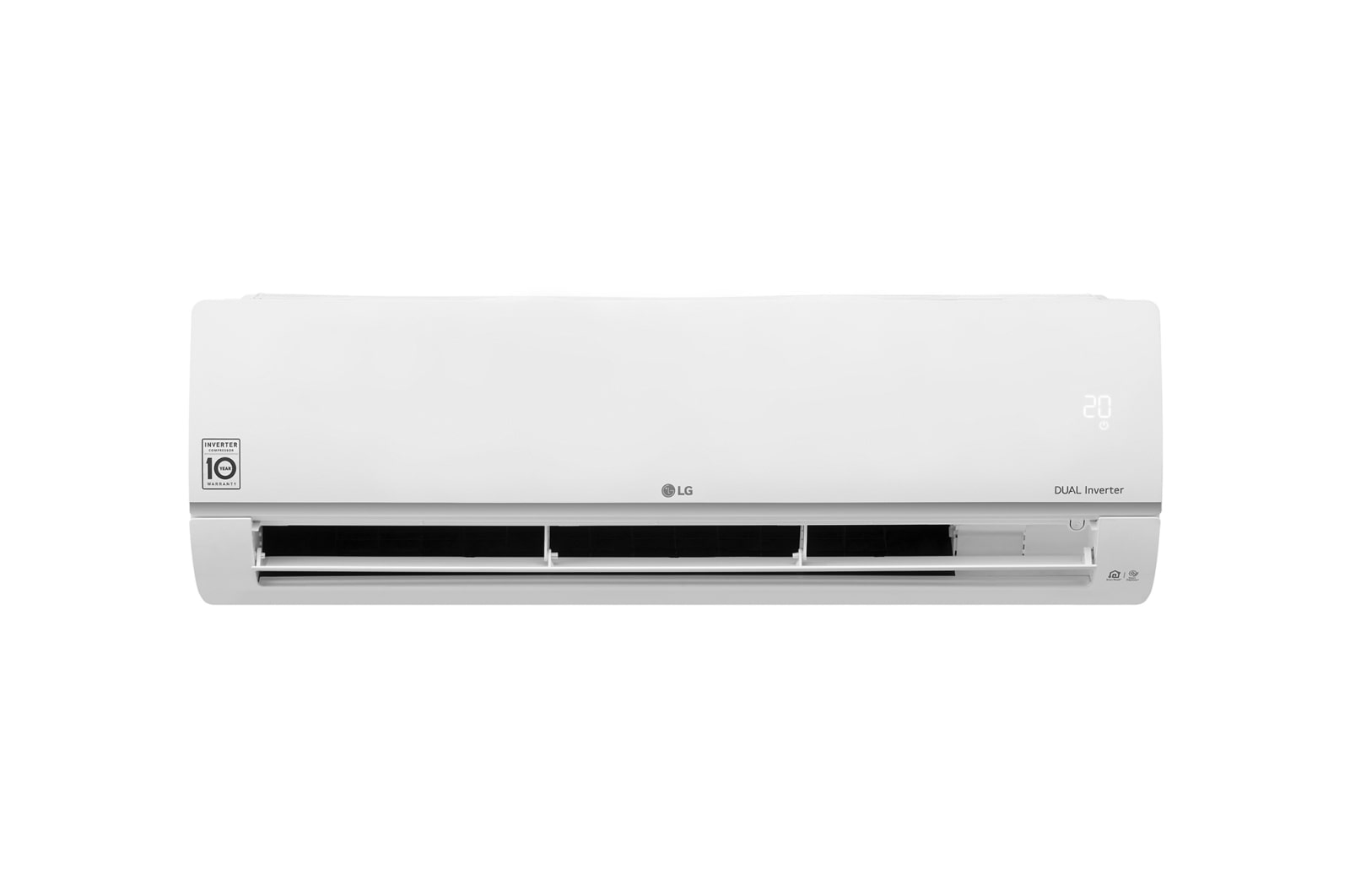

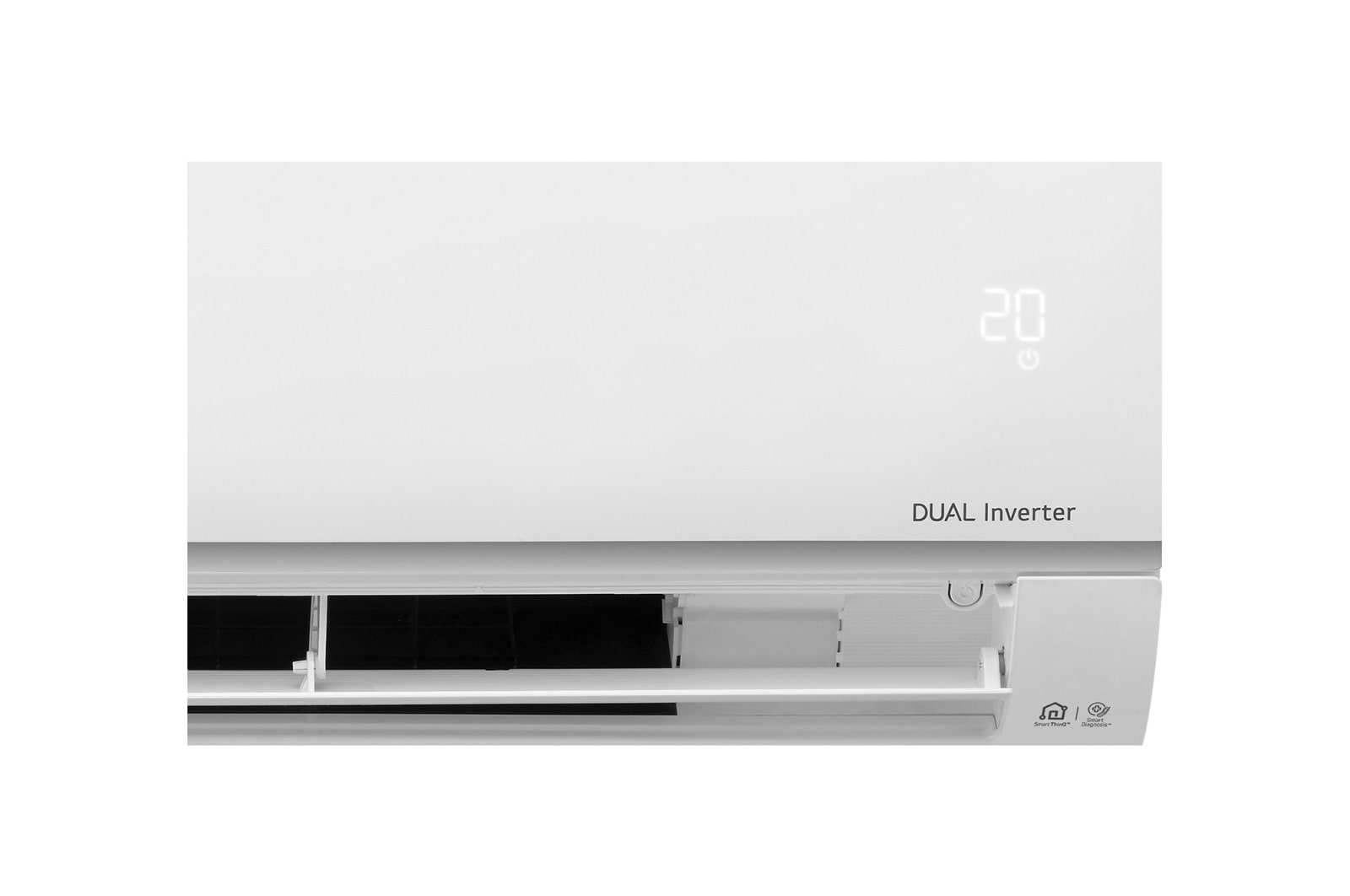

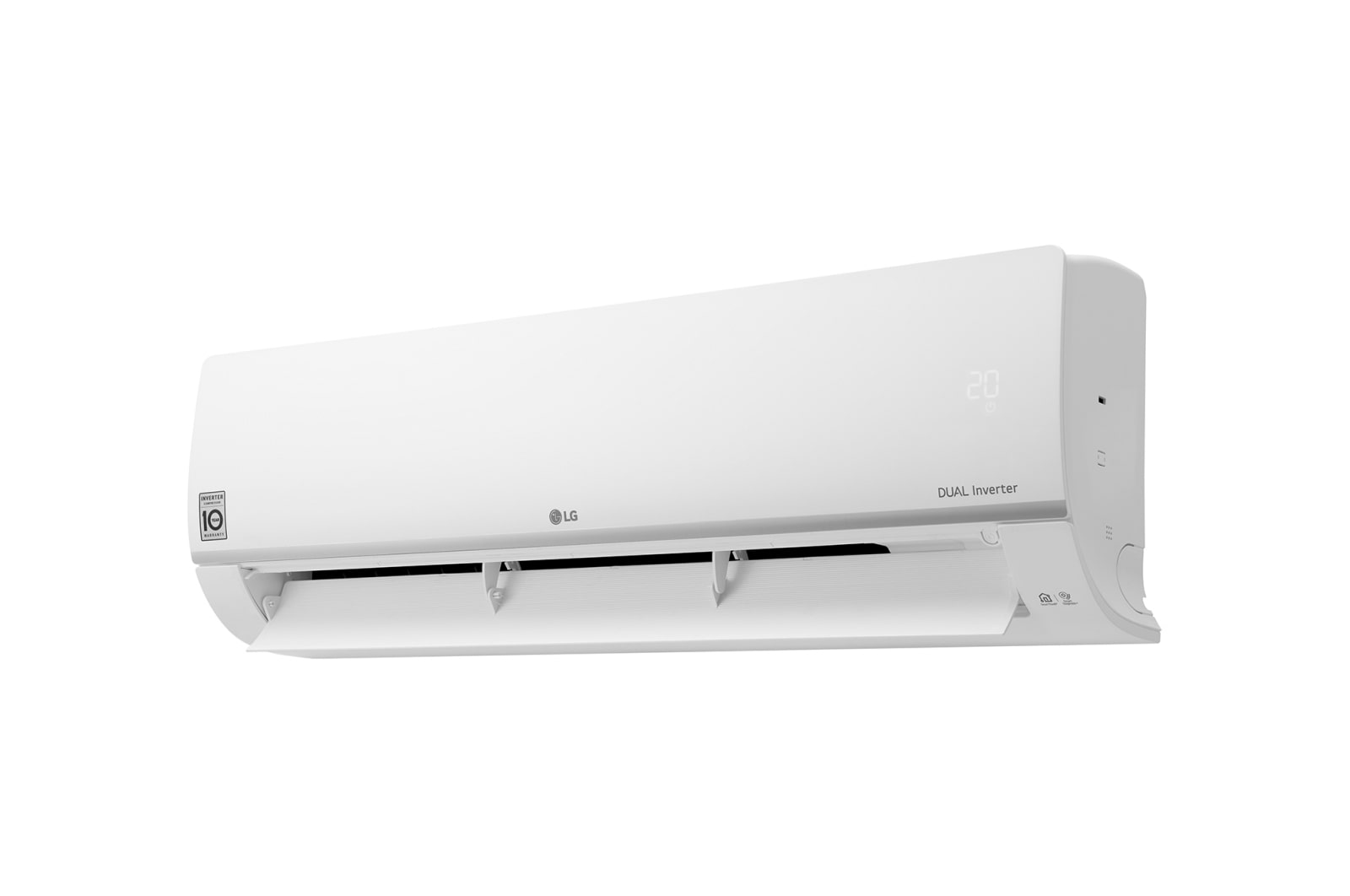

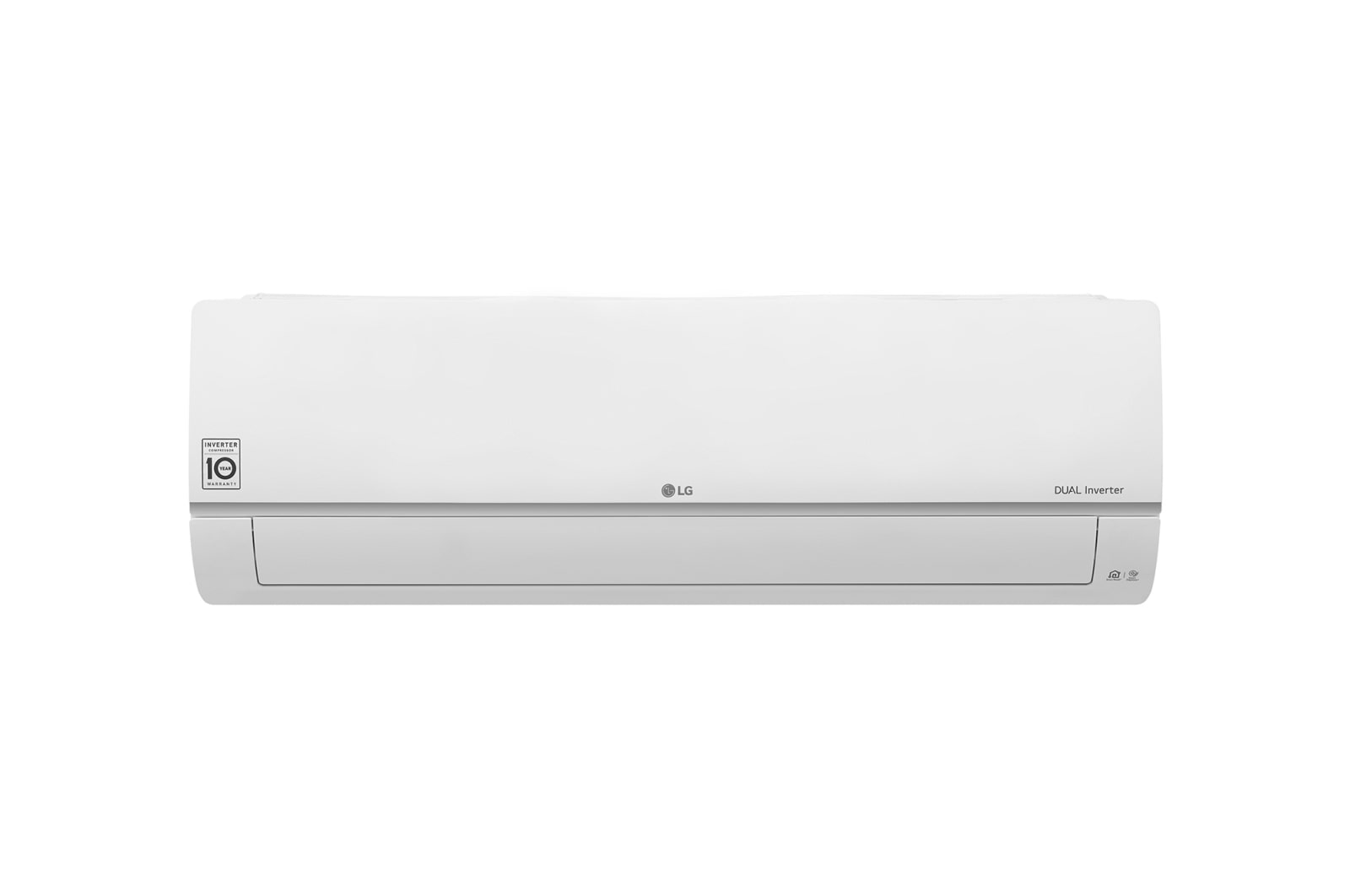

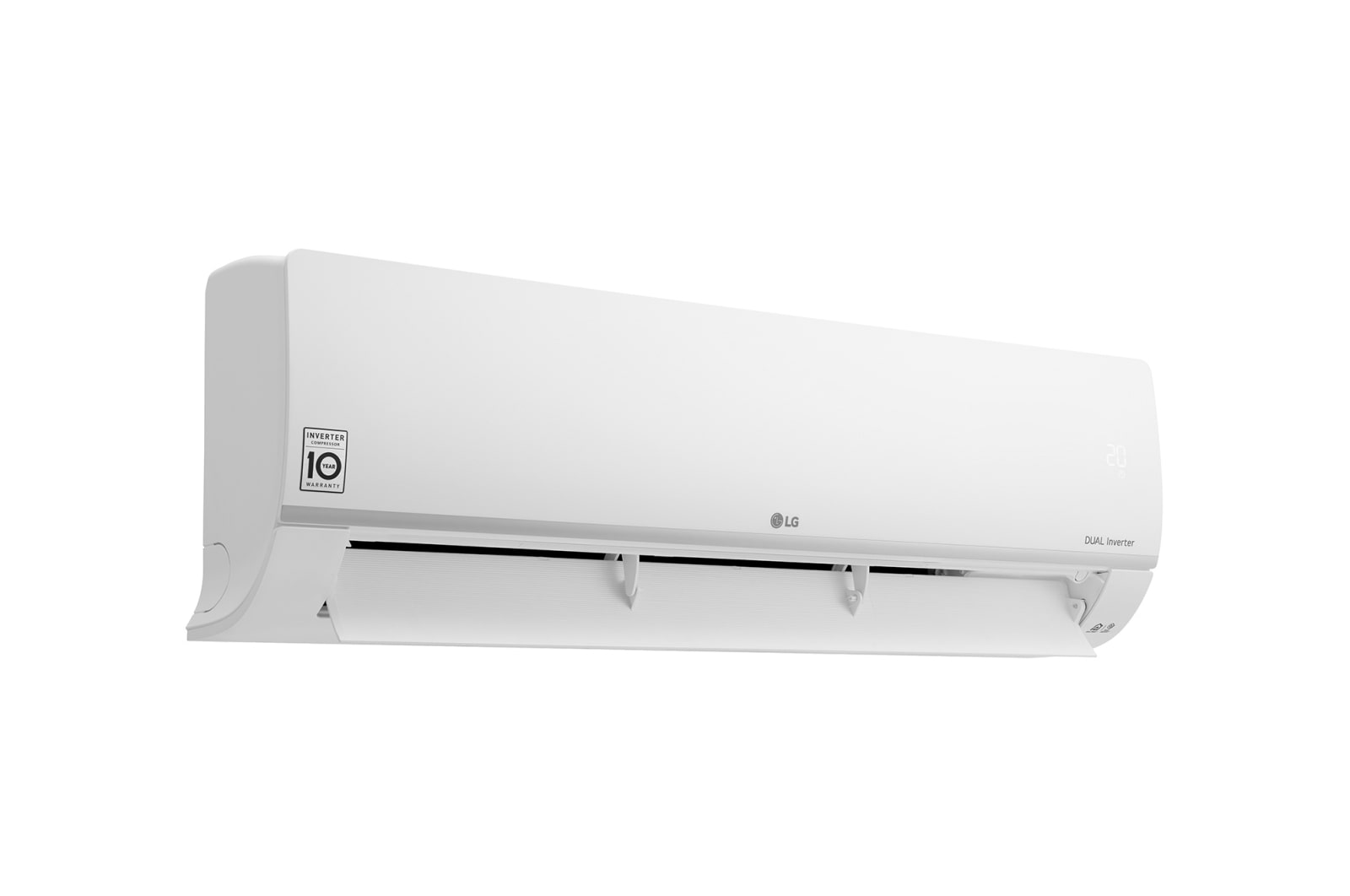

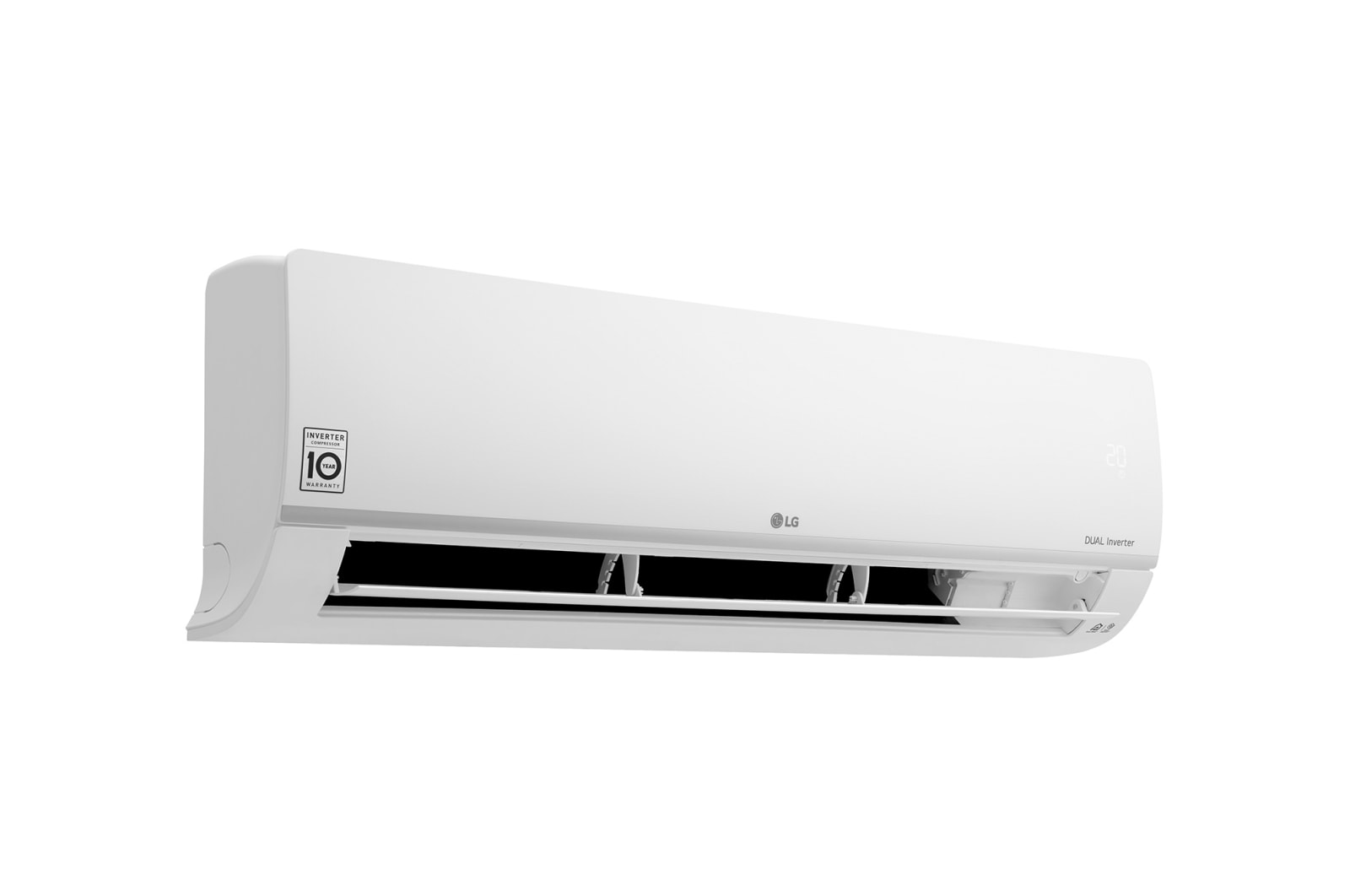

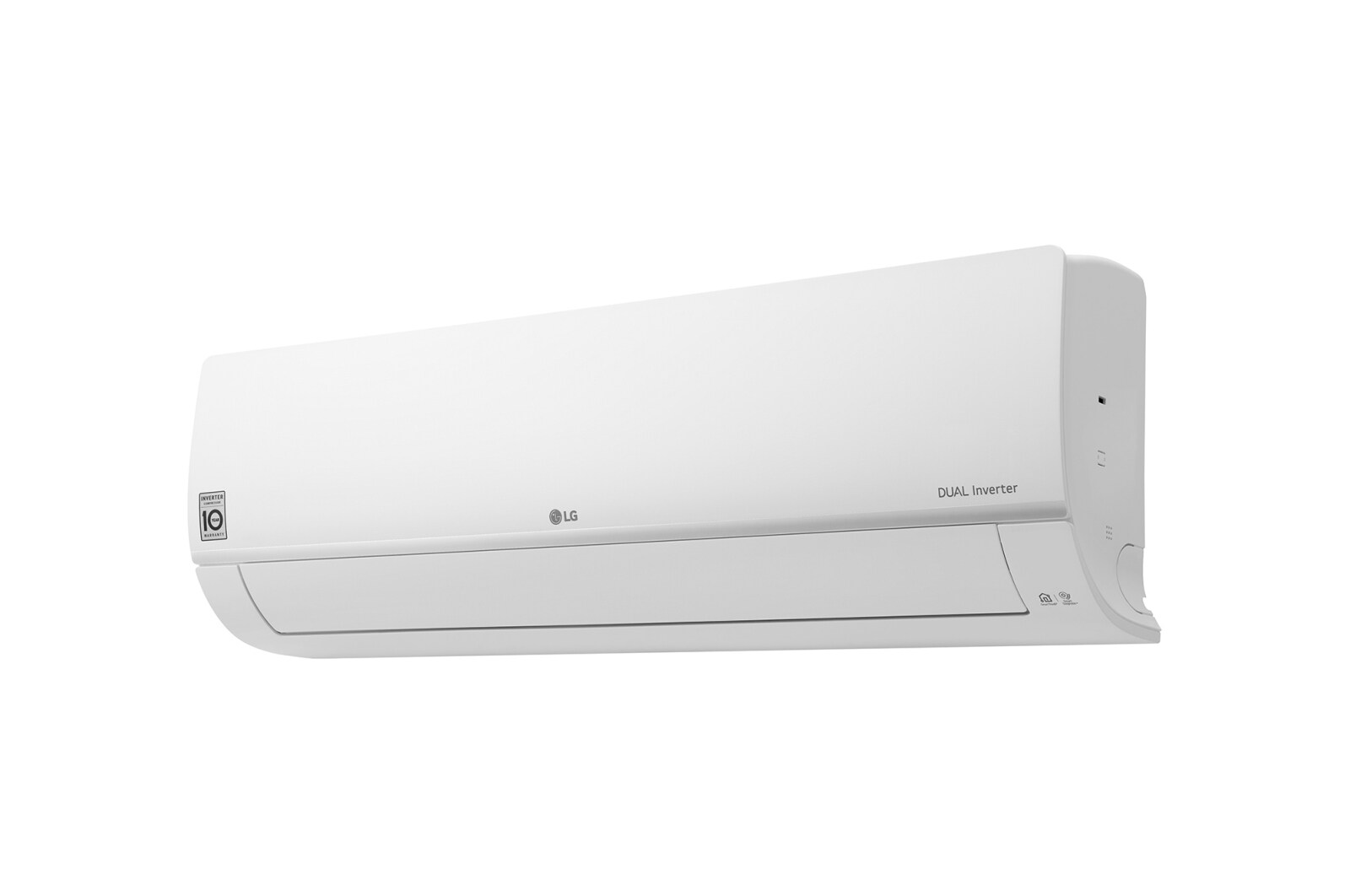

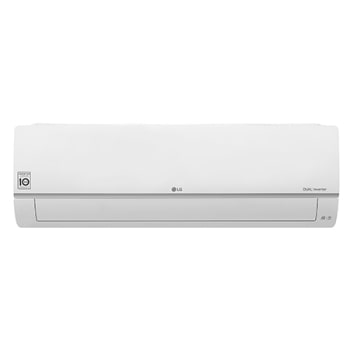

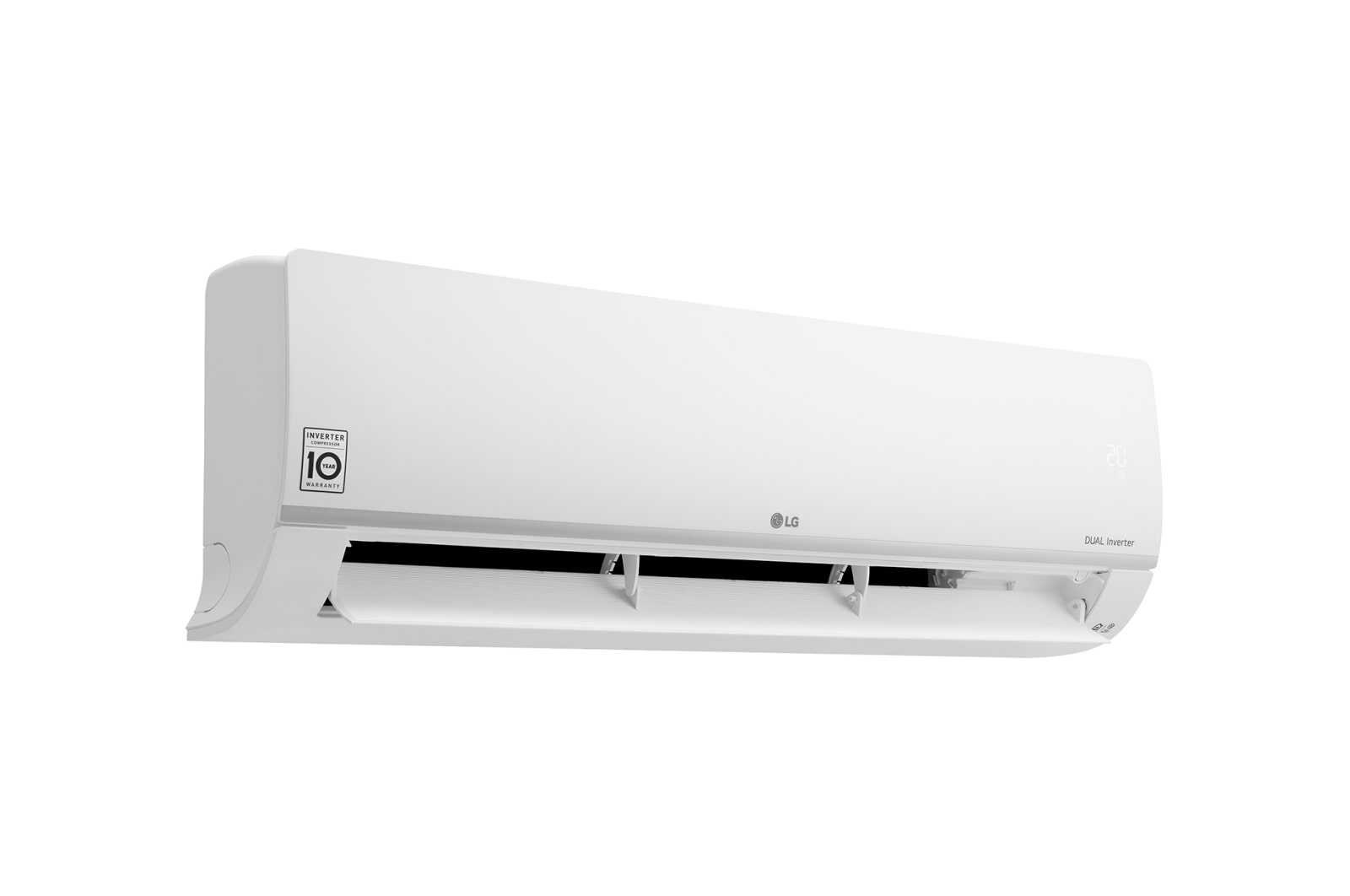

12000 btu | Cool Only | Gold Fin | Dual Protection Pre Filter
*It may vary depending on usage environment.
Recommended Products
Gallery
SUMMARY

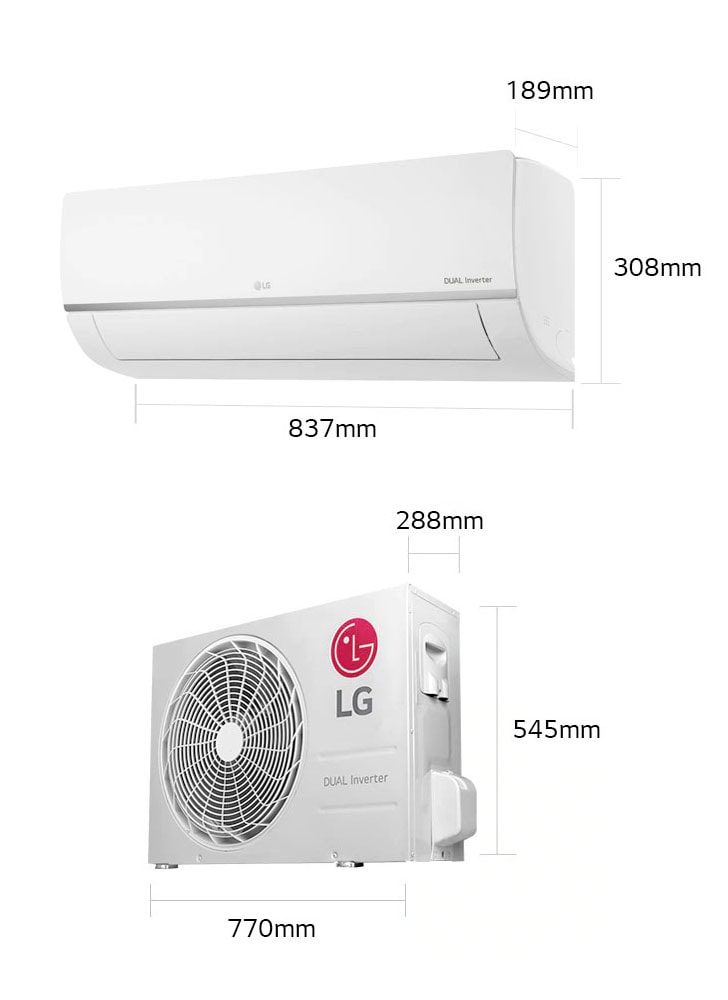

DIMENSIONS
All Spec
CAPACITY
-
Cooling - Min ~ Rated ~ Max (kW)
0.300 ~ 3.520 ~ 4.040
-
Cooling - Min ~ Rated ~ Max (Btu/h)
1,023 ~ 12,000 ~ 13,785
-
Cooling (T3) - Min ~ Rated ~ Max (kW)
0.260 ~ 2.930 ~ 4.040
-
Cooling (T3) - Min ~ Rated ~ Max (Btu/h)
900 ~ 10,000 ~ 13,785
POWER INPUT
-
Cooling - Min ~ Rated ~ Max (W)
210 ~ 968 ~ 2,100
-
Cooling (T3) - Min ~ Rated ~ Max (W)
290 ~ 1,150 ~ 2,100
RUNNING CURRENT
-
Cooling - Min ~ Rated ~ Max (A)
1.30 ~ 4.30 ~ 10.00
-
Cooling (T3) - Min ~ Rated ~ Max (A)
1.80 ~ 5.10 ~ 10.00
EER
-
EER (W/W)
3.64
-
EER ((Btu/h)/W)
12.40
EER(T3)
-
EER (T3) (W/W)
2.55
-
EER (T3) ((Btu/h)/W)
8.70
SEER
-
SEER
15.1
ENERGY LABEL GRADE
-
Cooling / Heating
B
ANNUAL ENERGY CONSUMPTION
-
Cooling / Heating (kWh/year)
2642
POWER SUPPLY
-
Power Supply (Ø, V, Hz)
1, 230, 60
AVAILABLE VOLTAGE RANGE
-
Available Voltage Range (V)
187 ~ 276
POWER FACTOR
-
Cooling / Heating (%)
97.0
MOISTURE REMOVAL
-
Moisture Removal (l/h)
1.25
INDOOR
-
Air Flow Rate - Cooling, SH / H / M / L (m³/min)
12.5 / 9.3 / 7.2 / 4.5
-
Sound Pres ure Level - Cooling, SH / H / M / L / SL (dB(A))
- / 42 / 37 / 29 / 22
-
Dimensions (W× H × D) - Net (mm)
837 x 308 x 189
-
Dimensions (W× H × D) - Shipping (mm)
897 x 390 x 258
-
Weight - Net (kg)
9.4
-
Weight - Shipping (kg)
13.9
-
Exterior Color Code
Munsell 7.5BG 10/2 ( RAL 9016 )
OUTDOOR
-
Air Flow Rate - Max (m³/min)
34.0
-
Fan Motor Speed - Cooling, Min ~ Max (rpm)
200 ~ 900
-
Sound Pres ure Level - Cooling, Rated (dB(A))
52
-
Dimensions (W× H × D) - Net (mm)
770 x 545 x 288
-
Dimensions (W× H × D) - Shipping (mm)
928 x 588 x 401
-
Weight - Net (kg)
33
-
Weight - Shipping (kg)
37
-
Max. Fuse Size (A)
15
-
Exterior Color Code
Munsell 9.54Y 8.34/1.31 ( RAL 9001 )
-
Operation Range - Cooling (°C DB)
18 ~ 54
CIRCUIT BREAKER
-
Circuit Breaker (A)
15
POWER SUPPLY TO UNIT
-
Power Supply to Unit
Outdoor
POWER AND COMMUNICATION CABLE
-
Power and Communication Cable (No. × mm²)
4 x 1
PIPING
-
Size - Liquid (mm)
ø 6.35
-
Size - Gas (mm)
ø 9.52
-
Connections Method - Indoor / Outdoor
Flared / Flared
DRAIN HOSE SIZE
-
O.D, I.D (mm)
21.5,16
BETWEEN INDOOR & OUTDOOR
-
Piping Length - Min / Standard / Max (m)
3 / 7.5 / 20
-
Piping Length - No Charge (m)
12.5
-
Max. Elevation Difference (m)
15
-
Piping Connection Heat Insulation
Both liquid and gas pipes
REFRIGERANT
-
Type
R410A
-
Pre Charge (kg)
1.000
-
Additional Charge (g/m)
20
-
Control
Electronic Expansion Valve
-
Global Warning Potential
2087.5
-
t-CO₂ eq
2.088
TOOL CODE(CHAS IS)
-
Indoor / Outdoor
SJ / UL2
COMPRESSOR
-
Type
Twin Rotary
-
Model
GAT134MCA
-
Motor Type
BLDC
-
Oil Type/Maker
POE (RN68GP) / Jx Nippon, PVE (FW68D) / IDEMITSU
-
Oil Charge (cc)
360
-
Manufacturer / Country of Origin
LG Electronics / China
FAN(INDOOR)
-
Type
Cross Flow Fan
-
Motor Output (W)
30
FAN(OUTDOOR)
-
Type
Propeller Fan
-
Motor Type
BLDC
-
Motor Output (W)
43
-
Motor Insulation
Class E
-
Motor Enclosure / Ingress Protection
TEAO / IPX4
HEAT EXCHANGER
-
Evaporator - Material, Tube / Fin
Cu / Al
-
Evaporator - (ø x Row x Column x FPI x L) x Qty.-#1
( ø7 x 2 x 16 x 20 x 744) x 1
-
Evaporator - Corrosion Protection
PCM
-
Evaporator - Fin Type
Slit
-
Condenser - Material, Tube / Fin
Cu / Al
-
Condenser - (ø x Row x Column x FPI x L) x Qty.-#1
( ø7 x 2 x 24 x 14 x 814) x 1
-
Condenser - Corrosion Protection
Gold
-
Condenser - Fin Type
Wide Louver Plus
