Cooling - Min ~ Rated ~ Max (kW)
0.300 ~ 3.520 ~ 4.040
Cooling - Min ~ Rated ~ Max (Btu/h)
1,023 ~ 12,000 ~ 13,785
Cooling (T3) - Min ~ Rated ~ Max (kW)
0.260 ~ 2.930 ~ 4.040
Cooling (T3) - Min ~ Rated ~ Max (Btu/h)
900 ~ 10,000 ~ 13,785
Heating - Min ~ Rated ~ Max (kW)
0.300 ~ 4.000 ~ 5.660
Heating - Min ~ Rated ~ Max (Btu/h)
1,023 ~ 13,648 ~ 19,300
Cooling - Min ~ Rated ~ Max (W)
190 ~ 968 ~ 2,100
Cooling (T3) - Min ~ Rated ~ Max (W)
290 ~ 1,150 ~ 2,100
Heating - Min ~ Rated ~ Max (W)
1,111 ~ 2,100
Cooling - Min ~ Rated ~ Max (A)
1.33 ~ 4.30 ~ 10.00
Cooling (T3) - Min ~ Rated ~ Max (A)
1.80 ~ 5.10 ~ 10.00
Heating - Min ~ Rated ~ Max (A)
1.30 ~ 4.90 ~ 10.00
EER (W/W)
3.64
EER ((Btu/h)/W)
12.40
EER (T3) (W/W)
2.55
EER (T3) ((Btu/h)/W)
8.70
SEER
15.1
COP (W/W)
3.60
COP ((Btu/h)/W)
12.28

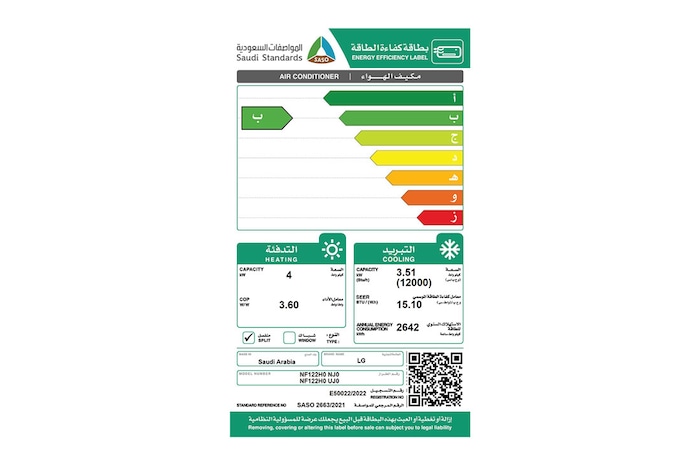

Cooling / Heating
B
Cooling / Heating (kWh/year)
2642
Power Supply (Ø, V, Hz)
1, 230, 60
Available Voltage Range (V)
187 ~ 276
Cooling / Heating (%)
97.0 / 97.0
Moisture Removal (l/h)
1.25
Air Flow Rate - Cooling, SH / H / M / L (m³/min)
12.5 / 9.3 / 7.2 / 4.5
Air Flow Rate - Heating, SH / H / M / L (m³/min)
13.0 / 10.0 / 7.0 / 5.5
Sound Pres ure Level - Cooling, SH / H / M / L / SL (dB(A))
- / 42 / 37 / 29 / 22
Sound Pres ure Level - Heating, SH / H / M / L (dB(A))
- / 42 / 36 / 31
Dimensions (W× H × D) - Net (mm)
837 x 308 x 189
Dimensions (W× H × D) - Shipping (mm)
897 x 390 x 258
Weight - Net (kg)
9.4
Weight - Shipping (kg)
13.9
Exterior Color Code
Munsell 7.5BG 10/2 ( RAL 9016 )
Air Flow Rate - Max (m³/min)
34.0
Fan Motor Speed - Cooling, Min ~ Max (rpm)
200 ~ 900
Fan Motor Speed - Heating, Min ~ Max (rpm)
190 ~ 800
Sound Pres ure Level - Cooling, Rated (dB(A))
52
Sound Pres ure Level - Heating, Rated (dB(A))
52
Dimensions (W× H × D) - Net (mm)
770 x 545 x 288
Dimensions (W× H × D) - Shipping (mm)
928 x 588 x 401
Weight - Net (kg)
33
Weight - Shipping (kg)
37
Max. Fuse Size (A)
15
Exterior Color Code
Munsell 9.54Y 8.34/1.31 ( RAL 9001 )
Operation Range - Cooling (°C DB)
18 ~ 54
Operation Range - Heating (°C DB)
-5 ~ 24
Operation Range - Heating (°C WB)
-5 ~ 18
Circuit Breaker (A)
15
Power Supply to Unit
Outdoor
Power and Communication Cable (No. × mm²)
4 x 1
Size - Liquid (mm)
ø 6.35
Size - Gas (mm)
ø 9.52
Connections Method - Indoor / Outdoor
Flared / Flared
O.D, I.D (mm)
21.5,16
Piping Length - Min / Standard / Max (m)
3 / 7.5 / 20
Piping Length - No Charge (m)
12.5
Max. Elevation Difference (m)
15
Piping Connection Heat Insulation
Both liquid and gas pipes
Type
R410A
Pre Charge (kg)
1.000
Additional Charge (g/m)
20
Control
Electronic Expansion Valve
Global Warning Potential
2087.5
t-CO₂ eq
2.088
Defrost Method
Reverse Cycle
Indoor / Outdoor
SJ / UL2
Type
Twin Rotary
Model
GAT134MCA
Motor Type
BLDC
Oil Type/Maker
POE (RN68GP) / Jx Nippon, PVE (FW68D) / IDEMITSU
Oil Charge (cc)
360
Manufacturer / Country of Origin
LG Electronics / China
Type
Cross Flow Fan
Motor Output (W)
30
Type
Propeller Fan
Motor Type
BLDC
Motor Output (W)
43
Motor Insulation
Class E
Motor Enclosure / Ingress Protection
TEAO / IPX4
Evaporator - Material, Tube / Fin
Cu / Al
Evaporator - (ø x Row x Column x FPI x L) x Qty.-#1
( ø7 x 2 x 16 x 20 x 744) x 1
Evaporator - Corrosion Protection
PCM
Evaporator - Fin Type
Slit
Condenser - Material, Tube / Fin
Cu / Al
Condenser - (ø x Row x Column x FPI x L) x Qty.-#1
( ø7 x 2 x 24 x 14 x 814) x 1
Condenser - Corrosion Protection
Gold
Condenser - Fin Type
Wide Louver Plus
