One:Quick Works
One:Quick Works
All specs
PANEL
-
Screen Size
55"
-
Panel Technology
U-IPS
-
Native Resolution
3,840 × 2,160 (UHD)
-
Brightness (nit)
450
-
Contrast Ratio
1,000:1
-
Color gamut
NTSC 72%
-
Viewing Angle (H × V)
178 × 178
-
Color Depth
10 bit (D), 1.07 Billion Colors
-
Response Time
9 ms
-
Portrait / Landscape
No / Yes
CONNECTIVITY
-

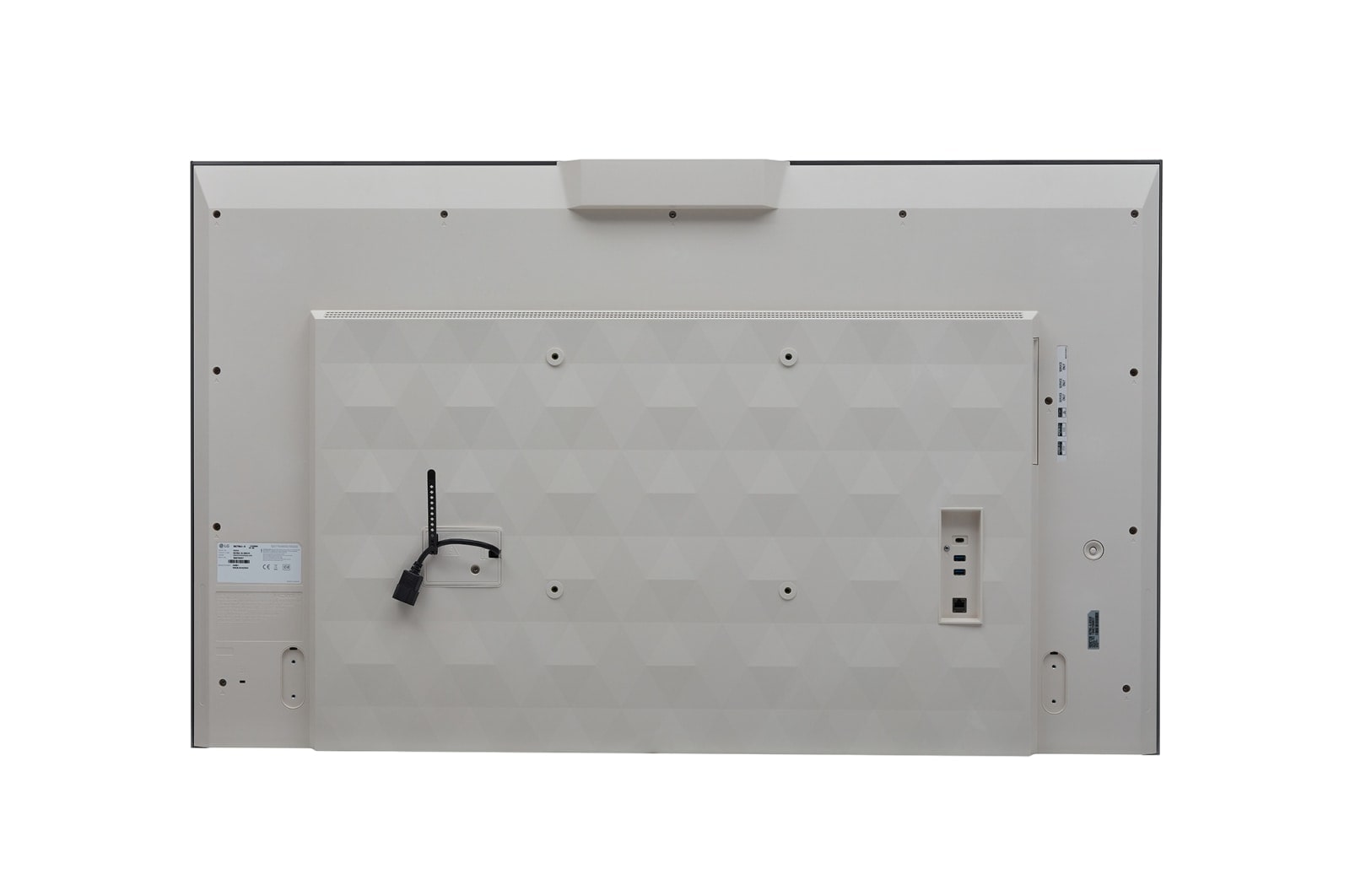

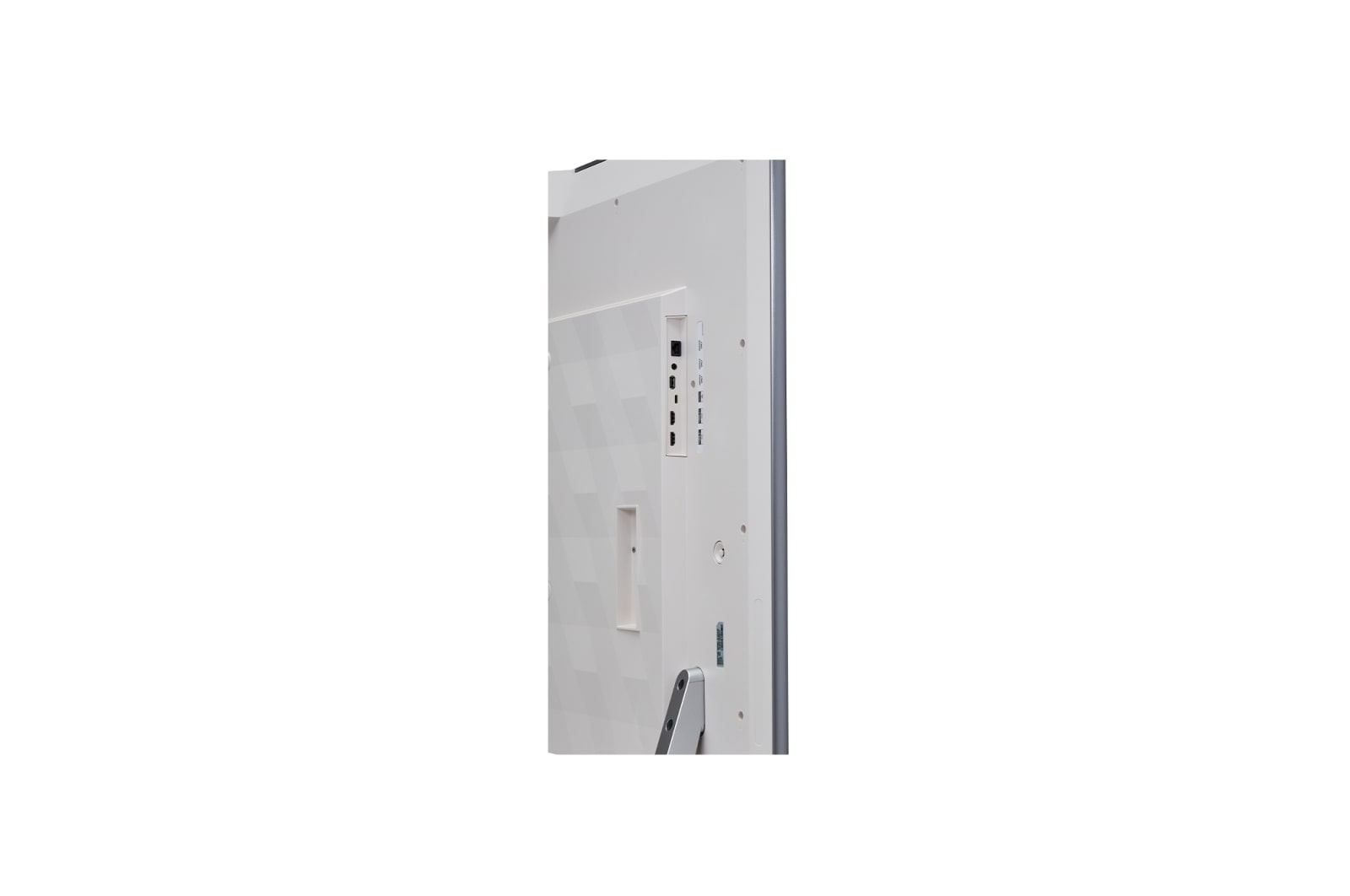

Input
HDMI (2), DP, RJ45(LAN) (1), USB3.1 Type A (2), USB Type C (1)
-
Output
DP Out : USB Type-C (DP ALT MODE)
MECHANICAL SPECIFICATION
-
Bezel Color
Silver
-
Bezel Width
57.2 / 26.2 / 26.2 / 28.9 mm
-
Weight (Head)
26 kg
-
Monitor Dimensions (W × H × D)
1,265 × 769.5 × 61.8 mm
-
Monitor Dimensions with Stand (W × H × D)
1,265 × 815 × 290 mm
-
VESATM Standard Mount Interface
300 x 300
KEY FEATURE - HW
-
CPU
AMD Ryzen Embedded V1605B
-
Graphics
AMD Radeon Vega
-
Internal Memory - eMMC
128 GB
-
Internal Memory - RAM
8 GB
-
Wi-Fi
802.11ac 2 × 2
-
Bluetooth
Bluetooth 5.0
-
Temperature Sensor
Yes
-
Auto Brightness Sensor
Yes
-
Local Key Operation
Yes (Jog Key)
KEY FEATURE - SW
-
OS
Windows 10 IoT Enterprise (Value)
-
Launcher Bar
Yes
-
Split View (Full / Half)
Yes
-
Screen Capture
Yes
-
Meeting(Voice) Record
Yes
-
File Sharing
Yes
-
One:Quick Remote Meeting
Yes
-
Reader Mode (Bluelight)
Yes
-
Built-in Apps
Chrome, Skype (Preloaded), MS Whiteboard (Download link)
ENVIRONMENT CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10 % to 80 %
POWER
-
Power Supply
AC 100-240 V~, 50/60 Hz
-
Power Type
Built-In Power
POWER CONSUMPTION
-
Typ./Max
127W / 245W
-
BTU (British Thermal Unit)
72
SOUND
-
Speaker
Yes (10W x 2)
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class "B" / CE
-
ErP
Yes
ACCESSORY
-
Basic
Remote Controller, Power Cord, Touch Pen, Pen Tip, Manual, Regulation Book, Warranty Card, Installation Guide
-
Optional

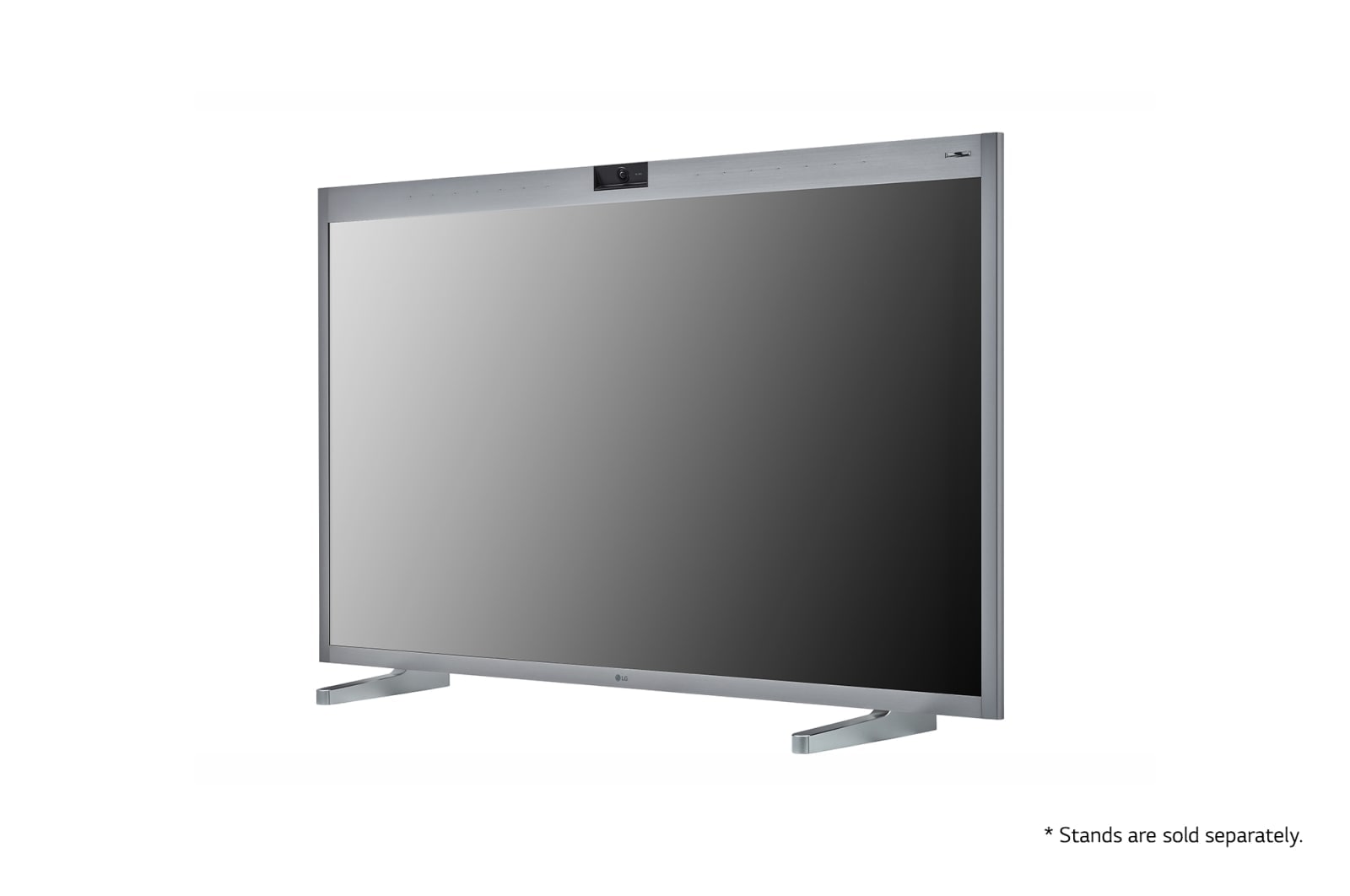

2 Pole Stand (ST-653TW)

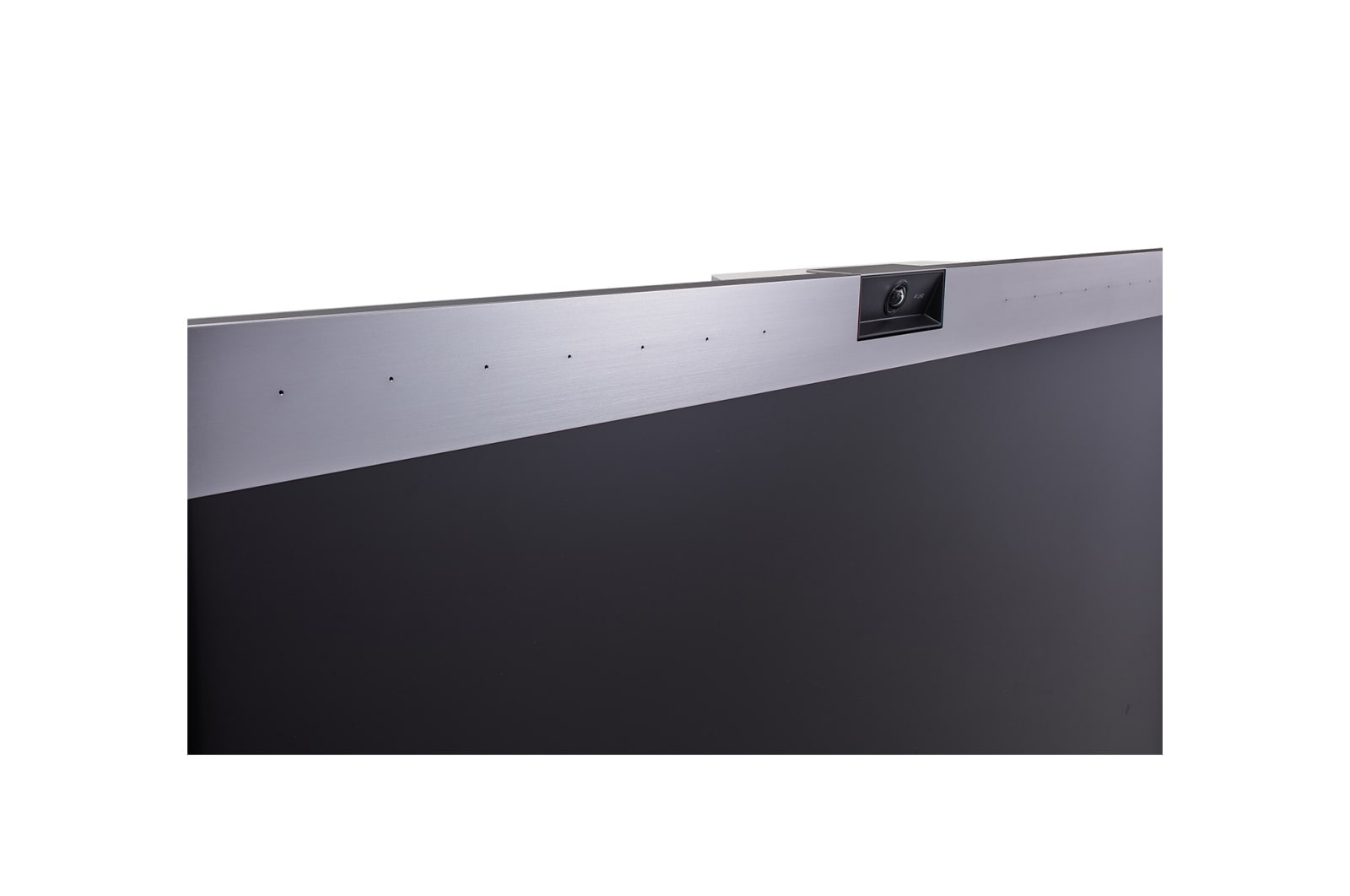

CAMERA
-
Resolution
3,840 × 2,160 (UHD)
-
Field of View (FoV)
120°
-
Zoom (ePTZ)
4 × Zoom
-
Video Framing
Yes
MIC
-
Array
10 EA
-
Beamforming
Yes
-
Pickup Range
6 m
TOUCH
-
Available Object Size for Touch
Ø8 mm
-
Response Time (PC Win10, Based on Whiteboard)
35 mm ↓
-
Accuracy
3.5 mm ↓
-
Interface
USB 1.1
-
Operating System Support
Windows 10 or Higher
-
Multi Touch Point
Max. 10 Points
