UHD Large Screen Signage Display

110UM5K-B

Key Features

Brightness : 500 nit (Typ.)
Resolution : ULTRA HD (3,840 x 2,160)
Bezel : 17 mm (Even bezel)
Built-in Speaker (10 W + 10 W)
Interface : HDMI(3) / DP / DVI-D / USB 2.0 / RS232C / RJ45 / Audio / IR & Light Sensor

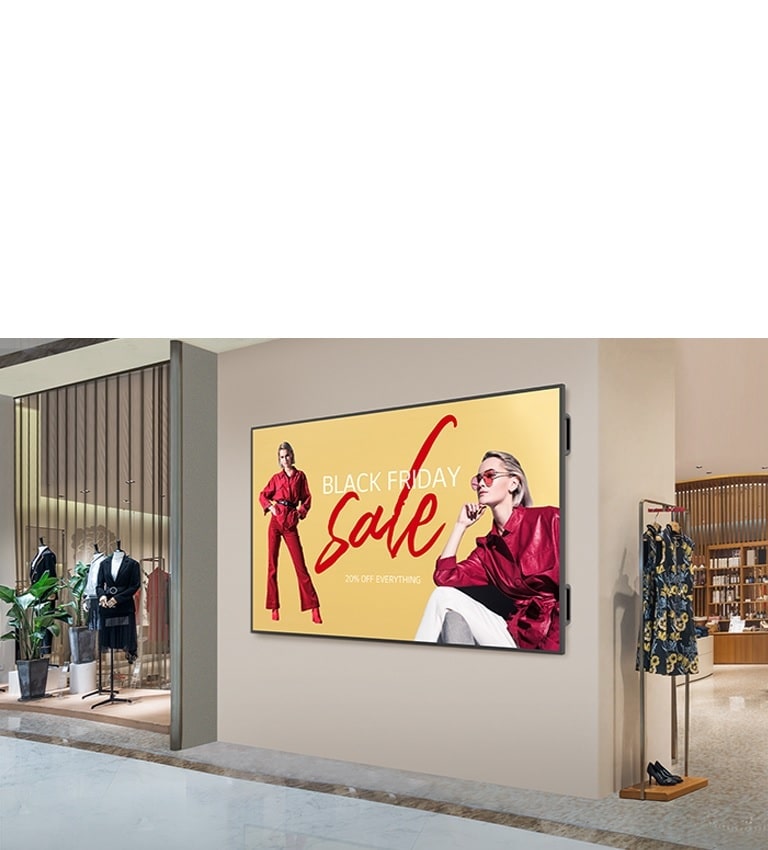

A large display is installed on a shopping mall’s interior wall, and the display’s screen is showing advertisements clearly and vibrantly.

UHD Large Screen Signage Display with LG webOS Platform

* All images in this page are for illustrative purposes only.

The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

Super High Resolution

Delivering immersive viewing experience by 4 times higher definition picture quality than FHD.

UM5K has a brightness of 500 nits, so it is clearly visible, even under strong light.

Adequate Brightness Level

The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public’s attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls.

^{* Actual images available may differ from the example images shown.}

A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with webOS

LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

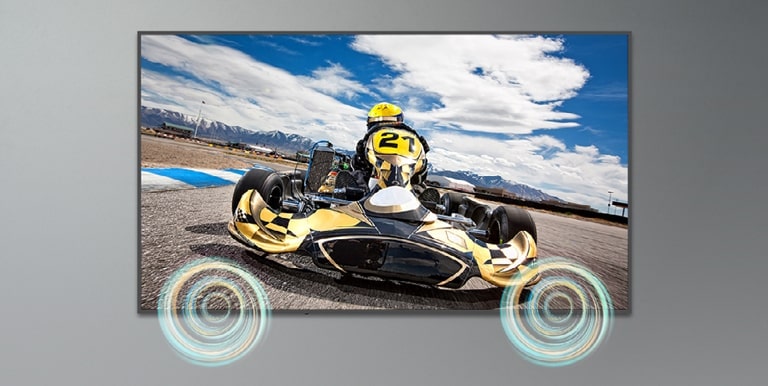

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

^{* Internal Built-in Speaker Support (L/R max 10 W)}

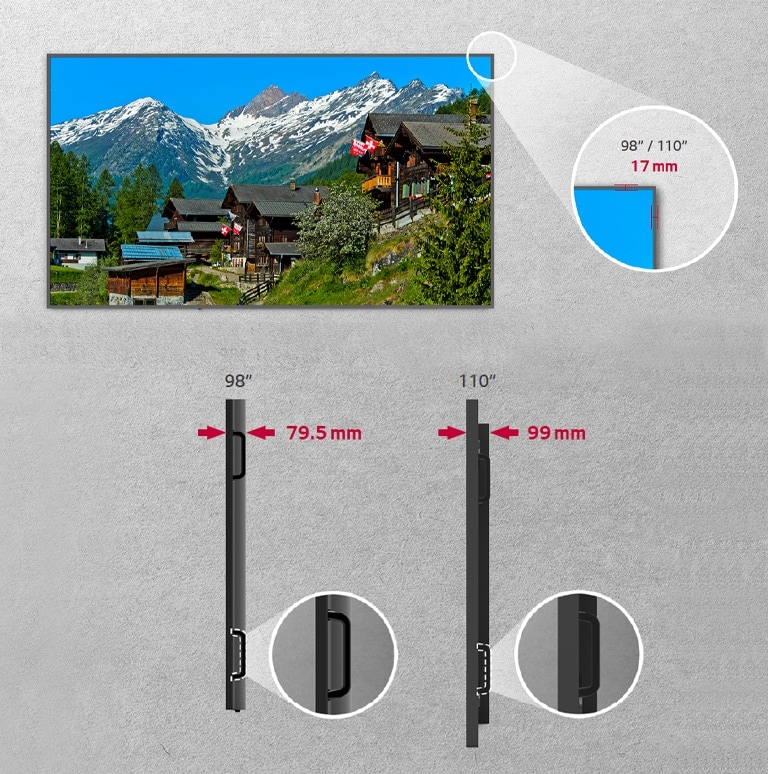

Slim Design

Being slim, a closer installation to the wall is advised. Additionally, this increases the screen’s immersive experience and provides a sophisticated design, improving the installed-space’s décor.

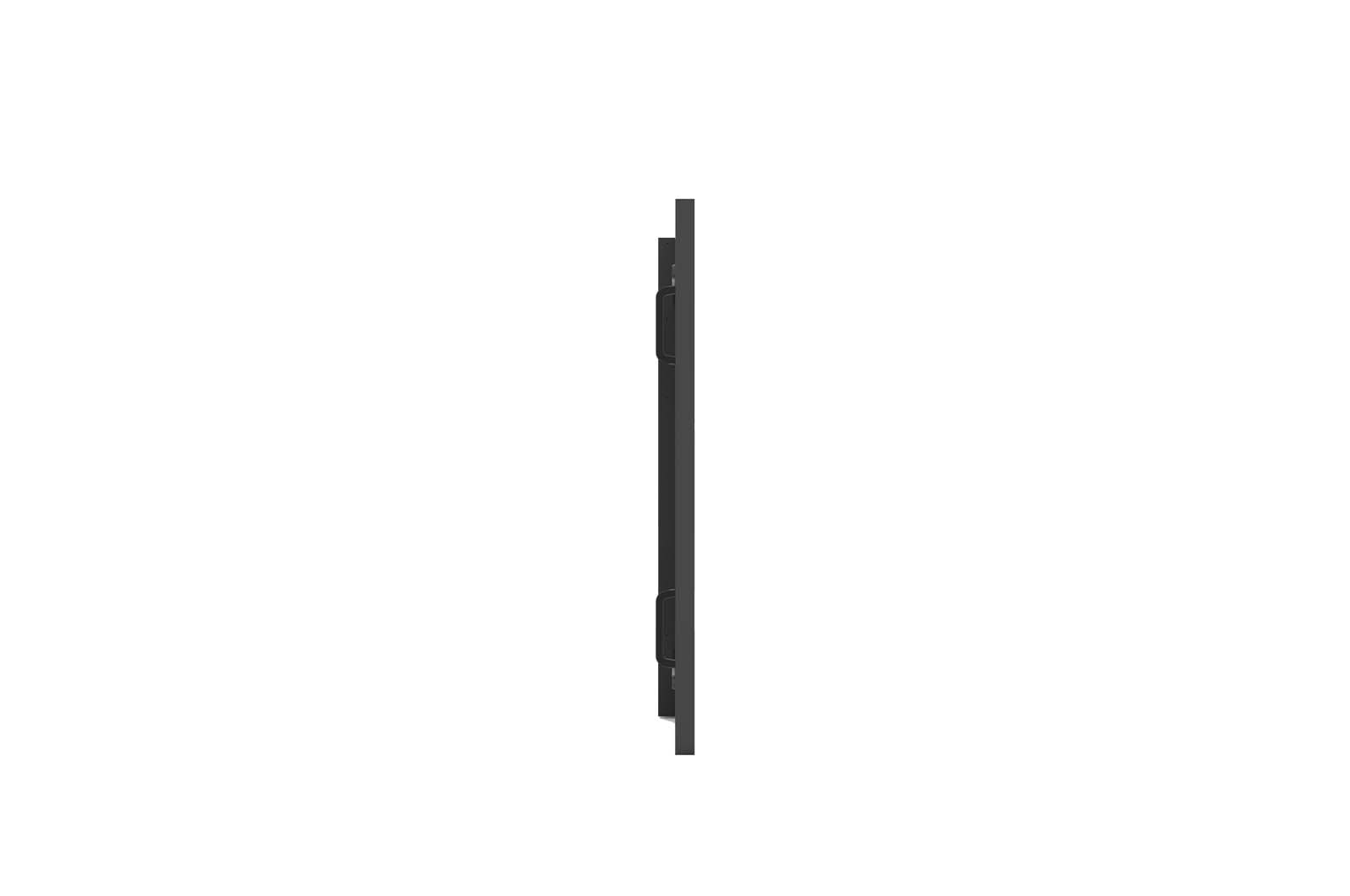

The bezel size of UM5K is 17mm. And the depth of the UM5K 98" is 79.5mm, and 110" is 99mm.

In a clothing store, a user is using the app to produce promotional content to display on the UM5K installed on the store’s wall.

Mobile Content Management

You can create a store profile and get template recommendations using the Promota* app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices.

^{* LG Promota is can be downloaded from the App Store and Google Play store. (Not available for Europe/CIS Region)}

^{* In Korea, the name is not Promota, but Mustard.}

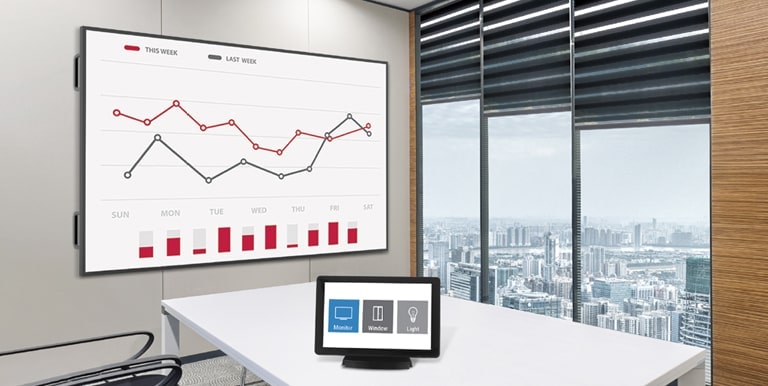

The AV control system helps users control the UM5K

Compatible with AV Control System

The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

^{* Network based control}

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.

All specs

ACCESSORY

Basic
Remote Controller(include battery 2ea), Power Cord, QSG, IR/Light sensor receiver, Regulation Book, Phone to RS232C Gender

CERTIFICATION

EMC
FCC Class "A" / CE / KC
ERP / Energy Star
Yes(NewErP) / No
Safety
CB / NRTL

CONNECTIVITY

Audio In
Yes(1)
Audio Out
Yes(1)
Daisy Chain
Yes(Input HDMI, DP, DVI / Output HDMI)
DP In
Yes(1), HDCP2.2/1.3
DVI-D In
Yes(1), HDCP1.4
HDMI In
Yes(3), HDMI1/HDMI2 : HDCP 2.2/1.4 HDMI3 : HDCP 1.4
HDMI Out
Yes(1)
IR In
Yes(1)
RJ45(LAN) In
Yes(1)
RS232C In
Yes(1), 4pin Phone-jack
RS232C Out
Yes(1), 4pin Phone-jack
USB In
USB2.0 Type A(1)

ENVIRONMENT CONDITIONS

Operation Humidity
10 % to 80 %
Operation Temperature
0 °C to 40 °C

LANGUAGE

OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkiye, Arabic, Polski

MECHANICAL SPECIFICATION

Bezel Color
Black
Bezel Width
Even bezel : 17mm
Carton Dimensions (W x H x D)
2680 x 1730 x 320mm
Handle
Yes
Monitor Dimensions (W x H x D)
2474 x 1408 x 99mm
Packed Weight
110Kg
VESA Standard Mount Interface
1500 x 600
Weight (Head)
80Kg

PANEL

Aspect Ratio
16:9
Back Light Type
Direct
Color Depth (Number of Colors)
8bits + FRC, 1.07Billion colors
Color Gamut
DCI-P3 88%↑
Contrast Ratio
1,200:1
Dynamic CR
1,000,000:1
Life time
50,000(Min.)
Native Resolution
3840 x 2160 (UHD)
Operation Hours (Hours/Day)
16/7
Panel Technology
ADS
Refresh Rate
120Hz
Response Time
8ms (G to G)
Screen Size (Inch)
110"
Surface Treatment (Haze)
1%
Viewing Angle (H x V)
178 X 178

POWER

Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-In Power

SOFTWARE COMPATIBILITY

Connected Care
Yes
Mobile CMS
Yes
Promota
Yes (Not available for EU/CIS)
SuperSign Cloud
Yes
SuperSign CMS
Yes
SuperSign Control+
Yes
SuperSign WB
Yes

SOUND

Speaker (Built-in)
Yes (10W X 2)
