New High Haze UHD Standard Signage

Specs

New High Haze UHD Standard Signage

65UH5J-H

New High Haze UHD Standard Signage

(7)

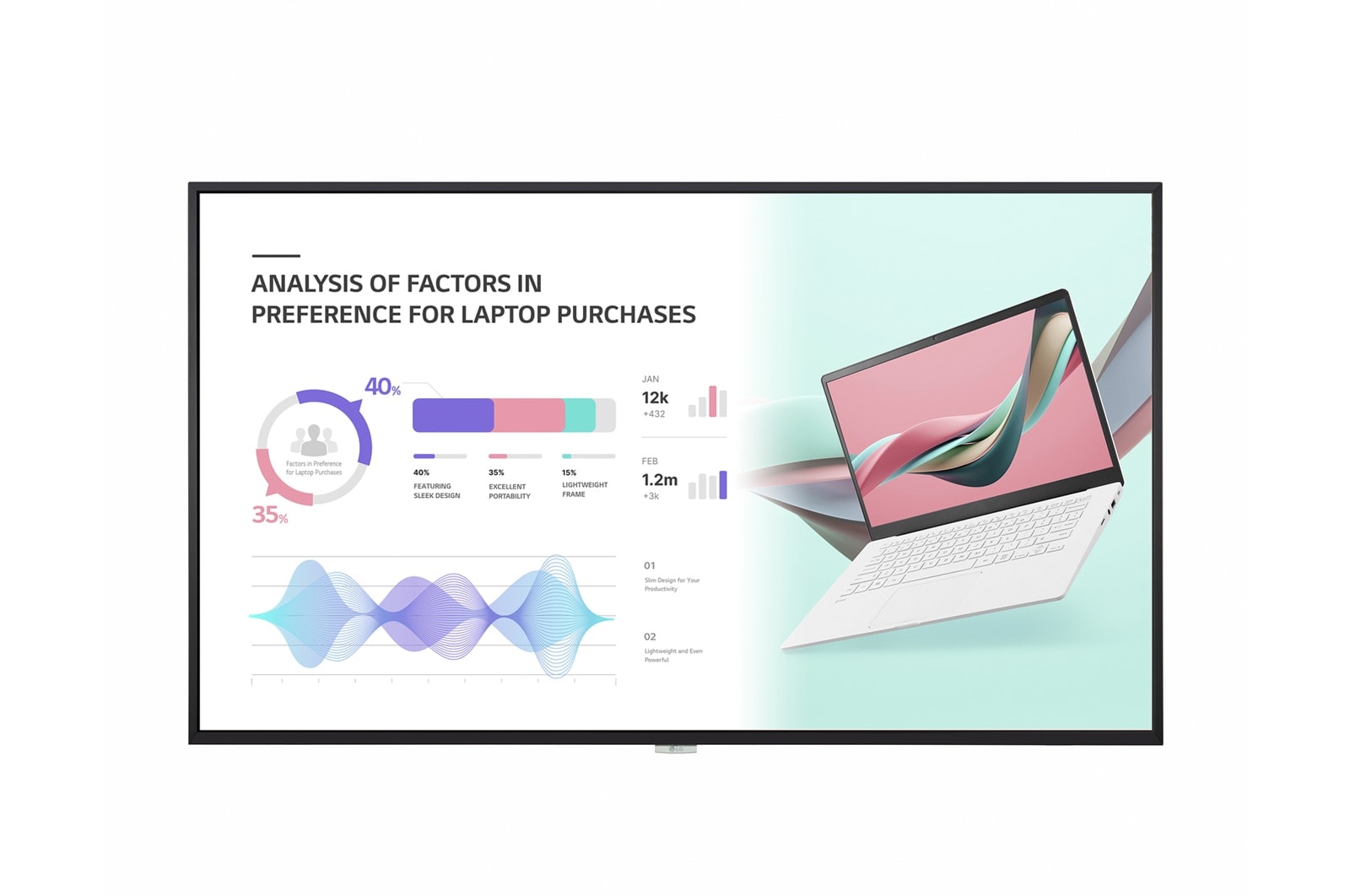

Front view with infill image
Print

All specs

PANEL

  • Screen Size

    65"

  • Panel Technology

    IPS

  • Back Light Type

    Edge

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60 Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,100:1

  • Dynamic CR

    1,000,000 : 1

  • Color gamut

    BT709 95%

  • Viewing Angle(H x V)

    178 x 178

  • Color Depth

    10bit(D), 1.07Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment(Haze)

    28%

  • Life time

    50,000Hrs (Min.)

  • Operation Hours (Hours/Day)

    24/7

  • Portrait / Landscape

    Yes / Yes

CONNECTIVITY

  • Input

    HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)

  • Output

    HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    T/R/L: 9.9mm, B: 14.4mm

  • Weight(Head)

    28.2Kg

  • Weight(Head+Stand)

    28.8Kg

  • Packed Weight

    35.0Kg

  • Monitor Dimension(W x H x D)

    1453.3 x 844.0 x 39.9mm
    (with LG Logo)

  • Monitor Dimensions with Stand(W x H x D)

    1453.3 x 893.1 x 290.0mm

  • Carton Dimensions(W x H x D) (Box outer size)

    1600.0 x 1095.0 x 175.0mm

  • VESA™ Standard Mount Interface

    300 x 300

KEY FEATURE

  • Key features

    Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN, Network Ready), Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    130W

  • Max.

    190W

  • BTU (British Thermal Unit)

    444 BTU/Hr(Typ.), 649 BTU/Hr(Max.)

  • Smart Enegy Saving(~70%)

    91W

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker

    Yes

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes (NewErP) / Yes

OPS COMPATIBILITY

  • OPS Type Compatible

    Yes

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes / Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • Promota

    Yes (Not available for EU/CIS)

  • Mobile CMS

    Yes

  • Signage 365 Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender

  • Optional

    Stand(ST-653T), Wall bracket(LSW350B), OPS Kit(KT-OPSF)

SPECIAL FEATURE

  • Tilt(Facedown)

    Yes (Max 30º degree, 30ºC temperature, humidity 50%)

  • IP Rating

    IP5x
