New High Haze UHD Standard Signage

Specs

New High Haze UHD Standard Signage

98UH5J-H

New High Haze UHD Standard Signage

(7)

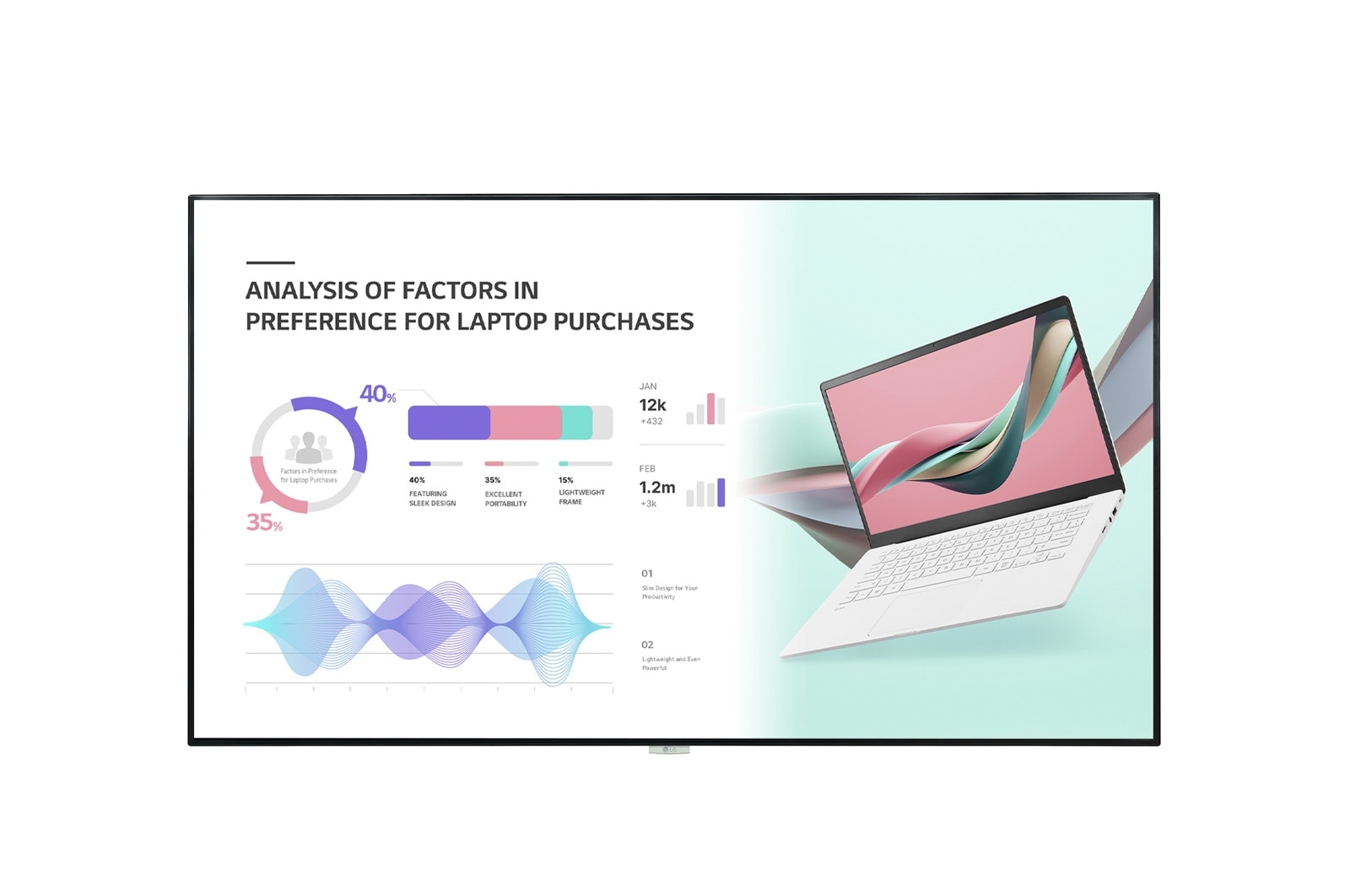

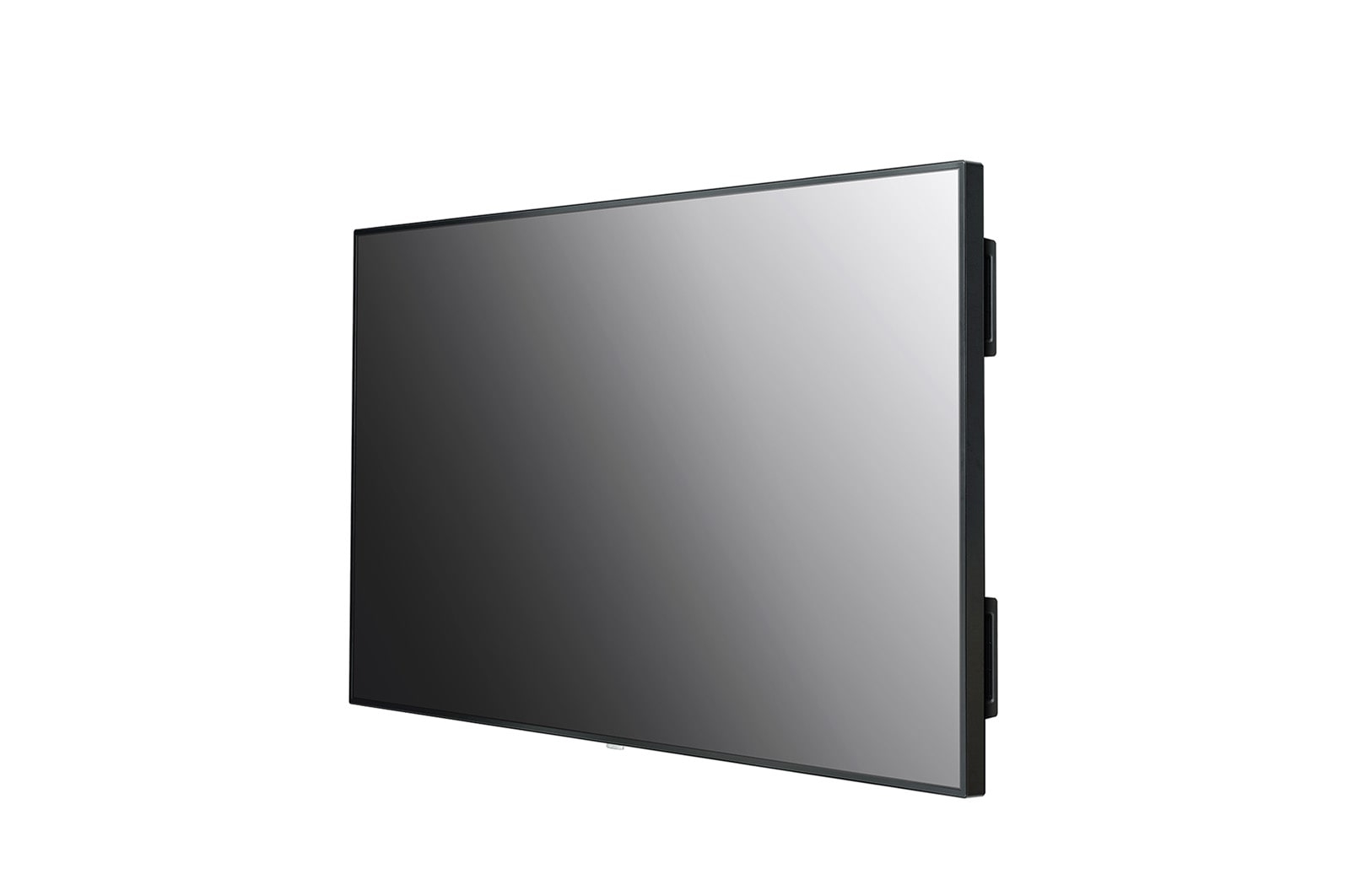

Front view with infill image
Print

All specs

PANEL

  • Screen Size

    98"

  • Panel Technology

    IPS

  • Back Light Type

    Direct

  • Aspect Ratio

    16:9

  • Native Resolution

    3840 x 2160 (UHD)

  • Refresh Rate

    60 Hz

  • Brightness

    500nit (Typ.)

  • Contrast Ratio

    1,200:1

  • Dynamic CR

    1,000,000 : 1

  • Color gamut

    NTSC 72%

  • Viewing Angle(H x V)

    178 x 178

  • Color Depth

    10bit, 1.07Billon colors

  • Response Time

    8ms (G to G)

  • Surface Treatment(Haze)

    28%

  • Life time

    50,000 Hrs (Typ.)

  • Operation Hours (Hours/Day)

    24/7

  • Portrait / Landscape

    Yes / Yes

CONNECTIVITY

  • Input

    HDMI (3, HDMI1/HDMI2 : HDCP 2.2/1.4, HDMI3 : HDCP 1.4), DP (1, HDCP2.2/1.3), DVI-D (HDCP1.4), Audio In, RS232C IN (1, 4pin Phone-jack), RJ45(LAN), IR IN, USB2.0 Type A(1)

  • Output

    HDMI Out, Audio Out, RS232C OUT (1, 4pin Phone-jack)

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    Even bezel : 14.9mm

  • Weight(Head)

    66Kg

  • Packed Weight

    99Kg

  • Monitor Dimension(W x H x D)

    2191.8 x 1246.8 x 86.1mm
    (without Handle and LG Logo)

  • Carton Dimensions(W x H x D) (Box outer size)

    2342 x 1386 x 420mm

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    800 x 400

KEY FEATURE

  • Key features

    Internal Memory 16 GB, Built-in Wi-Fi, Temperature Sensor, Auto Brightness sensor, Acceleration(Gyro) Sensor, Local Key Operation, webOS6.0, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Multi-screen (PIP, PBP (4)), Screen Share, Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected), Power (Smart Energy Saving, PM mode, Wake on LAN,Beacon, HDMI-CEC, SI Server Setting, webRTC, Pro:Idiom

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0 °C to 40 °C

  • Operation Humidity

    10 % to 80 %

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    420W (TBD)

  • Max.

    570W (TBD)

  • BTU (British Thermal Unit)

    1433 BTU/Hr(Typ.), 1945 BTU/Hr(Max) (TBD)

  • Smart Enegy Saving(~70%)

    294W (TBD)

  • DPM

    0.5W

  • Power off

    0.5W

SOUND

  • Speaker

    Yes

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "A" / CE / KC

  • ErP / Energy Star

    Yes (NewErP) / No (TBD)

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes / Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • Promota

    Yes (Not available for EU/CIS)

  • Mobile CMS

    Yes

  • Signage 365 Care

    Yes

LANGUAGE

  • OSD

    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, Arabic

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
