55" 500 nits FHD Slim Bezel Video Wall

Features

Gallery

Specs

55" 500 nits FHD Slim Bezel Video Wall

55" 500 nits FHD Slim Bezel Video Wall

55VM5J-H
()

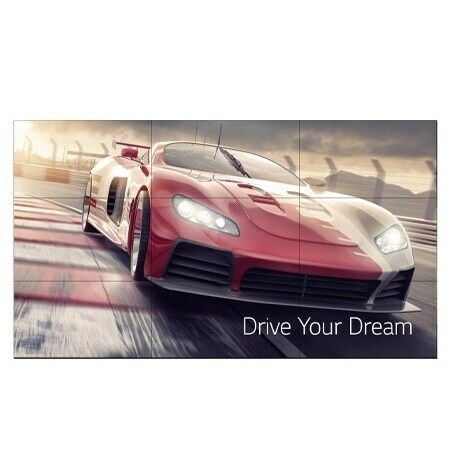

  • Front view of 55" 500 nits FHD Slim Bezel Video Wall 55VM5J-H
  • LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
  • LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
  • LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
  • LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
  • LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
  • LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
  • LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
Front view of 55" 500 nits FHD Slim Bezel Video Wall 55VM5J-H
LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H
LG 55" 500 nits FHD Slim Bezel Video Wall, 55VM5J-H

Key Features

  • Brightness(Typ.) : 500 nit
  • Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
  • Depth : 86.9 mm
  • Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
More
A woman looks up the screen installed upstairs, and the color is vividly displayed without any distortion.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40˚) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion.
The included SoC and webOS smart signage platform demonstrate its ability to execute several tasks at once.

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
One side of the video wall is live streaming a soccer game, while the other side of the screen is utilizing CSS effects to add more content.

Flexible Content Creation

Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.
Several tasks could be accomplished simultaneously with the intuitive GUI.

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
The menu screen consists of both Landscape and Portrait options.

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD (On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the VM5J-H, however, consists of a long range menu with bigger font sizes and a 9:16 ratio, creating a comfortable and efficient business environment.

Artistic Immersion, Overwhelming Captivation

A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.

Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

* All images in this web page are for illustrative purposes only.
It must be between 4 and 40 characters

Headline can be up to 200 characters.

Body text can be up to 1000 characters.
Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.

A video wall is installed in the lobby, and it provides immersive images with ultra slim bezel.

Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

* The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

Image Gap Reduction

The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

VM5J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.

Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

* The "LG Conventional" refers to displays which do not include an image improvement algorithm.
** The image shown above are for illustration purposes only.
It must be between 4 and 40 characters

Headline can be up to 200 characters.

Body text can be up to 1000 characters.
Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

* SDK can be downloaded with the link below. (https://webossignage.developer.lge.com)
It must be between 4 and 40 characters

Headline can be up to 200 characters.

Body text can be up to 1000 characters.
Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

* Supported protocols : RTSP, RTP, HLS, UDP Multicast

Conformal Coating

Video wall in various places can't avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.

The VM5J-H has Conformal Coating on the major circuit board (power board) to protect video wall even in a salty or humid environment.

Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

* Actual images (Signage display) available may differ from the example images shown.

EMC Class B Certified

The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

The VM5J-H, certified with EMC class B, is installed on the control room wall.

Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

The LG employee is remotely monitoring the VH7J-H installed in a different place by using cloud-based LG monitoring solution.

Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

* LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.

Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation.

The VH7J-H, with IP5x Dust-Proof Certification, protects the product from dust.

Folding headline text can be up to 200 characters.
Body text can be up to 1000 characters.

Alt text

Print

All specs

PANEL

  • Screen Size

    55"

  • Panel Technology

    IPS

  • Aspect Ratio

    16 : 9

  • Native Resolution

    1,920 x 1,080 (FHD)

  • Refresh Rate

    60 Hz

  • Brightness

    500

  • Contrast Ratio

    1,000:1

  • Dynamic CR

    500,000:1

  • Color gamut

    NTSC 72%

  • Viewing Angle (H x V)

    178 x 178

  • Color Depth

    10bit, 1.07Billion colors

  • Response Time

    8ms (G to G)

  • Surface Treatment (Haze)

    28%

  • Life Time (Typ.)

    60,000 Hrs

  • Life Time (Min.)

    50,000Hrs

  • Operation Hours (Hours / Days)

    24/7

  • Portrait / Landscape

    Yes / Yes

MECHANICAL SPECIFICATION

  • Bezel Color

    Black

  • Bezel Width

    B2B : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm(T/L), 0.44mm(B/R)
    A2A : 2.49mm (Active area to Active area), 1.75mm(T/L), 0.74mm(B/R)

  • Weight (Head)

    18.8 Kg

  • Packed Weight

    31.0 Kg (when individual pallet applied)

  • Monitor Dimensions (W × H × D)

    1,212.2 × 683.0 × 86.9 mm

  • Carton Dimensions (W × H × D)

    1,353 x 855 x 263 mm (Box outer size)

  • Handle

    Yes

  • VESA™ Standard Mount Interface

    600 x 400

SPECIAL FEATURE

  • IP Rating

    IP5X tested

KEY FEATURE

  • HW

    Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation

  • SW

    webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion

CONNECTIVITY

  • Input

    HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A

  • Output

    DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)

ENVIRONMENT CONDITIONS

  • Operation Temperature

    0°C to 40°C

  • Operation Humidity

    10% to 80%

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-In Power

POWER CONSUMPTION

  • Typ.

    200 W

  • Max.

    250 W

  • Power off

    0.5 W

  • Smart Energy Saving

    105W

  • DPM

    0.5W

  • BTU (British Thermal Unit)

    682 BTU/Hr(Typ.), 853 BTU/Hr(Max)

CERTIFICATION

  • Safety

    CB / NRTL

  • EMC

    FCC Class "B" / CE / KC

  • ErP

    Yes (EU Only)

MEDIA PLAYER COMPATIBILITY

  • OPS Type Compatible

    Yes (Piggyback)

SOFTWARE COMPATIBILITY

  • SuperSign CMS

    Yes

  • SuperSign Control / Control+

    Yes

  • SuperSign WB

    Yes

  • SuperSign Media Editor

    Yes

  • LG ConnectedCare

    Yes

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual

  • Optional

    OPS Kit(KT-OPSF)
