130" All-in-one LED Screen

Specs

130" All-in-one LED Screen

LAA015F

130" All-in-one LED Screen

(1)

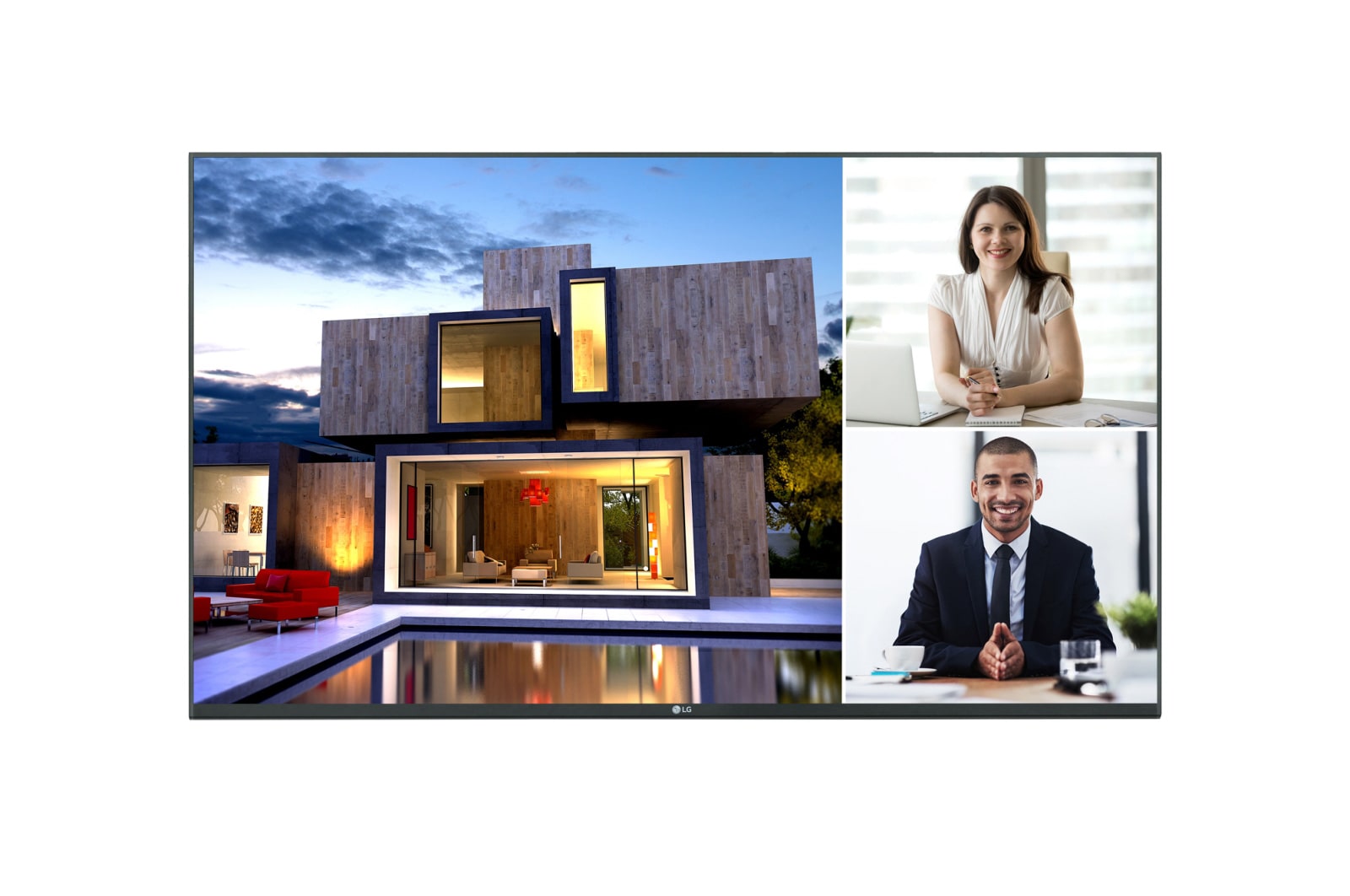

Front view of 130" All-in-one LED Screen LAA015F
Print

All specs

BASIC ACCESSORY

  • Basic Accessory

    Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual

CERTIFICATION

  • EMC

    FCC Class A / CE / KC

  • Environment

    RoHS

  • Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

CONNECTIVITY(EMBEDDED CONTROLLER)

  • Control

    RJ45 In, RS232C In/out

  • Special Features

    Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected(Network based control)

  • Video Inputs

    HDMI In(3), DP In, USB

ELECTRICAL PARAMETER

  • Frame Rate (Hz)

    50 / 60

  • Power Consumption (W/m², Max.)

    760

  • Power Consumption (W/Screen, Avg.)

    980

  • Power Consumption (W/Screen, Max.)

    2900

  • Power Supply (V)

    100 to 240

  • Refresh Rate (Hz)

    3840

  • Sound Output (Max.)

    162W

OPERATION CONDITIONS

  • Lifetime (Half Brightness, hrs)

    100,000 (It is subject to LED package spec.)

  • Operating Humidity

    10-80% RH

  • Operating Temperature (°C)

    0°C to 40°C

OPTICAL PARAMETER

  • Brightness Uniformity

    0.95

  • Color Temperature

    6,500

  • Color Uniformity

    ±0.015Cx,Cy

  • Contrast Ratio

    5,000

  • Min. Brightness (After Calibration)

    500 cd/m²

  • Processing Depth (bit)

    16(HDR10, HDR10 Pro)

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    140

PHYSICAL PARAMETERS

  • Flatness of Unit Case (mm)

    ±0.2

  • No. of Modules per Unit Case (W x H)

    4x3

  • Physical Pixel Density (pixels/m²)

    444,444

  • Pitch Name

    P1.5

  • Pixel Configuration

    3 in 1 SMD

  • Pixel Pitch (mm)

    1.5

  • Screen Dimensions(WxH, mm)

    2,880 x 1,620 x 128.5 (w/o Screen Frame)

  • Screen Resolution (WxH)

    1,920x1,080

  • Screen Weight (kg)

    175 (w/o Screen Frame)

  • Service Access

    Front and Rear

  • Unit Case Dimensions (W x H x D, mm)

    960x540x128.5

  • Unit Case material

    Front : Die Casting Aluminum
    Rear : PC+ABS

  • Unit Case Resolution (W x H)

    640x360

  • Unit Case Surface Area (m²)

    0.518

  • Weight per Square Meter (kg/m²)

    37.6

  • Weight per Unit Case (kg/unit)

    Master: 20.85
    Slave: 19.24
