Ultra Light Series

Specs

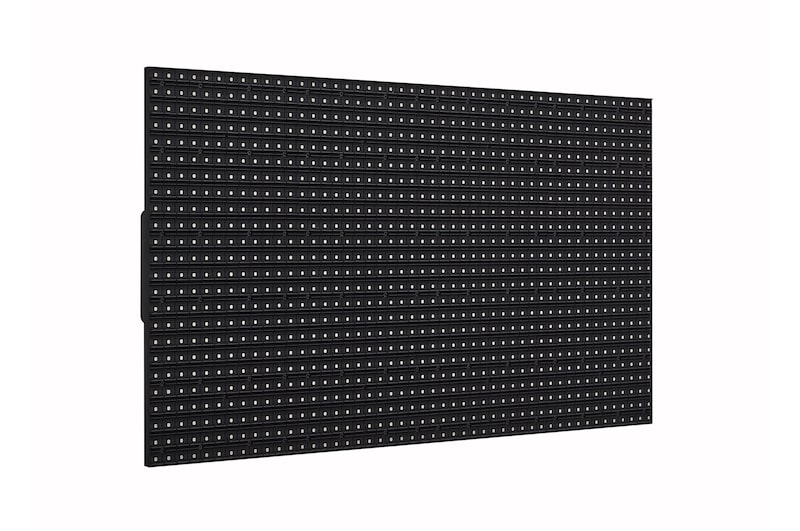

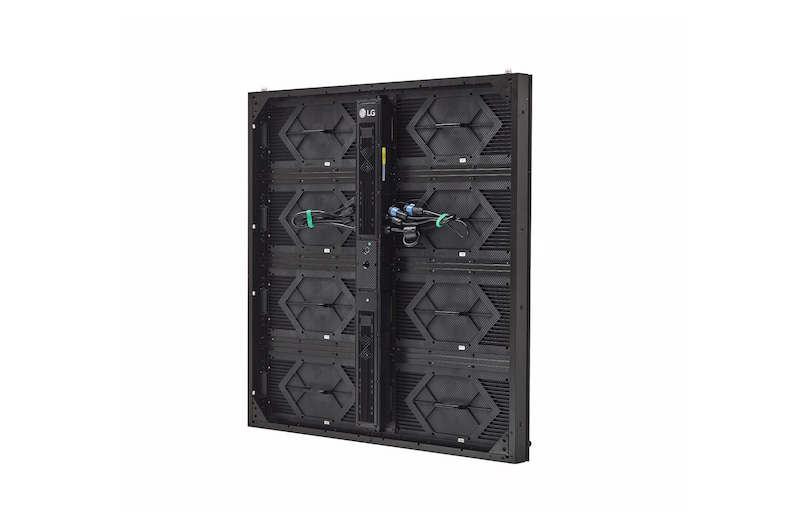

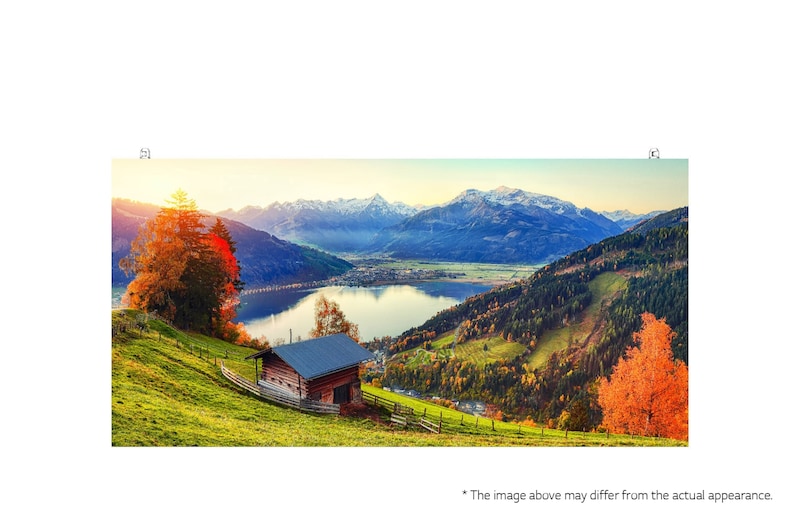

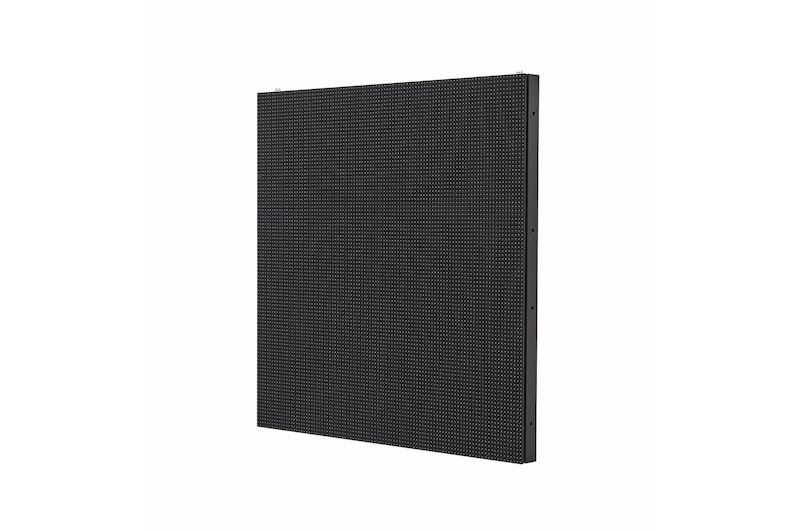

Ultra Light Series

GSCD069-GN3

Ultra Light Series

Print

All specs

PHYSICAL PARAMETERS

  • Pixel Configuration

    3 in 1 SMD 1921

  • Pixel Pitch (mm)

    6.94

  • Module Resolution (WxH)

    72 x 36

  • Module Dimensions(WxH,mm)

    500 x 250mm

  • Weight per Module (kg)

    1.3kg

  • No. of Modules per Cabinet (WxH)

    2 × 4 / 2 × 2 (Half-sized)

  • Cabinet Resolution (WxH)

    144 × 144 / 144 × 72 (Half-sized)

  • Cabinet Dimensions (W x H x D, mm)

    1,000 × 1,000 × 84.4 mm / 1,000 × 500 × 84.4 mm (Half-sized)

  • Cabinet Surface Area (㎡)

    1.000 / 0.500 (Half-sized)

  • Weight per Cabinet (kg/unit)

    18.5 / 10.4 (Half-sized)

  • Weight per Square Meter (kg/m²)

    18.5 / 20.8 (Half-sized)

  • Physical Pixel Density (pixels/m²)

    20,736

  • Flatness of Cabinet (mm)

    ±0.5

  • Cabinet Material

    Aluminum Profile

  • Service Access

    Front or Rear (One Option Only)

OPTICAL SPECIFICATIONS

  • Max. Brightness (After Calibration)

    5,000

  • Color Temperature (K)

    3,200-9,300

  • Visual Viewing Angle (Horizontal)

    160

  • Visual Viewing Angle (Vertical)

    134

  • Brightness Uniformity

    97%

  • Color Uniformity

    ±0.003CxCy

  • Contrast Ratio

    6,000

  • Processing Depth (bit)

    16

ELECTRICAL SPECIFICATIONS

  • Power Consumption (W/Cabinet, Max.)

    680 / 340 (Half-sized)

  • Power Consumption (W/Cabinet, Avg.)

    226 / 114 (Half-sized)

  • Power Consumption (W/m², Max.)

    680

  • Power Supply (V)

    100 to 240

  • Frame Rate (Hz)

    50 / 60

  • Refresh Rate (Hz)

    3,840

OPERATION SPECIFICATIONS

  • Lifetime (Hours to Half Brightness)

    100,000

  • Operating Temperature(℃)

    -30°C to +50°C

  • Operating Humidity

    10-99%RH

  • IP Rating (Front / Rear)

    IP65 / IP65

CONTROLLER(CVCA)

  • Connectivity - Input

    HDMI (HDCP 2.2), DP (HDCP 2.2, HDCP 1.4), OPS, USB 2.0

  • Connectivity - Output

    Gigabit Ethernet × 16, RS-232C In/Out (4 Pin Phone-jack)

  • Connectivity - Control

    RJ45 In (LAN)

  • Video - Resolution

    3,840 × 2,160 @ 60Hz

  • Video - Format

    RGB / YCbCr4:4:4 / YCbCr4:2:2

  • Feature

    8 GB (System 4 GB + Available 3.6 GB), Temperature Sensor, Local Key Operation, Signal Redundancy, HDR10

  • Software - Platform

    webOS 4.0 w / Open API Support

  • Software - Setup and Maintenance

    LG LED Assistant

  • Software - Content Management

    LG SuperSign CMS

  • Software - Cloud Monitoring

    LG ConnectedCare

  • Physical Specs - Dimensions (W × H × D, mm)

    443 × 63 × 307.5 → EIA Standard Rack (2U)

  • Physical Specs - Weight (kg)

    4.9

  • Power Specs - Power Supply (V)

    AC 100-240 V, 50/60 Hz

  • Power Specs - Power Type

    Built-in Power

  • Power Specs - Power Consumption (W)

    50 (Max.)

  • Environmental Conditions - Operation Temperature

    0°C to 40°C

  • Environmental Conditions - Operation Humidity

    10% to 80%

  • Certifications - Safety

    IEC 60950-1 / EN 60950-1 / UL 60950-1

  • Certifications - EMC

    FCC Class "A" / CE / KC
