Fine-pitch Essential Series
Monitors the graphs on the LED screens installed on the wall of the control room.
*All images in this web page are for illustrative purposes only.
*Visit LSBB user manual for more details of the status indicators and button.
*In the case of Power Redundancy, additional options are available as add-ons while ordering and will incur additional costs.
*The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
*The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power).

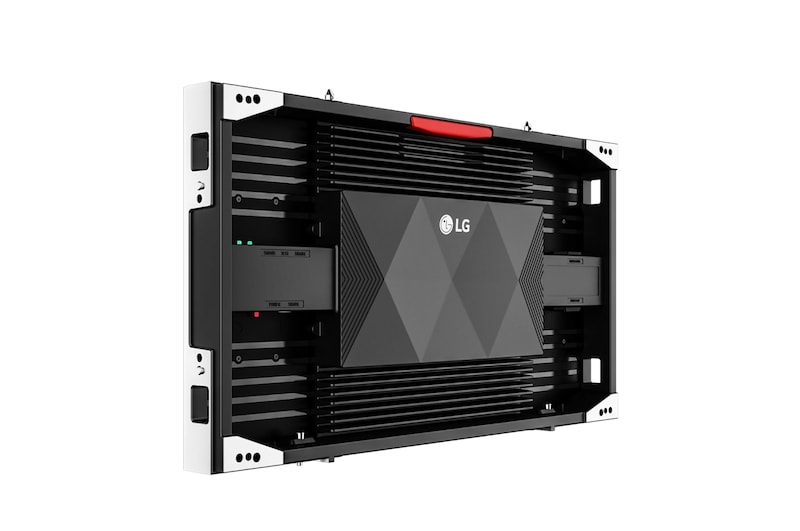

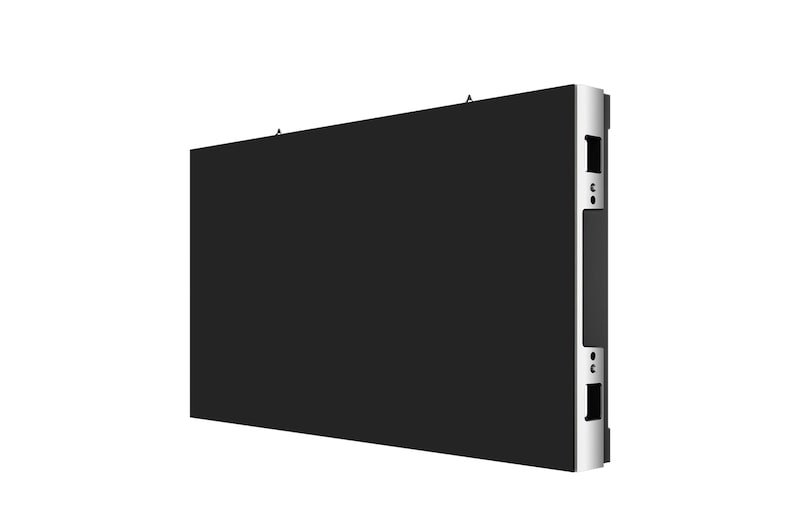

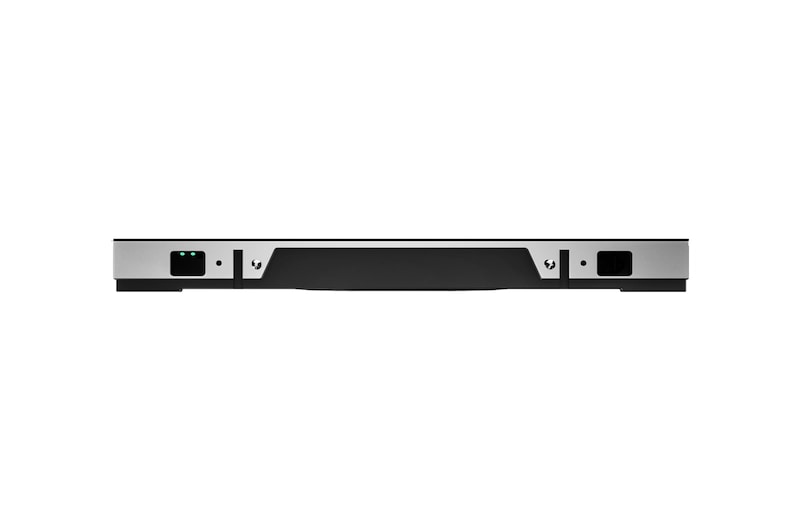

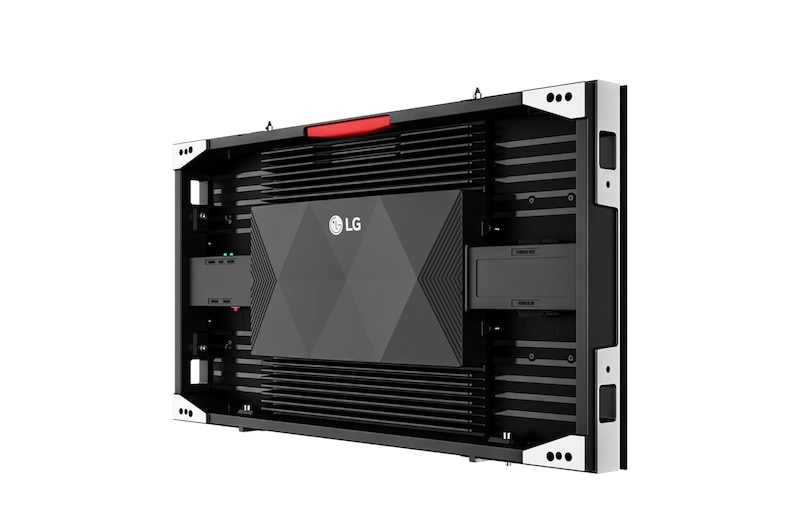

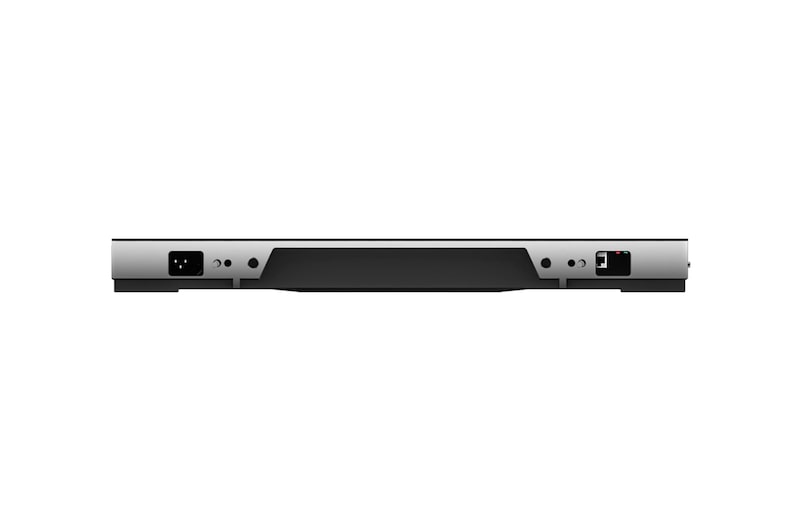

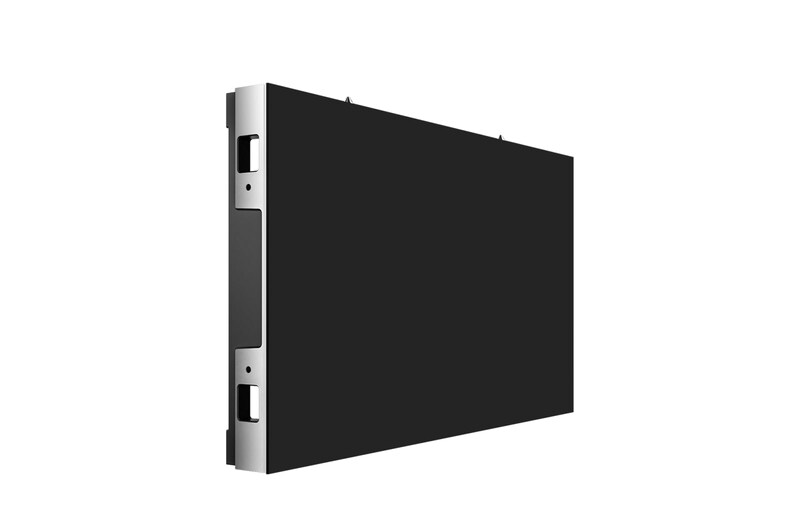

Gallery
All specs
PHYSICAL PARAMETERS
-
Pixel Configuration
3 in 1 SMD
-
Pixel Pitch (mm)
1.250
-
Module Resolution (W × H)
120 × 270
-
Module Dimensions (W × H, mm)
150 × 337.5
-
Weight per Module (kg)
0.50
-
No. of Modules per Cabinet (W × H)
4 × 1
-
Cabinet Resolution (W × H)
480 × 270
-
Cabinet Dimensions (W × H × D, mm)
600 × 337.5 × 56
-
Cabinet Surface Area (m²)
0.203
-
Weight per Cabinet (kg/Cabinet)
6.0
-
Weight per Square Meter (kg/m²)
30.0
-
Physical Pixel Density (pixels/m²)
640,000
-
Flatness of Cabinet (mm)
0.5
-
Cabinet Material
Die Casting Aluminum
-
Service Access
Front
OPTICAL SPECIFICATIONS
-
Max. Brightness (After Calibration)
600
-
Color Temperature (K)
3,200-9,300
-
Visual Viewing Angle (H × V)
160 × 140
-
Brightness Uniformity
97%
-
Color Uniformity
±0.003 Cx,Cy
-
Contrast Ratio (Typ.)
5,000 : 1
-
Processing Depth (bit)
16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
-
Power Consumption (W/Cabinet, Max.)
120
-
Power Consumption (W/Cabinet, Avg.)
40
-
Power Consumption (W/m², Max.)
600
-
Power Consumption (BTU/Cabinet, Max.)
409
-
Power Consumption (BTU/Cabinet, Avg.)
136
-
Power Consumption (BTU/m², Max.)
2,047
-
Power Supply (V)
AC 100-240 V (50-60 Hz)
-
Frame Rate (Hz)
50 / 60
-
Refresh Rate (Hz)
3,840
OPERATION SPECIFICATIONS
-
Lifetime (Half brightness)
100,000
-
Operating Temperature (°C)
-20 to +40
-
Operating Humidity
10-80% RH
-
IP Rating Front / Rear
IP5X / IP5X
