18,000 BTU, Multi Split Inverter Out Door Unit (Up to 2 IDU)

Specs

Reviews

Support

18,000 BTU, Multi Split Inverter Out Door Unit (Up to 2 IDU)

18,000 BTU, Multi Split Inverter Out Door Unit (Up to 2 IDU)

A2UQ18GFA1
()

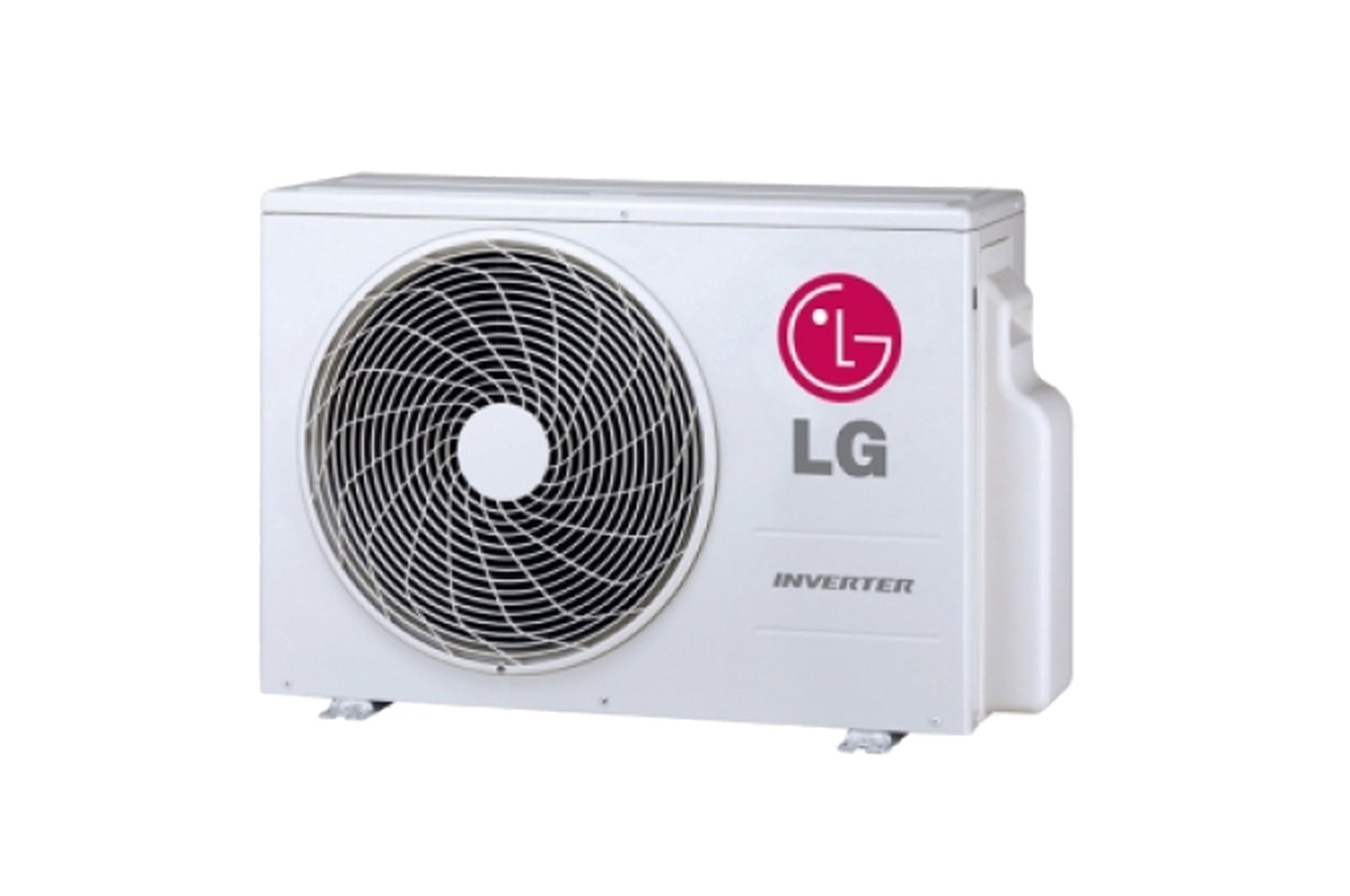

  • Front view of 18,000 BTU, Multi Split Inverter Out Door Unit (Up to 2 IDU) A2UQ18GFA1
Front view of 18,000 BTU, Multi Split Inverter Out Door Unit (Up to 2 IDU) A2UQ18GFA1

Key Features

  • Supreme Energy Efficiency
  • High Operation Reliability
  • Quiet Operation
  • Easy Installation
More
Print

All specs

OPERATION RANGE(OUTDOOR TEMPERATURE)

  • Min. ~ Max. °C DB(°F DB)

    -5 (23.0) ~ 48 (118.4)

CASING COLOR

  • Warm Gray

    Yes

COMPRESSOR

  • Motor Type

    BLDC

  • Motor Output (W x No.)

    1,500 (at 60Hz) x 1

  • Model (Model x No.)

    GKT141MAC x 1

  • Type

    Twin Rotary

COMBINATION

  • Sum of Indoor Units Capacity (kb tu/h)

    30 (kBtu/h)

  • Number of Indoor Units

    2 (EA)

COOLING CAPACITY

  • Min.∼Rated∼Max. (kW)

    1.45 ~ 4.63 ~ 6.15

  • Min.∼Rated∼Max. (Btu/h)

    4,950 ~ 15,800 ~ 21,000

POWER INPUT

  • Min. ~Rated ~ Max.~ (kW)

    0.47 ~ 1.08 ~ 2.00

TICKS

  • Number of Ticks

    4

PIPING CONNECTIONS

  • Liquid - mm(inch) x No.

    6.35 (1/4) x 2

  • Gas - mm(inch) x No.

    9.52 (3/8) x 2

TESTING COMBINATION

  • Testing Combination

    AMNC09GDBA2 x 2EA

RUNNING CURRENT

  • Min. ~ Rated ~ Max. ~ (A)

    2.1 ~ 5.5 ~ 9.0

POWER SUPPLY

  • V / Ø / Hz

    230 / 1 / 50

NET WEIGHT

  • kg

    36(79.4)

REFRIGERANT

  • Control

    Electronic Expansion Valve

  • Precharged Amount g(oz)

    1,200 (42.3)

  • Type

    R410A

  • Chargeless - Pipe length m(ft)

    '30(98.4)

DIMENSION

  • W x D x H (mm)

    770 × 545 × 288

  • W x D x H (inch)

    34-1/4 x 25-25/32 x 12-19/32

MAXIMUM HEIGHT DIFFERENCE

  • Outdoor Unit ~ Indoor Unit, Max (m)

    15 (49.2)

  • Indoor Unit ~ Indoor Unit, Max (m)

    7.5 (24.6)

PIPING LENGTH

  • Total Piping, Max (m)

    30 (98.4)

  • Each Branch Piping, Max (m)

    20 (65.6)

REFRIGERANT OIL

  • Charged Volume (cc x No.)

    570x 1

  • Type

    FVC68D

ECO FRIENDLY FEATURES

  • NEA Energy rating

    4

  • Annual energy consumption (kWh)

    2091kWh

  • Annual energy cost

    $564

FAN

  • Air Flow Rate (m3 min x No.)

    26 x 1

  • Type

    Propeller

HEAT EXCHANGER

  • (Row x Column x Fins per inch) x No.

    (2 x 24 x 20) x 1

FAN MOTOR

  • Type

    BLDC

  • Output (W x No.)

    43 x 1

SOUND PRESSURE LEVEL

  • Rated, dB(A)

    48

HIGHLIGHTS

  • Type of AC

    Multi Split Inverter Out Door Unit
