LG Dualcool Single Split Smart Inverter Aircon 12,000 BTU (R410a)

Specs

Reviews

Support

LG Dualcool Single Split Smart Inverter Aircon 12,000 BTU (R410a)

S4-Q12JA3AA

LG Dualcool Single Split Smart Inverter Aircon 12,000 BTU (R410a)

Summary

Print

Dimensions

Capacity - Min.~Rated~Max.(Btu/h)
2,000~12,000~13,500

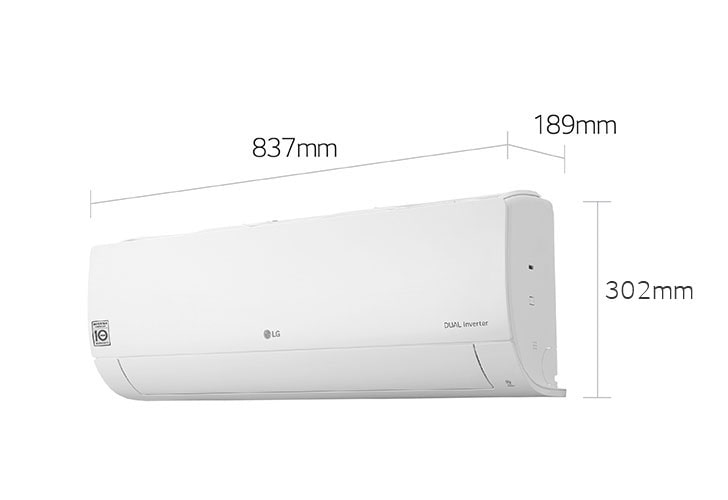

Dimension Indoor - (W × H × D)
837 x 302 x 189
Dual Inverter Compressor
Yes
10 years warranty
Yes

All specs

HIGHLIGHTS

  • Capacity - Min.~Rated~Max.(Btu/h)

    2,000~12,000~13,500

  • Power Input - Rated(Kw)

    1.03

  • Power Input - Max(Kw)

    1.29

  • Color

    White

  • Type of AC

    Single Split Inverter

POWER SUPPLY

  • Power Supply (V, Ø, Hz)

    230, 1, 50

RUNNING CURRENT

  • Running Current - Rated(Amp)

    5.0

  • Running Current - Max(Amp)

    6.4

AIR FLOW RATE

  • Indoor,Max(m3/min)

    12

  • Outdoor,Max(m3/min)

    28

MOISTURE REMOVAL

  • Moisture Removal(l/h.)

    1.25

SOUND LEVEL

  • Indoor,H/M/L/SL(dB(A)+3)

    38/32/24/18

  • Outdoor,Max(dB(A)+3)

    50

STANDARD PIPE LENGTH / MAX LENGTH

  • Standard Pipe length/Max length(metre)

    7.5/20

MAX ELEVATION

  • Max Elevation(metre)

    15

REFRIGERANT

  • Type

    R410A

  • Precharged Amount(Kg)

    0.85

PIPING CONNECTIONS

  • Liquid Side(mm(inch))

    Ø 6.35 (1/4)

  • Gas Side(mm(inch))

    Ø 9.52 (3/8)

DIMENSIONS

  • Indoor (W x H x D)(mm)

    837 x 302 x 189

  • Outdoor (Wx H x D)(mm)

    720 x 500 x 270

NET WEIGHT

  • Indoor(kg)

    8.9

  • Outdoor(kg)

    24.5

OPERATION RANGE(OUTDOOR TEMPERATURE)

  • Cooling - Min. ~ Max.(°C DB)

    21 ~ 48

FULL LOAD COP

  • Full Load COP

    3.59

WEIGHTED COP**

  • Weighted COP**

    4.50
