LG 19.3'' 1.3MP IPS Clinical Review Monitor

คุณสมบัติ

แกลเลอรี่

สเปค

สนับสนุน

แหล่งข้อมูล

LG 19.3'' 1.3MP IPS Clinical Review Monitor

LG 19.3'' 1.3MP IPS Clinical Review Monitor

19HK312C-B
()
  • มุมมองด้านหน้าของ LG 19.3'' 1.3MP IPS Clinical Review Monitor 19HK312C-B
  • LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
  • LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
  • LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
  • LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
  • LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
  • LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
  • LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
  • LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
  • LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B

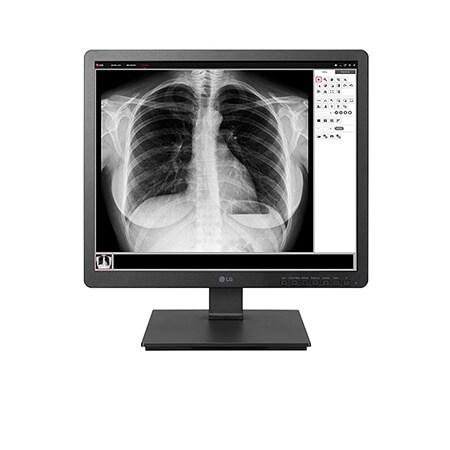

มุมมองด้านหน้าของ LG 19.3'' 1.3MP IPS Clinical Review Monitor 19HK312C-B
LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B
LG 19.3'' 1.3MP IPS Clinical Review Monitor, 19HK312C-B

คุณลักษณะที่สำคัญ

  • 330nits & NTSC 72%
  • DICOM Part 14
  • Quick Response Time
  • Brightness Stabilization
  • Two-Way Pivot
เพิ่มเติม
ความละเอียดแม่นยำ 330nits

330nits & NTSC 72% Precise Resolution

The clinical review monitor offers 330nits, making it brighter. An optimal range of colors for 1.3MP HD resolution medical images represented by NTSC 72% guarantee both precise picture quality and optimal grayscale.
รองรับ DICOM Part 14 1

DICOM Part 14 Compatible

To ensure the most accurate and consistent shading possible for medical images, LG measures and sets every grayscale tone on the production line to produce a monitor compliant with DICOM Part 14.
การปรับความสว่างให้มีความเสถียร 1

Brightness Stabilization

A sensor measures the monitor's backlight brightness stability and automatically compensates for brightness fluctuations caused by aging, for consistently stable images during usage.
เวลาการตอบสนองที่รวดเร็ว1

Quick Response Time

With a low input lag and quick response time, it allows the monitor to receive a signal quickly and display a clear image with no distortion, for precise decoding information to achieve an efficient review.
Flicker Safe1

Flicker Safe

The Flicker Safe reduces the flicker level on screen that may cause eye fatigue. With this feature, looking at your computer screen for longer periods of time is more comfortable.
โหมด Reader 1

Reader Mode

Reader Mode provides optimal conditions for clinical use. Reducing blue light to help
lessen eye fatigue, Reader Mode provides optimal condition for reading.
หมุนสองทิศทาง 1

Two-Way Pivot

The monitor with Bi-directional pivot stand can be configured according to user needs and medical environment alongside other medical devices.
พิมพ์

สเปคทั้งหมด

DISPLAY

  • Aspect Ratio

    4:5

  • Brightness (Typ.)

    330cd/m²

  • Color Bit

    8bit

  • Color Gamut (Typ.)

    NTSC 72%(Coverage)

  • Contrast Ratio (Typ.)

    900:1

  • Panel Type

    IPS

  • Resolution

    1280 x 1024

  • Response Time (GTG)

    14ms(Off-setting), 5ms(Faster-setting)

  • Size (Inch)

    19

  • Surface Treatment

    Anti-glare, 3H

  • Viewing Angle (CR≥10)

    178° (Right/Left), 178° (Up/Down)

FEATURE

  • Brightness stabilization

    Yes

  • HW Calibration

    Yes (True color pro)

  • DICOM Compliant

    Yes

  • Color Temperature

    6500K / 7500K / 9300K
    Manual (5000K ~ 10000K)

  • Flicker safe

    Yes

  • Reader Mode

    Yes

  • Smart Energy Saving

    Yes

  • Super Resolution+

    Yes

SW APPLICATION

  • Dual Controller

    Yes

  • True Color Pro

    Yes

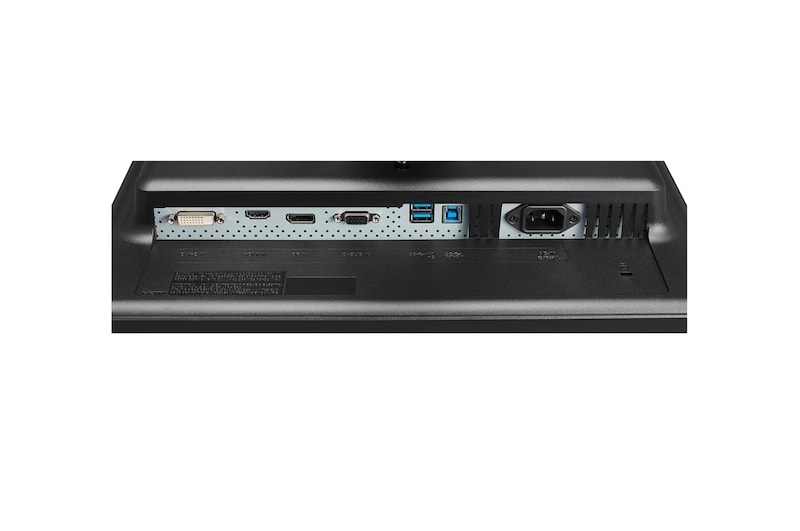

CONNECTIVITY

  • D-Sub

    YES(1ea)

  • DisplayPort

    Yes(out 1ea)

  • DVI

    Yes(1ea)

  • HDMI

    Yes(out 1ea)

  • USB Downstream Port

    Yes (2ea/ver3.0)

  • USB Upstream Port

    Yes (1ea/ver3.0)

POWER

  • AC Input

    100-240Vac, 50/60Hz

  • DC Output

    24V 2.1A

  • Power Consumption (DC Off)

    Less than 0.5W

  • Power Consumption (Max.)

    50W

  • Type

    Internal Power(PSU)

MECHANICAL

  • Borderless Design

    Normal

  • Display Position Adjustments

    Tilt/Height/Pivot

  • Down Height

    70mm

  • Height Range

    130mm

  • OneClick Stand

    Yes

  • Pivot

    Yes(±90°)

  • Swivel

    Yes(±177.5°)

  • Tilt

    Yes(-5°~35˚)

  • Wall Mount Size

    100x100mm

DIMENSIONS/WEIGHT

  • Dimension in Shiping (W x H x D)

    475 x 504 x 199 mm

  • Dimension with Stand (W x H x D)

    410 x 519.3 x 249.5 mm

  • Dimension without Stand (W x H x D)

    410 x 343.8 x 57.6 mm

  • Pallet Stuffing (20ft/40ft/40ft HC)

    480ea/960ea/1,152ea

  • Weight in Shipping

    7.4kg(16.3lb)

  • Weight with Stand

    5.1kg(11.2lb)

  • Weight without Stand

    2.9kg(6.4lb)

STANDARD

  • IEC (IEC 60601-1 / IEC 60601-1-2)

    Yes

  • EN (EN 60601-1 / EN 60601-1-2)

    Yes

  • IEC (IEC 60950-1 / IEC 55032, 55024)

    Yes

  • EN (EN 60950-1 / EN 55032, 55024)

    Yes

  • cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1)

    Yes

  • FCC (FCC part 15 Class A)

    Yes

  • FDA

    Registration (Class I)

  • ISO13485

    Yes

  • GMP

    Yes

  • KGMP

    Yes

  • RoHS

    Yes

  • REACH

    Yes

  • WEEE

    Yes

  • MFDS

    Yes

ACCESSORY

  • Calibration Report (Paper)

    Yes

  • D-Sub

    Yes

  • DVI-D

    Yes

  • Display Port

    Yes

  • HDMI

    Yes

  • Power Cord

    Yes

  • USB3.0 Upstream Cable

    Yes
