Multi V S

ARUN080LSS0

Multi V S

()

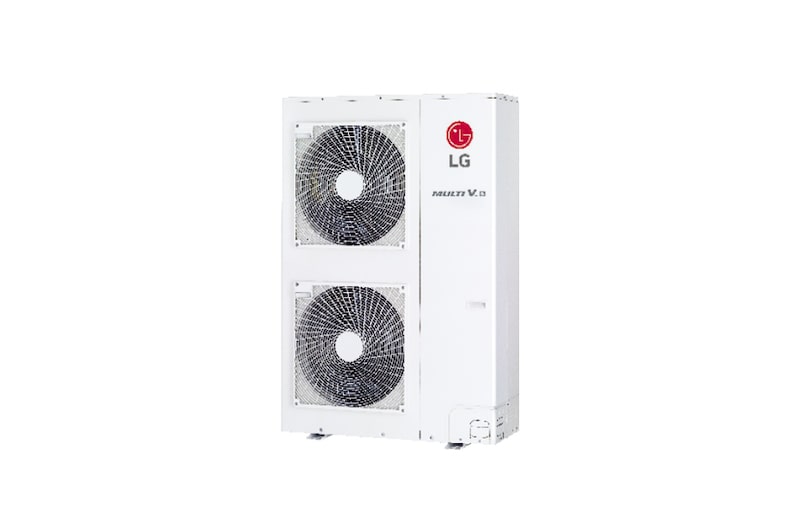

Front view of Multi V S ARUN080LSS0
ARUN080LSS0_feature1_07092018_D
ARUN080LSS0_feature2_07092018_D
ARUN080LSS0_feature3_07092018_D
ARUN080LSS0_feature4_07092018_D
ARUN080LSS0_feature5_07092018_D
ARUN080LSS0_feature6_07092018_D
ARUN080LSS0_feature7_07092018_D
列印

所有規格

基本規格

  • 電源 (V Phase Hz)

    380, 3, 60

  • 外型尺寸 (寬x高x深)(mm)

    950× 1,380 × 330 × 1

  • 能效分級

    1級

  • 淨重 kg

    115

  • 冷媒充填量 (kg)

    3.5

  • 最大聯結室內機台數

    13

能力 (額定)

  • 冷氣 (kW)

    22.4

  • 暖氣 (kW)

    25.2

入力 (額定)

  • 冷氣 (kW)

    6.7

  • 暖氣 (kW)

    6.0

CSPF

  • 冷氣系統 (kWh/kWh)

    5.84

  • 冷氣室外機 (kWh/kWh)

    6.74

冷媒連結管

  • 液管 mm (inch)

    9.52(3/8)

  • 氣管 mm (inch)

    19.05(3/4)

噪音值

  • 冷氣 dB (A)

    57

  • 暖氣 dB (A)

    57

規格值依據條件:

  • 1.室外機冷氣溫度

    35°C DB / 24°C WB。室內機冷氣溫度:27°C DB / 19°C WB

  • 2.室外機暖氣溫度

    7°C DB / 6°C WB 。室內機暖氣溫度 : 20°C DB / 15°C WB

  • 3.管路等長

    7.5m 。 管路水平落差:0 m

  • 4.配線規格容量

    請依據電工法規設置

  • 5.噪音值

    無響室測試值，實際運轉時，由於環境狀況影響，噪音值比標示稍高。

  • 6.規格

    CSPF搭配無風管型室內機測試

  • 7.測試條件

    符合CNS14464 /CNS 15173

如需獲得得更多技術文件和資訊，請瀏覽 LG B2B 商業合作夥伴專區
