All-in-one Smart 系統

LAEC015-GN2

All-in-one Smart 系統

()

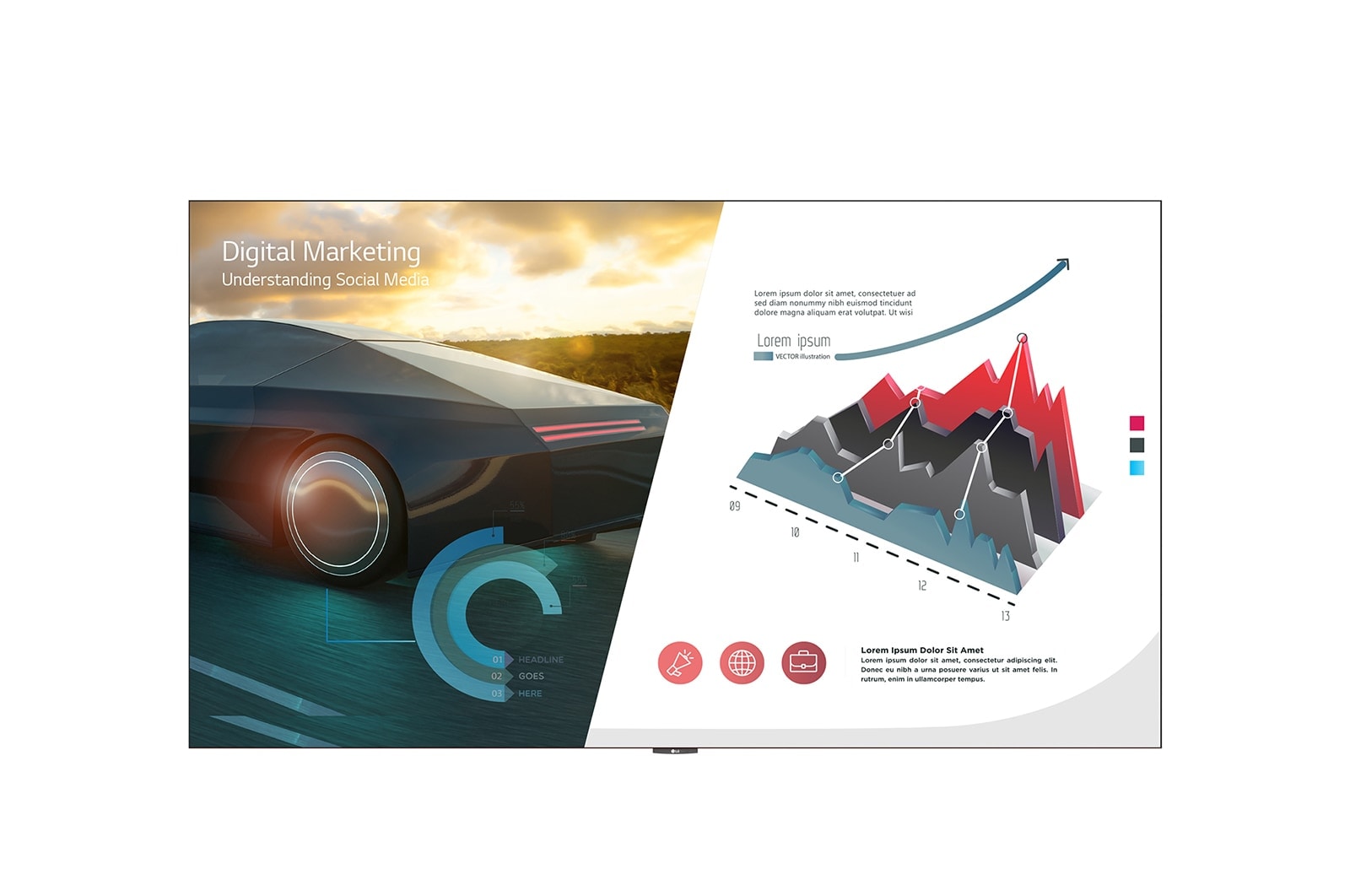

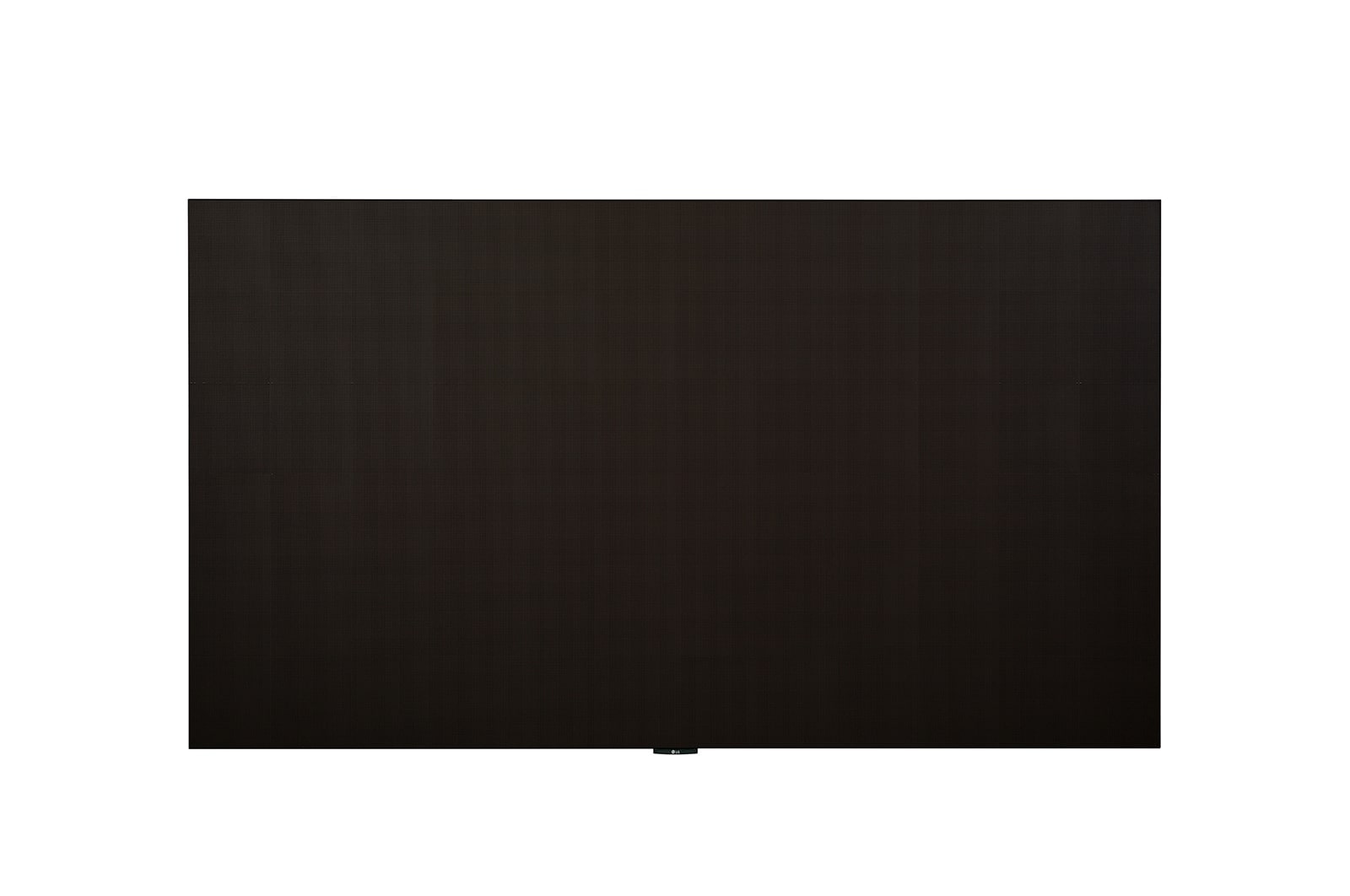

Front view
列印

所有規格

資訊

  • 型號名稱

    LAEC015-GN2

物理參數

  • 像素配置

    Single SMD

  • 像素間距 (mm)

    1.88

  • 模組尺寸（WxH，mm）

    300x168.75

  • 物理像素密度（像素/㎡）

    284,444

  • 機櫃平坦度 (mm)

    ±0.2

  • 機櫃材質

    Aluminum

  • 服務進入點

    Front

  • 單一螢幕模組數 (WxH)

    12x12 (Total 144)

  • 螢幕解析度 (WxH)

    1,920x1,080

  • 螢幕尺寸（W x H x D，mm，含邊框）

     3,604x2,029x45.5 (Thickest 81)

  • 螢幕表面積 (㎡)

    7.29

  • 螢幕重量

    190

光學規格

  • 最大亮度（校準後，nit）

    500

  • 視角（橫向）

    160

  • 視角（縱向）

    160

  • 亮度均勻度

    0.98

  • 色彩均勻度

    ±0.015Cx,Cy

  • 對比度

    3,000:1

  • 處理深度（位元）

    16 (HDR10, HDR10 Pro)

  • 色溫

    3,200~9,300

電氣 規格

  • 耗能（W/㎡，最大值）

    302

  • 散熱（BTU/h/㎡，最大值）

    1,030

  • 供電 (V)

    100 to 240

  • 幀率 (Hz)

    50 / 60

  • 更新率 (Hz)

    3,000

  • 耗能（W/螢幕，最大值）

    2,200

  • 耗能（W/螢幕，平均值）

    880

  • 散熱（BTU/h/螢幕，最大值）

    7,506

  • 散熱（BTU/h/螢幕，平均值）

    3,004

運作 規格

  • 作業溫度 (℃)

    0℃ to +40℃

  • 作業濕度

    10~90%RH

  • IP 等級正面

    IP30

  • IP 等級背面

    IP20

  • LED 使用壽命（半亮度）

    100,000

標準

  • 認證

    CE,FCC,ETL,CB,CE-RED EMC Class A

環境

  • 環境

    RoHS, REACH

控制器

  • 控制器

    Embedded(webOS)

喇叭

  • 喇叭

    Built-in(9W+9W)

I/O 連接埠

  • I/O 連接埠

    HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Optical Digital Audio Out

如需獲得得更多技術文件和資訊，請瀏覽 LG B2B 商業合作夥伴專區
