一對一變頻冷氣空調系統

規格

評論

支援

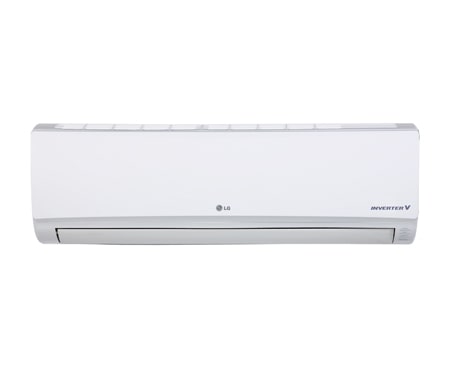

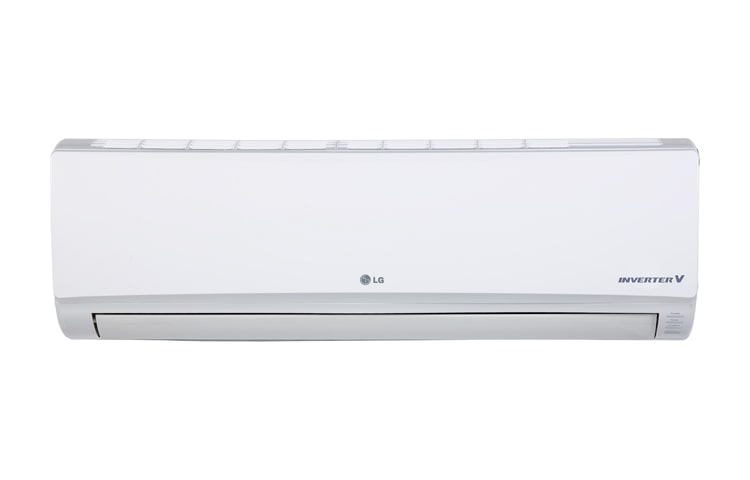

一對一變頻冷氣空調系統

LS-0912WCO

一對一變頻冷氣空調系統

(0)
列印

所有規格

COMMON SPEC

  • 產品類型

    一對一分離式冷氣空調

冷房能力 (最小~最大)

  • kW (最小 - 額定 - 最大)

    0.89~2.50~3.70

  • Btu/h (最小 - 額定 - 最大)

    3070~8530~12620

EER

  • 冷 (W/W)

    4.46

輸入電源

  • ø,V,Hz

    1/220/60

輸入功率 (額定)

  • 冷 (W)

    560

運轉電流

  • 冷 (A)

    2.7

風量

  • 室內機 (高速) m3/min(CFM)

    11.0 (388)

  • 室外機 (高速) m3/min(CFM)

    33 (1165)

噪音等級

  • 室內機 (高/中/低/微) (dB(A)±3)

    38/33/24

  • 室外機 (高速) (dB(A)±3)

    45

冷媒

  • 冷媒 (R410A) 充填量 g(oz)

    1000(35.3)

  • 添加冷煤量 g/m(oz/ft)

    (超過12.5m) 20(0.22)

  • 最大配管長 (m)

    20

電源線

  • 室內機與室外機連接線 (No.*mm2)

    4*1.0 (包含接地)

  • 室外機電源線 (No.*mm2)

    3*2.0 (包含接地)

  • 電源斷路裝置大小 (安培)

    15

配管

  • 配管長度 (Min/Max) (m)

    2/20

  • 液管 mm(in)

    6.35(1/4)

  • 氣管 mm(in)

    9.52(3/8)

  • 排水管尺寸 (O.D/I.D.) (mm)

    21.5/16.0

壓縮機

  • 型式

    迴轉式

  • 馬達型式

    直流變頻

風扇

  • 室內機 - 型式

    Cross Flow Fan

  • 室內機 - 馬達輸出 (W)

    20

  • 室外機 - 型式

    螺旋式

  • 室外機 - 馬達型式

    BLDC

  • 室外機 - 馬達輸出 (W)

    43

尺寸

  • 室內機 (寬x高x深) (mm)

    895 x 285 x 210

  • 室外機 (寬x高x深) (mm)

    770 x 545 x 288

淨重

  • 室內機 (kg)

    11

  • 室外機 (kg)

    35

運轉範圍

  • 冷氣 (室外機) (°C)

    -10~48

功能

  • 4方向自動搖擺

    Yes

  • 急冷急熱

    Yes

  • 除臭濾網

    Yes

  • 睡眠模式

    Yes

  • 除濕模式

    Yes

  • 自動再啟動

    Yes

  • 定時開關

    Yes

  • 自動清潔

    Yes

  • 雙層塗裝

    Yes

  • 無線遙控

    Yes

  • 刷卡控制介面 (PQDSA2)

    Yes (加購配備)

  • 有線液晶控制器 (PQRCVSL2)

    Yes (加購配備)
