Efficiency and High-level Security1
Why Cloud Computing

Efficiency and High-level Security

LG offers various zero client form factors. LG's many different kinds zero client line-up can add value to your work environment with better performance and lower costs than a conventional PC device.
Powerful & Secure Cloud Computing1
LG Zero Client

Powerful & Secure Cloud Computing

CBV42-BP with teradici PCoIP®* performs HW decoding, helps CPU to enable more tasks and reduce power consumption**. And no data will be found once CBV42-BP is unplugged, so users can experience high level of security.

*teradici TERA2321 PCoIP® Processor chipset.
**Actual power consumption may vary depending on network and use.

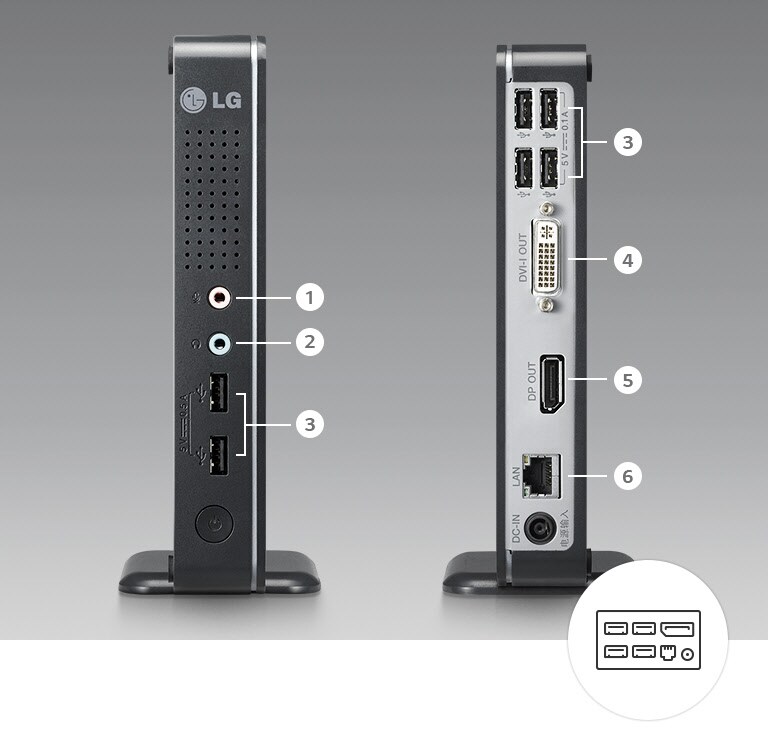

Enormous Expandability1
Multiple Ports

Enormous Expandability

(1) Microphone In
(2) Headphone Out
(3) USB 2.0
(4) DVI-I
(5) DisplayPort
(6) Gigabit Ethernet
Silent and Cost-efficient1
Fanless Design

Silent and Cost-efficient

The fanless design increases the CBV42-BP's lifespan and also reduces replacement costs. The low noise provides a pleasant office environment, and its lower power consumption reduces management costs.

All Spec

FEATURES

  • NVIDIA G-Sync™

    NO

  • Others (Features)

    NO

  • PBP

    NO

  • PIP

    NO

  • Reader Mode

    NO

  • RFID

    NO

  • SD Card Slot

    NO

  • Crosshair

    NO

  • Smart Energy Saving

    NO

  • Super Resolution+

    NO

  • VESA DisplayHDR™

    NO

  • Webcam

    NO

  • AMD FreeSync™

    NO

  • Auto Brightness

    NO

  • Black Stabilizer

    NO

  • Color Calibrated in Factory

    NO

  • Color Weakness

    NO

  • Dolby Vision™

    NO

  • Dynamic Action Sync

    NO

  • Flicker Safe

    NO

  • HDR 10

    NO

  • HW Calibration

    NO

  • Motion Blur Reduction Tech.

    NO

  • Nano IPS™ Technology

    NO

CONNECTIVITY

  • Daisy Chain

    NO

  • DisplayPort

    YES(out 1ea)

  • DP Version

    1.2

  • DVI-D

    NO

  • DVI-I

    YES(out 1ea)

  • DVI (Max Resolution at Hz)

    1920 x 1200 at 60Hz

  • D-Sub

    NO

  • D-Sub (Max. Resolution at Hz)

    NO

  • HDMI

    NO

  • Headphone out

    3-pole (Sound Only)

  • Line out

    NO

  • MIC & Headphone out combo

    NO

  • Mic In

    YES

  • Thunderbolt

    NO

  • Thunderbolt (Data Transsmission)

    NO

  • Thunderbolt (Power Delivery)

    N/A

  • USB

    6 x USB 2.0 Type-A

  • USB-C

    NO

  • USB-C (Data Transsmission)

    NO

  • USB-C (Max. Resolution at Hz)

    NO

  • Audio In

    NO

  • Built-in KVM

    NO

  • USB-C (Power Delivery)

    N/A

DIMENSIONS/WEIGHTS

  • Dimension with Stand (W x H x D) [mm]

    189 x 144 x 70

  • Dimension in Shiping (W x H x D) [mm]

    266 x 199 x 155

  • Dimension without Stand (W x H x D) [mm]

    185 x 144 x 31

  • Weight in Shipping [kg]

    1.5

  • Weight without Stand [kg]

    0.65

  • Weight with Stand [kg]

    0.67

INFO

  • Product name

    Cloud Device

  • Year

    2019

MECHANICAL

  • Wall Mountable [mm]

    100 x 100

NETWORK

  • Bluetooth

    NO

  • LAN (RJ-45)

    Ethernet(10/100/1000)

  • SFP Ready

    NO

  • Wi-Fi

    NO

PC PART

  • Display Support

    Up to 2 display : 1920x1080@60Hz (via DVI & Display Port 1.2 out) or Up to 1 display : 2560x1080@60Hz (via DisplayPort 1.2 out)

  • Processor

    TERA2321

  • VDI Support

    VMware, Amazon Workspace

  • Storage

    Boot Flash Memory 32MB

  • System Memory

    512MB

POWER

  • AC Input

    100~240V (50/60Hz)

  • Power Consumption (DC Off)

    Less than 0.5W

  • Power Consumption (Typ.)

    6W

  • Type

    External Power(Adapter)

SOUND

  • Bluetooth Conectivity

    NO

  • DTS HP:X

    NO

  • Maxx Audio

    NO

  • Rich Bass

    NO

  • Speaker

    NO

SW APPLICATION

  • LG Calibration Studio (True Color Pro)

    NO

  • Dual Controller

    NO

  • Management Console

    NO

  • OnScreen Control (LG Screen Manager)

    NO

ACCESSORY

  • Antenna

    Internal

  • Display Port

    NO

  • DVI-D

    NO

  • DVI to VGA Gender

    NO

  • HDMI

    NO

  • Thunderbolt

    NO

  • VESA Bracket

    YES

  • USB-C

    NO

ENVIRONMENTAL

  • Humidity Range

    Operating : 20%~80%, Storage : 10%~85%

  • Temperature Range

    Operating : 10°C ~ 40°C, Storage : -20°C ~ 60°C
