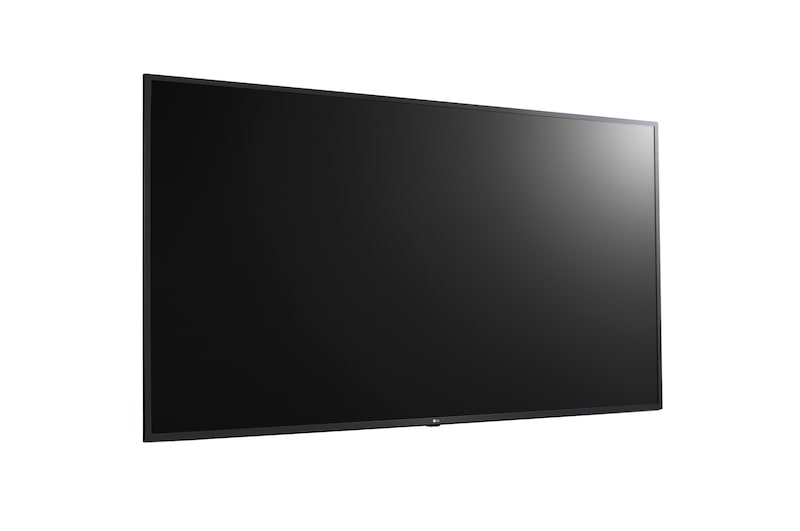

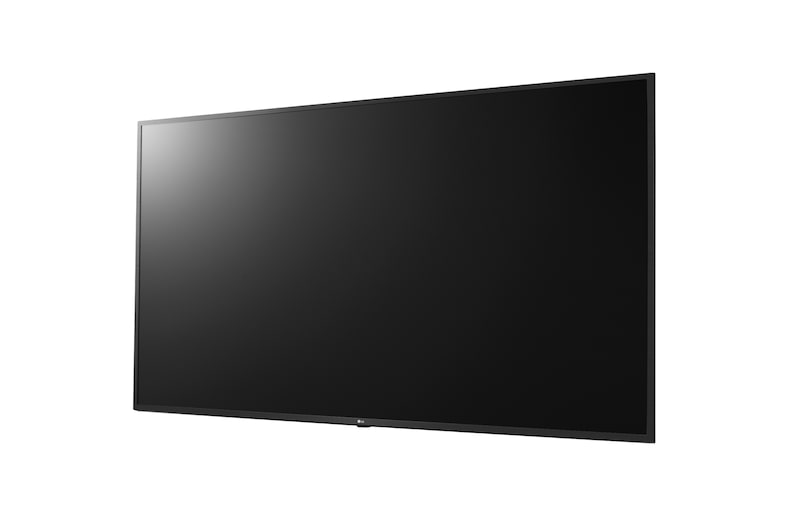

UT640S Series
All Spec
DISPLAY
-
Inch
60
-
Resolution
3,840 x 2,160 (UHD)
-
Brightness (cd/m²)
350
BROADCASTING SYSTEM
-
Digital
DVB-T2/C/S2
VIDEO
-
HDR (10 Pro / HLG)
• / •
AUDIO
-
Audio Output
10W + 10W
-
Speaker System
2.0 ch
-
DOLBY ATMOS
-
-
One Touch Sound Tuning
-
-
LG Sound Sync
Bluetooth required
FEATURES
-
Hospitality
Hotel Mode / PDM / Installer Menu, Lock mode (Limited), Welcome Screen (Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 2W with 8Ω), RJP (remote jack pack) Compatibility (LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC))
JACK INTERFACE
-
Set Side
HDMI In 2 (2.0), USB (2.0), CI Slot
-
Set Rear
HDMI In (HDCP (2.0)), CI Slot, RF In 2, Digital Audio Out (Optical), RS-232C(D-Sub 9pin (Control & Service)), RJ45 (Usage Purpose (Ethernet)), External Speaker Out(3.5mm phone jack) 2 (Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω) Vol. Control 1), Debug (Phone Jack Type (Ext. SPK Volume Control Share))
DIMENSION(UNIT: MM/KG)
-
Vesa
300 x 300
-
W x H x D / Weight (with stand)
1,368 x 857 x 269 / 19.8
-
W x H x D / Weight (without stand)
1,368 x 796 x 89.1 / 19.4
-
W x H x D / Weight (Shipping)
1,492 x 880 x 190 / 25.5
POWER(UNIT : WATTS)
-
Voltage, Hz
100 ~ 240 V, 50/60 Hz
-
Power Consumption(Typ.)
182.1W
-
Stand-by
0.3W
GENERAL
-
Region
Europe
