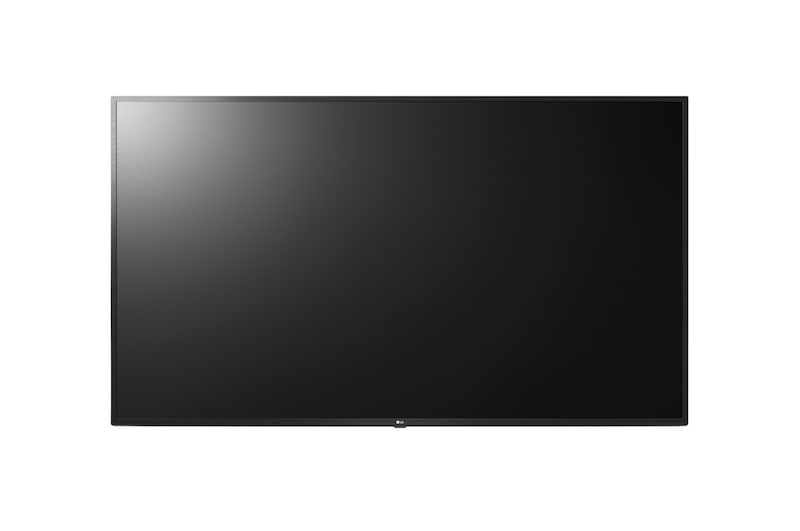

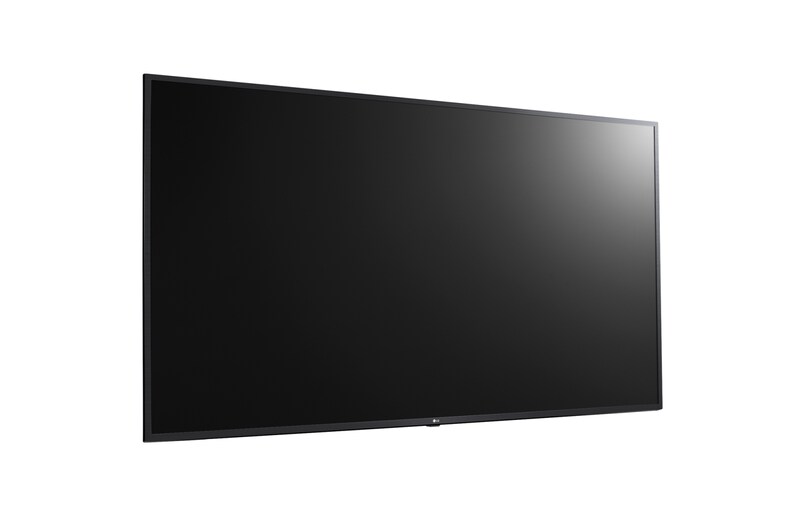

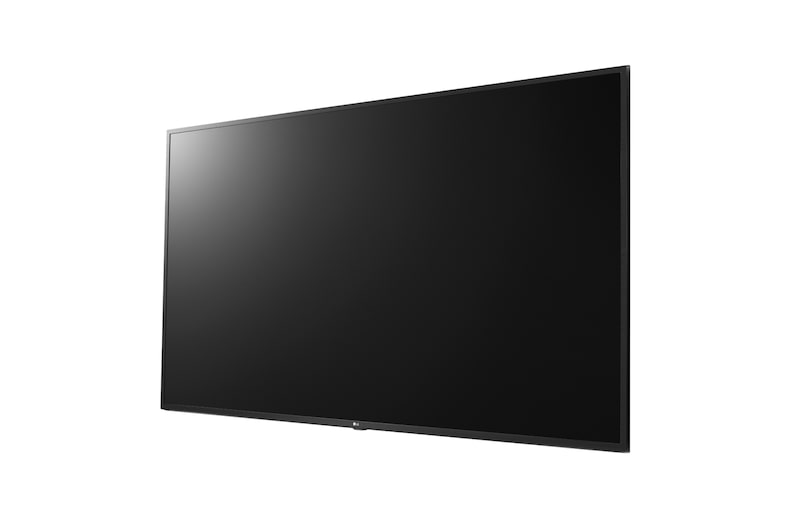

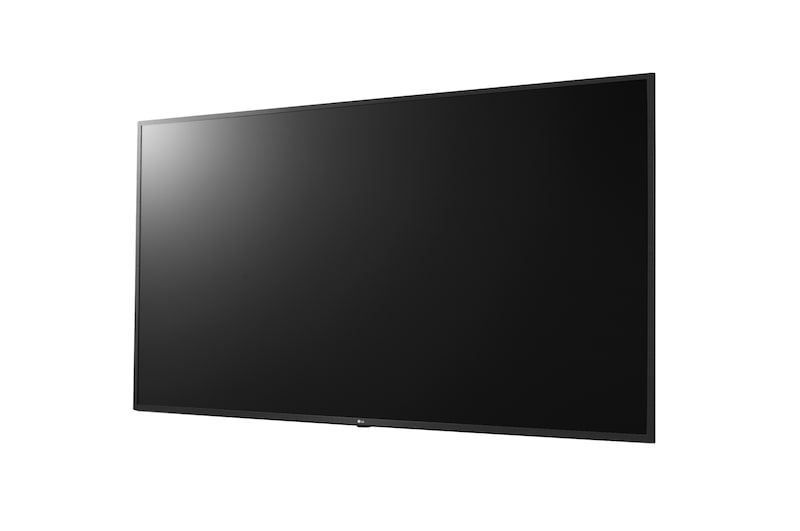

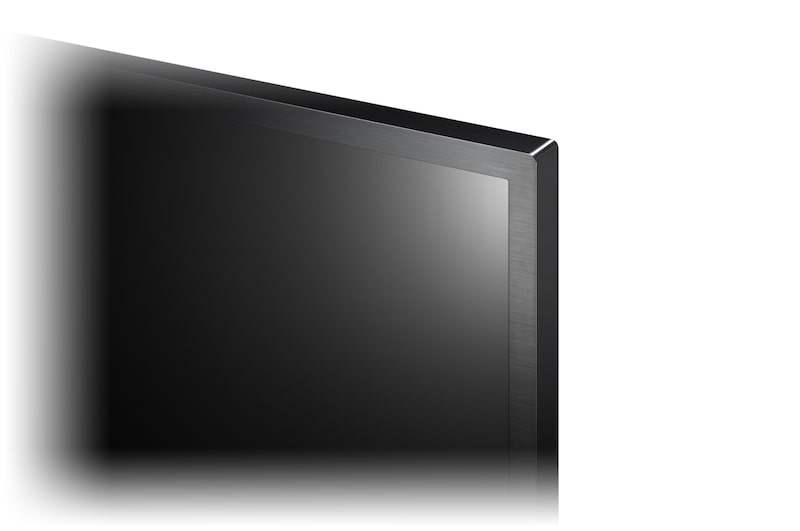

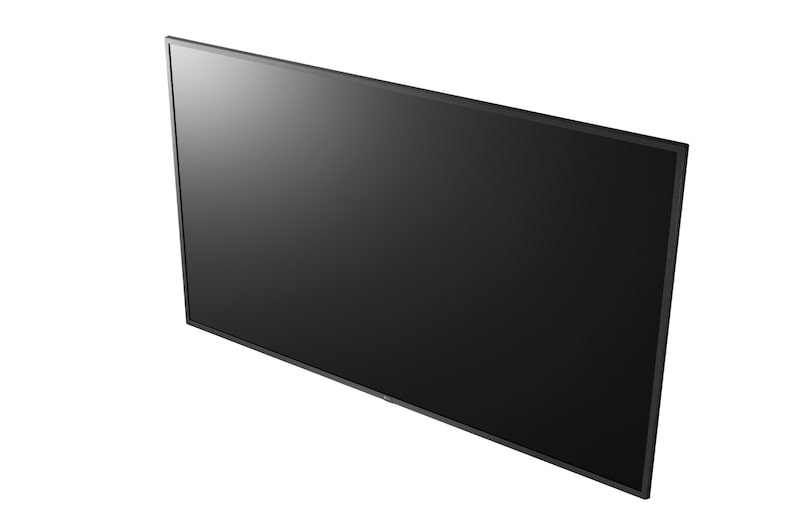

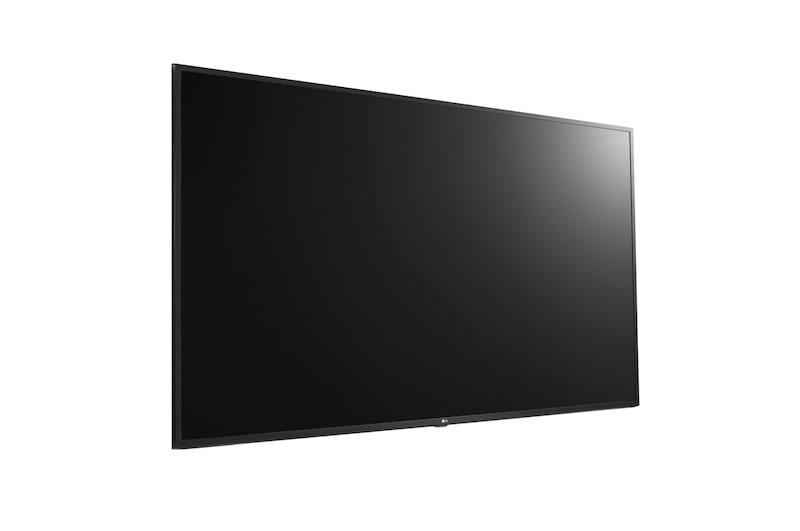

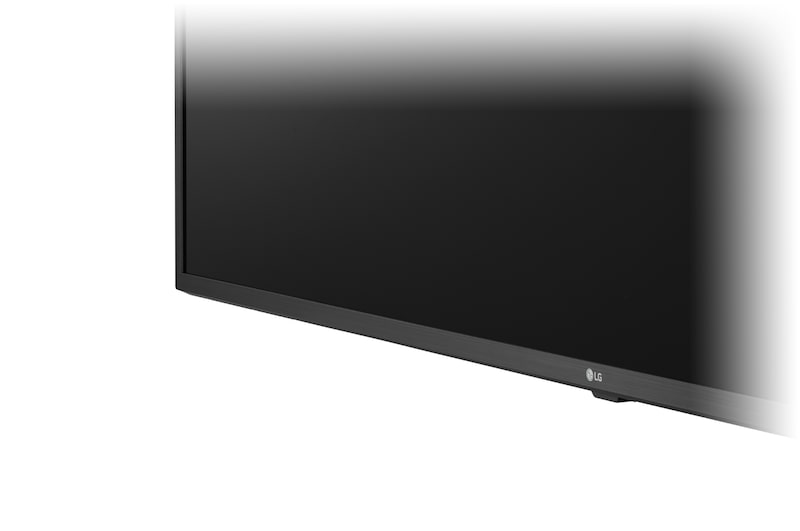

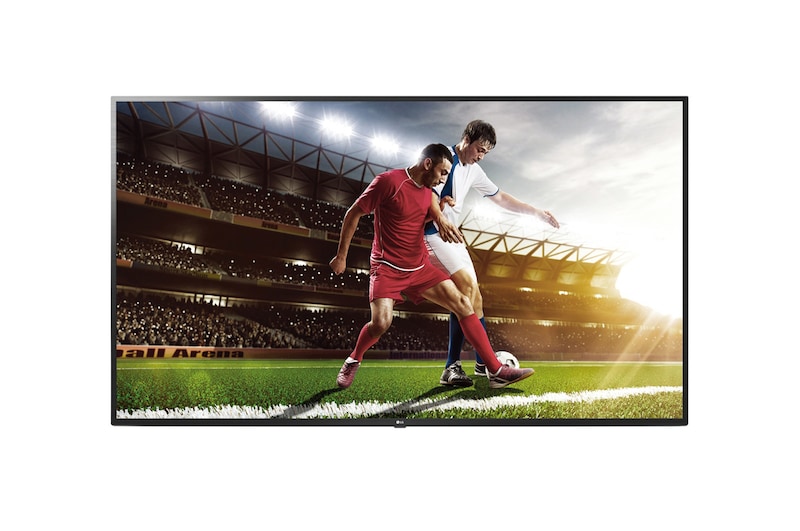

70UT640S0ZA

UT640S Series

All Spec

DISPLAY

  • Inch

    70

  • Resolution

    3,840 x 2,160 (UHD)

  • Brightness (cd/m²)

    350

BROADCASTING SYSTEM

  • Digital

    DVB-T2/C/S2

VIDEO

  • HDR (10 Pro / HLG)

    • / •

AUDIO

  • Audio Output

    10W + 10W

  • Speaker System

    2.0 ch

  • DOLBY ATMOS

    -

  • One Touch Sound Tuning

    -

  • LG Sound Sync

    Bluetooth required

FEATURES

  • Hospitality

    Hotel Mode / PDM / Installer Menu, Lock mode (Limited), Welcome Screen (Splash Image), Insert Image, One Channel Map, IP Channel Manager, External Speaker Out (Int / Ext Variable/Fixed, 3.5mm, Stereo, Single ended Type(GND,L+,R+), 2W with 8Ω), RJP (remote jack pack) Compatibility (LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC))

JACK INTERFACE

  • Set Side

    HDMI In 2 (2.0), USB (2.0), CI Slot

  • Set Rear

    HDMI In (HDCP (2.0)), CI Slot, RF In 2, Digital Audio Out (Optical), RS-232C(D-Sub 9pin (Control & Service)), RJ45 (Usage Purpose (Ethernet)), External Speaker Out(3.5mm phone jack) 2 (Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω) Vol. Control 1), Debug (Phone Jack Type (Ext. SPK Volume Control Share))

DIMENSION(UNIT: MM/KG)

  • Vesa

    600 x 400

  • W x H x D / Weight (with stand)

    1,578 x 984 x 299 / 31.4

  • W x H x D / Weight (without stand)

    1,578 x 913 x 91.1 / 30.7

  • W x H x D / Weight (Shipping)

    1,705 x 1,075 x 228 / 39.7

POWER(UNIT : WATTS)

  • Voltage, Hz

    100 ~ 240 V, 50/60 Hz

  • Power Consumption(Typ.)

    196.0W

  • Stand-by

    0.3W

GENERAL

  • Region

    Europe
