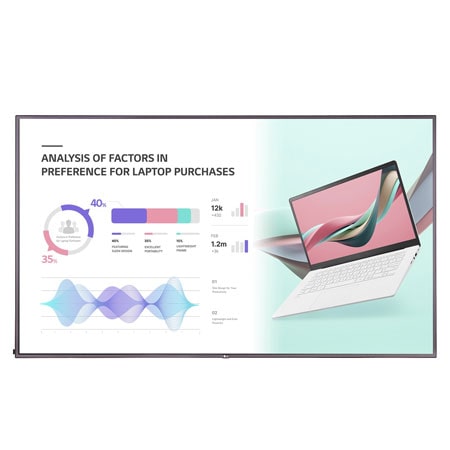

A screen showing the meeting’s contents is installed on the meeting room’s wall.
*All images in this web page are for illustrative purposes only.
UH5J-H has a brightness of 500 nits, so it is clearly visible, even under strong light.
*Actual images available may differ from the example images shown.
A number of tasks can be done at the same time with the intuitive GUI.
The UH5J-H has Conformal Coating on the power board to protect video wall even in a salty or humid environment.
*Actual images (signage display) available may differ from the example images shown.
*Network based control
Screen Size (Inch)
75
Panel Technology
IPS
Back Light Type
Edge
Aspect Ratio
16:9
Native Resolution
3840 x 2160 (UHD)
Refresh Rate
120Hz
Brightness
500nit (Typ.)
Contrast Ratio
1,100:1
Dynamic CR
1,000,000:1
Color Gamut
BT709 95%
Viewing Angle (H x V)
178º x 178º
Color Depth (Number of Colors)
1.07 Billion colours
Response Time
6ms (G to G)
Surface Treatment (Haze)
Haze 28%
Life time
50,000Hrs (Typ.)
Operation Hours (Hours/Day)
24/7
Portait / Landscape
YES / YES
Bezel Color
Black
Bezel Width
Even bezel : 14.9mm
Weight (Head)
41.5Kg
Packed Weight
51.2Kg
Monitor Dimensions (W x H x D)
1682.4 x 960.3 x 57.9mm (without Handle and LG Logo)
Handle
YES
VESA Standard Mount Interface
600 x 400 mm
The security update is supported for
5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/idproducts
Operation Temperature
0 °C to 40 °C
Operation Humidity
10 % to 80 %
Power Supply
AC 100-240V~, 50/60Hz
Power Type
Built-in Power
Typ.
170W
Max.
230W
BTU (British Thermal Unit)
581 BTU/Hr(Typ.), 785 BTU/Hr(Max.)
DPM
0.5W
Power off
0.5W
Smart Enegy Saving(~70%)
120W
Safety
CB / NRTL
EMC
FCC Class "A" / CE / KC
ERP / Energy Star
YES(NewErP) / YES
OPS Type compatible
YES (Piggyback)
SuperSign CMS
YES
SuperSign WB
YES
Mobile CMS
YES
OSD
English, French, German, Spanish, Italian, Korean, Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
Basic
Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender
Optional
OPS Kit(KT-OPSF), LSW640A/B(Wall Mount)
IP Rating
N/A
