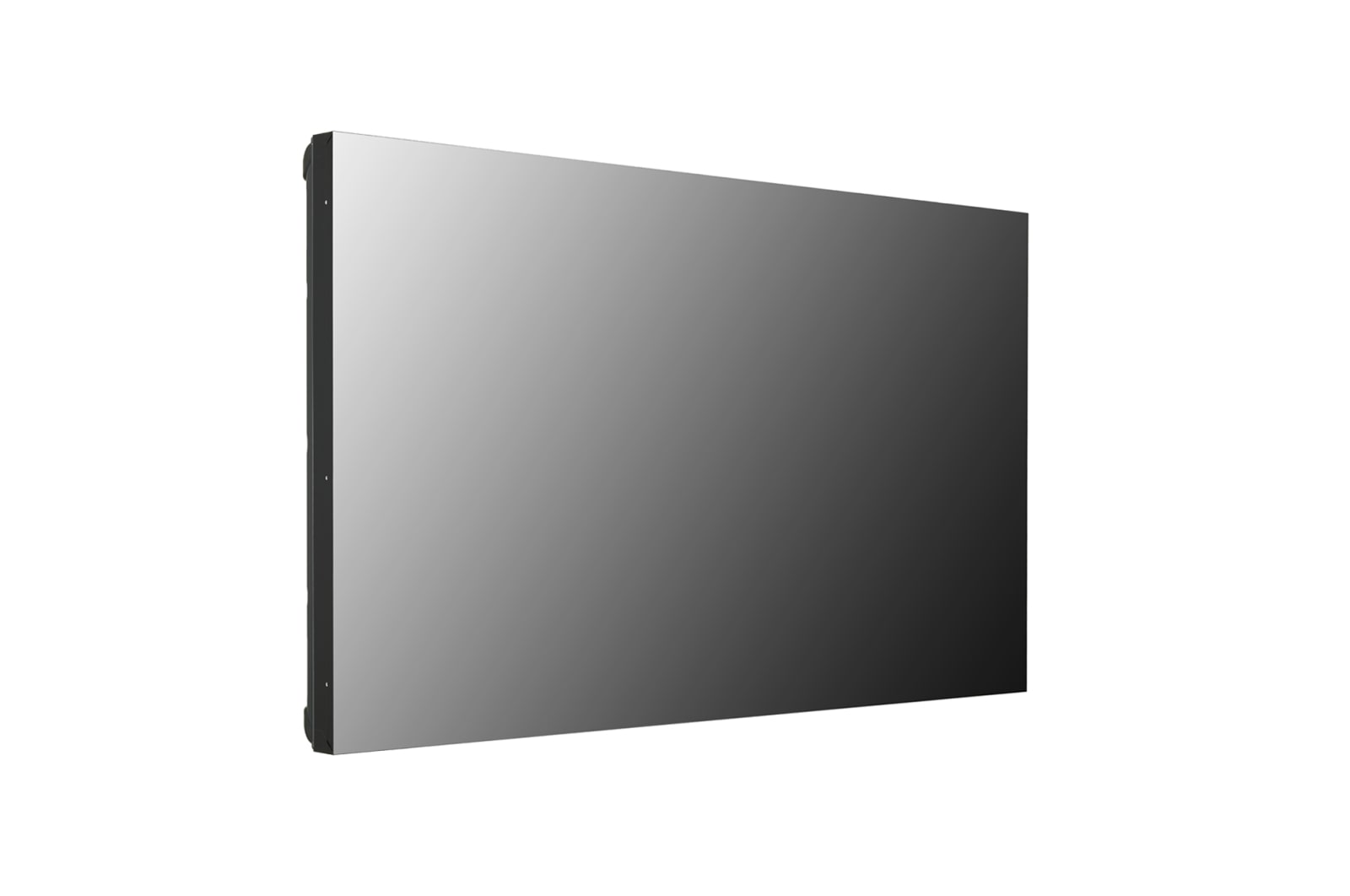

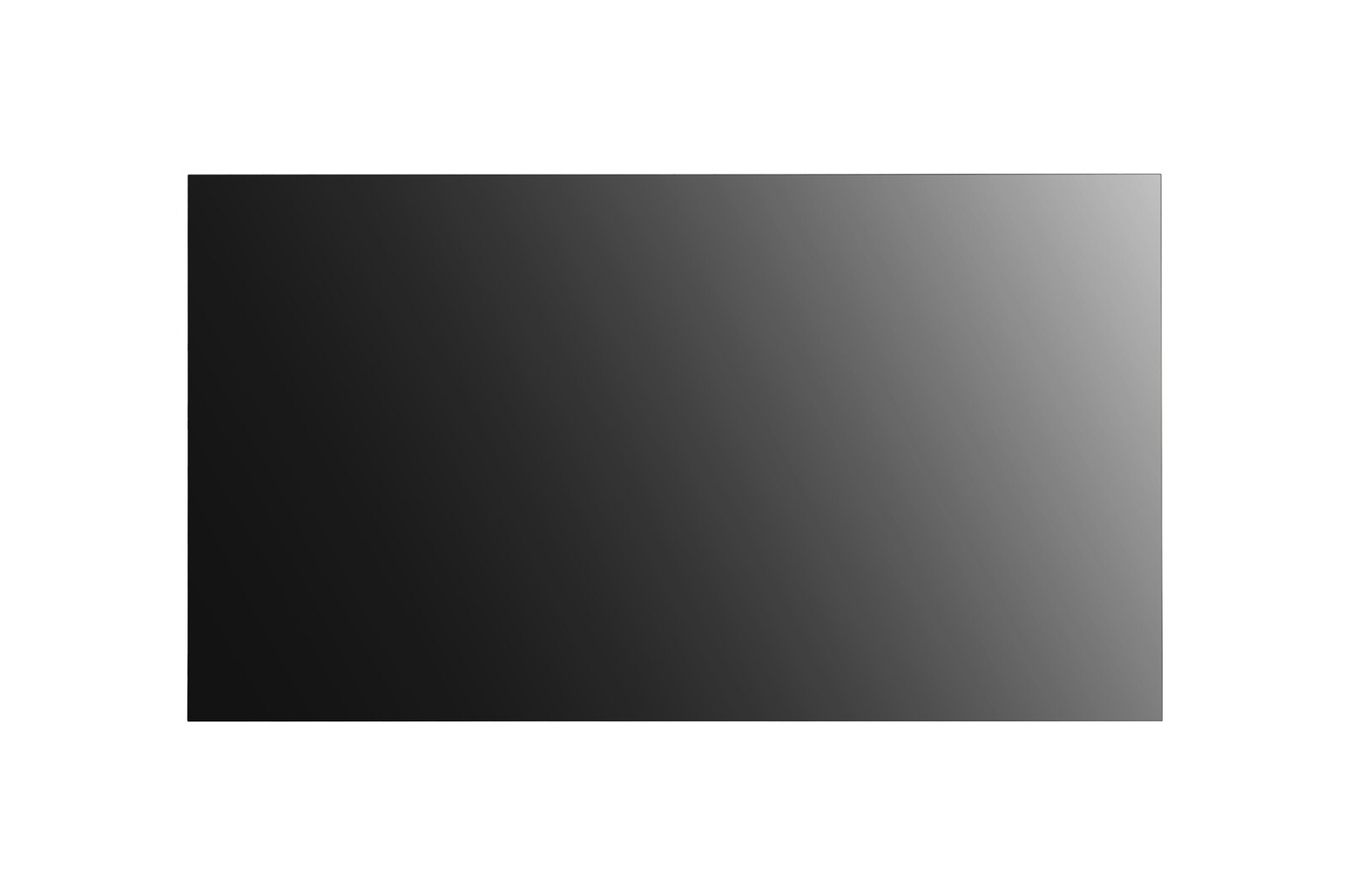

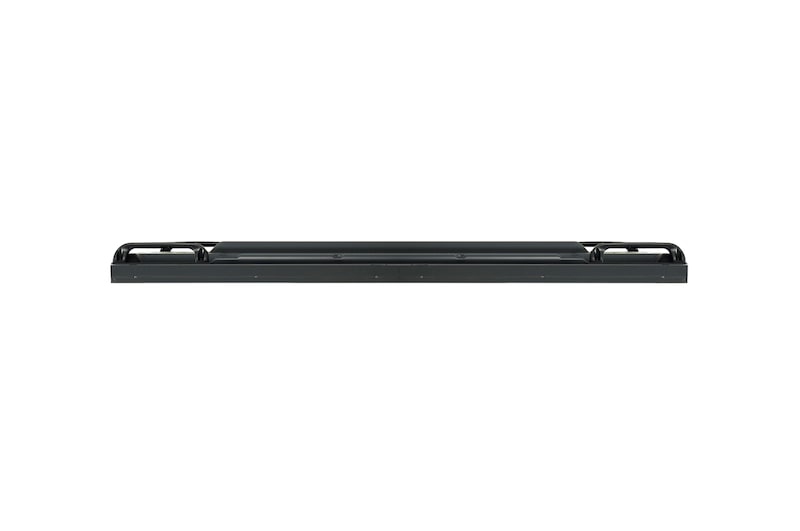

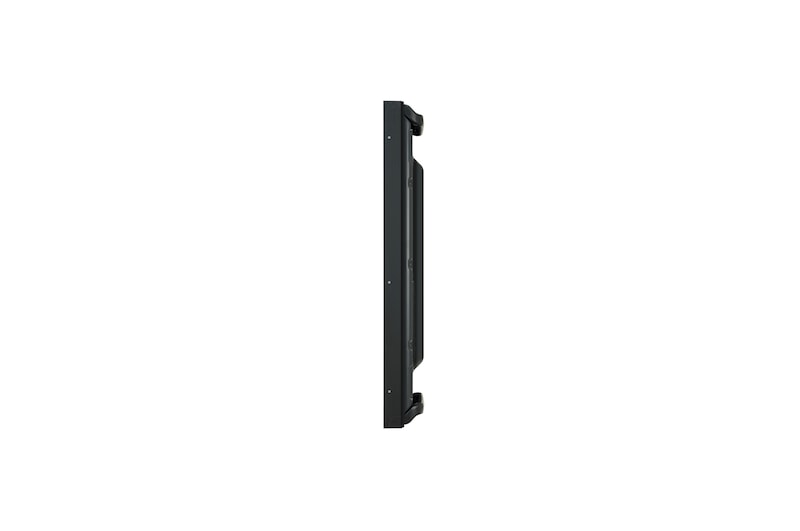

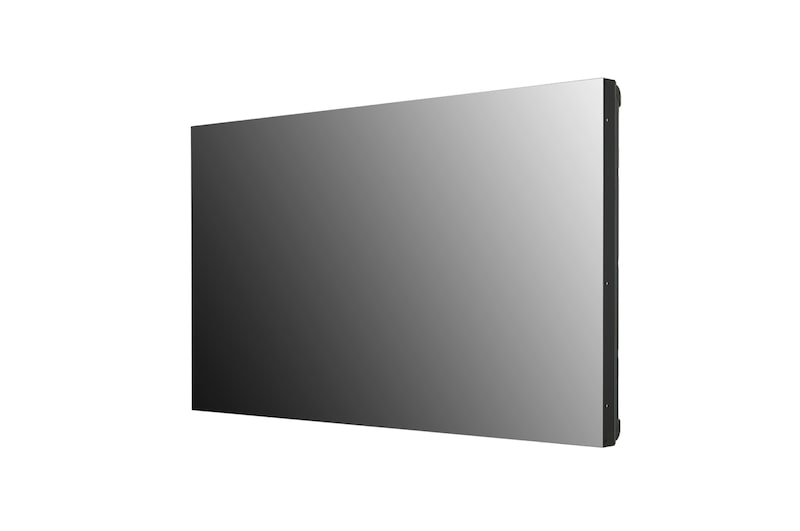

55" 500 nits FHD 60 Hz 0.9mm Even Bezel Video Wall
All Spec
PANEL
-
Screen Size
55"
-
Backlight Type
Direct
-
Penel Technology
IPS
-
Aspect Ratio
16:09
-
Native Resolution
1,920 x 1,080 (FHD)
-
Pixels(HxVx3)
6,220,800
-
Refresh Rate
60Hz
-
Contrast Ratio
1,200:1
-
Dynamic CR
30,000:1
-
Colour gamut
NTSC 72%
-
Viewing Angle(H x V)
178x178
-
Colour Depth
1.07Billion(10 bit)
-
Response Time
8ms (G to G)
-
Surface Treatment (Haze)
3%
-
Brightness
500nit
-
Operation Hours
24Hrs
-
Orientation
Portrait & Landscape
-
Life Time(Typ.)
60,000Hrs (Trp.)

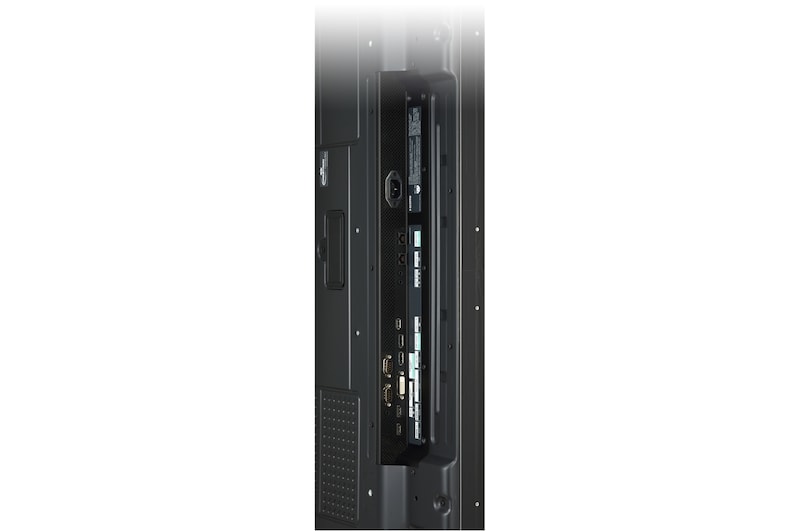

CONNECTIVITY
-
Input
HDMI (2), DP, DVI-D, Audio, USB 2.0
-
Digital
O(2), HDCP2.2
-
USB
O,(2.0)
MECHANICAL SPECIFICATION
-
Bezel Colour
Black
-
Bezel Width
0.9 (top/bottom/left/right even bezel) mm (1.8mm) Penel Bezel + Penel Bezel
-
Monitor Dimension (W × H × D)
1,211.4 x 682.2 x 86.5 mm
-
Weight (Head)
18.6 kg
-
Carton Dimensions (W × H × D)
1,353 x 855 x 263 mm
-
Packed Weight
25.3 kg
-

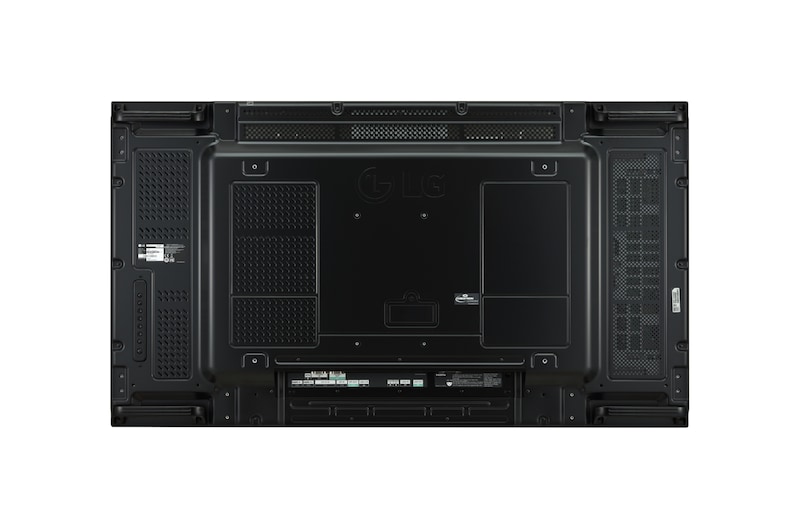

VESA™ Standard Mount Interface
600 x 400 mm
-
Handle
Yes
ENVIRONMENT CONDITIONS
-
Operation Temperature
0°C to 40°C
-
Operation Humidity
10 % to 80 %
KEY FEATURE
-
Internal Memory
8GB(System 4GB + Available 4GB)
-
webOS ver.
webOS 4.0
-

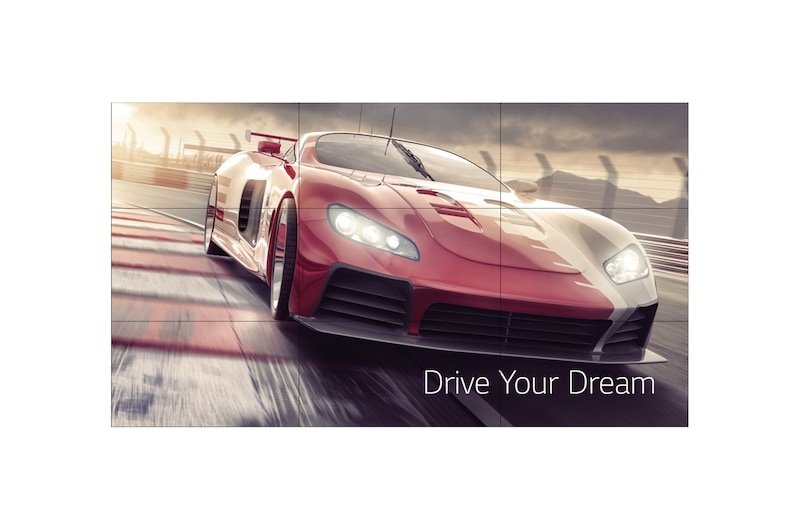

Tile Mode
Yes(up to 15x15)
-
Source Selection
RGB, HDMI1, HDMI2, DVI, DP, OPS, USB
-
ISM Method
Normal, White Wash, Color Wash, User image, (User video, Inversion, Washing Bar will be supported from '15.9) Scheduling is supported additionally
-
Advanced
Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma
-
Time
Clock, On/Off Timer, Auto Off, Automatic Standby
-
Input Label
O (PC/DTV)
-
Power on Status
Standby, PWR, LST
-
DPM wake up
Clock / Clock+Data selectable
-
Energy Saving
O (Minimum, Medium, Maxium, Screen off)
-
Contents scheduling
USB, Internal memory
-
USB Colning
Logo image download, Sent to USB, Receive from USB
-
Sync mode
Time sync, Content sync, Network sync
-
Limited mode(OSD, settings Locking)
O (USB, IR, OSD)
-
Power on Delay
0 ~ 250
-
Content Rotation
OFF, 90, 180, 270
-
OSD Portrait Mode
OFF, 90, 180, 270
-
Configuration Setup
USB auto Playback
-
Lock Mode
Home Dashboard, USB, OSD, IR Operation, Local Key
-
Fail over
USB, RGB, DP, DVI, HDMI1, HDMI2,OPS Internal Memory
-
SuperSign Server Setup
SIgnage name, Server IP setting, Server IP Status
-
SetID Setup
Manual, Auto
POWER
-
Power Supply
100-240V~, 50/60Hz
-
Power Switch
No
-
Power Type
Built-In Power
POWER CONSUMPTION
-
Typ.
160 W
CERTIFICATION
-
Safety
CB / NRTL
-
EMC
FCC Class "A" / CE / KC
-
ErP / Energy Star
Yes(EU Only) / Energy Star 8.0
-
ePEAT(US only)
NA
MEDIA PLAYER COMPATIBILITY
-
OPS type compatible
Yes (Piggyback)
SOFTWARE COMPATIBILITY
-
Content Management Software
SuperSign CMS
-
Control and Monitoring Software
SuperSign Control/Control+
LANGUAGE
-
OSD
English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic
-
Basic
Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
-
Manual
English, French, Italian, German, Spanish, Portugues, Hungarian, Greek, Russian, Ukrainian, Polish, Arabic, Indonesian, Korean, Turkish, Czech, Slovak, Taiwanese, Danish, Norwegian, Swedish, Finnish, Uzbekistan
-
Optional
Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V), OPS Kit (KT-OPSF)
