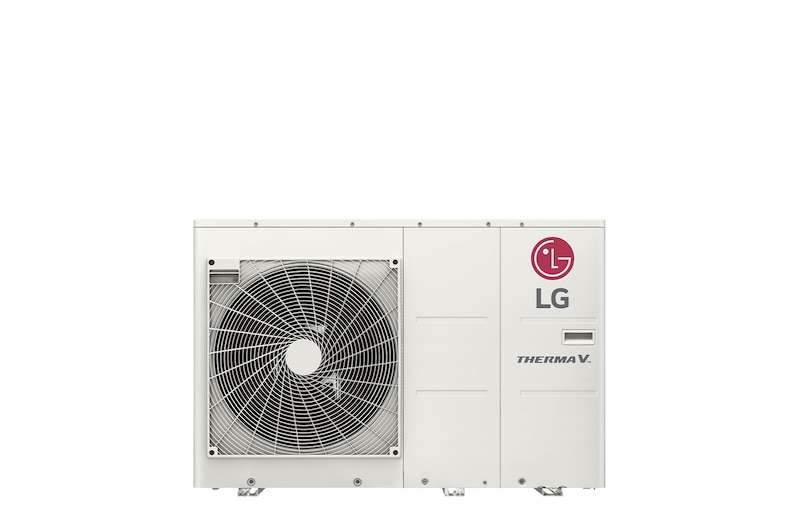

R32 Monobloc S, 1Ø, 5kW
Key Features
All-in-one outdoor unit includes all hydronic components in a package, ensuring space-efficiency and simplified installation.
Wide operation range ensures remarkable heating performance even in an extremely cold weather.
Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas.
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A++
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
175 / 125
SCOP (35℃ / 55℃)
4.46 / 3.20
Heating capacity (kW)
5.50
COP
4.70
Heating capacity (kW)
4.40
COP
3.60
Heating capacity (kW)
5.50
COP
2.70
Cooling capacity (kW)
5.50
EER
4.70
Cooling capacity (kW)
5.50
EER
3.30
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating (Min. ~ Max.) (℃)
15 ~ 65
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Type
R32
GWP
675
Precharged amount (g)
1,400
Inlet diameter (inch)
Male PT 1"
Outlet diameter (inch)
Male PT 1"
Rated / low noise mode (dB(A))
57 / 54
Rated / low noise mode (dB(A))
49 / 46
Rated / low noise mode (dB(A))
35 / 32
W × H × D (mm)
1,239 × 834 × 330
Empty (kg)
89.5
Color
Warm gray
RAL code
RAL 7044
Voltage, phase, frequency (V, Ø, Hz)
220-240, 1, 50
