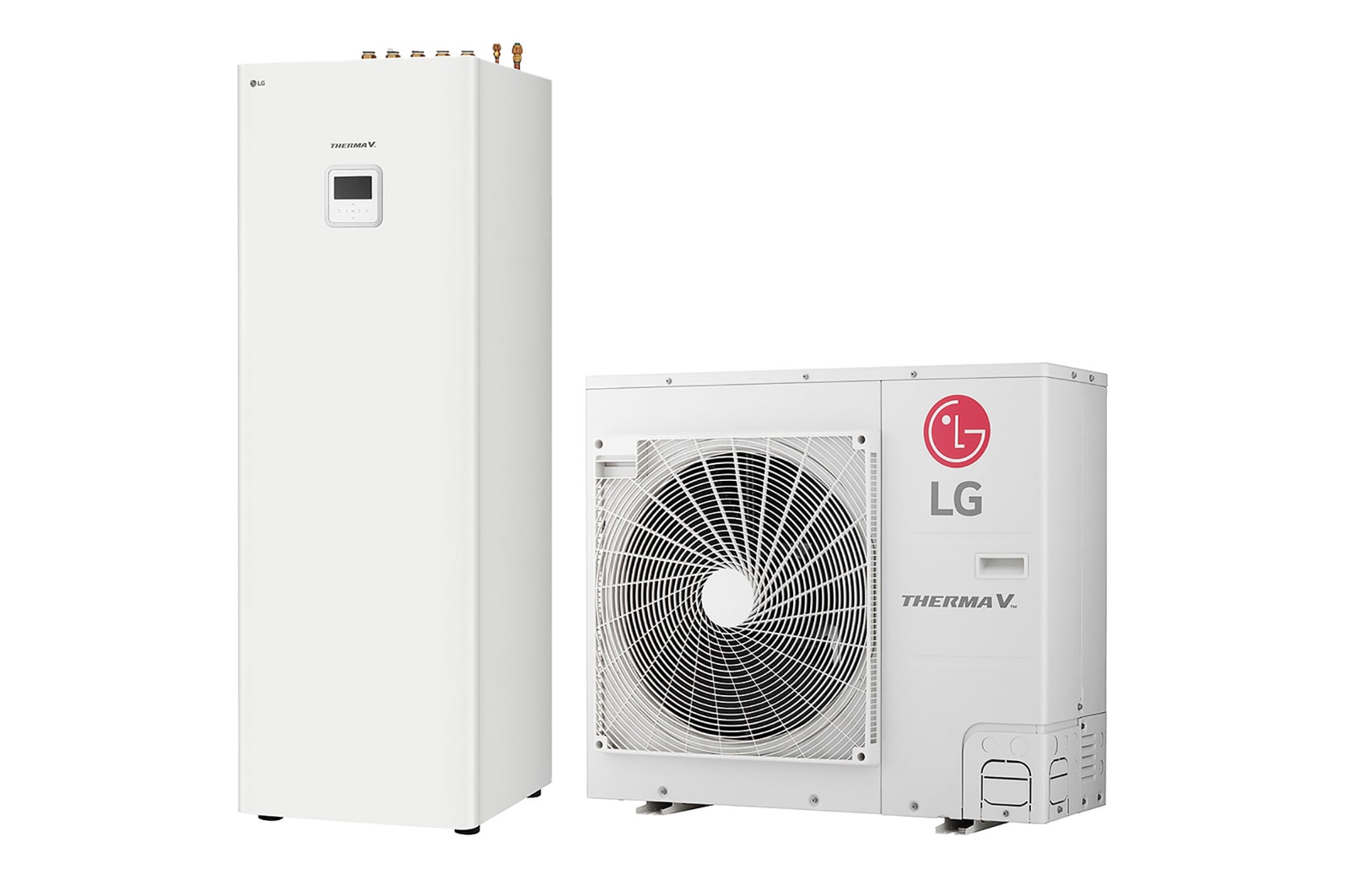

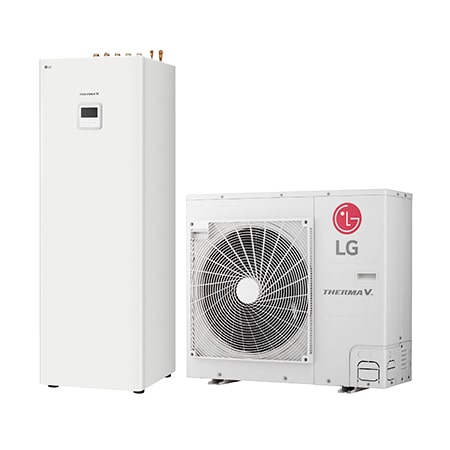

R32 Split 5/7/9 kW IWT, 1Ø, 5kW
Key Features
Refrigerant pipe to cold ensures no potential risk of pipe freezing even during prolonged blackouts.
Wide operation range ensures remarkable heating performance even in an extremely cold weather.
Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas.
Voltage, phase, frequency (V, Ø, Hz)
220-240, 1, 50
Indoor unit (W × H × D) (mm)
600 × 1,750 × 660
Outdoor unit (W × H × D) (mm)
950 × 834 × 330
Indoor unit (Empty) (kg)
118.0
Outdoor unit (Empty) (kg)
60.0
Indoor unit (Color / RAL code)
White / RAL 9016
Outdoor unit (Color / RAL code)
Warm gray / RAL 7044
Type
R32
GWP
675
Precharged amount (g)
1,500
Rated / low noise mode (dB(A))
60 / 58
COP
3.52
Heating capacity (kW)
3.30
COP
4.90
Heating capacity (kW)
5.50
COP
2.70
Heating capacity (kW)
5.50
Cooling capacity (kW)
5.50
EER
4.60
Cooling capacity (kW)
5.50
EER
2.80
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Heating (Min. ~ Max.) (℃)
15 ~ 65
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
Gas (mm (inch))
Ø 15.88 (5/8)
Length standard / Max. (m)
5 / 50
Level difference Max. (m)
30
Liquid (mm (inch))
Ø 9.52 (3/8)
Mass of additional ref. charge (g/m)
40
Max. length without additional charge (m)
10
Inlet diameter for DHW (inch)
Female G1"
Inlet diameter for space heating (inch)
Female G1"
Outlet diameter for DHW (inch)
Female G1"
Outlet diameter for space heating (inch)
Female G1"
SCOP (35℃ / 55℃)
4.65 / 3.23
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
183 / 126
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A++
Rated (dB(A))
42
Rated (dB(A))
34
Rated / low noise mode (dB(A))
38 / 36
COPDHW, average climate
3.15
Declared load profile, average climate
L
Water heating efficiency (ηWH), average climate
133
Water heating eff. class, average climate
A+
