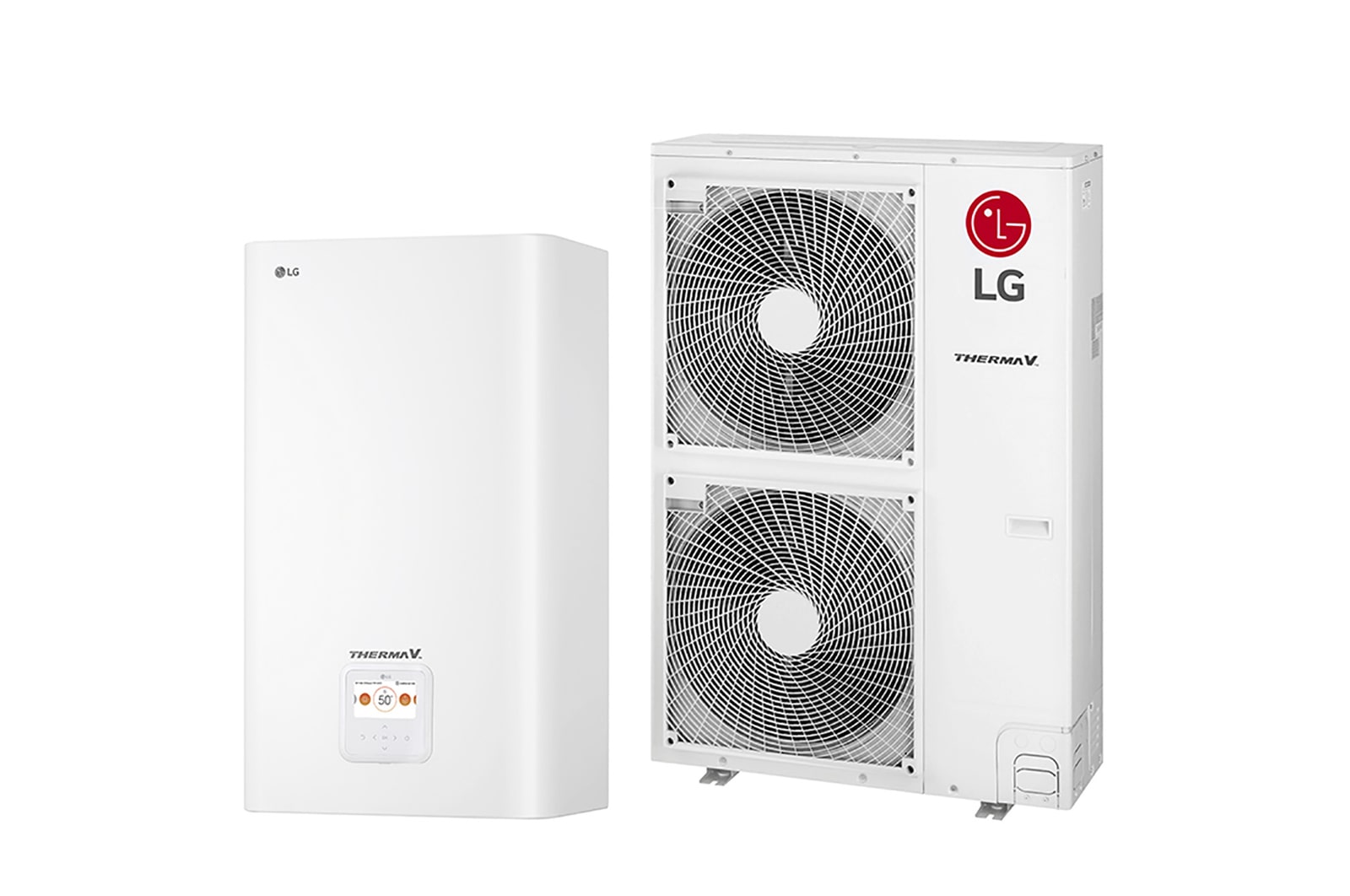

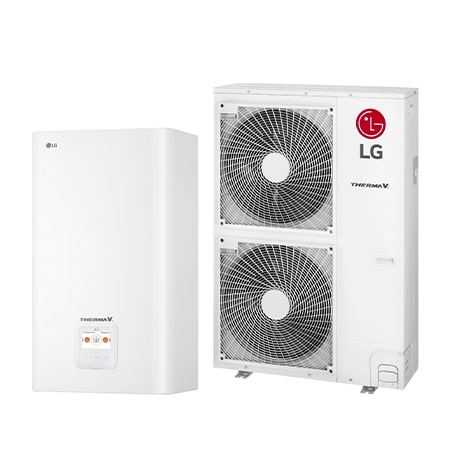

R410A Split Hydro Box, 3Ø, 16kW
Key Features
Refrigerant pipe robust to cold ensures no potential risk of pipe freezing even during prolonged blackouts.
Wide operation range ensures remarkable heating performance even in an extremely cold weather.
Noise reduction technology provides quieter and more comfortable experience, increasing installation flexibility in urban areas.
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A++
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
179 / 130
SCOP (35℃ / 55℃)
4.56 / 3.32
Heating capacity (kW)
16.00
COP
4.26
Heating capacity (kW)
13.80
COP
3.60
Heating capacity (kW)
12.00
COP
2.55
Cooling capacity (kW)
13.00
EER
3.61
Cooling capacity (kW)
8.92
EER
3.53
Heating & DHW (Min. ~ Max.) (℃)
-25 ~ 35
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating (Min. ~ Max.) (℃)
5 ~ 48
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Type
R410A
GWP
2,088
Precharged amount (g)
2,500
Gas (mm (inch))
Ø 15.88 (5/8)
Length standard / Max. (m)
7.5 / 30
Level difference Max. (m)
30
Liquid (mm (inch))
Ø 9.52 (3/8)
Mass of additional ref. charge (g/m)
40
Max. length without additional charge (m)
7.5
Inlet diameter for space heating (inch)
Male PT 1"
Outlet diameter for space heating (inch)
Male PT 1"
Rated / low noise mode (dB(A))
65 / 63
Rated (dB(A))
44
Rated / low noise mode (dB(A))
43 / 41
Rated (dB(A))
36
Outdoor unit (W × H × D) (mm)
950 x 1,380 x 330
Indoor unit (W × H × D) (mm)
490 × 850 × 315
Outdoor unit (Empty) (kg)
85.4
Indoor unit (Empty) (kg)
41.5
Outdoor unit (Color / RAL code)
Warm gray / RAL 7044
Indoor unit (Color / RAL code)
Noble white / RAL 9016
Voltage, phase, frequency (V, Ø, Hz)
380-415, 3, 50
