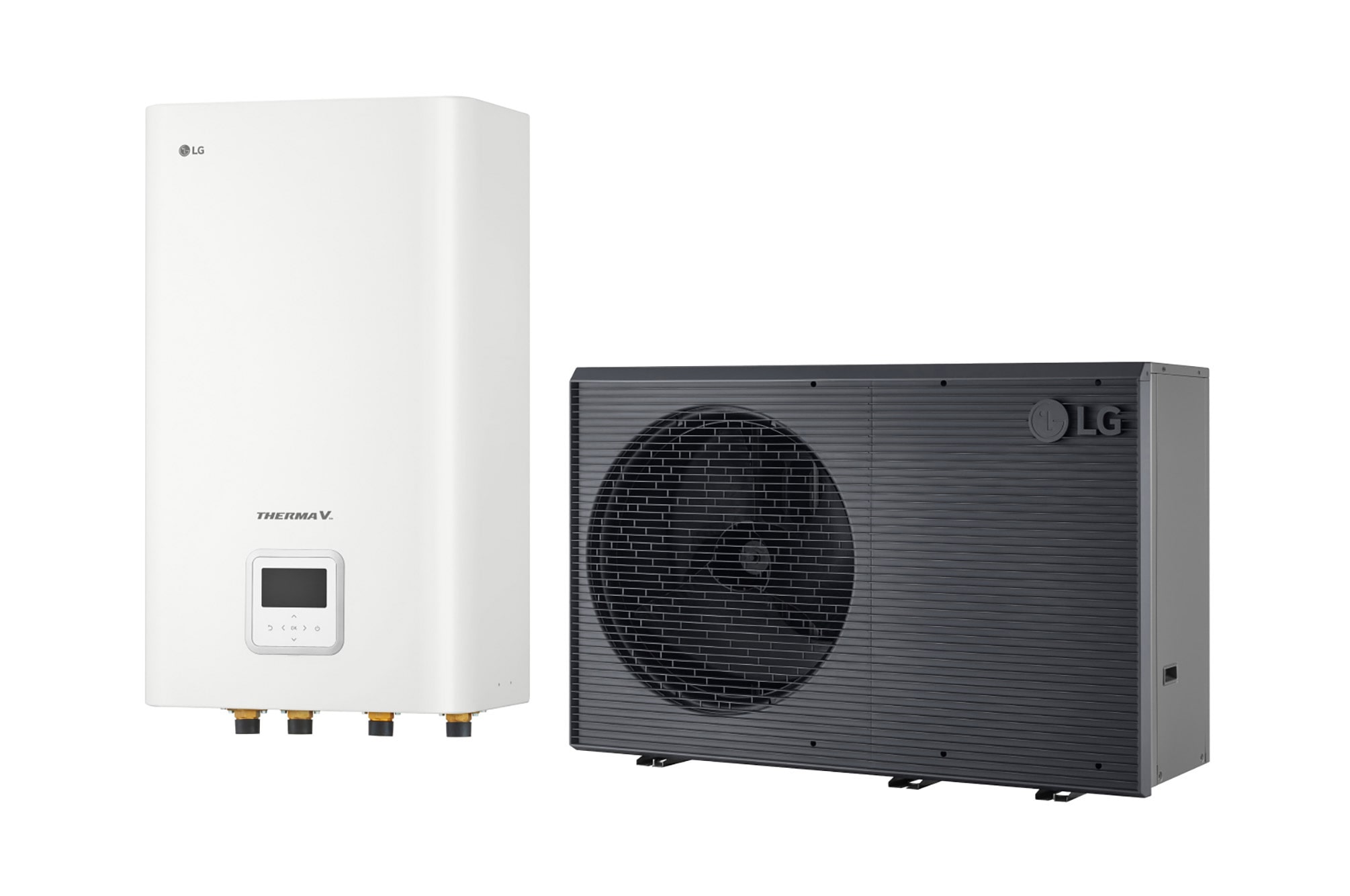

R290 Monobloc Hydro Unit, 3Ø, 12kW
R290 Monobloc prioritizes high reliability. With anti-icing and deicing technologies, it is optimized for safe operation. The new design with refined grey blends in well with environment.
R290 Monobloc can generate a water flow of up to 75°C. It also operates at temperatures as low as -28°C. Powered by nature, it ensures sustainable heating with an A+++ energy rating.*
Enjoy calmness as you keep your home warm. R290 Monobloc heats home with outstanding noise reduction technologies. It maintains a low sound power level of 49 dB(A)@12 kW at maximum performance.*
Configuring LG BECON cloud with R290 Monobloc offers various remote capabilities. Installers and service partners are able to perform setting, monitoring and firmware update without on-site visits.*
* All tests were conducted according to LG's internal test policy and environment.
* Product’s lifecycle might vary depends on actual usage environment.
* LG BECON cloud service availability can be varied by each country.
Seasonal space heating eff. class (35℃ / 55℃)
A+++/A+++
Seasonal space heating efficiency (ηS) (35℃ / 55℃)
215 / 156
SCOP (35℃ / 55℃)
5.45 / 3.97
Heating capacity (kW)
12.00
COP
4.70
Heating capacity (kW)
12.00
COP
3.72
Heating capacity (kW)
11.80
COP
3.27
Heating capacity (kW)
10.00
COP
3.10
Heating capacity (kW)
9.30
COP
2.32
Cooling capacity (kW)
11.50
EER
3.78
Cooling capacity (kW)
10.50
EER
3.12
Heating & DHW (Min. ~ Max.) (℃)
-28 ~ 35
Cooling (Min. ~ Max.) (℃)
5 ~ 48
Heating (Min. ~ Max.) (℃)
15 ~ 75
Cooling (Min. ~ Max.) (℃)
5 ~ 27
DHW (Min. ~ Max.) (℃)
15 ~ 80
Type
R290
GWP
3
Precharged amount (g)
1,200
Inlet diameter (inch)
Male PT 1"
Outlet diameter (inch)
Male PT 1"
Inlet/outlet diameter for ODU connection (inch)
Male PT 1"
Inlet/outlet diameter for space heating (inch)
Male PT 1"
Rated (dB(A))
39
Rated / low noise mode (dB(A))
49 / 48
Rated / low noise mode (dB(A))
27 / 26
Rated (dB(A))
31
Outdoor unit (W × H × D) (mm)
1,560 x 1,019 x 520
Indoor unit (W × H × D) (mm)
490 x 850 x 315
Outdoor unit (Empty) (kg)
181.0
Indoor unit (Empty) (kg)
31.0
Color of outdoor unit chassis (Color / RAL code)
Dawn gray / RAL 7037
Color of outdoor unit front grille (Color / RAL code)
Dark dawn gray / RAL 7012
Indoor unit (Color / RAL code)
Noble white / RAL 9016
Voltage, phase, frequency for outdoor unit (V, Ø, Hz)
380 ~ 415, 3, 50
Voltage, phase, frequency for indoor unit (V, Ø, Hz)
220 ~ 240, 1, 50
