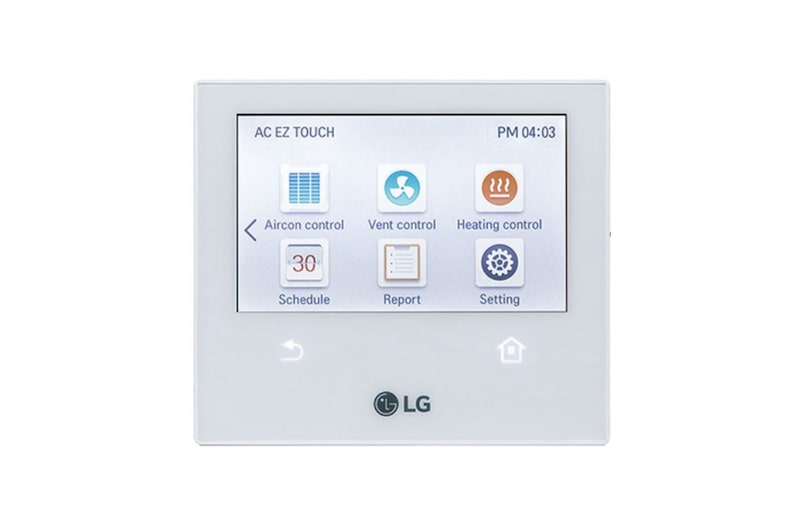

Smart management with a 5-inch touch screen for a small sites,
which can manage up to 64 units.
Operational status statistics (time, energy consumption) are
provided to aid in making smart operational decisions.
The user can control each indoor unit individually or in groups by
simply clicking the desired unit(s) on the check screen.
Schedule controls provide the ability to set events in advance, maximising system performance.
In addition, by blocking unnecessary function, it prevents energy from being wasted.
Size (W x H x D, mm)
137 x 121 x 25
Interfaceable Products
MULTI V / ERV / ERV DX / Hydro Kit / THERMA V
Individual / Group Control
On & Off / Mode / Temperature / Fan speed
Individual Controller Lock
Temperature / Mode / Fan speed / All
Error Check
O
Slave Mode (Interlocking with higher level controller)
O
Schedule
Weekly / Monthly / Yearly / Exception day
Remote Access
By client S/W (Neither Android nor IOS are supported)
Emergency Stop & Alarm Display
O
Power Consumption Monitoring (with PDI)
O
Auto Changeover / Setback
O
Temperature Limit
O
Operation History
Error record
Air Purify Control
O
Air Quality Level
O
ODU Low Noisesup1)/sup
O
Daylight Saving Time
O
External IO Port
DI 1
IPv6 Support
O
Type
Central Controller
