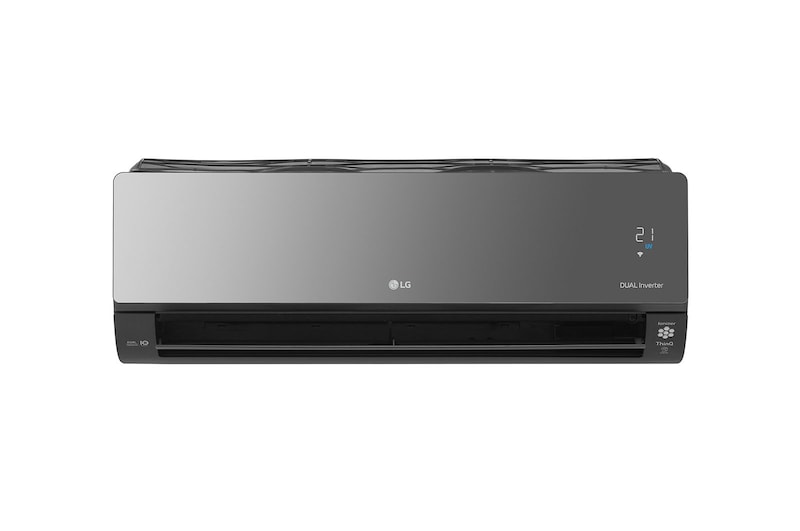

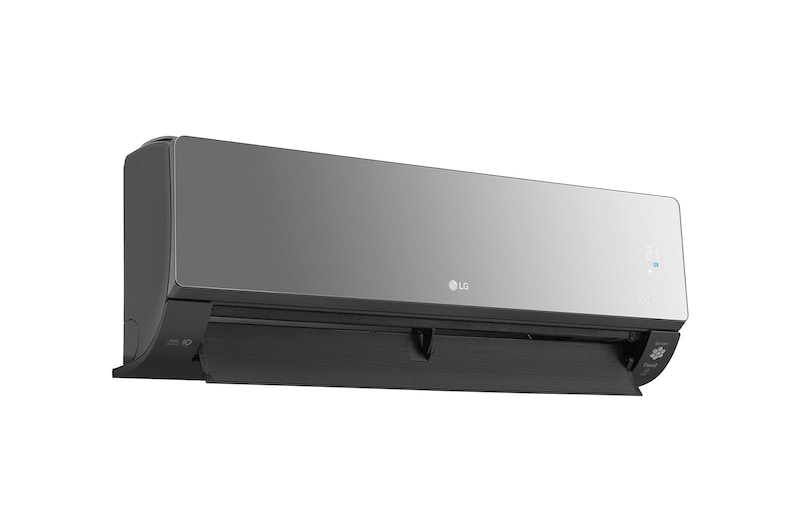

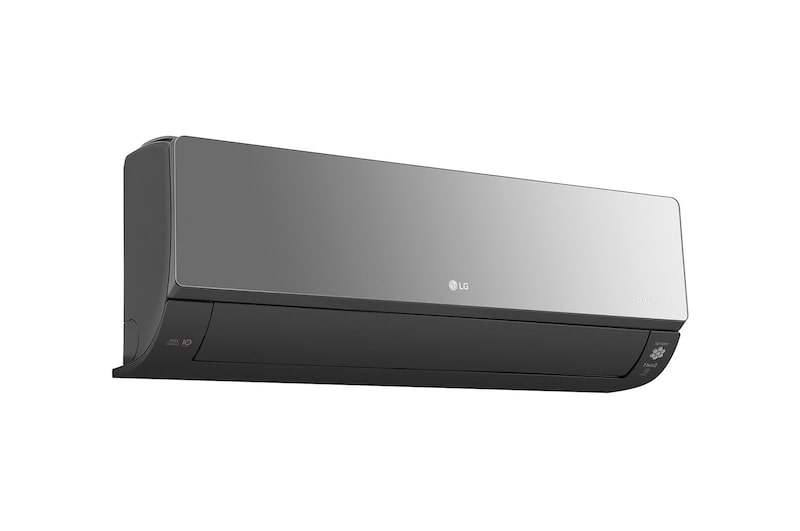

6.6kW ARTCOOL MIRROR Wall Mounted Air Conditioner DUAL Inverter
6.6kW ARTCOOL MIRROR Wall Mounted Air Conditioner DUAL Inverter
*According to LG internal test, LG DUAL Inverter air conditioner is less than 19dBA. (Model - V10API)
*Safe Plus Pre-Filter contains antibacterial properties(Zinc oxide).
Smart Control, Smarter Life
Simple Control with Voice Assistant
Connect and Control from Anywhere
Efficient Product Maintenance
*Google and Google Home are trademarks of Google LLC. *Amazon, Alexa, Echo and all related logos and motion marks are trademarks of Amazon.com, Inc or its affiliates.
*LG SmartThinQ is now renamed as LG ThinQ. *Smart features and voice assistant product may vary by country and model. Check with your local retailer or LG for service availability.
*Voice-enabled smart speaker device is not included.
Quick and Easy Installation
A More Comfortable Sleeping Environment

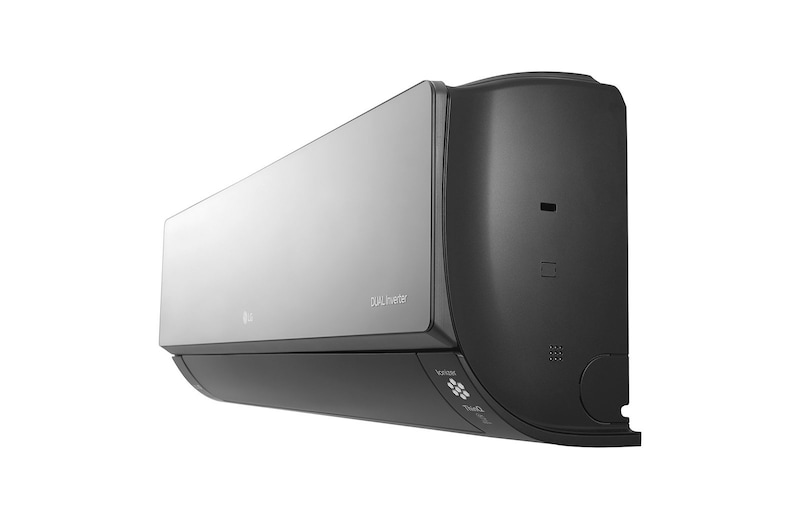

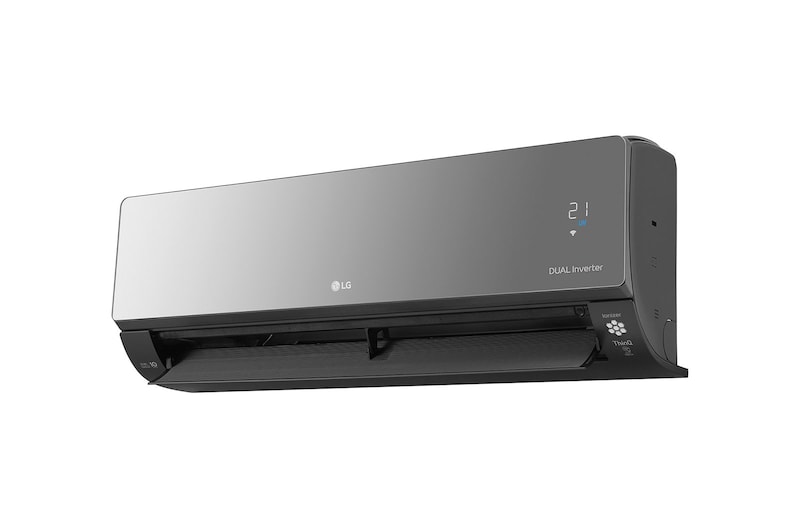

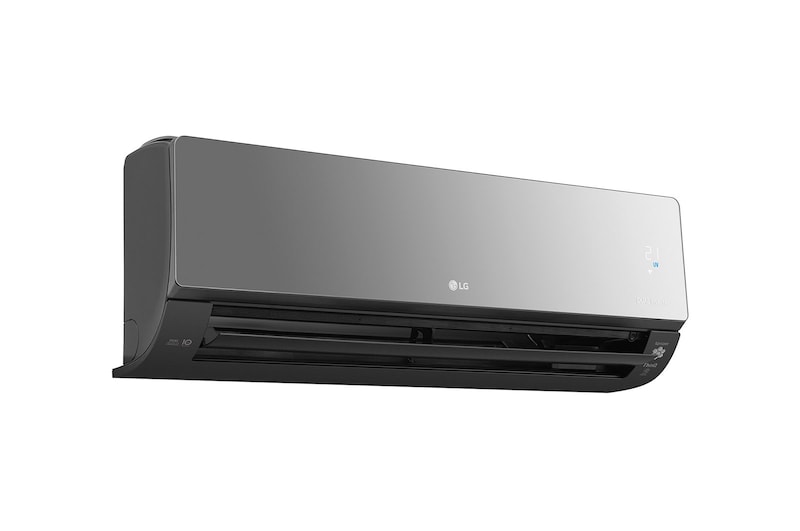

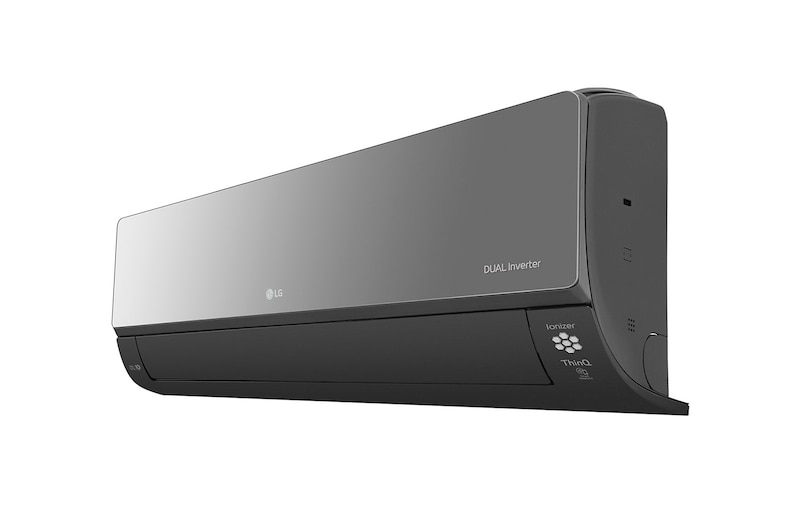

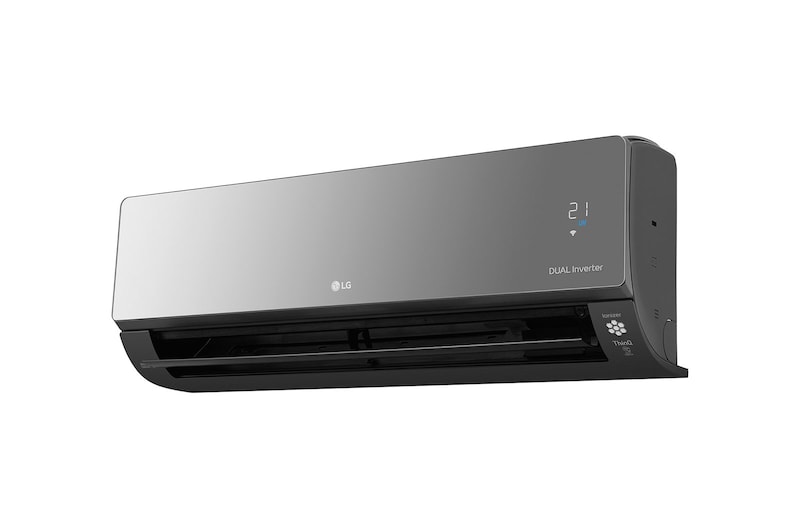

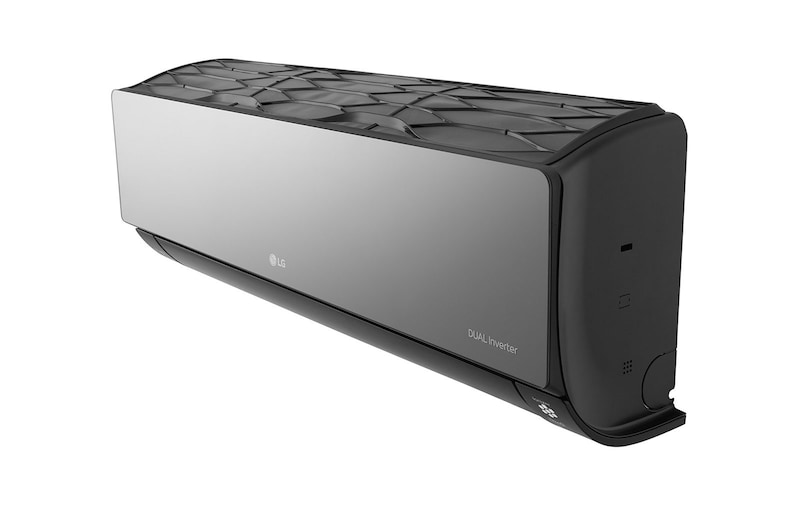

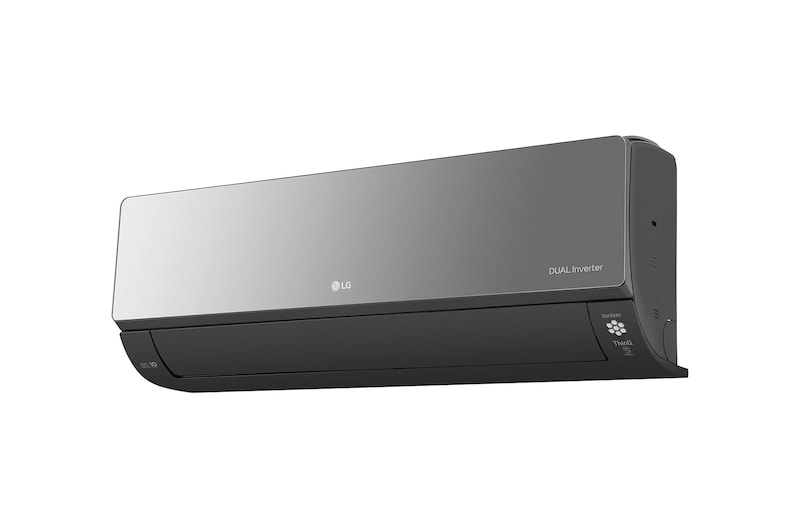

Gallery
Summary
DIMENSIONS
All Spec
CAPACITY
-
Cooling - Min / Rated / Max (kW)
0.9 / 6.6 / 7.42
-
Heating - Min / Rated / Max (kW)
0.9 / 7.5 / 8.64
-
Heating -7°C - Rated (W)
6000
POWER INPUT
-
Cooling - Rated (W)
2164
-
Heating - Rated (W)
2238
EER
-
EER - W/W
3.05
S.E.E.R.
-
S.E.E.R - W/W
6.90
P DESIGN C
-
P design C (kW)
6.6
COP
-
COP - W/W
3.35
S.C.O.P
-
S.C.O.P - Average / Warmer (kW)
4.3 / 5.3
P DESIGN H
-
P design H - Average / Warmer (kW)
5.0 / 2.7
ENERGY LABEL(A+++ TO D SCALE)
-
Cooling
A++
-
Heating - Average / Warmer
A+ / A+++
ANNUAL ENERGY CONSUMPTION
-
Cooling (kWh)
335
-
Heating - Average / Warmer (kWh)
1628 / 713
SOUND PRESSURE
-
Cooling - S / L / M / H dB(A)
31 / 34 / 42 / 47
-
Heating - L / M / H dB(A)
34 / 42 / 47
SOUND POWER
-
Cooling - Power dB(A)
65
AIR FLOW RATE
-
Cooling - S / L / M/ H (m3/min)
8.0 / 10.5 / 13.1 / 16.1
-
Cooling - Max (Power) (m3/min)
20.0
-
Heating - L / M / H (m3/min)
10.5 / 13.1 / 16.1
DEHUMIDIFICATION RATE
-
Dehumidification Rate (l/h)
2.5
RUNNING CURRENT
-
Cooling - Min / Rated / Max (A)
? / 9.8 / 14.0
-
Heating - Min / Rated / Max (A)
? / 10.4 / 14.0
STARTING CURRENT
-
Cooling / Heating - Rated (A)
9.8 / 10.4
POWER SUPPLY
-
Power Supply (Ø / V / Hz)
1/220-240/50
CIRCUIT BREAKER
-
Circuit Breaker (A)
25
POWER SUPPLY CABLE
-
Power Supply Cable (N x mm2)
3 x 2.5
POWER & TRANSMISSION CABLE
-
Power & Transmission Cable (N x mm2)
4 x 1.0 (Including Earth)
DIMENSION
-
Dimension (mm)
998 X 345 X 212
NET WEIGHT
-
Net Weight (kg)
13.5
FAN MOTOR OUTPUT
-
Fan Motor Output (W)
60
