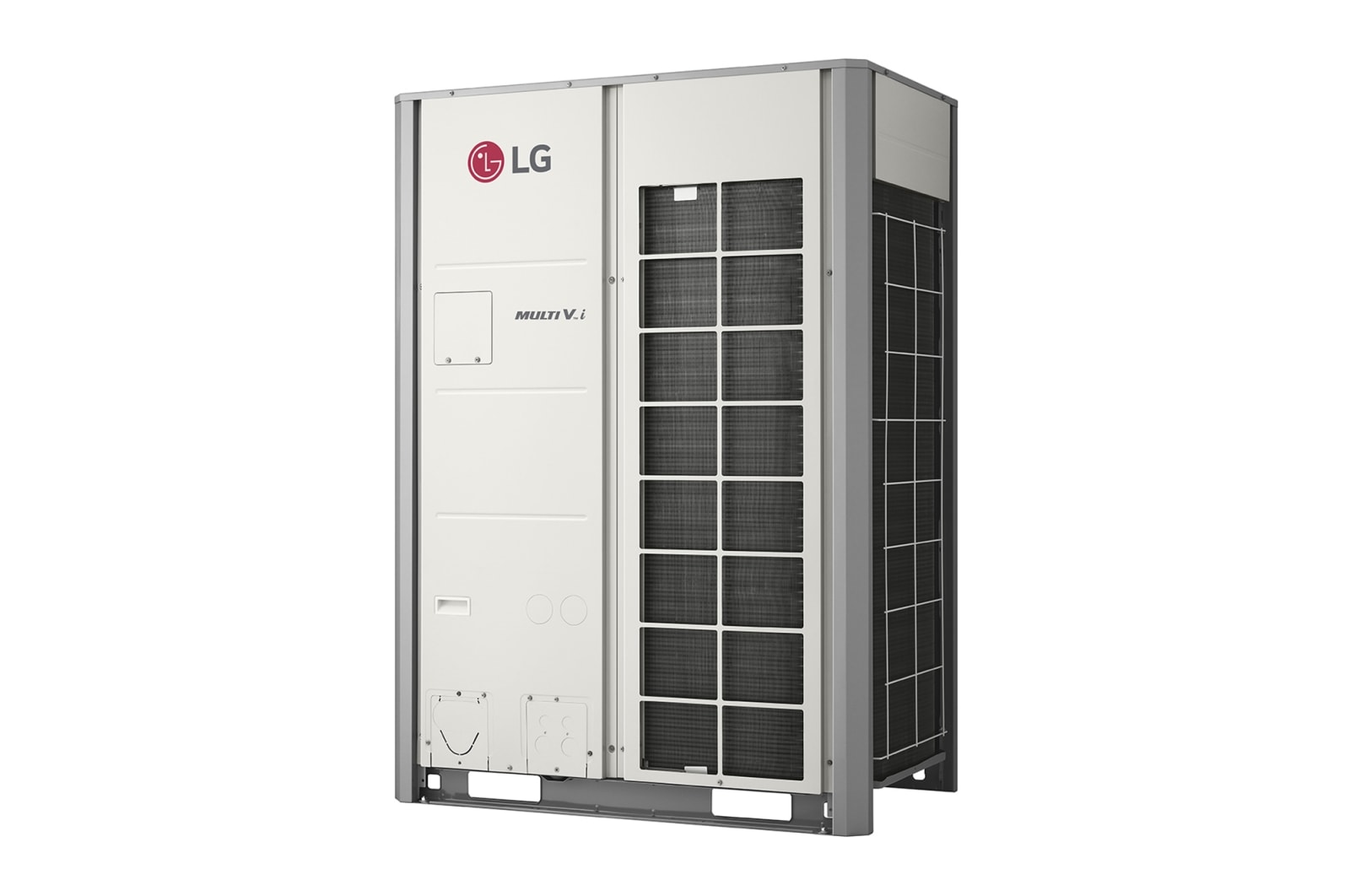

MULTI V i, Outdoor Unit, 16HP, R410A
Key Features
Multi V i can provide energy-efficient and stable indoor conditions even in unexpectedly extreme environments. More reliable cooling operation is up to 52°C, and performance is reached to remarkable working at 45°C. Also, more reliable heating operation is provided at down to -30°C and excellent performance at -10°C.
If a specific system target power is set with Multi V i, the AI engine predicts the power consumption and automatically controls the temperature to achieve the target power amount. By easily managing energy through AI energy management, overuse of the HVAC system operational costs can be prevented.
The expandable control system can be interlocked with sensors and facilities of building, as well as air conditioners. It makes building management smart by setting up logic optimised for the site.
#1
50 Hz 380-415 V 3N~
#2
60 Hz 380 V 3N~
Rated (kW)
44.8
Rated (kW)
44.8
Max (kW)
50.4
Max (Btu/h)
172000
Rated (kW)
15.45
Rated (kW)
10.09
EER(Rated) (W/W)
2.90
COP(Rated) (W/W)
4.44
SEER (Wh/Wh)
7.97
SCOP (Wh/Wh)
5.46
Pdesign(@-10℃, Heating) (kW)
23.2
Type
Propeller fan
Discharge direction(Side / Top)
Top
Air Flow Rate(High) (m³/min x No.)
320 x 1
Drive
Direct
Output (W x No.)
900 x 2
Type (kg)
Hermetically Sealed Scroll
Motor Output (W x No.)
5,300 x 1
Starting Method
Inverter
Oil Type
FW68L(PVE)
Piston Displacement (cm³/rev)
62.1
Fin Type
Wide Louver Plus
Net(W x H x D) (mm)
1240 x 1745 x 760
Shipping(W x H x D) (mm)
1282 x 1919 x 802
Net (kg)
255
Shipping (kg)
265
Color
Morning Gray / Dawn Gray
RAL (Classic)
RAL 7038 / RAL 7037
Type
R410A
Precharged amount (kg)
13.0
GWP(Global Warming Potential)
2,087.5
t-CO₂ eq.
27.138
Control Type
EEV
Liquid (mm(inch))
Φ12.7 (1/2)
Gas (mm(inch))
Φ28.58 (1-1/8)
Low Pressure Gas (Heat Recovery) (mm(inch))
Φ28.58 (1-1/8)
High Pressure Gas (Heat Recovery) (mm(inch))
Φ22.2 (7/8)
Max. (Conditional) (EA)
26(40)
Cooling / Heating (dB(A))
60.5 / 61.5
Cooling / Heating (dB(A))
85 / 85
Communication Cable(VCTF-SB) (mm² × cores)
0.75 ~ 1.5 x 2C
