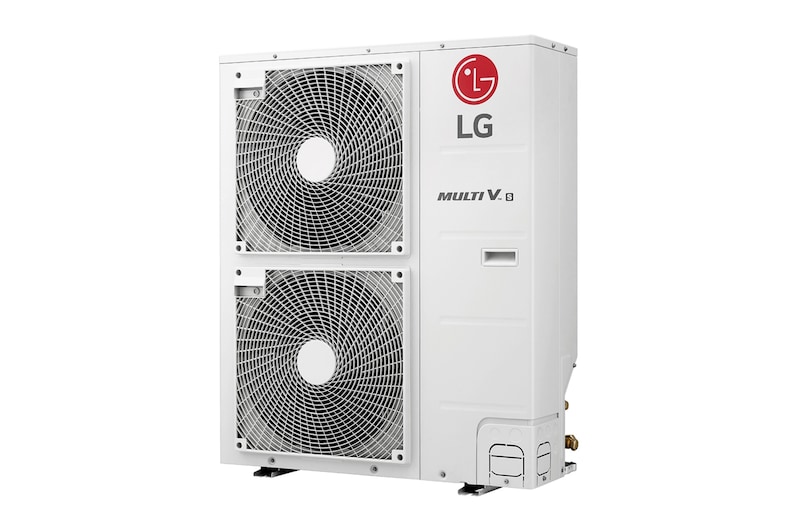

MULTI V S, Outdoor Unit, 4HP, R410A
In order to save operation energy consumption, it automatically controls the refrigerant temperature according to the outdoor temperature.
Efficiency is improved according to different heat exchanger paths for cooling and heating with the use of the Variable Heat Exchanger Circuit, which intelligently selects the optimal path.
Multi V S improved reliability by adopting a large volume accumulator. Reliability is enhanced by reducing the pressure drop due to the high efficiency spiral structure and by doubling the size.
The equipment size has been reduced, which creates savings in the purchase value, as well as the cost of installation and maintenance.
#1
50 Hz(Гц) 380-415 V(B) 3N~
Rated (kW)
12.1
Rated (kW)
12.5
Type (kg)
BLDC Inverter Twin Rotary
Motor Output (W x No.)
4000 x 1
Starting Method
Inverter
Oil Type
FW68D(PVE)
Piston Displacement (cm³/rev)
44.2
Rated (kW)
3.39
Rated (kW)
2.75
EER(Rated) (W/W)
3.57
COP(Rated) (W/W)
4.55
SEER (Wh/Wh)
7.42
SCOP (Wh/Wh)
4.30
Pdesign(@-10℃, Heating) (kW)
8.0
Type
Axial Flow fan
Discharge direction(Side / Top)
Side
Air Flow Rate(High) (m³/min x No.)
110
Drive
DC Inverter
Output (W x No.)
124x2
Fin Type
Wide Louver Plus
Net(W x H x D) (mm)
950 x 1380 x 330
Shipping(W x H x D) (mm)
1140 x 1549 x 466
Net (kg)
96
Shipping (kg)
108
Color
Warm Gray
RAL (Classic)
RAL 7044
Type
R410A
Precharged Amount (kg)
3.0
GWP(Global Warming Potential)
2087.5
t-CO₂ eq.
6.263
Control Type
Electronic Expansion Valve
Liquid (mm(inch))
Φ9.52 (3/8)
Gas (mm(inch))
Φ15.88 (5/8)
Cooling / Heating (dB(A))
50/52
Cooling / Heating (dB(A))
72/76
Max. (Conditional) (EA)
8
Communication Cable(VCTF-SB) (mm² × cores)
1.0~1.5x2
