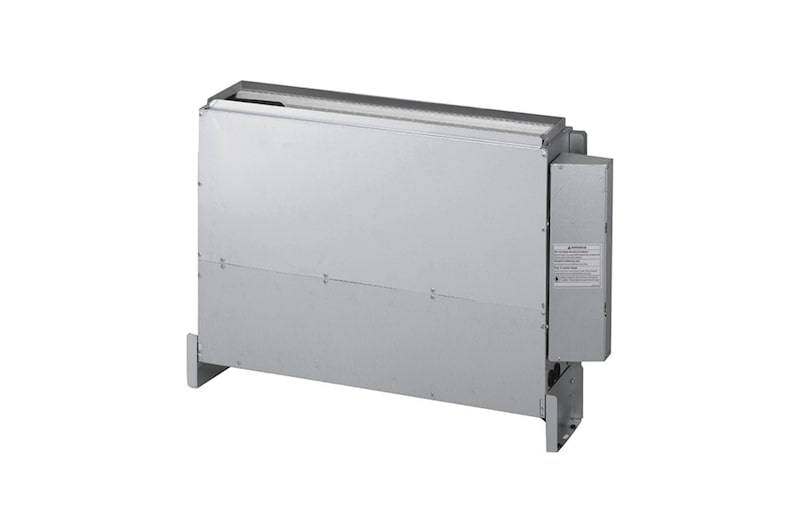

ARNU24GCFU4

Floor Stand, Uncased, 24kBTU

minus 45 degree side view

Wi-Fi Control with ThinQ

Access your air conditioner anytime, anywhere.

Protect Cold Draft

The standing floor unit protects from cold drafts coming through the window and prevents condensation.

3 Way Flexible Piping

The required piping can be installed in three different ways: on the side, in the back, and on the floor.

Sliding Type Filter

Extend your product's lifespan through easy maintenance with the slide-type filter.

All Spec

POWER SUPPLY

  • #1

    50/60 Hz 220-240 V~

INDOOR FAN

  • Air Flow Rate(Cooling,(SH)/H/M/L) (m³/min)

    - / 18.0 / 16.0 / 14.0

SOUND PRESSURE LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 43 / 40 / 37

  • Heating((SH)/H/M/L) (dB(A))

    - / 43 / 40 / 37

SOUND POWER LEVEL (INDOOR UNIT)

  • Cooling((SH)/H/M/L) (dB(A))

    - / 63 / 59 / 57

  • Heating((SH)/H/M/L) (dB(A))

    - / 63 / 59 / 57

PRODUCT

  • Type

    Floor Stand

DIMENSION

  • Net(W x H x D) (mm)

    1256 x 639 x 190

WEIGHT

  • Net (kg)

    25

CONNECTING PIPE

  • Liquid (mm(inch))

    Φ9.52 (3/8)

  • Gas (mm(inch))

    Φ15.88 (5/8)

COOLING CAPACITY

  • Nominal (kW)

    7.10

HEATING CAPACITY

  • Nominal (kW)

    8.00

COMPLIANCE INFORMATION

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
