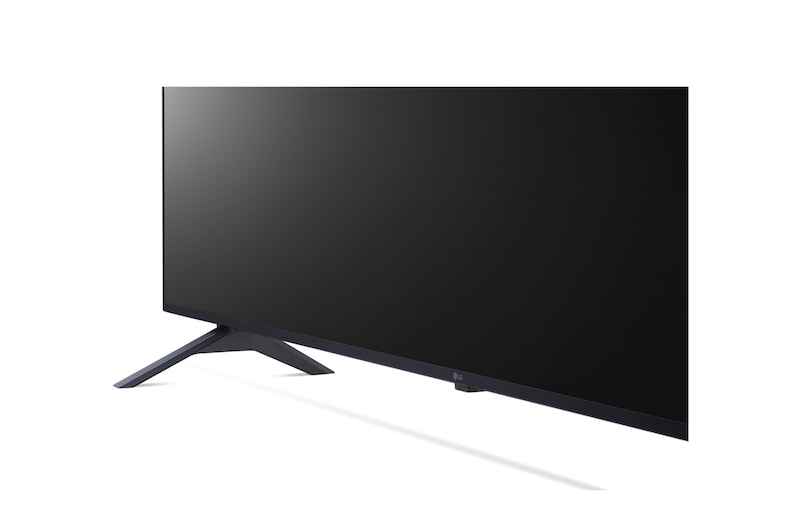

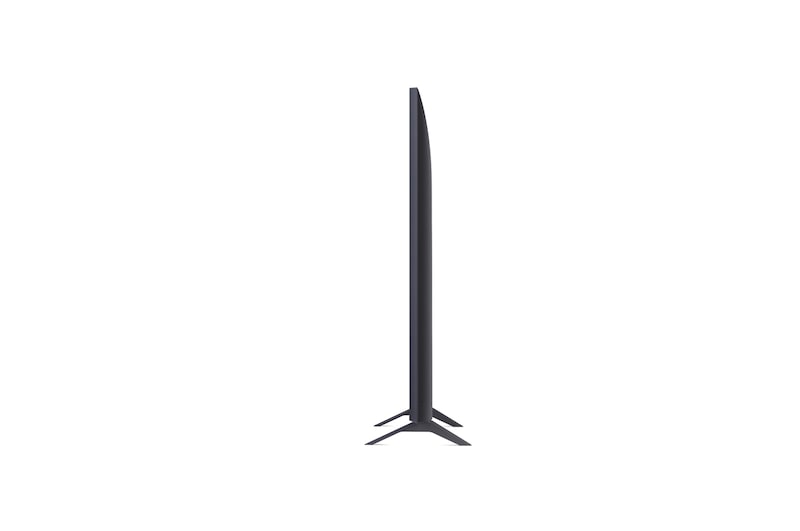

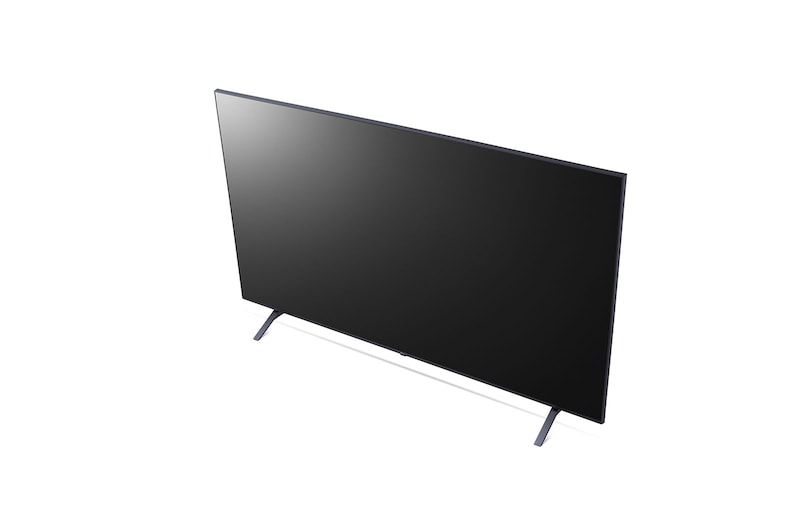

50" UHD TV Signage | 50UN640S0LD

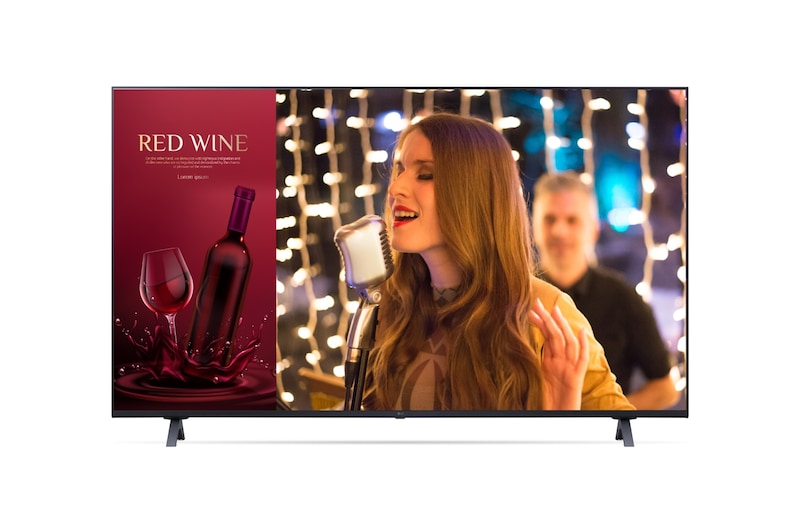

Two displays are installed in the luxurious wine bar. One shows a concert scene, and the other displays two images in one screen showing both a red wine commercial advertisement and a female singer singing.
* All images in this web page are for illustrative purposes only.
LG webOS22, with an upgraded SoC* and web engine, is available on the UN640S series for the easy execution of several tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI.**
High-Performance with<br>LG webOS221
* SoC : System On Chip.
** GUI : Graphical User Interface.
The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.
Set the playlist and the time scheduling with a remote controller easily using display embedded content management function. Group management is supervised in Master display, Group 1, and Group 2 displays.
Multiple Admins may access LG SuperSign CMS via PC, laptop, tablet, and mobile devices to create, regulate, and distribute digital media content tailored to a diverse range of displays.
* LG SuperSign CMS is sold separately.
The store manager is offering coupons to customers via Bluetooth. On the other side, menus are promoted from mirroring a mobile phone screen on a big screen installed on the wall of the store via Wi-Fi. UR640S series is on the wall and a woman is using a personal PC and mobile phone. This image shows that the signage can operate as a virtual router so that the PC and mobile can be connected on the display to get wireless access.
With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.
Content Mirroring among devices is available on a same Wi-Fi network.
UN640S series operates as a virtual router which can be an wireless access point for mobile devices.
The LG employee is remotely monitoring the UR640S series installed in a different place by using cloud-based LG monitoring solution.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
Category
Smart TV Signage
Tool Name
UP8000
Stand Type
2 Pole
Front Colour
Ashed Blue
Size (Inch)
50
Resolution
4K Ultra HD (3,840 x 2,160)
Brightness (Typ.)
400 nit
HDR_HDR 10 Pro
YES
HDR_HLG (Hybrid Log Gamma)
YES
Speaker (Audio Output)
20W
LG Sound Sync
YES
Digital
DVB-T2/C/S2
Analog (NTSC / SECAM / PAL)
SECAM / PAL
Teletext (Auto Teletext)
YES
Safety
CB, CU TR
EMC
CE
webOS version
webOS 22
Web Browser
YES
Mood Display
YES
Wi-Fi
YES
Bluetooth
YES
Soft AP
YES
Screen Share
YES
DIAL
YES
Bluetooth Audio Playback
YES
HDMI-ARC
YES (HDMI2)
The security update is supported for
5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/idproducts
USB Cloning
YES
WOL
YES
SNMP
YES
Diagnostics
YES (Self Diagnostics(USB))
HTNG-CEC (Version)
YES (1.4)
Simplink(HDMI-CEC) (Version)
YES (1.4)
IR Out
YES (RS-232C, HDMI)
Multi IR Code
YES
Hotel Mode / PDM / Installer Menu
YES
Welcome Screen (Splash Image)
YES
Insert Image
YES
One Channel Map
YES
External Speaker Out / Line Out
YES (Ext. Speaker Out)
Port Block
YES
Lock mode
YES (Limited)
RJP (Remote Jack Pack) Compatibility
YES
Energy Saving mode
YES
Vertical Setup
YES
Fail Over
YES
Play Via URL
YES
NTP Server Setting
YES
Crestron Certi. Compatibility
YES
DPM (Digital Power Management)
YES
Time scheduler
YES
RTC (Real Time Clock)
YES
NTP sync timer
YES
BEACON
YES
Embedded CM (Contents Manager)
YES
Embedded GM (Group Manager)
YES
Control / Control Plus
YES
CMS(Premium)
YES
LG Connected Care
YES
HDMI In
YES (3ea)
USB (Ver.)
YES (1ea / 2.0)
RF In
YES (2ea)
Digital Audio Out (Optical)
YES
External Speaker Out(3.5mm Phone jack)
YES
Headphone out
YES
CI Slot
YES (CI+ 1.4 ECP)
RJ45 (Usage Purpose)
1 (LAN)
RS-232C (D-Sub 9pin / Phone jack)
YES (Phone jack)
LG SVC only (Phone jack type)
YES
VESA Compatible
200 x 200 mm
Kensington Lock
YES
Dimension with Stand (W x H x D)
1121 x 708 x 232 mm
Dimension without Stand (W x H x D)
1121 x 651 x 57.1 mm
Dimension in Shipping (W x H x D)
1215 x 775 x 152 mm
Bezel Width (L/R/U/B, On Bezel)
12.8/12.8/12.8/19.9 mm
Bezel Width (L/R/U/B, Off Bezel)
7.3/7.3/7.8/18.4 mm
Weight with Stand
11.9 kg
Weight without Stand
11.7 kg
Weight in Shipping
14.6 kg
Power Supply (Voltage, Hz)
AC 100~240V 50/60Hz
Power Consumption(Max)
135W
Power Consumption(Typ)
112W
Standby Power Consumption
Under 0.5W
ErP Class
A++
On Power Consumption
41W
Luminance Ratio (%)
65
Average Annual Consumption(kWh)
57
SDR Grade
F
SDR On mode
62W
HDR Grade
G
HDR On mode
80W
Remote type
S-Con
Power Cable
YES (1.5M, Detached Straight Type)
