55" UR762H Series TV | 55UR762H3ZC

UK EU
Product Information Sheet
55UR762H3ZC

55" UR762H Series TV | 55UR762H3ZC

(4)

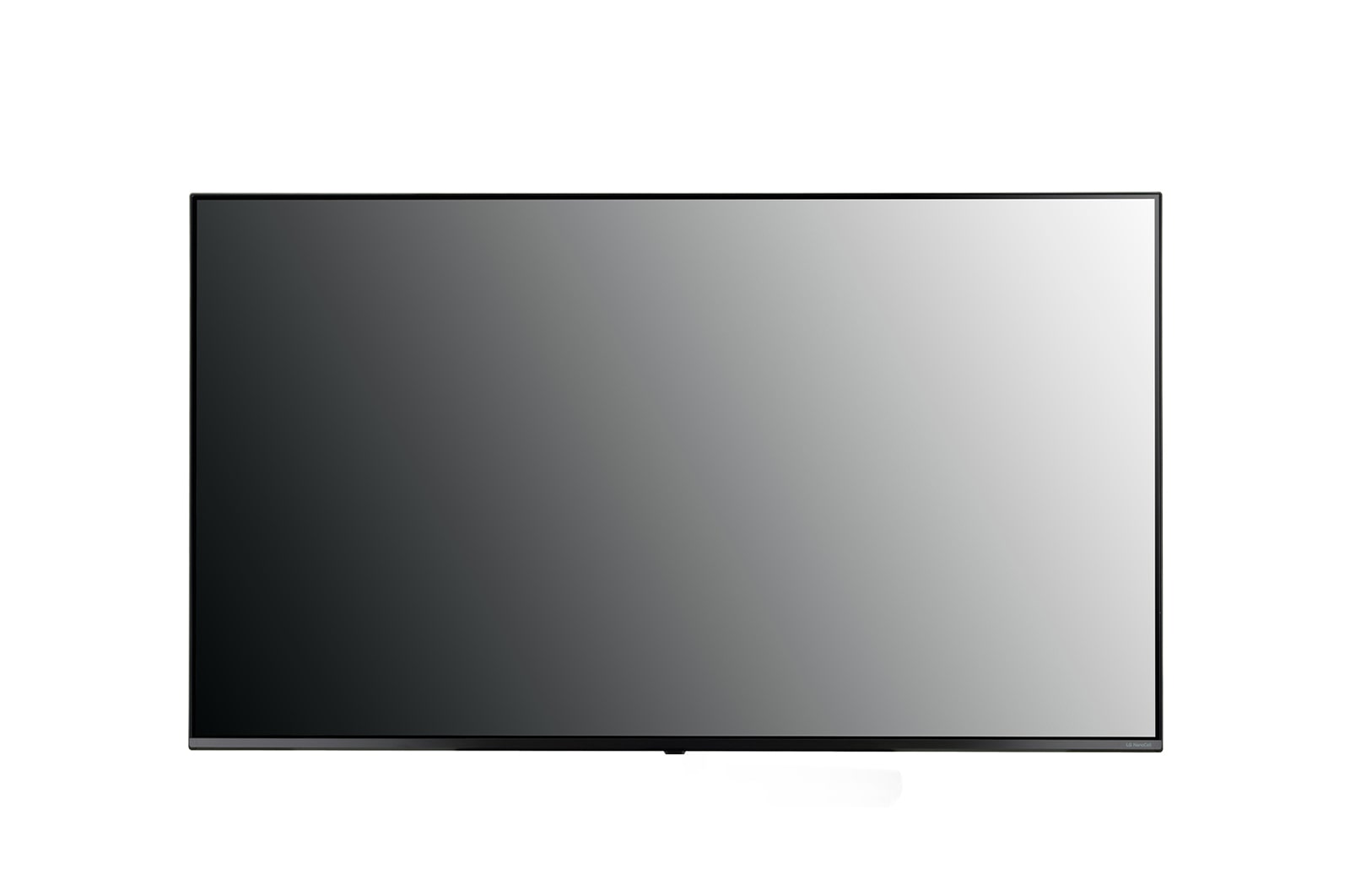

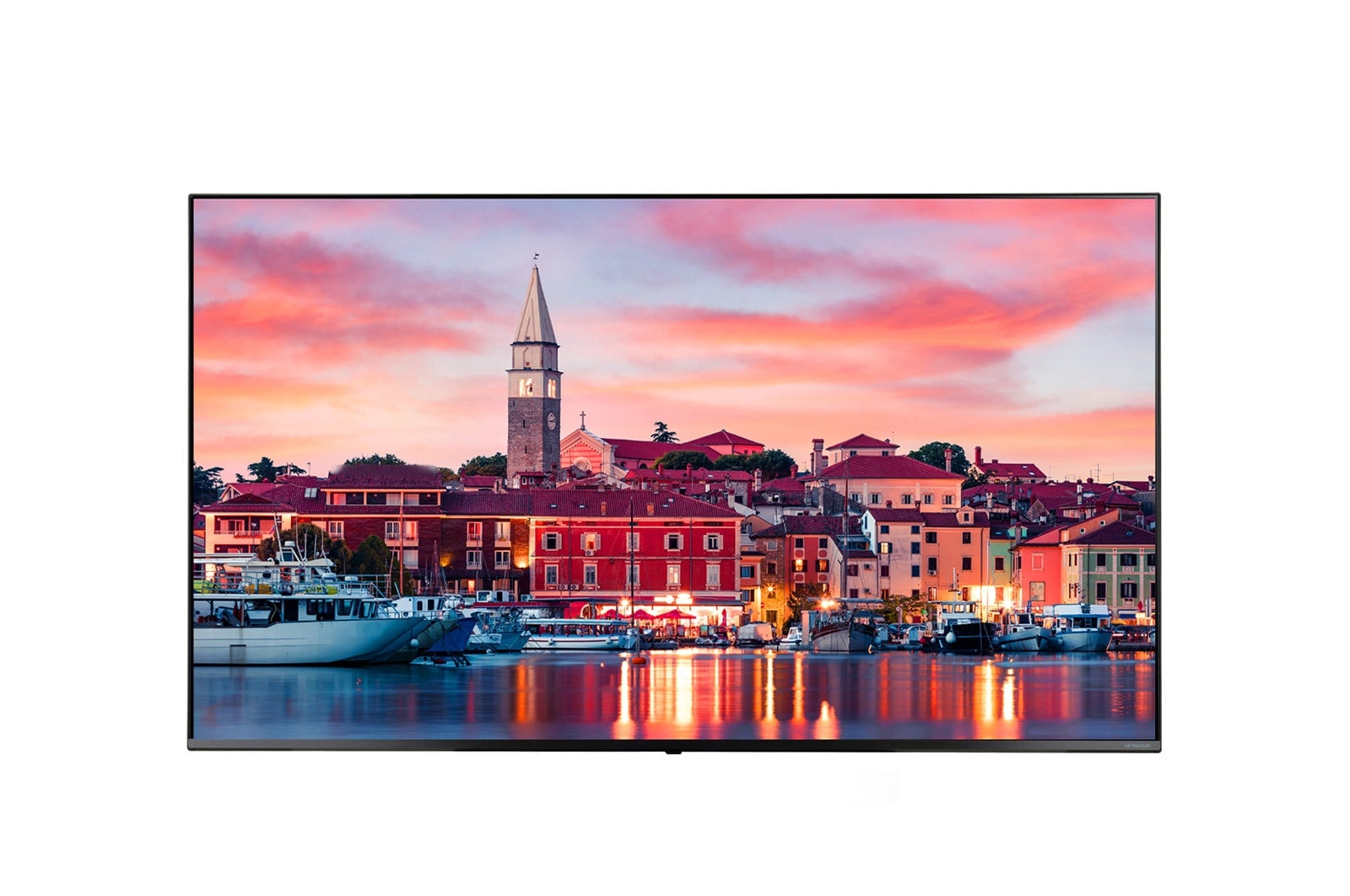

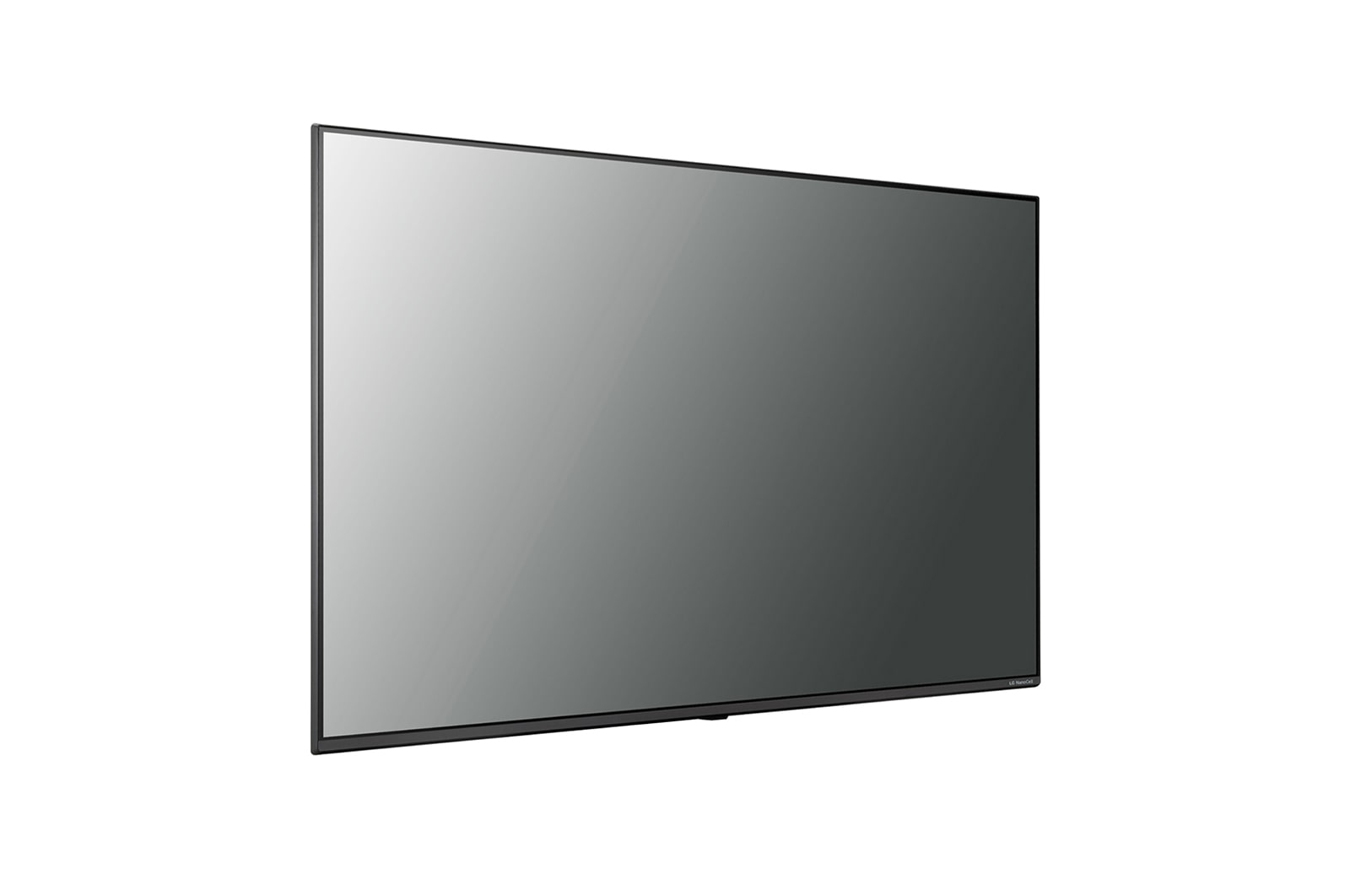

Front view with infill image

4K UHD Hospitality TV with Pro:Centric Direct

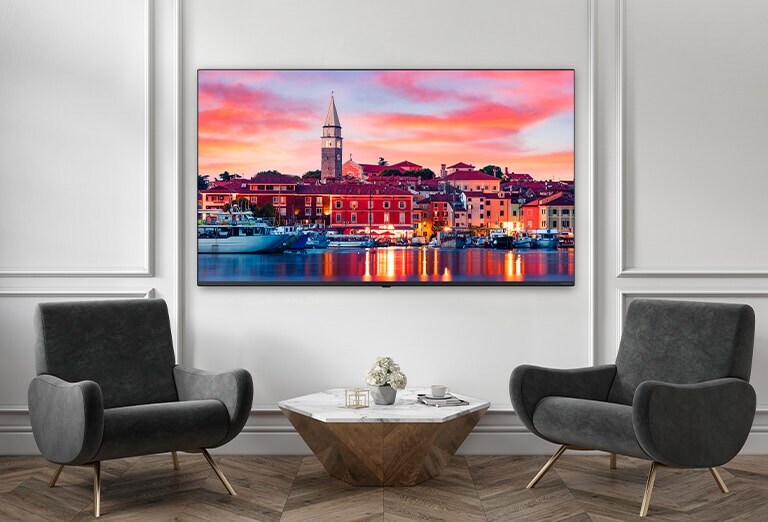

A TV hanging on the hotel wall shows a vivid and bright screen.

*65 inch.
* All images in this web page are for illustrative purposes only.

Pro:Centric Cloud

Pro:Centric Cloud improves the usability of enterprise's CMS solution and cloudification of system, reinforcing the service of 3rd party solution. It also offers various design templates, improving data collection and analytics platform with an eye-catching dashboard.

The woman is working through Pro:Centric Cloud.

Easily Accessible to Netflix Application With Pro:Centric Direct

Pro:Centric Direct, the easy and simple management solution for hotel content creates a memorable experience for your clients. Especially, the Netflix App can be activated by anyone with Pro:Centric Direct. Netflix Membership Required.

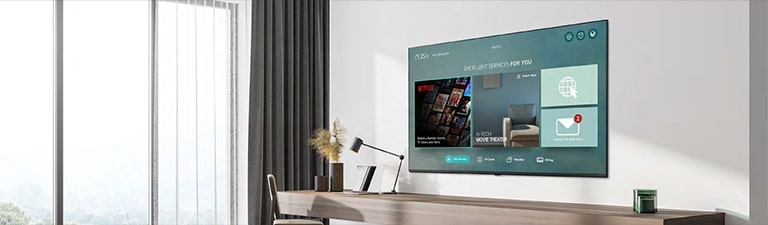

The hotel content including Netflix App is shown on TV inside the hotel room.

*webOS 5.0 only. *PMS required. *Available with Pro:Centric Cloud.

Pro:Centric Direct

The hotel content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management with a single click. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the room. The latest PCD version provides IoT-based inroom control as well as voice control function through LG Natural Language Processing (NLP). These IoT and voice-related functions will be your starting point to prepare for the hotel rooms of next generation through artificial intelligence.

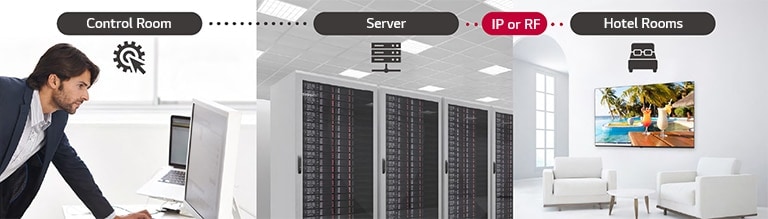

The man is managing the contents and settings of TV in the hotel using Pro:Centric Direct solution through a server.

*Some features may not be supported based on PCD versions.

Slim Bezel That Makes TV a Sophisticated Objet

UR762H series with a slim bezel is designed to blend into any interior and delivers an immersive viewing experience without any interruption.

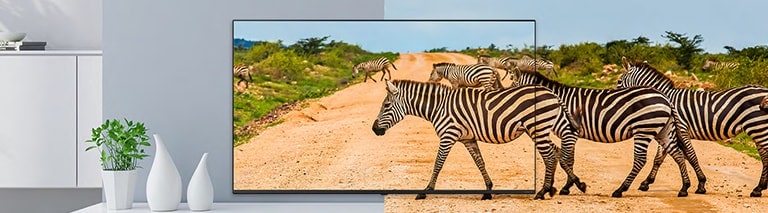

The TV with slim bezel shows the screen with realistic images to enhance viewer experience.

The TV is featuring SoftAP, which is a "virtual" Wi-Fi feature, to other TVs.

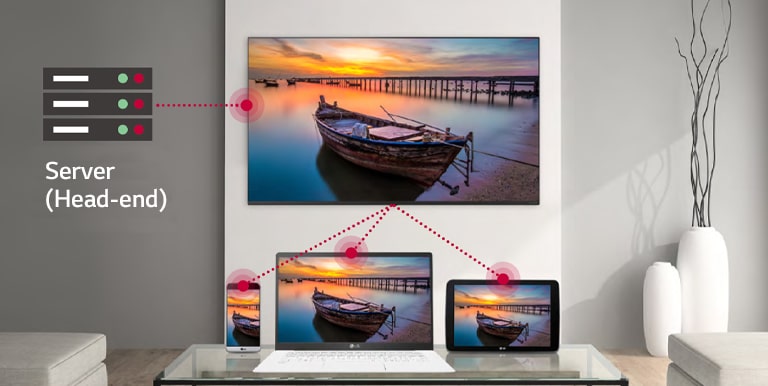

SoftAP

Software-enabled Access Point (SoftAP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling guests to connect their own devices to the SoftAP. It supports Bridge Mode, allowing administrators to manage in-room SoftAP information such as signal level, SoftAP passwords, etc.

*SoftAP should be set in the installation menu after the TV is turned on.
*Smart Mirroring may not be operated at the same time.

Listening to the music through TV speakers by connecting it with a cellphone through Bluetooth.

More Innovative LG webOS 5.0

Explore the latest LG Smart TV features, and discover TVs that deliver innovative technology, remarkable clarity, and true-tolife colors. Newly added Mood Display & Gallery Mode enable you to utilize the TV as a customized clock and an artwork which perfectly harmonizes with your space and life.

The TV is featuring SoftAP, which is a "virtual" Wi-Fi feature, to other TVs.

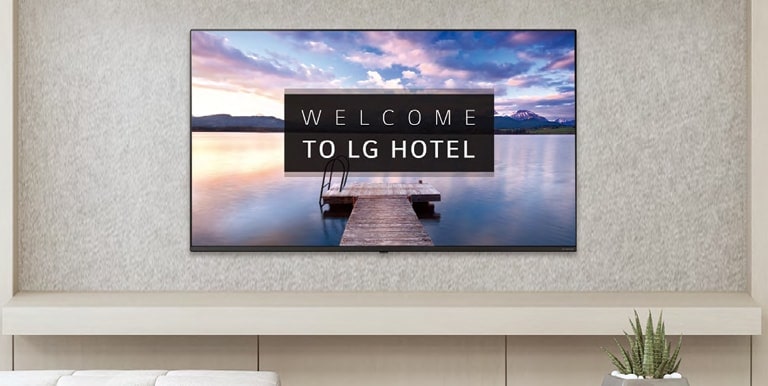

Welcome Video / Screen

With the capability to display several images, Commercial Lite TVs allow for a greater variation of greeting messages in hotel rooms which make customers feel more welcome and cared for.

Listening to the music through TV speakers by connecting it with a cellphone through Bluetooth.

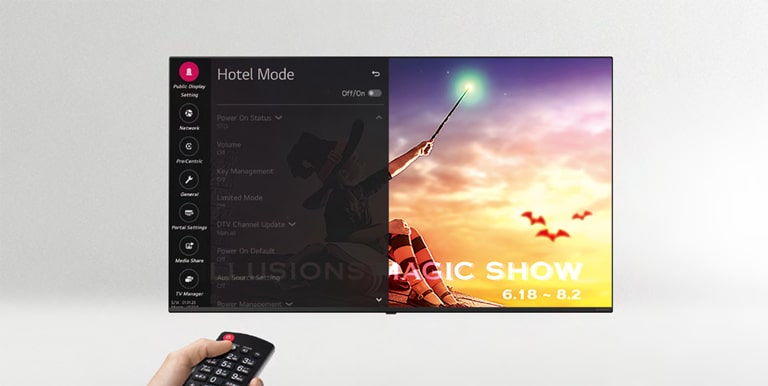

Hotel Mode (Public Display Mode)

From channel selection to volume level, you can control the TV settings in business areas. Public Display Mode also enables you to restore default settings, as required, on the TVs.

The TV is featuring SoftAP, which is a "virtual" Wi-Fi feature, to other TVs.

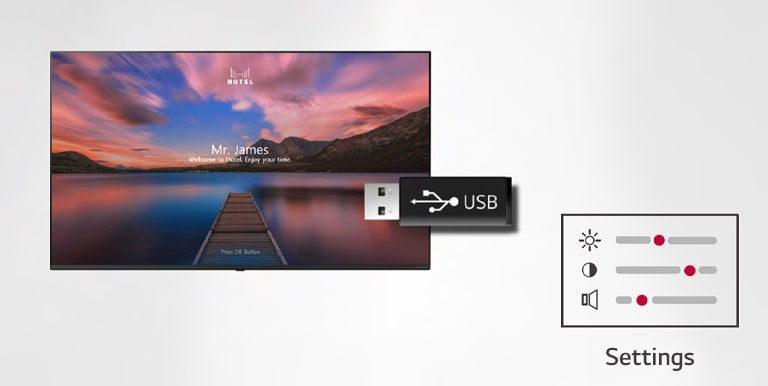

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display and can be sent to the other displays through a USB plug-in.

Listening to the music through TV speakers by connecting it with a cellphone through Bluetooth.

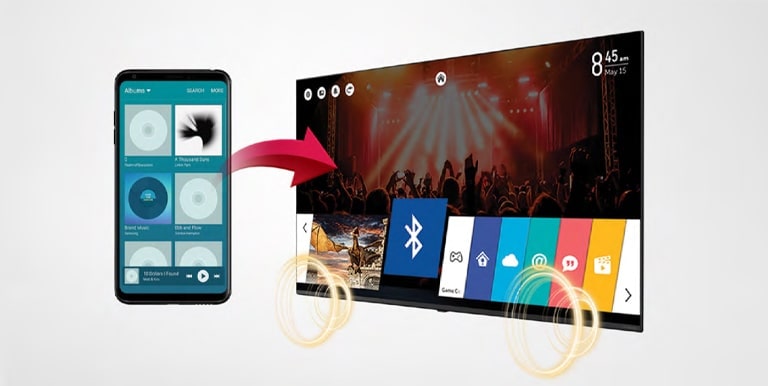

Bluetooth Sound Sync

Bluetooth Sound Sync enables users to listen to music on a mobile device through TV speakers via Bluetooth connection.

*Support devices for Bluetooth Sound Sync: Android (above v4.4 KitKat) / iOS based mobile device.

Print

All Spec

INFO

  • Category

    Pro:Centric Smart

DESIGN

  • Tool Name

    UP8000

  • Stand Type

    No Stand (For Accessory : 1Pole) * 32~55" : Swivel / Others : Fixed

  • Front Colour

    Ashed Blue

DISPLAY

  • Size (Inch)

    55

  • Resolution

    4K Ultra HD (3,840 x 2,160)

  • Brightness (Typ.)

    400 nit

VIDEO

  • HDR_HDR 10 Pro

    YES

  • HDR_HLG (Hybrid Log Gamma)

    YES

AUDIO (SOUND)

  • Speaker (Audio Output)

    20W

  • AI Sound

    YES

  • AI Acoustic Tuning

    YES (Ready, MMR Required)

  • LG Sound Sync

    YES

BROADCASTING SYSTEM

  • Digital

    DVB-T2/C/S2

  • Analog (NTSC / SECAM / PAL)

    SECAM / PAL

  • Teletext (Auto Teletext)

    YES

HOSPITALITY SOLUTION

  • Pro:Centric Smart

    YES

  • webRTC (Real Time Communication)

    YES

  • Pro:Centric Cloud

    YES

  • Pro:Centric Direct

    YES

  • Pro:Centric V

    YES

  • Pro:Centric Server

    YES

  • Quick Menu (Customizable Portal)

    YES

  • Pro:Idiom (DRM)

    YES

  • Pro:Idiom Media (DRM)

    YES

SMART FUNCTION

  • webOS version

    webOS 5.0

  • Web Browser

    YES

  • Magic Remote Compatibility

    YES (Ready)

  • Mood Display

    YES

  • Gallery Mode

    YES

  • Wi-Fi

    YES

  • Bluetooth

    YES

  • Soft AP

    YES

  • Screen Share

    YES

  • DIAL

    YES

  • Bluetooth Audio Playback

    YES

  • HDMI-ARC

    YES (HDMI2)

  • Voice Recognition (Standalone/Solution)

    YES

  • IoT

    YES

  • The security update is supported for

    5 years from the product launch date stated at https://lgsecurity.lge.com/bulletins/idproducts

HOSPITALITY FEATURE

  • EzManager

    YES

  • USB Cloning

    YES

  • Wake on RF

    YES

  • WOL

    YES

  • SNMP

    YES

  • Diagnostics

    YES (IP Remote)

  • HTNG-CEC (Version)

    YES (1.4)

  • Simplink(HDMI-CEC) (Version)

    YES (1.4)

  • IR Out

    YES (RS-232C, HDMI)

  • Multi IR Code

    YES

  • Hotel Mode / PDM / Installer Menu

    YES

  • Welcome Video

    YES

  • Welcome Screen (Splash Image)

    YES

  • Insert Image

    YES

  • One Channel Map

    YES

  • External Speaker Out / Line Out

    YES (Line Out)

  • Instant ON

    YES

  • V-Lan Tag

    YES

  • Port Block

    YES

  • Lock mode

    YES (Limited)

  • RJP (Remote Jack Pack) Compatibility

    YES

  • Conformal Coating

    YES

  • Energy Saving mode

    YES

VERTICAL FUNCTION (HOSPITAL)

  • Healthcare Headphone Mode

    YES

VERTICAL FUNCTION (CORPORATE/RETAIL)

  • RTC (Real Time Clock)

    YES

  • NTP sync timer

    YES

  • BEACON

    YES

  • Video Tag

    YES (2 Video)

CONNECTIVITIES

  • HDMI In

    YES (x3)

  • USB (Ver.)

    YES (x2 / 2.0)

  • RF In

    YES (x2)

  • Digital Audio Out (Optical)

    YES

  • Audio Line Out(3.5mm Phone jack)

    YES

  • Headphone out

    YES

  • CI Slot

    YES (CI+ 1.4 ECP)

  • RJ45 (Usage Purpose)

    2 (Ethernet, Aux)

  • RS-232C (D-Sub 9pin / Phone jack)

    YES (Phone jack)

MECHANICAL

  • VESA Compatible

    300 x 300 mm

  • Kensington Lock

    YES

  • Credenza/Security Screw Hole

    YES (Need Stand)

  • Lock Down Plate (for easy installing )

    YES (Need Stand)

DIMENSIONS/WEIGHT

  • Dimension without Stand (W x H x D)

    1235 x 715 x 57.5 mm

  • Dimension in Shipping (W x H x D)

    1360 x 810 x 162 mm

  • Bezel Width (L/R/U/B, On Bezel)

    12.8/12.8/12.8/19.9 mm

  • Bezel Width (L/R/U/B, Off Bezel)

    6.9/6.9/6.9/18.4 mm

  • Weight without Stand

    14.0 kg

  • Weight in Shipping

    18.8 kg

POWER SPEC.

  • Power Supply (Voltage, Hz)

    AC 100~240V 50/60Hz

  • Power Consumption(Max)

    160W

  • Power Consumption(Typ)

    135W

  • Standby Power Consumption

    Under 0.5W

STANDARD

  • Safety

    CB, CU TR

  • EMC

    CE

STANDARD (EU_OLD LABEL(~`21.3))

  • ErP Class

    A++

  • On Power Consumption

    55W

  • Luminance Ratio (%)

    65

  • Average Annual Consumption(kWh)

    76.3

STANDARD (EU_NEW LABEL(`21.3~))

  • SDR Grade

    F

  • SDR On mode

    84W

  • HDR Grade

    G

  • HDR On mode

    115W

ACCESSORIES

  • Remote type

    S-Con / MMR (Option)

  • Power Cable

    YES (1.5M / Straight)

COMPLIANCE INFORMATION

MORE COMPLIANCE INFORMATION
The safety information for accessories is included with the safety information for the product and is not provided separately.
