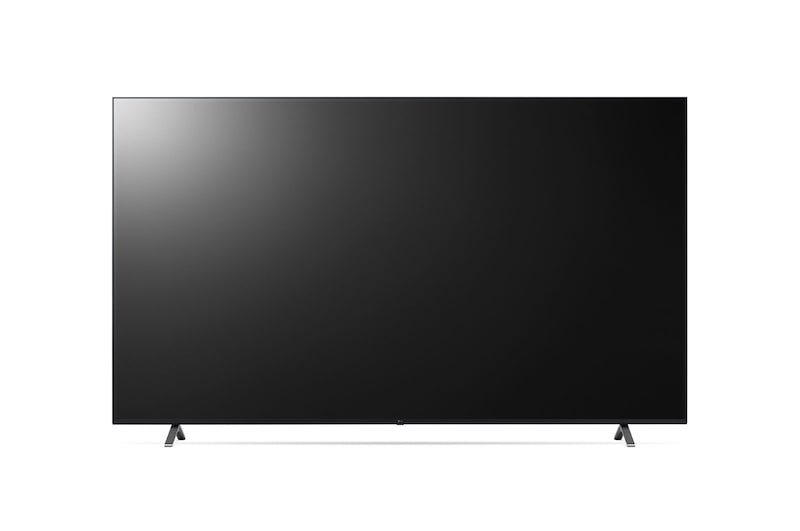

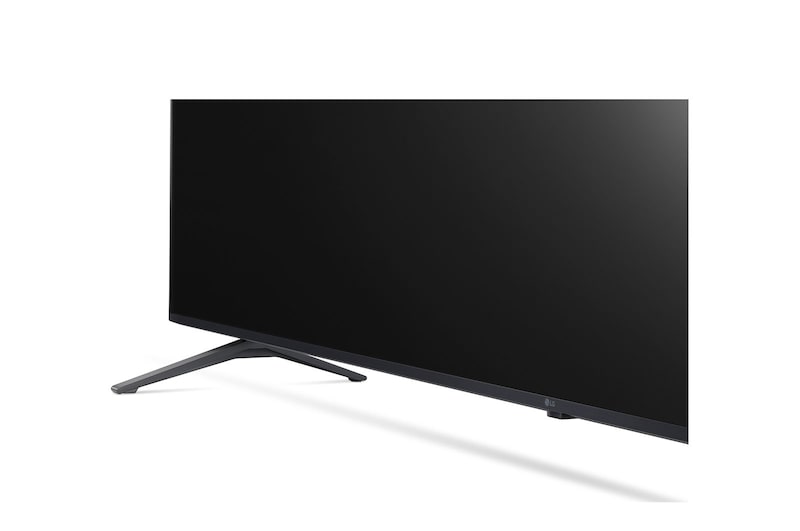

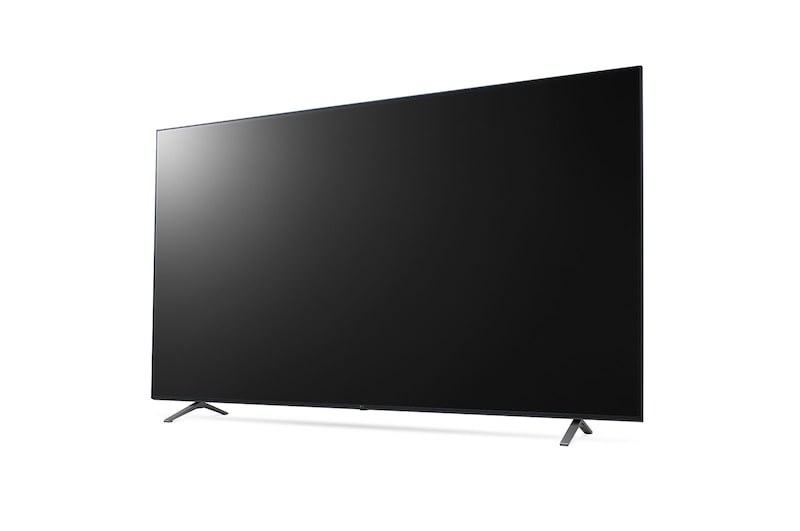

86UN640S0LD

86" UHD TV Signage |  86UN640S0LD

LG TV Signage with
Essential Function

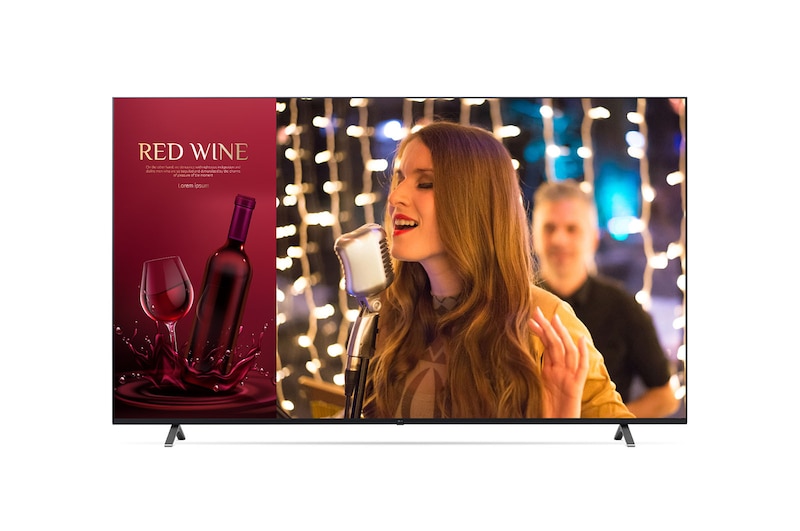

Two displays are installed in the luxurious wine bar. One shows a concert scene, and the other displays two images in one screen showing both a red wine commercial advertisement and a female singer singing.

* All images in this web page are for illustrative purposes only.

Presenting a vivid and lively content with ULTRA HD's high screen resolution.

Superb Picture Quality with Ultra HD Resolution

With the resolution that is 4 times higher than FHD, it makes the colour and details of the contents more vivid and realistic.

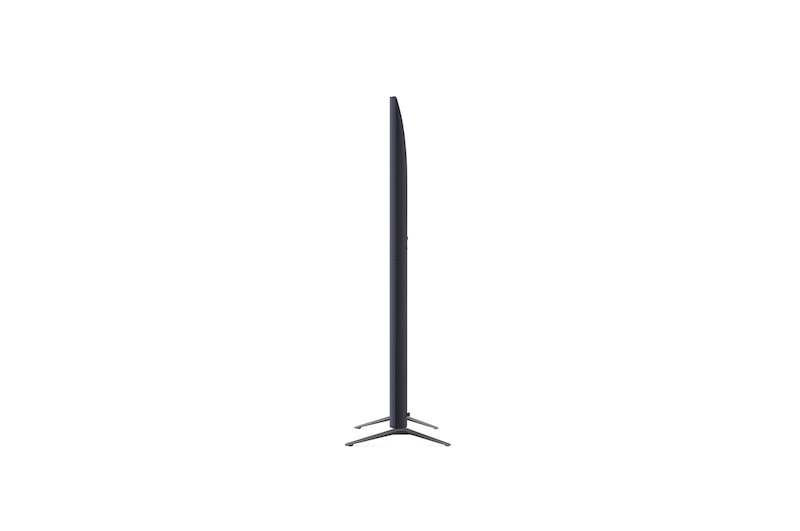

UR640 series is slimmer in depth in comparison to the LG Conventional model.

Improved Design with Slim Depth

This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue colour improves the décor of the space where the product is installed.



* 'LG Conventional' refers to LG UT640S series.

High-Performance with
LG webOS22

LG webOS22, with an upgraded SoC* and web engine, is available on the UN640S series for the easy execution of several tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI.**

High-Performance with<br>LG webOS221

* SoC : System On Chip.
** GUI : Graphical User Interface.

Embedded Content &
Group Management

The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly.

Set the playlist and the time scheduling with a remote controller easily using display embedded content management function. Group management is supervised in Master display, Group 1, and Group 2 displays.

Versatile Content Management
with LG SuperSign CMS

LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices.

Multiple Admins may access LG SuperSign CMS via PC, laptop, tablet, and mobile devices to create, regulate, and distribute digital media content tailored to a diverse range of displays.

* LG SuperSign CMS is sold separately.

Conveniently manage a variety of displays using LG SuperSign Control.

Easy Group Control

The UN640S series supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported.

There are one in the meeting rooms with the signage and one of AV control system which helps users control the UN640S series.

Compatible with AV Control Systems

The UN640S series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.



* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control.

It only turns on when there is signal and turns off when there is not any signal in DPM Mode.

Display Power Management Support

Display Power Management (DPM) can be configured to be On only when there is a TV signal present to manage power more efficiently.

The store manager is offering coupons to customers via Bluetooth. On the other side, menus are promoted from mirroring a mobile phone screen on a big screen installed on the wall of the store via Wi-Fi. UR640S series is on the wall and a woman is using a personal PC and mobile phone. This image shows that the signage can operate as a virtual router so that the PC and mobile can be connected on the display to get wireless access.

Real-Time Promotion

With Beacon and Bluetooth® Low Energy (BLE), shop managers can provide coupons and information in real-time.

Content Sharing

Content Mirroring among devices is available on a same Wi-Fi network.

Wireless Access Point

UN640S series operates as a virtual router which can be an wireless access point for mobile devices.

Most frequently used menus are categorized per industry in display menu. The left shows menus for &quot;Corporate / Government / Retail&quot; and the right menus is for &quot;Meeting Room&quot;

Easy Menu Setup for Vertical Needs

UN640S series increases users' convenience by organizing frequently used menus* by industry.



* Pre-set Support Vertical : Corporate / Government / Retail, Meeting room

Real-Time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

The LG employee is remotely monitoring the UR640S series installed in a different place by using cloud-based LG monitoring solution.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

Easy Transportation with
LG Universal Stand

The LG TV signage can be used anywhere indoors where it can be easily wheeled around. From a retail store to public lounge, it plays various roles according to each need such as advertising, sports broadcasting, information delivery, and more.

The LG universal stand is applied to the LG TV signage.

* The stand is sold separately. (ST-860F).
** The product needs to be plugged into the appropriate power source to operate.
*** The image is created based on the 86UR640S model.

      All Spec

      INFO

      • Category

        Smart TV Signage

      DESIGN

      • Tool Name

        UP8000

      • Stand Type

        2 Pole

      • Front Colour

        Ashed Blue

      DISPLAY

      • Size (Inch)

        86

      • Resolution

        4K Ultra HD (3,840 x 2,160)

      • Brightness (Typ.)

        330 nit

      VIDEO

      • HDR_HDR 10 Pro

        YES

      • HDR_HLG (Hybrid Log Gamma)

        YES

      AUDIO (SOUND)

      • Speaker (Audio Output)

        20W

      • LG Sound Sync

        YES

      BROADCASTING SYSTEM

      • Digital

        DVB-T2/C/S2

      • Analog (NTSC / SECAM / PAL)

        SECAM / PAL

      • Teletext (Auto Teletext)

        YES

      STANDARD

      • Safety

        CB, CU TR

      • EMC

        CE

      SMART FUNCTION

      • webOS version

        webOS 22

      • Web Browser

        YES

      • Mood Display

        YES

      • Wi-Fi

        YES

      • Bluetooth

        YES

      • Soft AP

        YES

      • Screen Share

        YES

      • DIAL

        YES

      • Bluetooth Audio Playback

        YES

      • HDMI-ARC

        YES (HDMI2)

      HOSPITALITY FEATURE

      • USB Cloning

        YES

      • WOL

        YES

      • SNMP

        YES

      • Diagnostics

        YES (Self Diagnostics(USB))

      • HTNG-CEC (Version)

        YES (1.4)

      • Simplink(HDMI-CEC) (Version)

        YES (1.4)

      • IR Out

        YES (RS-232C, HDMI)

      • Multi IR Code

        YES

      • Hotel Mode / PDM / Installer Menu

        YES

      • Welcome Screen (Splash Image)

        YES

      • Insert Image

        YES

      • One Channel Map

        YES

      • External Speaker Out / Line Out

        YES (Ext. Speaker Out)

      • Port Block

        YES

      • Lock mode

        YES (Limited)

      • RJP (Remote Jack Pack) Compatibility

        YES

      • Energy Saving mode

        YES

      VERTICAL FUNCTION (CORPORATE/RETAIL)

      • Vertical Setup

        YES

      • Fail Over

        YES

      • Play Via URL

        YES

      • NTP Server Setting

        YES

      • Crestron Certi. Compatibility

        YES

      • DPM (Digital Power Management)

        YES

      • Time scheduler

        YES

      • RTC (Real Time Clock)

        YES

      • NTP sync timer

        YES

      • BEACON

        YES

      • Embedded CM (Contents Manager)

        YES

      • Embedded GM (Group Manager)

        YES

      SUPERSIGN SW COMPATIBILITY

      • Control / Control Plus

        YES

      • CMS(Premium)

        YES

      • LG Connected Care

        YES

      CONNECTIVITIES

      • HDMI In

        YES (3ea)

      • USB (Ver.)

        YES (1ea / 2.0)

      • RF In

        YES (2ea)

      • Digital Audio Out (Optical)

        YES

      • External Speaker Out(3.5mm Phone jack)

        YES

      • Headphone out

        YES

      • CI Slot

        YES (CI+ 1.4 ECP)

      • RJ45 (Usage Purpose)

        1 (LAN)

      • RS-232C (D-Sub 9pin / Phone jack)

        YES (Phone jack)

      • LG SVC only (Phone jack type)

        YES

      MECHANICAL

      • VESA Compatible

        600 x 400 mm

      • Kensington Lock

        YES

      DIMENSIONS/WEIGHT

      • Dimension with Stand (W x H x D)

        1927 x 1167 x 362 mm

      • Dimension without Stand (W x H x D)

        1927 x 1104 x 59.9 mm

      • Dimension in Shipping (W x H x D)

        2115 x 1215 x 228 mm

      • Bezel Width (L/R/U/B, On Bezel)

        15.9/15.9/15.9/19.9 mm

      • Bezel Width (L/R/U/B, Off Bezel)

        6.9/6.9/6.9/18.4 mm

      • Weight with Stand

        45.9 kg

      • Weight without Stand

        45.2 kg

      • Weight in Shipping

        58.4 kg

      POWER SPEC.

      • Power Supply (Voltage, Hz)

        AC 100~240V 50/60Hz

      • Power Consumption(Max)

        340W

      • Power Consumption(Typ)

        312W

      • Standby Power Consumption

        Under 0.5W

      STANDARD (EU_OLD LABEL(~`21.3))

      • ErP Class

        A++

      • On Power Consumption

        95W

      • Luminance Ratio (%)

        65

      • Average Annual Consumption(kWh)

        132

      STANDARD (EU_NEW LABEL(`21.3~))

      • SDR Grade

        G

      • SDR On mode

        160W

      • HDR Grade

        G

      • HDR On mode

        232W

      ACCESSORIES

      • Remote type

        S-Con

      • Power Cable

        N/A (Attached)
